Distance Control Ecu Power Source Circuit: Wiring Diagram

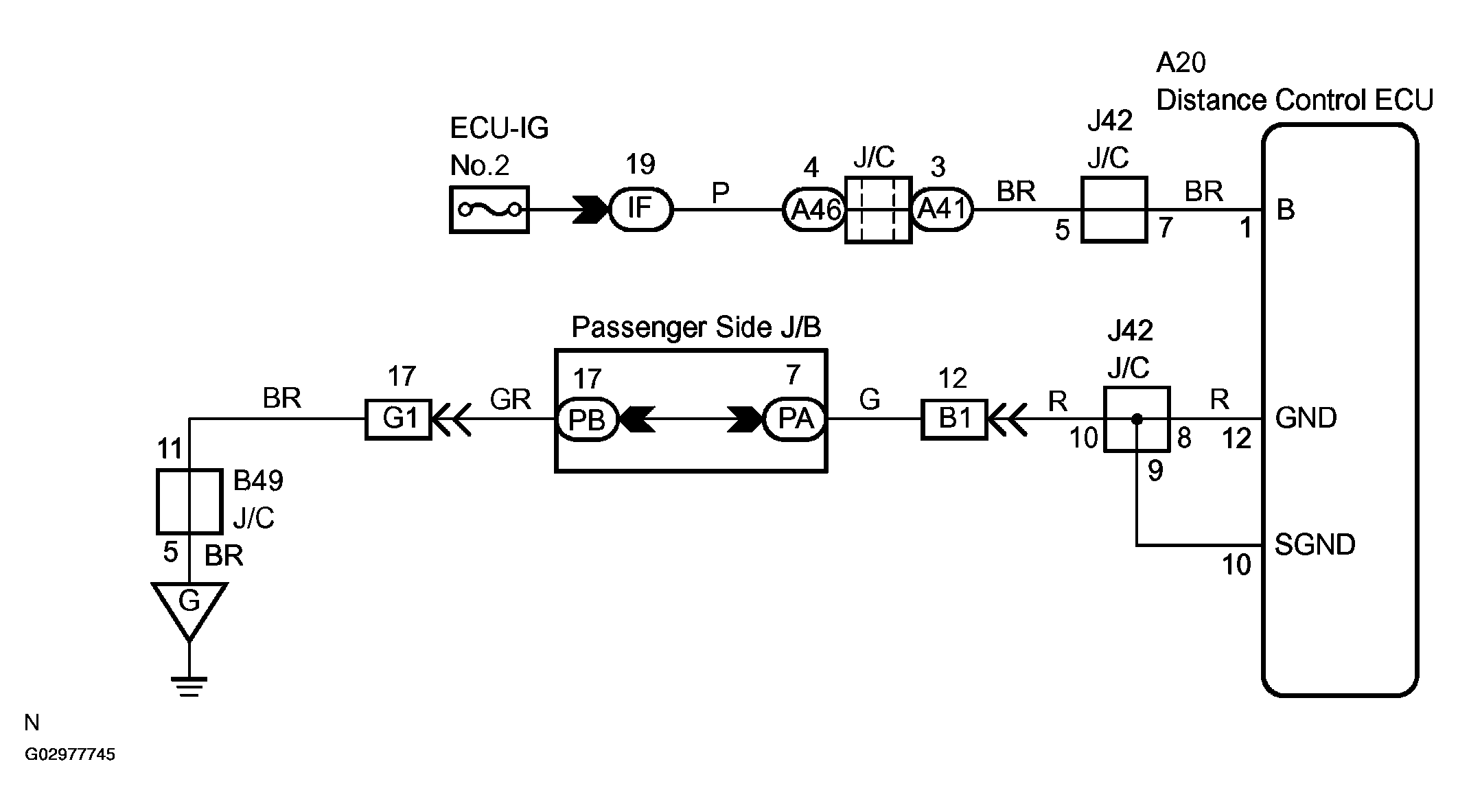

Fig 1: Distance Control ECU Power Source Circuit - Wiring Diagram

G02977745

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
