Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
Ignition System
>>
Preparation
>>
Power Steering
>>
Preparation
>>
SST
>>
Notes
Power Steering: Preparation: SST: Notes

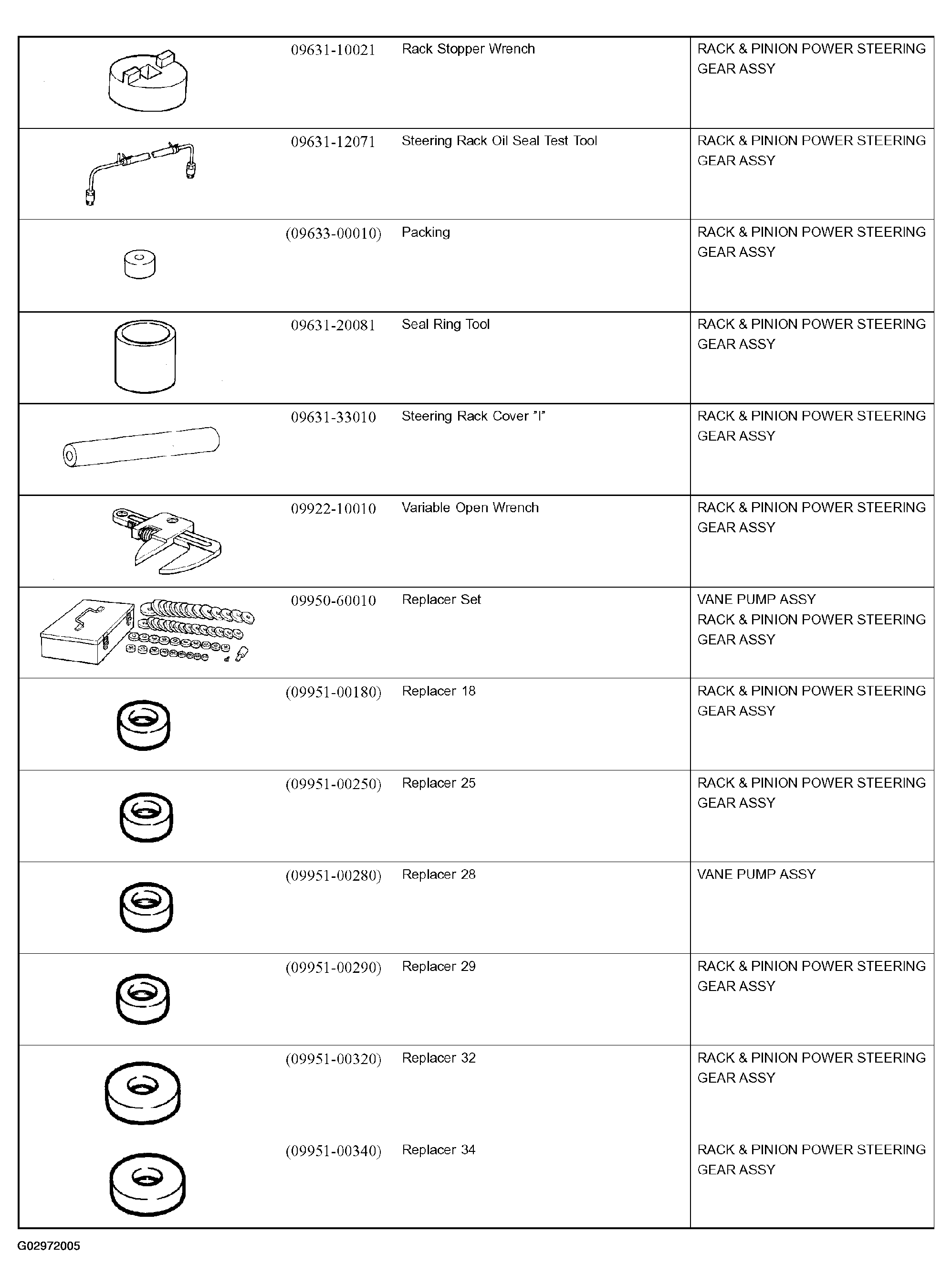

Fig 1: Identifying SST Tool (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

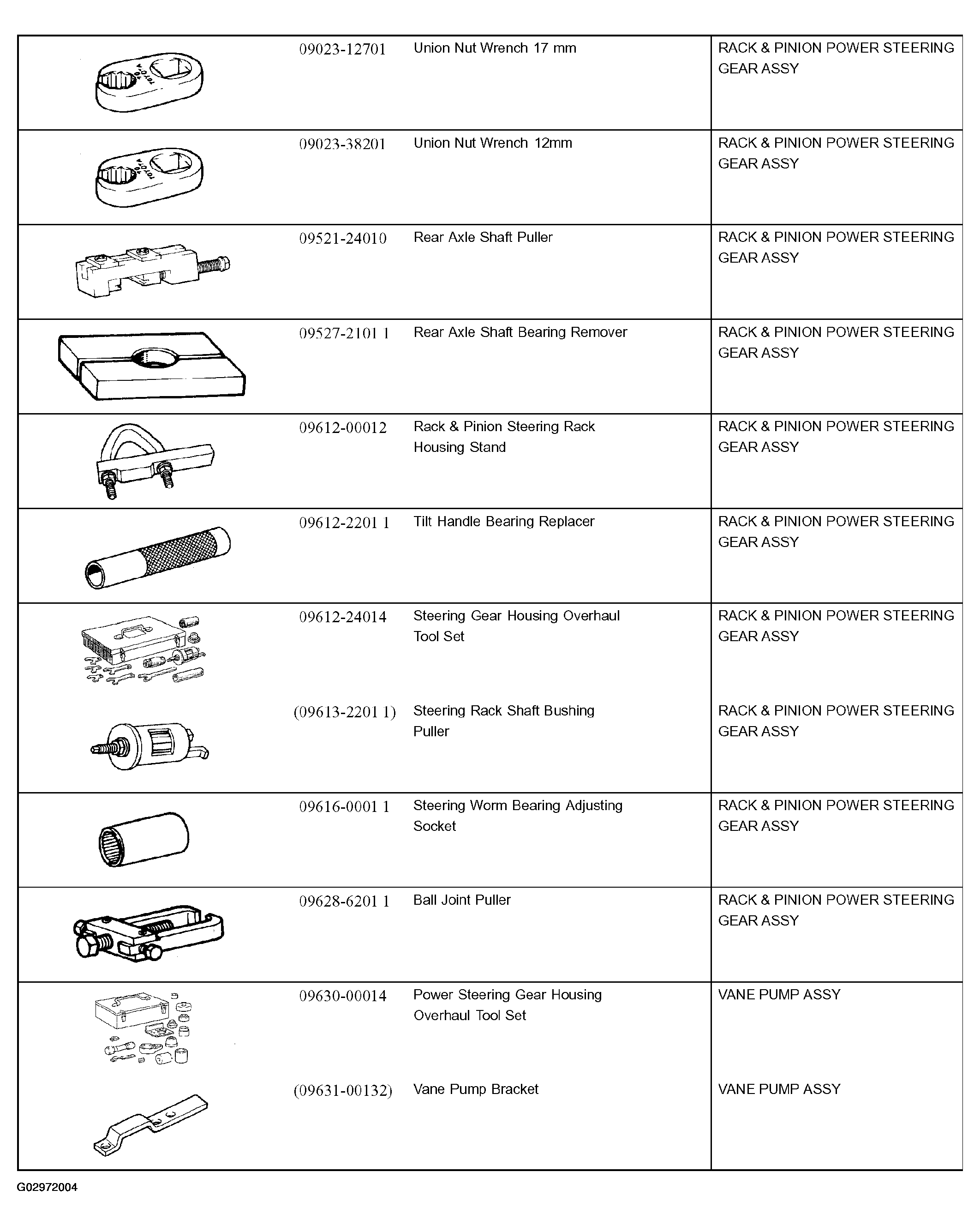

Fig 2: Identifying SST Tool (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

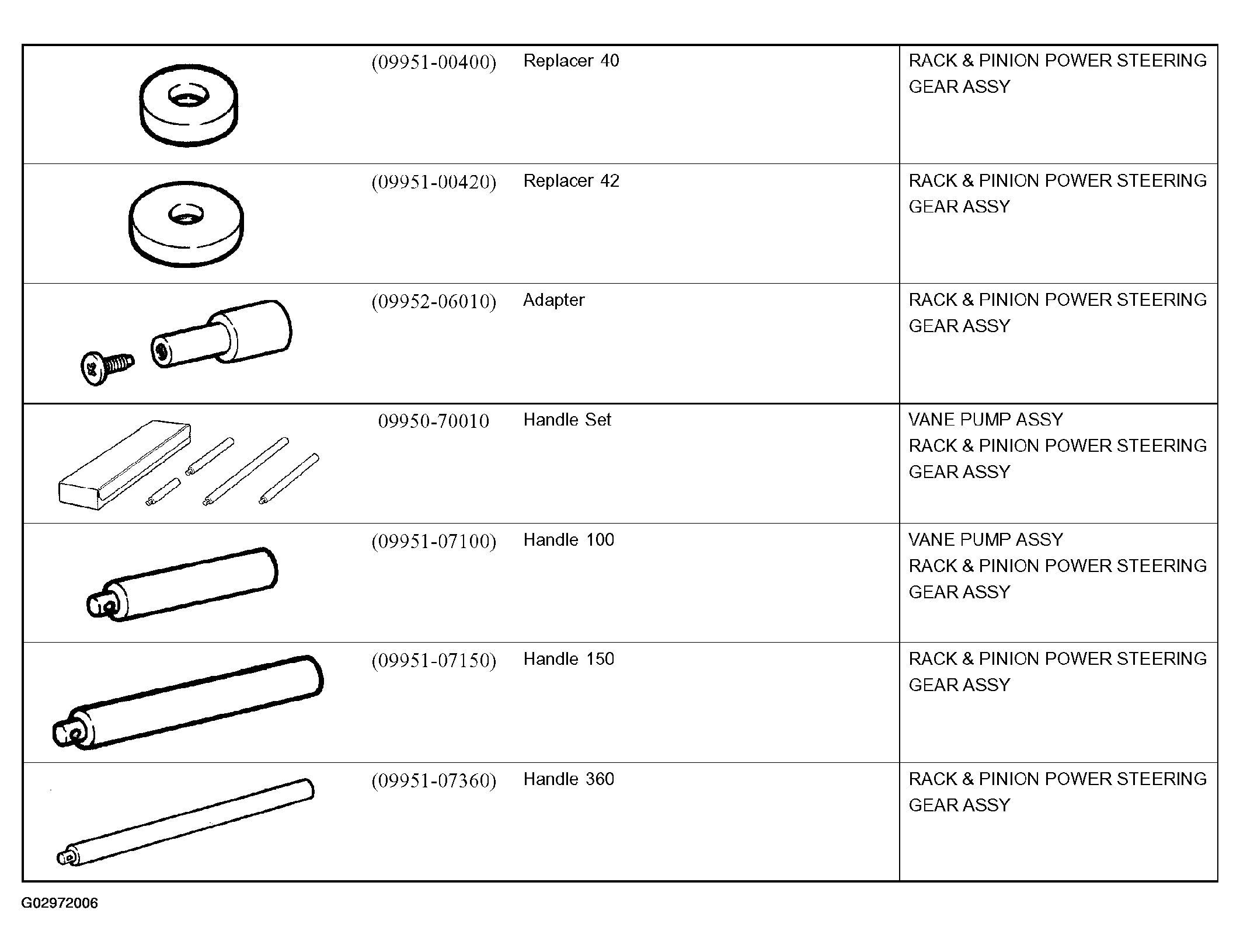

Fig 3: Identifying SST Tool (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
