Ignition System: Preparation: Differential: Preparation: SST

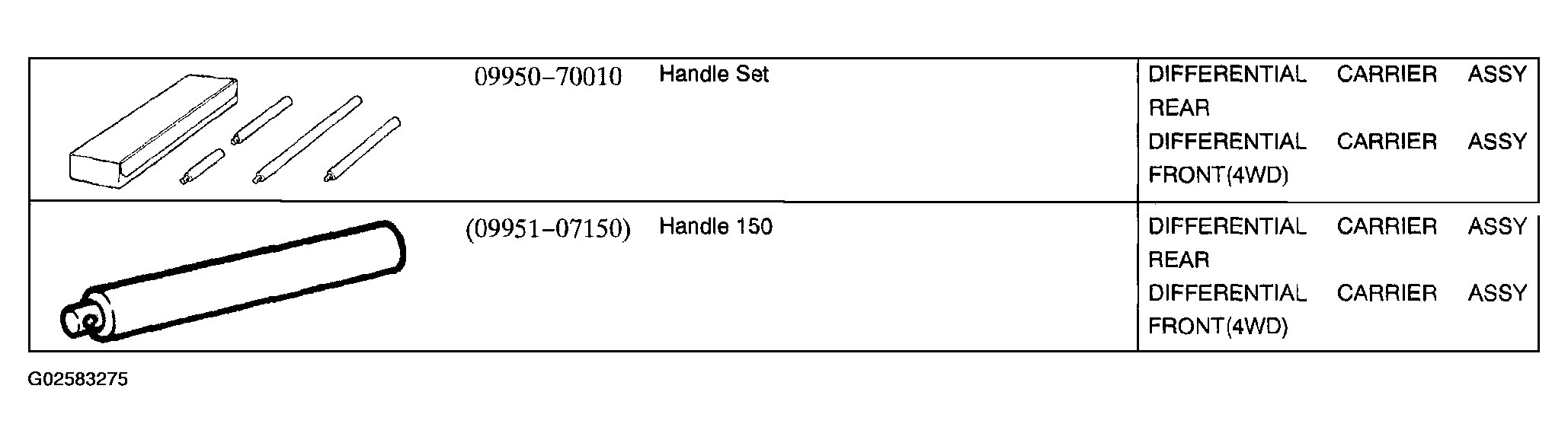

Fig 1: Identifying SST Tool - Differential (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

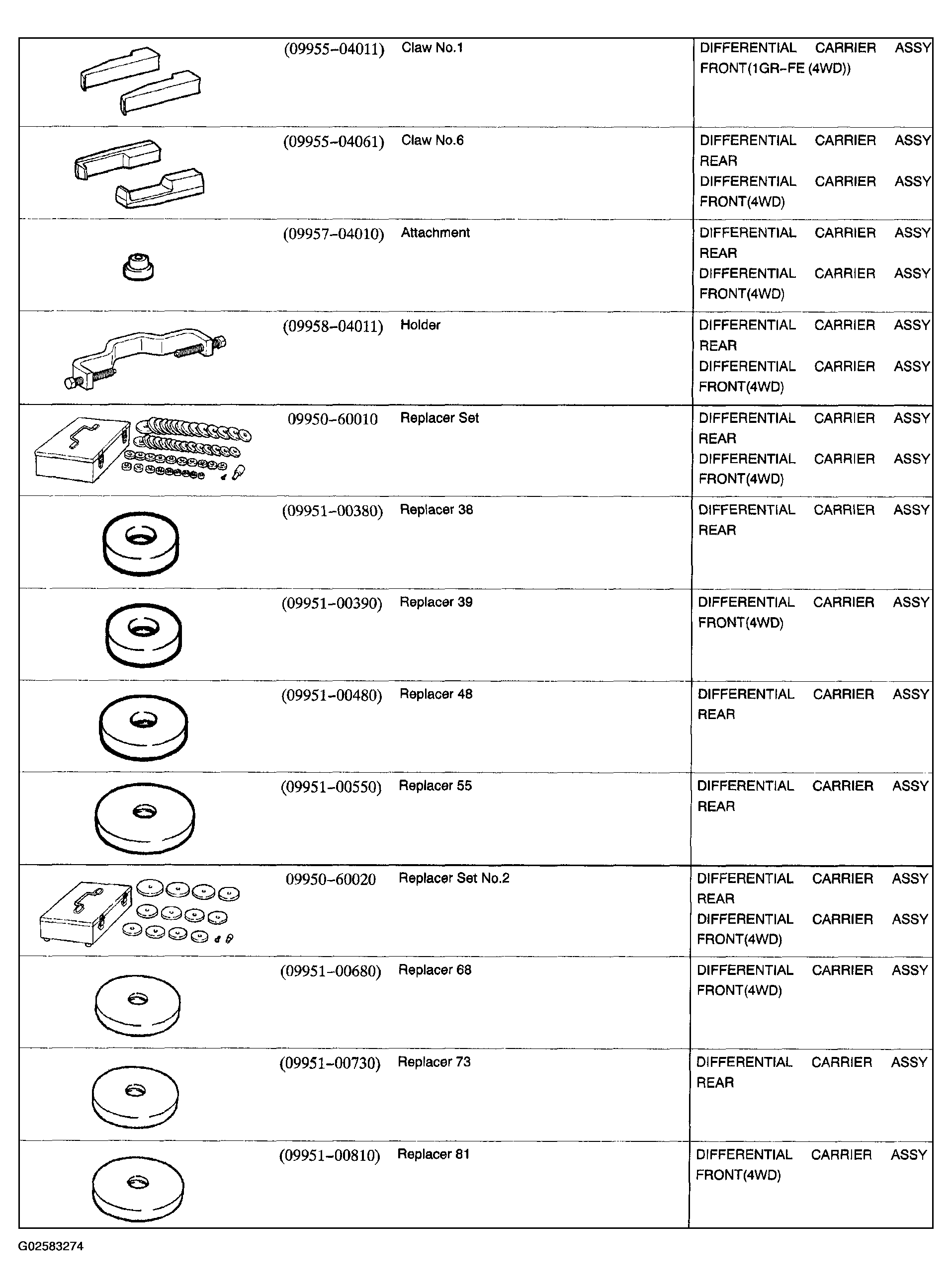

Fig 2: Identifying SST Tool - Differential (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

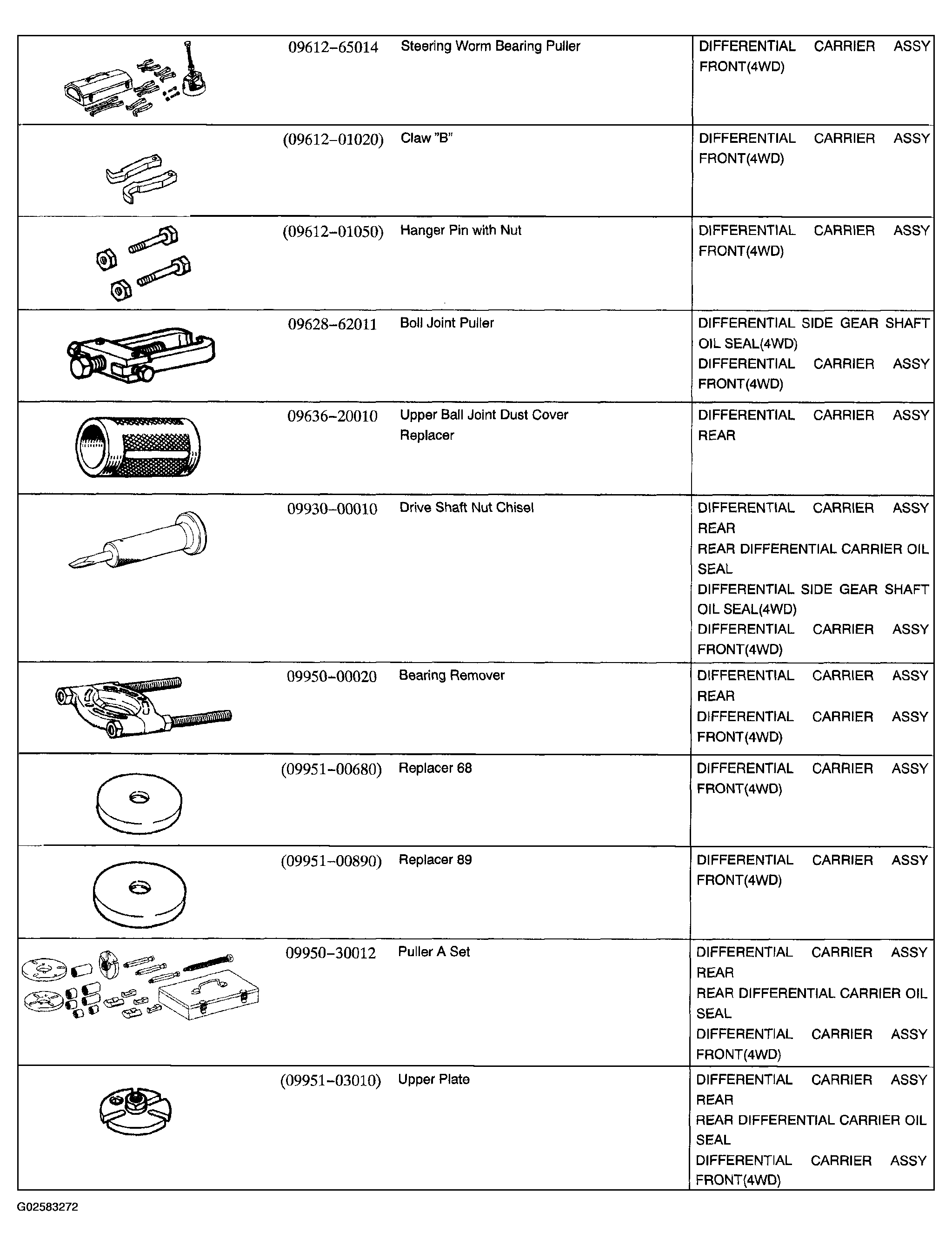

Fig 3: Identifying SST Tool - Differential (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

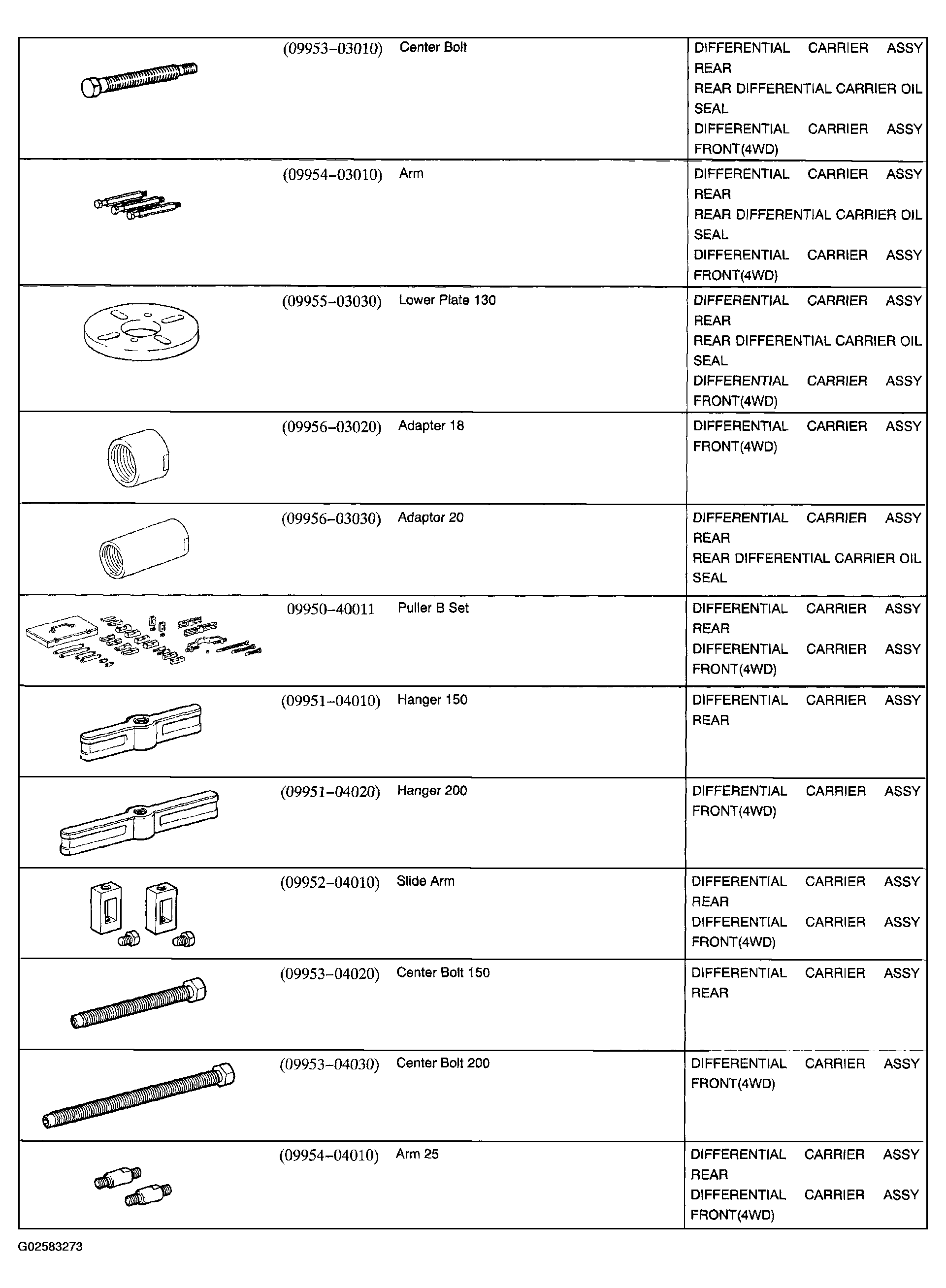

Fig 4: Identifying SST Tool - Differential (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

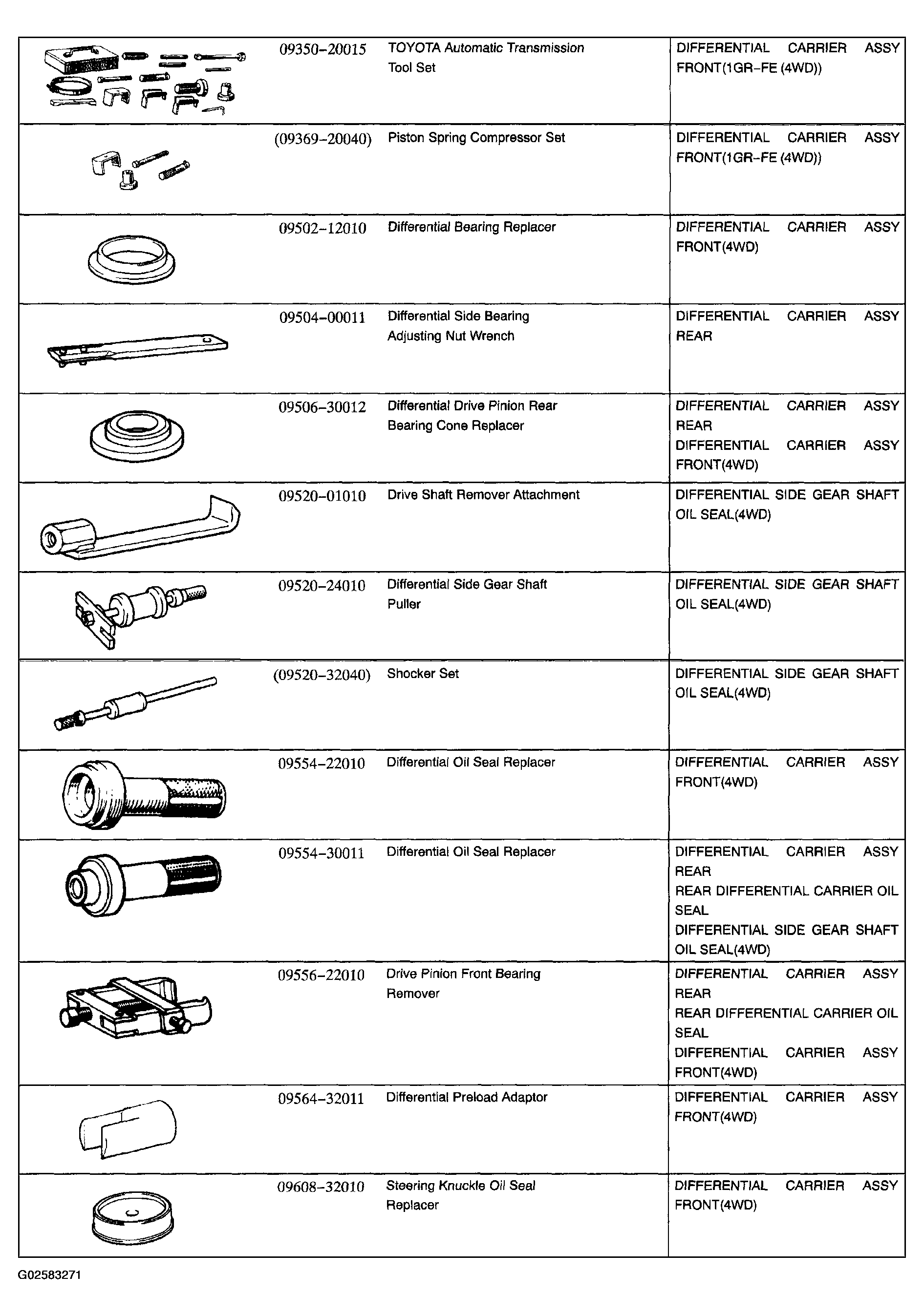

Fig 5: Identifying SST Tool - Differential (5 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

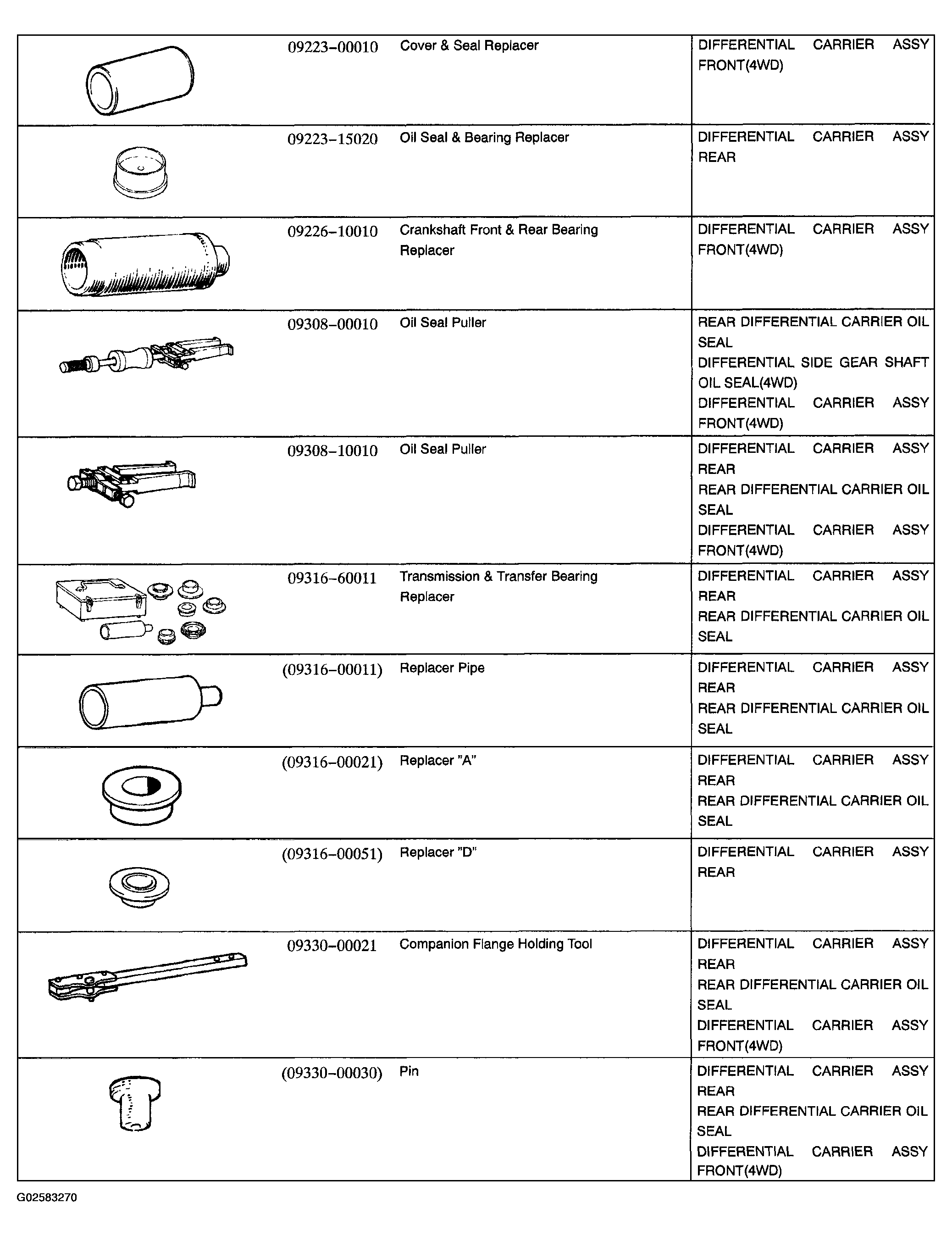

Fig 6: Identifying SST Tool - Differential (6 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
