Throttle W/Motor Body ASSY (2UZ-FE): Components

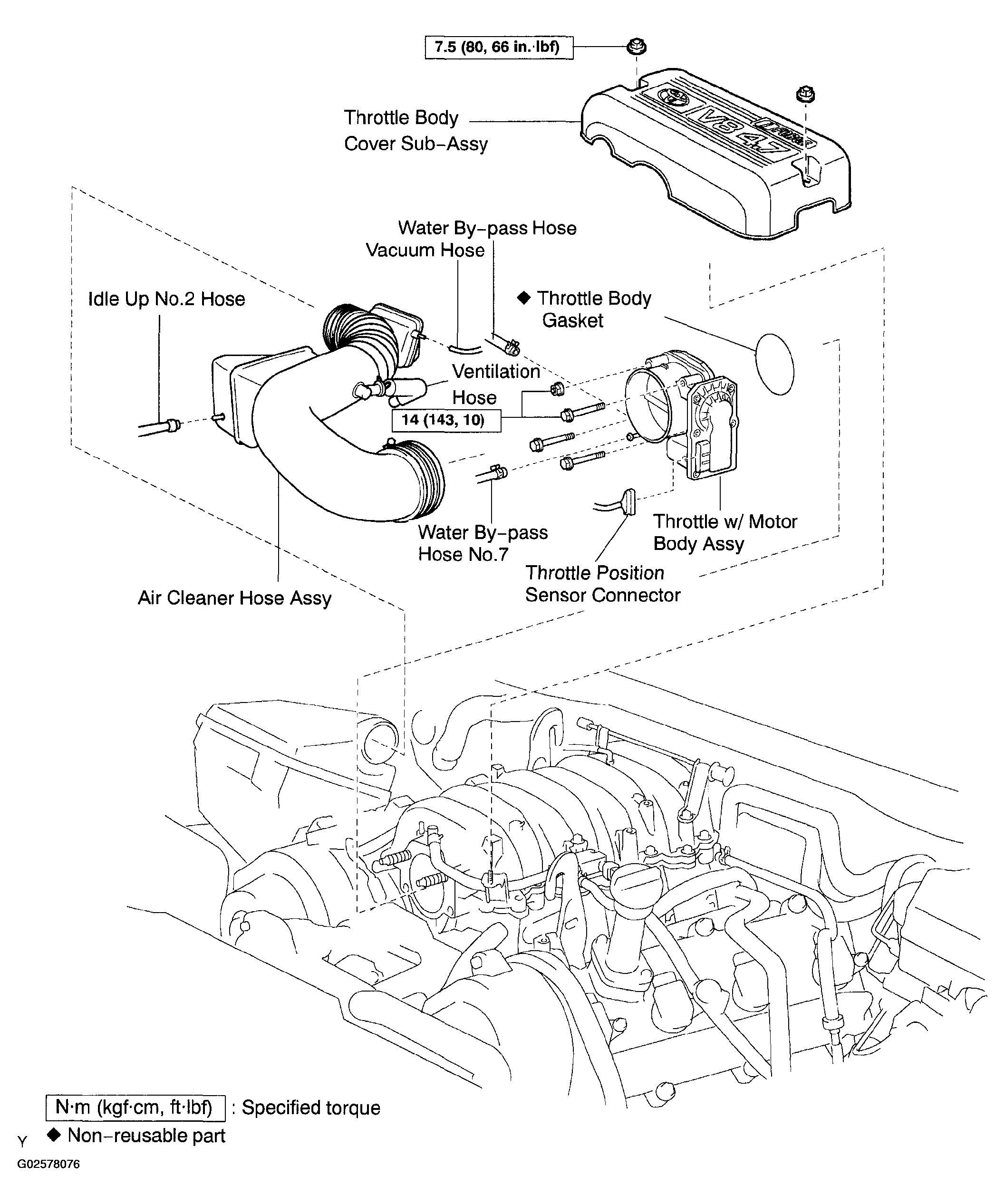

Fig 1: Identifying Throttle W/Motor Body Components (2UZ-FE)

G02578076

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
