Ignition System: Preparation: Transfer: Preparation: SST

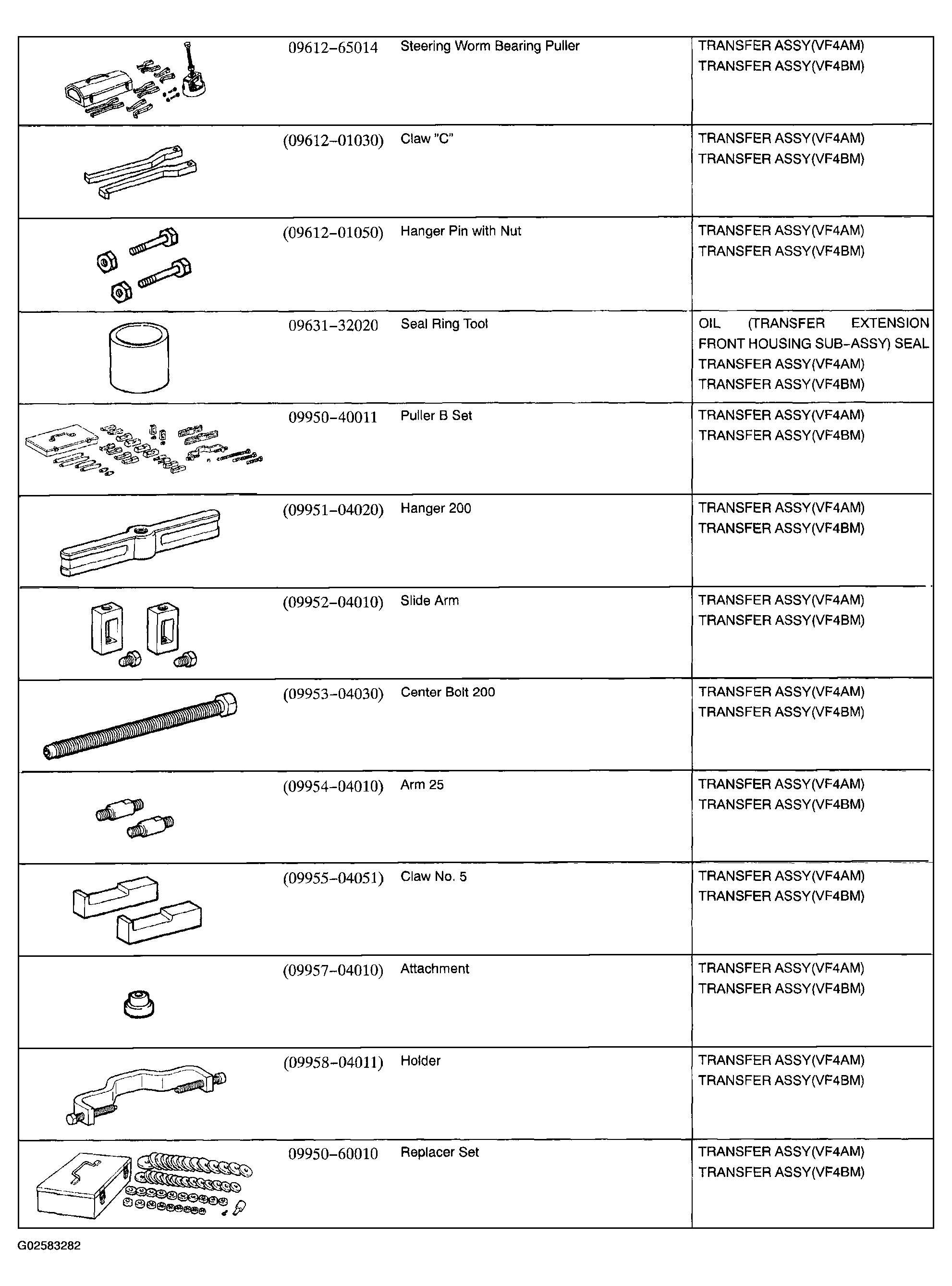

Fig 1: Identifying SST Tool - Transfer (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

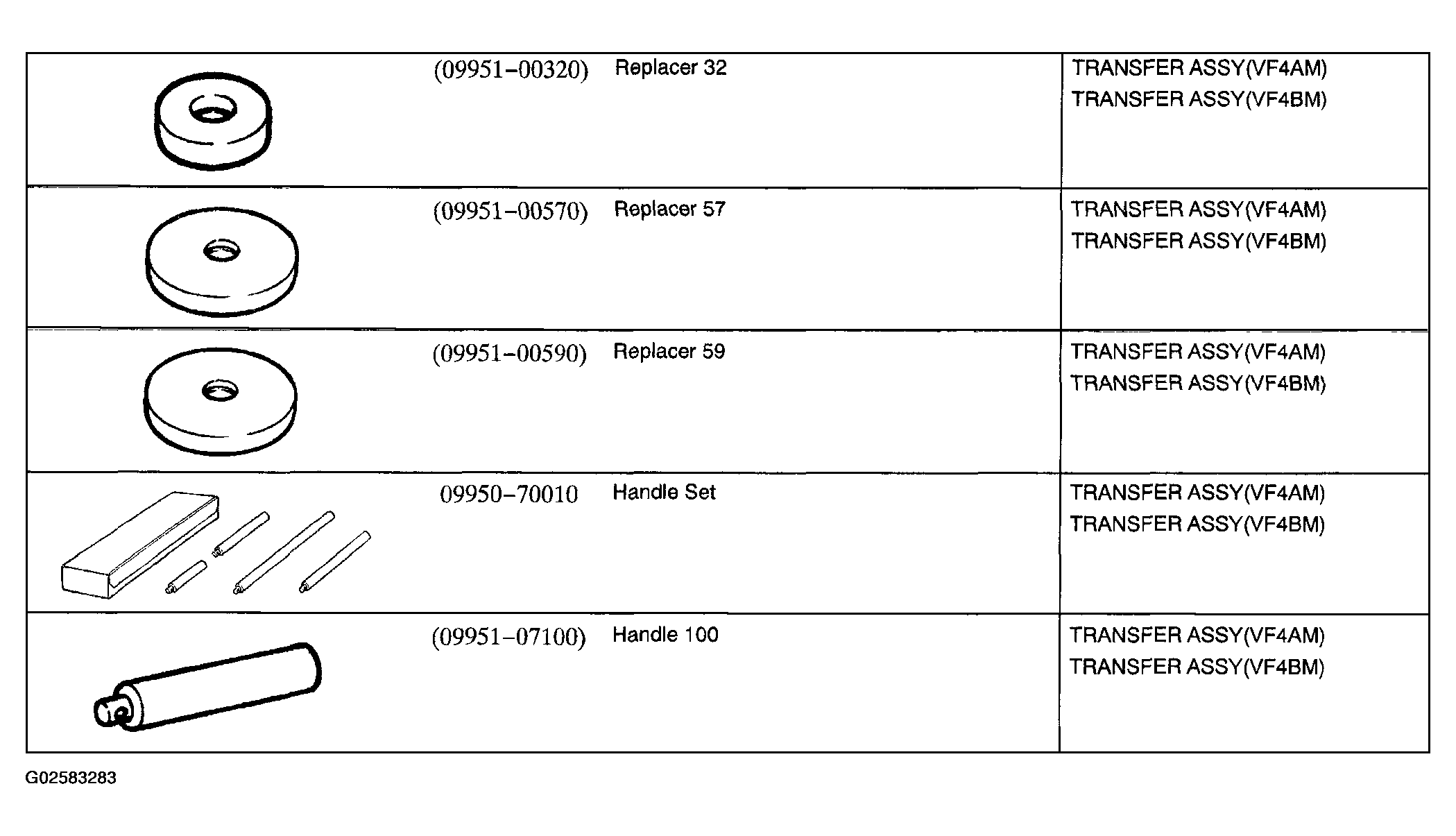

Fig 2: Identifying SST Tool - Transfer (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

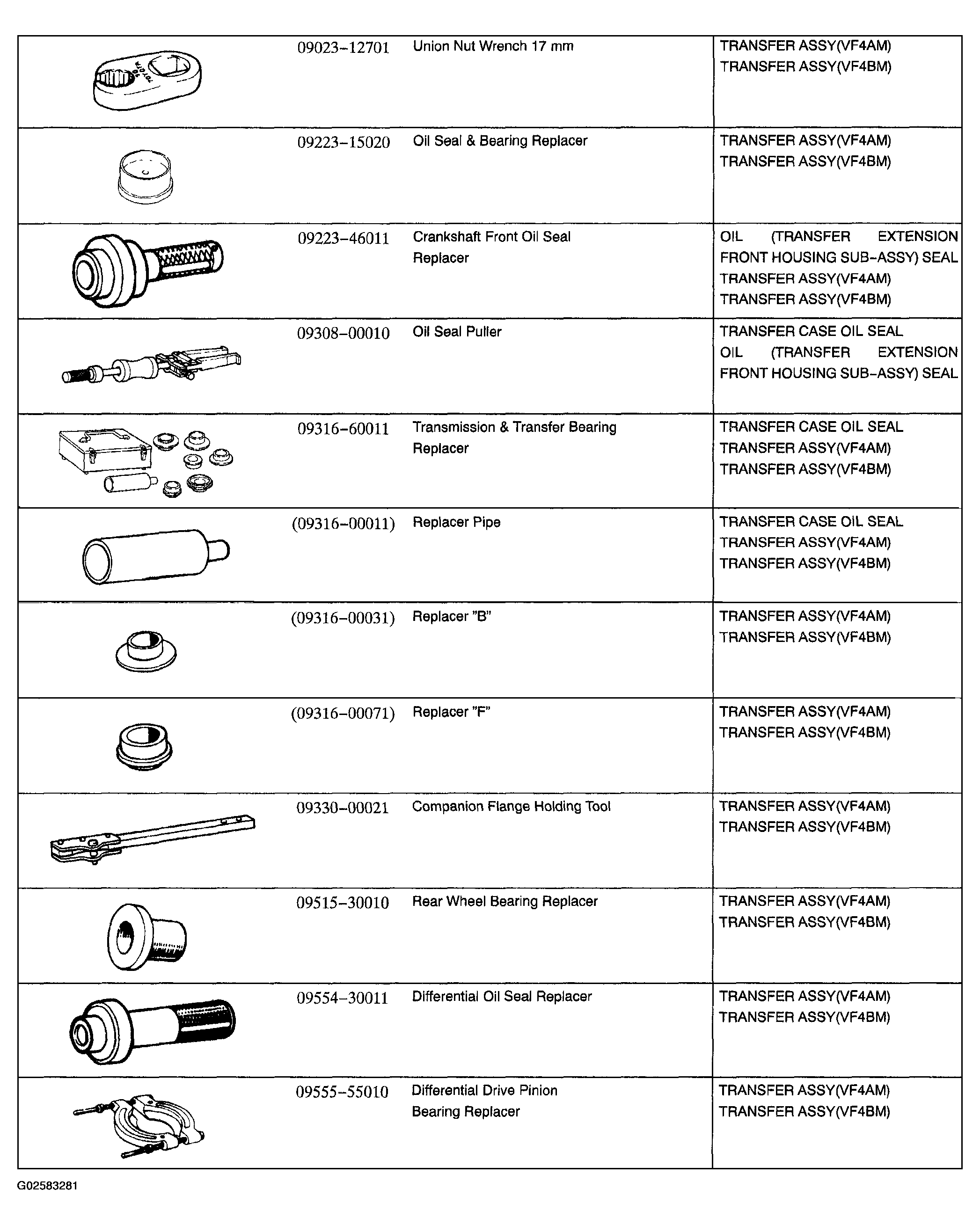

Fig 3: Identifying SST Tool - Transfer (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
