Parts Layout And Schematic Drawing: Drawing

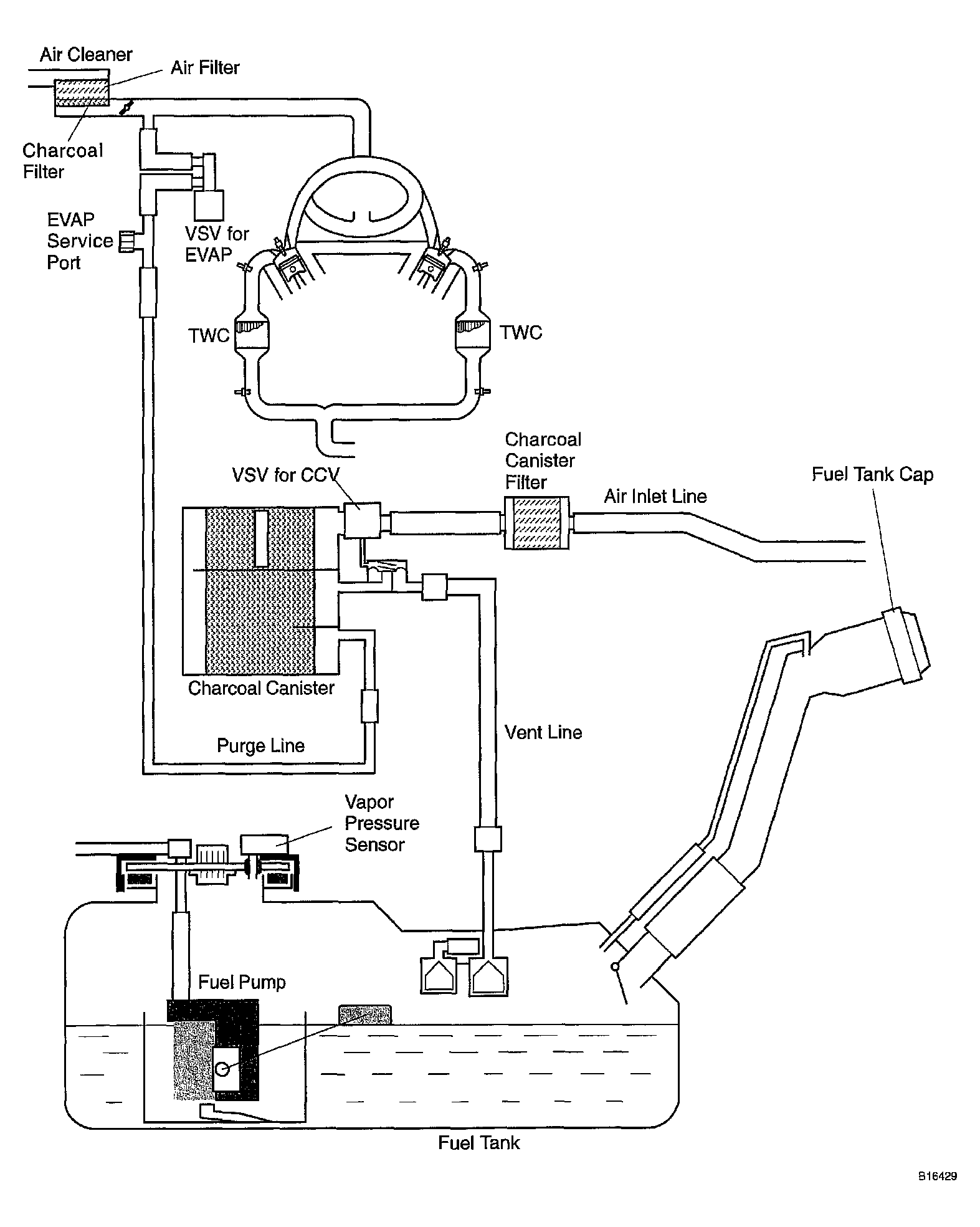

Fig 1: Emission Control (2UZ-FE) System Drawing

G04271618

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
