SFI System (2UZ-FE): Injector: Installation

  1. INSTALL INJECTORS AND DELIVERY PIPES
    NOTE:
    • Be careful not to drop the injectors when installing the delivery pipes.
    • Pay attention to put any hung load on the injector to and from the side direction.
    1. Install a new grommet to each injector.
    2. Apply a light coat of gasoline to a new O-rings and install it to each injector.
      Fig 1: Applying Light Coat Of Gasoline To New O-Rings
      G04208063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. While turning the injector clockwise and counterclockwise, push it to the delivery pipes. Install the 8 injectors.
    4. Position injector connector outward.
      Fig 2: Positioning Injector Connector Outward
      G04208064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Place the 4 spacers and 8 new insulators on the intake manifold.
    6. Place the 2 delivery pipes and injectors assemblies on the lower intake manifold.
    7. Temporarily install the 4 nuts.
    8. Install the front fuel pipe with the bolt, 4 new gaskets and 2 union bolts.

      Torque:

      39 N.m (400 kgf.cm, 29 ft.lbf) for union bolts

      7.5 N.m (80 kgf.cm, 66 in.lbf) for bolt

    9. Install the bolt holding the clamp on the fuel return pipe to the LH delivery pipe.

      Torque: 7.5 N.m (80 kgf.cm, 66 in.lbf)

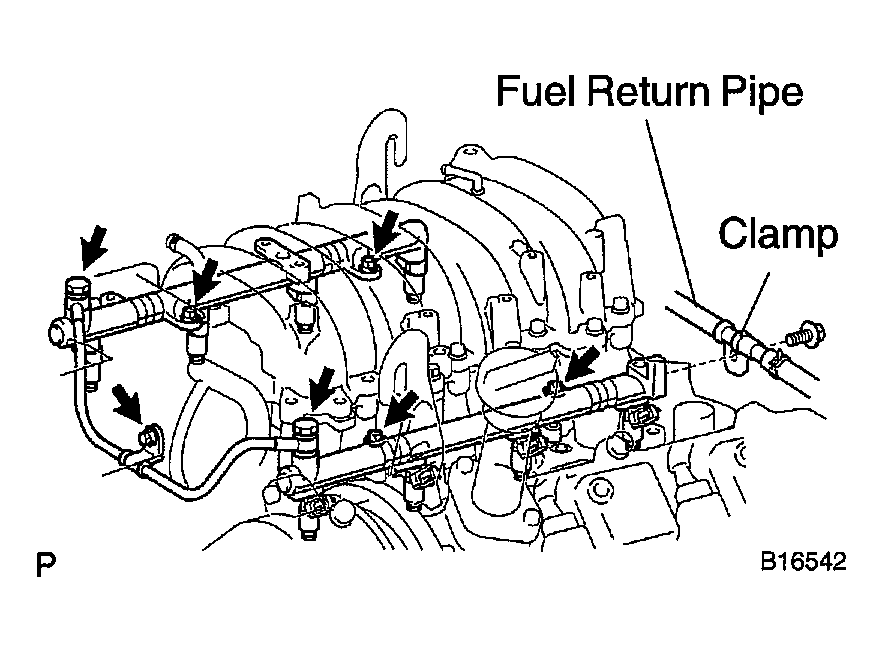

      Fig 3: Installing Spacers And New Insulators On Intake Manifold
      G04208065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Check that the injectors rotate smoothly.

      HINT:

      If injectors do not rotate smoothly, the probable cause is incorrect installation of O-rings. Replace the O-rings.

    11. Position injector connector outward.
    12. Tighten the 4 nuts holding the delivery pipes to the lower intake manifold.

      Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)

    13. Connect the 8 injectors connectors.

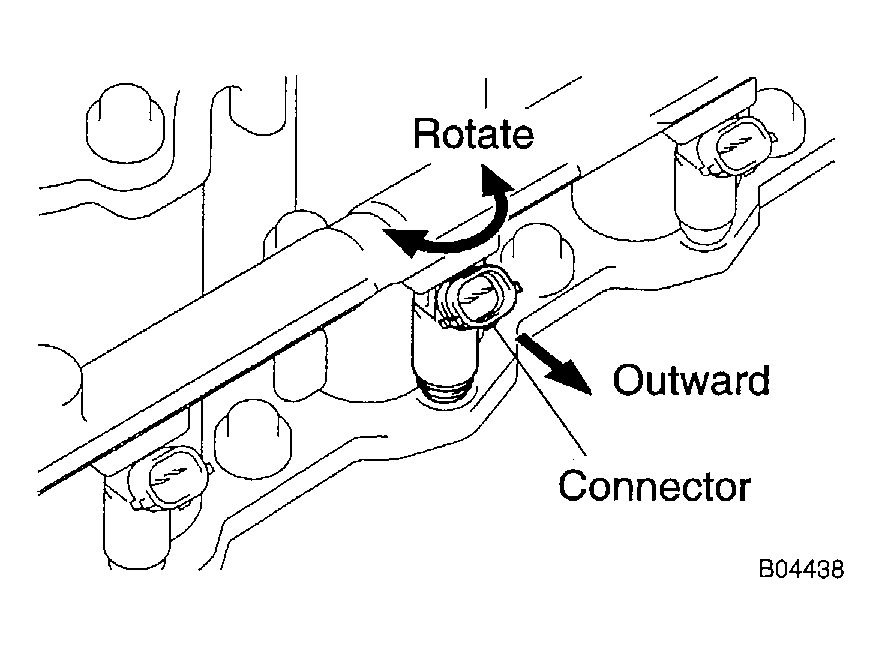

    Fig 4: Checking Injectors Rotate Smoothly
    G04208066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL ENGINE WIRES
    1. Install the 2 wire clamps on the engine wire to the brackets on the RH delivery pipe.
    2. Connect the engine wire clamps to the No. 1 engine hanger and engine wire bracket.
    3. Install the engine wire protector with the 2 bolts.
  3. CONNECT PCV HOSE TO PCV VALVE

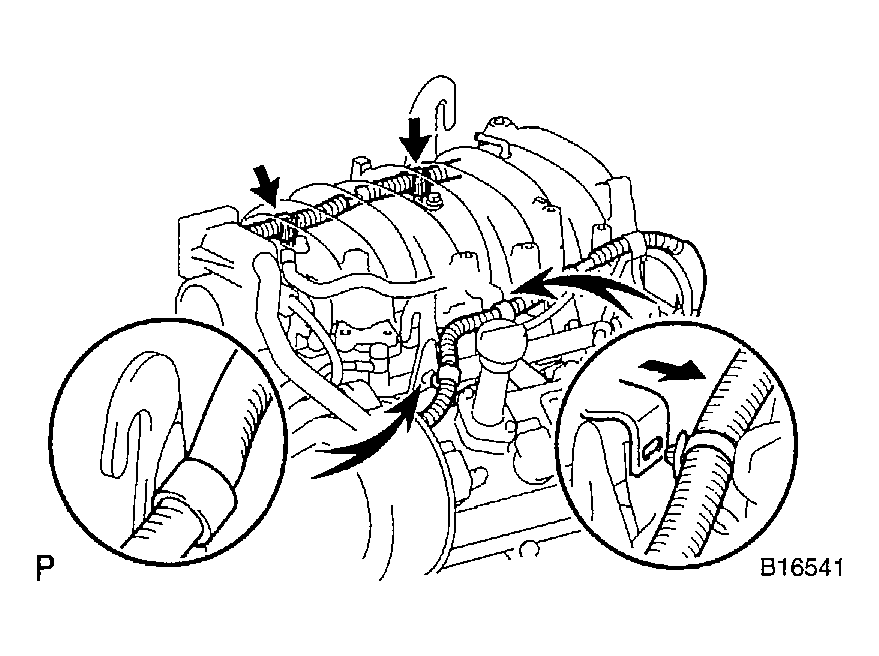

    Fig 5: Installing Wire Clamps On Engine Wire To Brackets
    G04208067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. CONNECT VSV FOR EVAP TO UPPER INTAKE MANIFOLD
    1. Install the VSV to the upper intake manifold.
    2. Connect the EVAP hose.
    3. Connect the VSV connector.
  5. INSTALL THROTTLE BODY COVER BRACKET

    Install the cover bracket with the bolt.

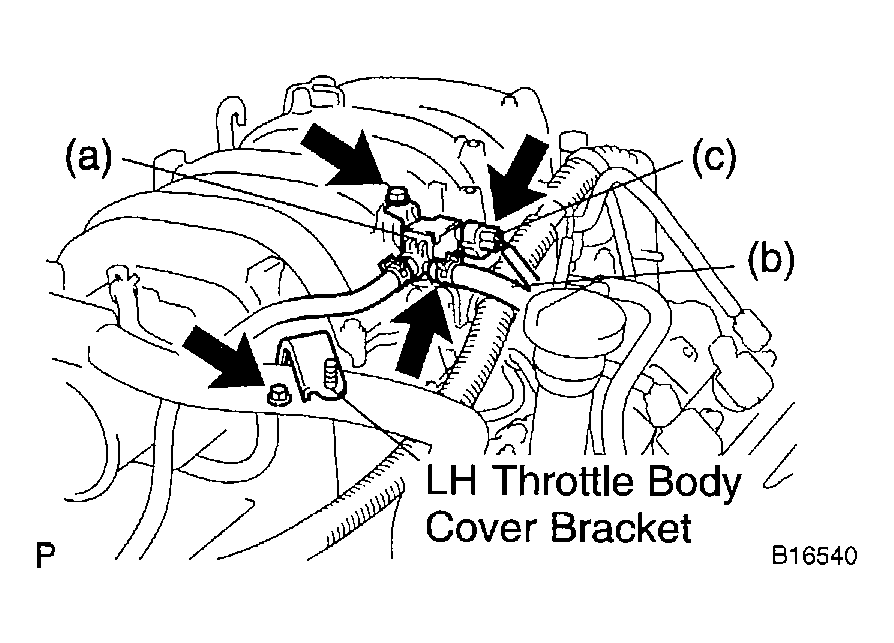

    Fig 6: Connecting EVAP Hose
    G04208068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL FUEL PRESSURE PULSATION DAMPER (See  PRECAUTION  )
  7. INSTALL INTAKE AIR CONNECTOR
  8. INSTALL THROTTLE BODY COVER

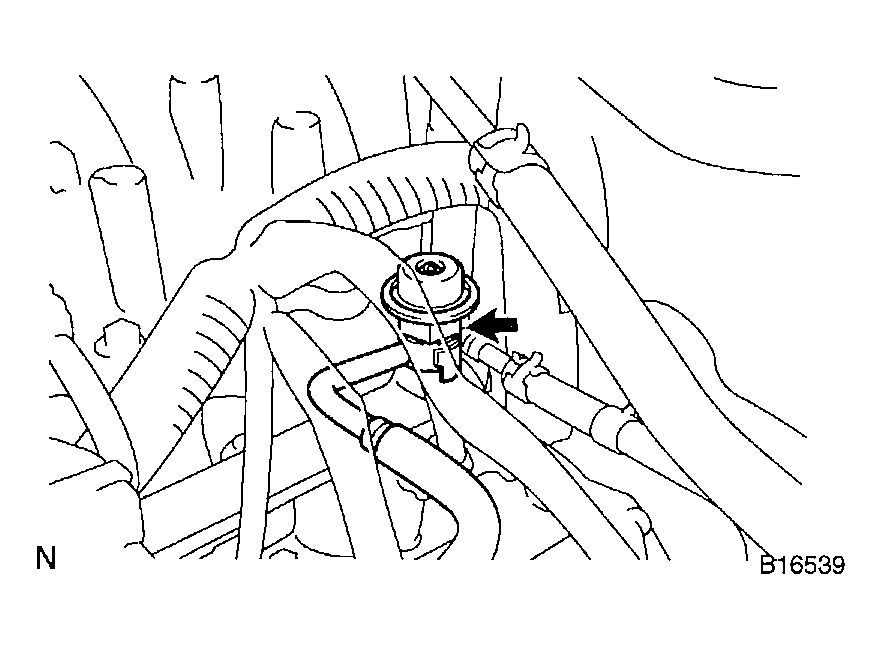

    Fig 7: Installing Fuel Pressure Pulsation Damper
    G04208069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
