SFI System (2UZ-FE): Injector: Components

Fig 1: Identifying Injector Components (1 Of 2)
G04208051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

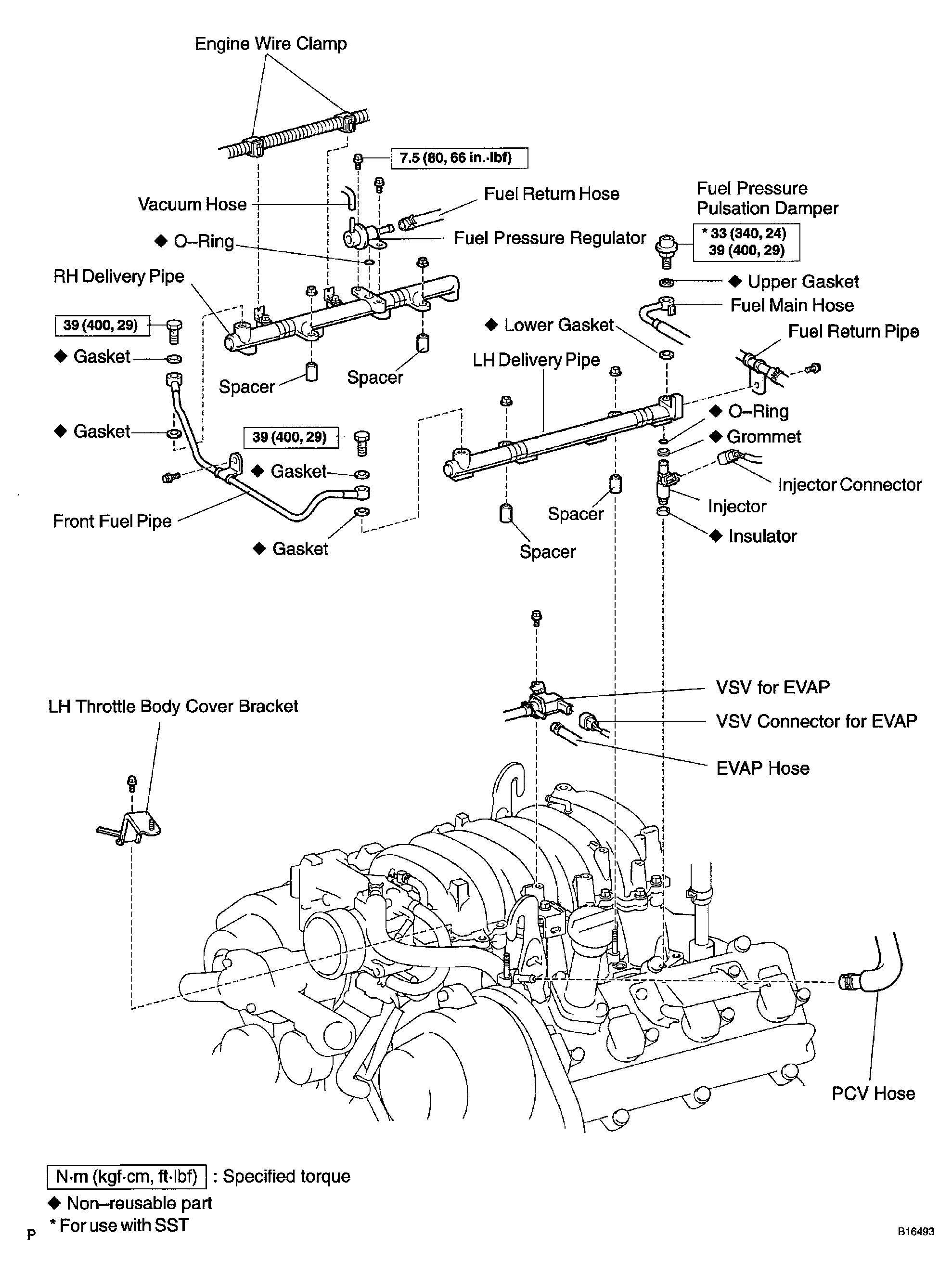

Fig 2: Identifying Injector Components (2 Of 2)
G04208052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
