Front Axle Hub: Reassembly

INSTALL NEW BEARING
1. Using SST and a press, install a new bearing to the steering knuckle.
  SST 09527-1701 1, 09950-60020 (09951-00910)
2. Using snap ring pliers, install a new snap ring.

  Fig 1: Installing Steering Knuckle Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NEW OIL SEAL (OUTSIDE)
1. Using SST and a plastic hammer, install a new oil seal (outside).
  SST 09223-15030, 09527-17011
2. Coat MP grease to the oil seal lip.
INSTALL AXLE HUB TO STEERING KNUCKLE
1. Install the dust cover to the steering knuckle with the 4 bolts.
  Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)

  Fig 2: Installing Outside Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a press, install the axle hub to the steering knuckle.
  SST 09649-17010
INSTALL ABS SPEED SENSOR ROTOR (w/ ABS)/ SPACER (w/o ABS)
NOTE: Do not scratch the serration of the speed sensor rotor.

Fig 3: Installing Axle Hub To Steering Knuckle
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2WD: INSTALL NEW LOCK NUT
1. Using SST, install and torque a new lock nut to the axle hub.
  SST 09318-12010

  Torque: 274 N.m (2,800 kgf.cm, 203 ft.lbf)
2. Using a chisel and hammer, stake the lock nut.

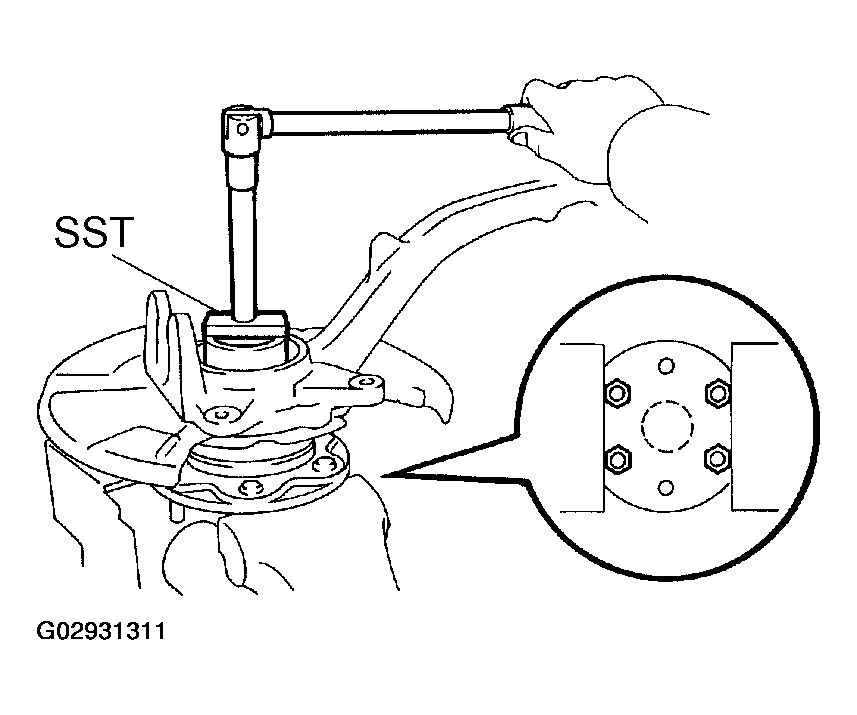

  Fig 4: Installing Axle Lock Nut (2WD)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4WD: INSTALL BEARING SPACER
Using SST and a press, install the bearing spacer.

SST 09950-60010 (09951-00650), 09950-70010 (09951-07150)
2WD: INSTALL GREASE CAP

Fig 5: Installing Bearing Spacer (4WD)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4WD: INSTALL NEW OIL SEAL (INSIDE)
1. Using SST and a plastic hammer, install a new oil seal (inside).
  SST 09527-1701 1

  HINT:

  Lightly strike the SST on its circumference evenly.
2. Coat MP grease to the oil seal lip.

  Fig 6: Installing Inside Oil Seal (4WD)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
