Front Axle Hub: Disassembly

1. Mount the axle hub in a soft jaw vise.

   HINT:

   Close the vise until it holds hub bolts. Do not tighten further.

2. Using a screwdriver, remove the grease cap.

1. Mount the axle hub in a soft jaw vise.

   HINT:

   Close the vise until it holds hub bolts. Do not tighten further.

2. Using a screwdriver, remove the oil seal (inside).

1. Using a chisel and hammer, loosen the staked part of the lock nut.
   NOTE: Be careful not to damage the bushing.
2. Using SST, remove the lock nut.

   SST 09318-12010

3. Remove the ABS speed sensor rotor/spacer.

1. Remove the 4 bolts and shift the dust cover towards the hub side (outside).

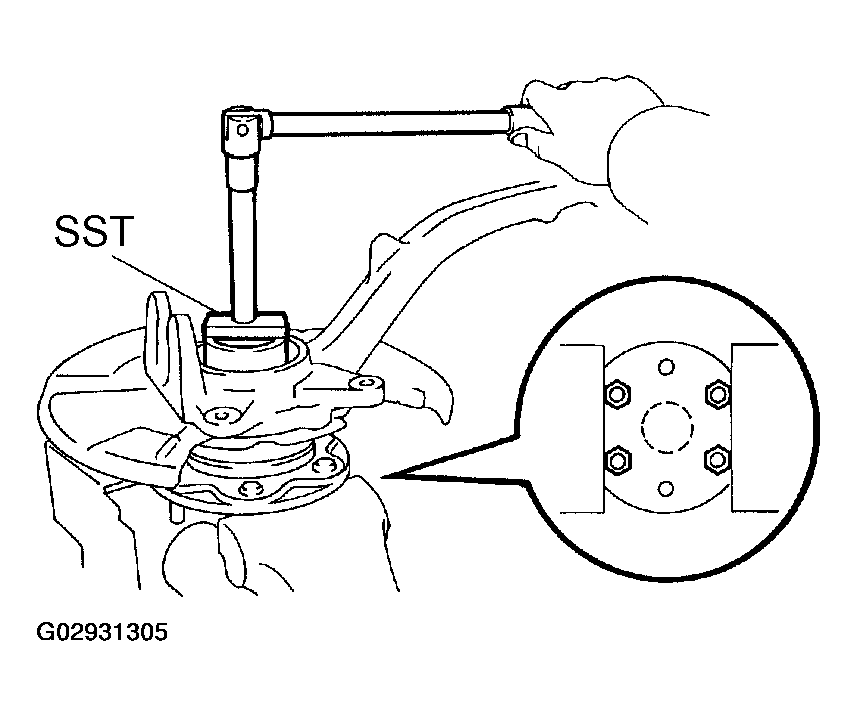

   Fig 1: Removing ABS Speed Sensor Rotor/Spacer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, remove the axle hub from the steering knuckle.

   SST 09710-30021 (09710-03051), 09950-4001 1 (09951-04020, 09952-04010, 09953-04020, 09954-04010, 09955-04031, 09957-04010, 09958-04011)

3. Remove the dust cover from the steering knuckle.
4. 4WD:

   Remove the bearing spacer and ABS speed sensor rotor (w/ ABS)/spacer (w/o ABS).

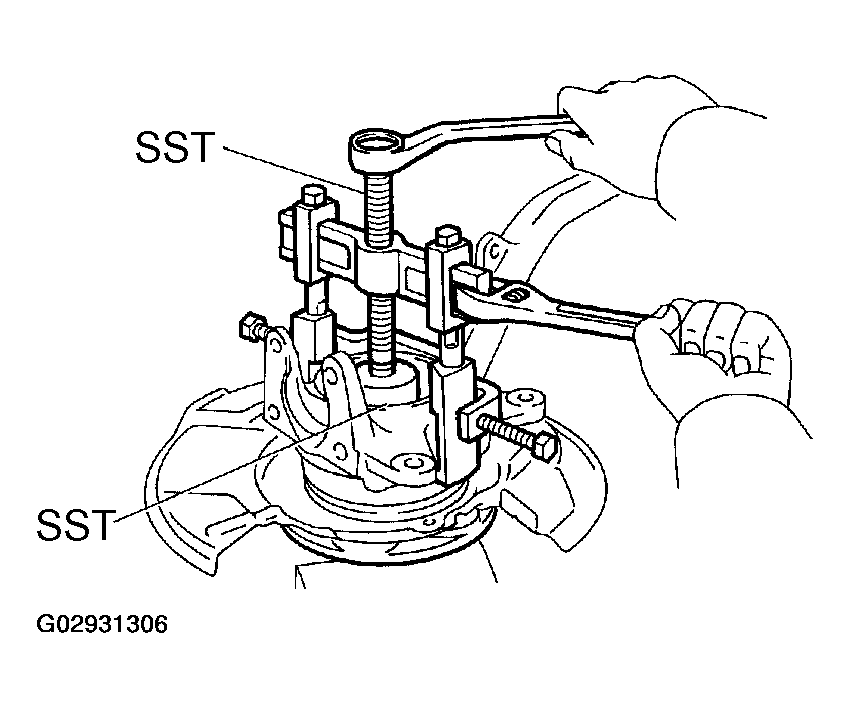

   Fig 2: Removing Axle Hub From Steering Knuckle

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: Take care not to scratch the serration of the speed sensor rotor.

Using a screwdriver, remove the oil seal (outside) from the steering knuckle.

1. Using snap ring pliers, remove the snap ring.
2. Using SST and a press, remove the bearing from the steering knuckle.

   SST 09950-60020 (09951-00810), 09950-70010 (09951-07150)

   Fig 3: Removing Steering Knuckle Bearing

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
