Power Steering Gear: Removal

  1. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  2. REMOVE STEERING WHEEL PAD (See  REMOVAL  )
  3. REMOVE STEERING WHEEL (See  REMOVAL  )
  4. DISCONNECT RH AND LH TIE ROD ENDS
  5. DISCONNECT NO. 2 INTERMEDIATE SHAFT ASSEMBLY (See  REMOVAL  )
  6. DISCONNECT CLAMP PLATE

    Remove the bolt and disconnect the clamp plate.

  7. DISCONNECT PRESSURE FEED AND RETURN TUBES

    Using SST, disconnect the tube.

    SST 09023-12700

  8. REMOVE PS GEAR ASSEMBLY
    1. Remove the bolt, nut and stud bolt from the bracket.
    2. Remove the 2 set bolts, nut, washer and PS gear assembly.
  9. REMOVE BRACKET AND GROMMET

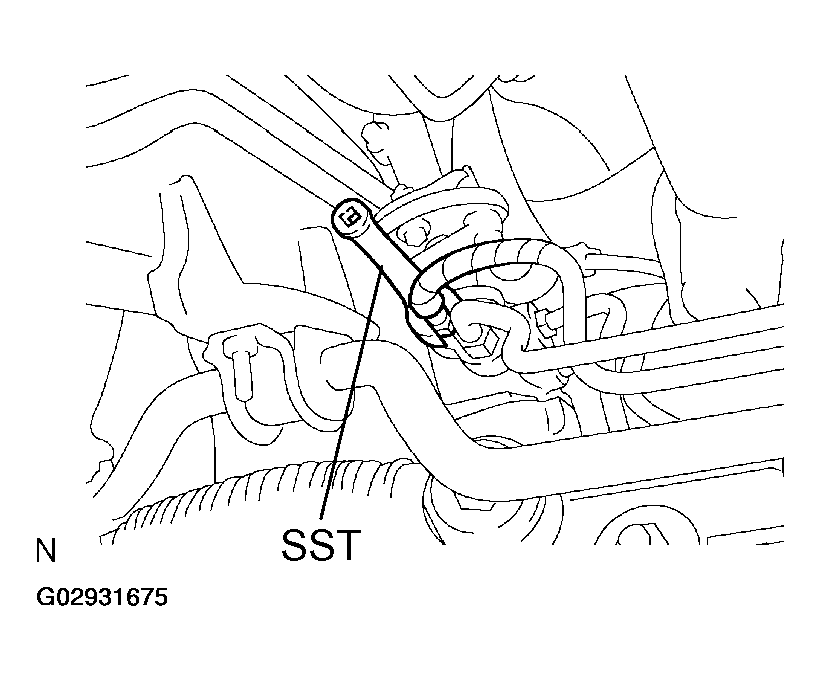

    Fig 1: Disconnecting Pressure Feed Of Return Tubes
    G02931675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
