Inspect Fuel Tank And Line

1. Check the fuel lines for cracks or leakage, and all connections for deformation.
2. Check the fuel tank vapor vent system hoses and connections for looseness, sharp bends or damage.
3. Check the fuel tank for deformation, cracks, fuel leakage or tank band looseness.
4. Check the filler neck for damage or fuel leakage.
5. Hose and pipe connections are as shown in the illustration.

If a problem is found, repair or replace the parts as necessary.

Fig 1: Checking Fuel Lines For Cracks Or Leakage

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Hose And Pipe Connections

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

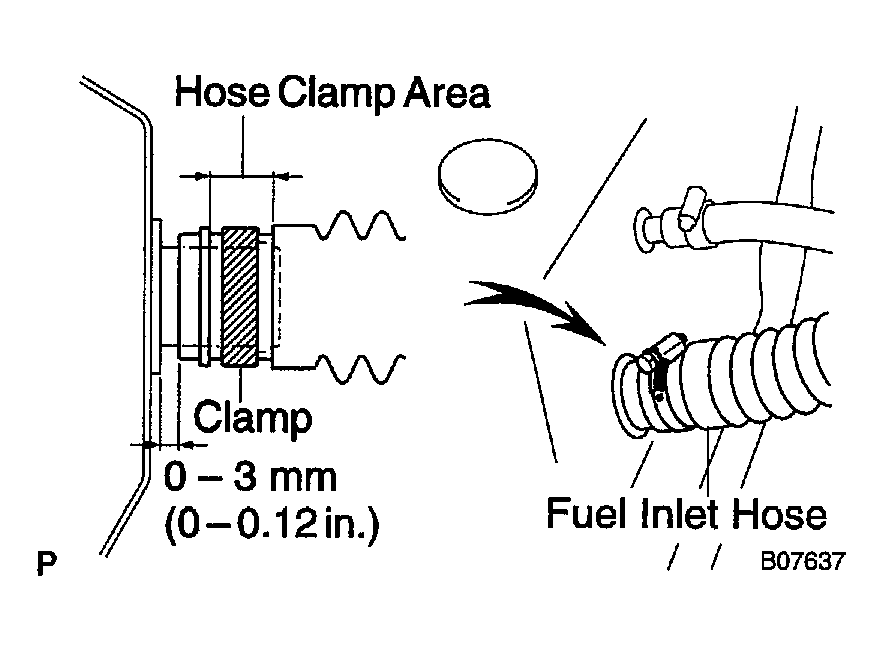

Fig 3: Identifying Hose Clamp Area

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
