Power Slide Back Window System (Except Double Cab): Location

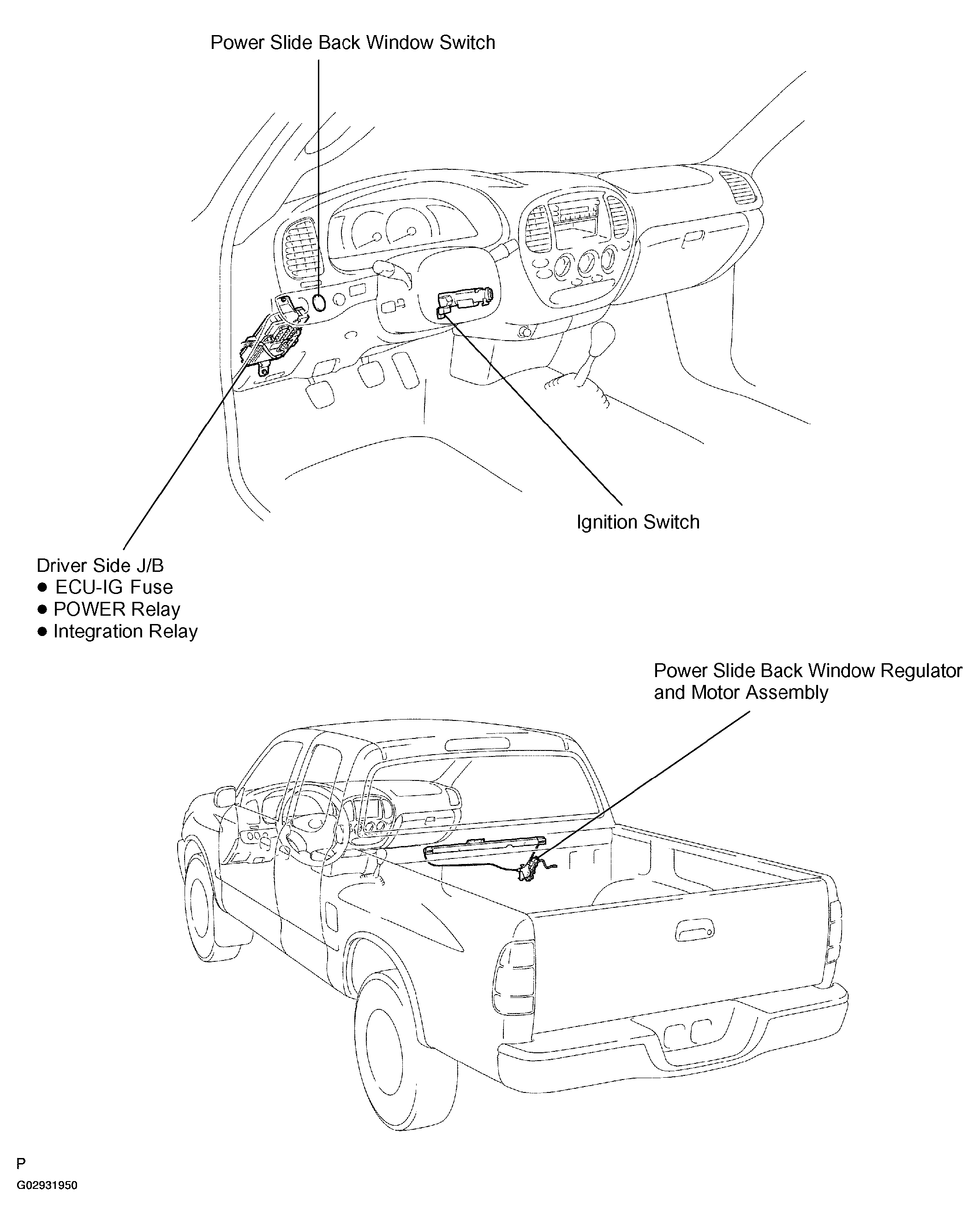

Fig 1: Locating Power Slide Back Window System Components

G02931950

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
