Toyota
>>
2004
>>
Tundra Base, Standard
>>
Repair and Diagnosis
>>
Body & Frame
>>
Body, Cab Control Systems
>>
Body Control Systems - Diagnostics
>>
Terminals Of Ecu
Terminals Of Ecu

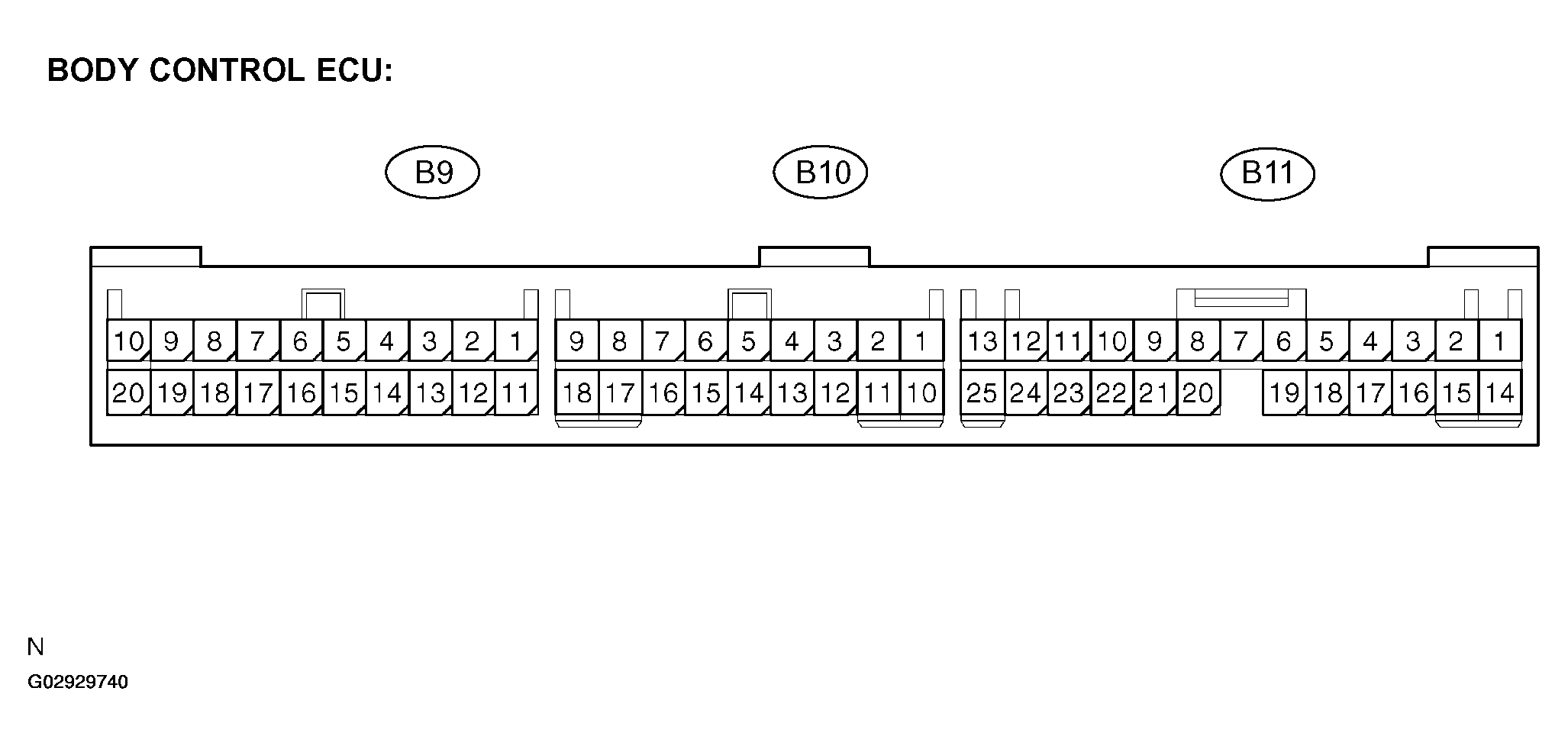

Fig 1: Identifying ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

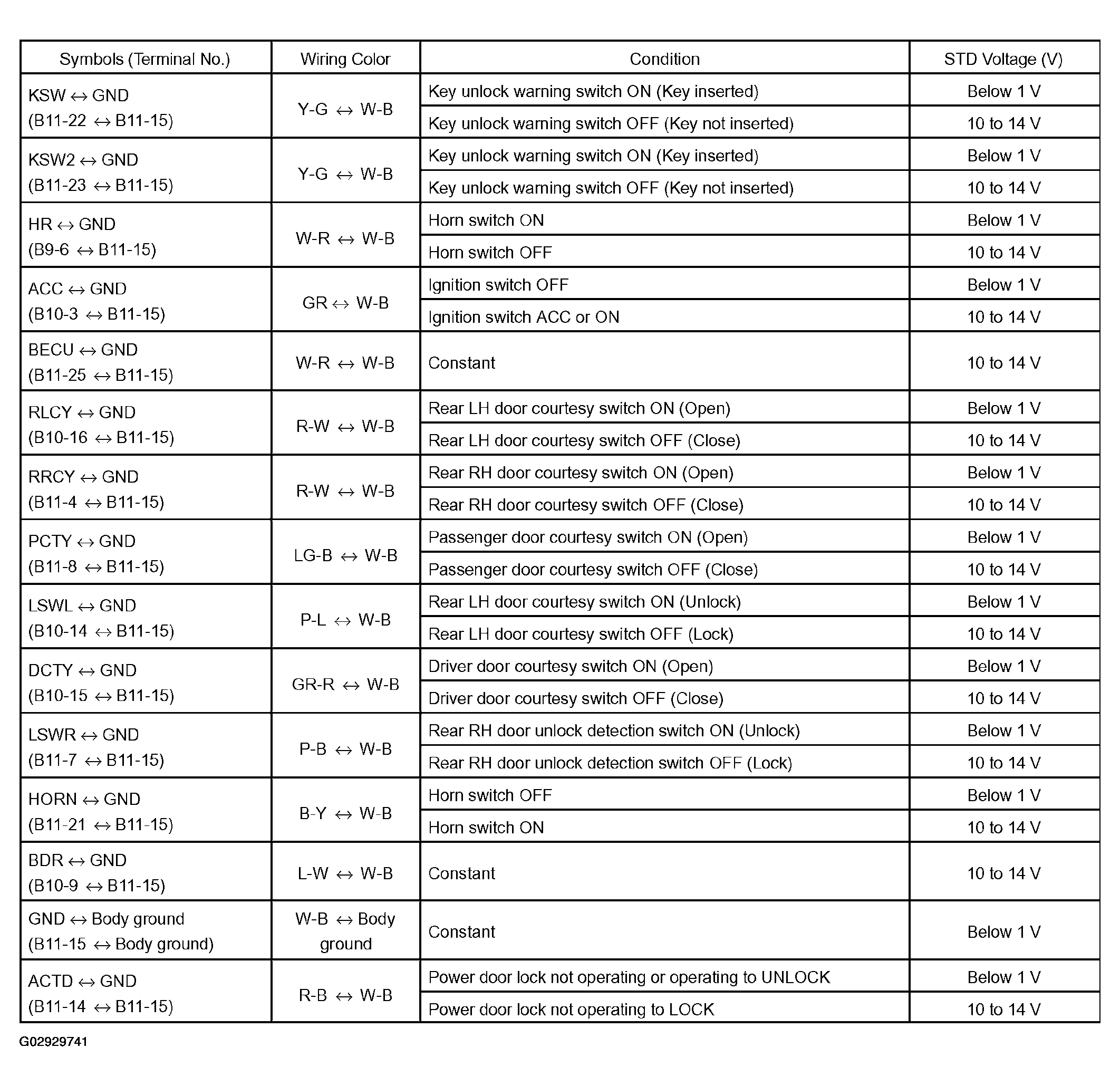

Fig 2: ECU Terminals Voltage Reference Table (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

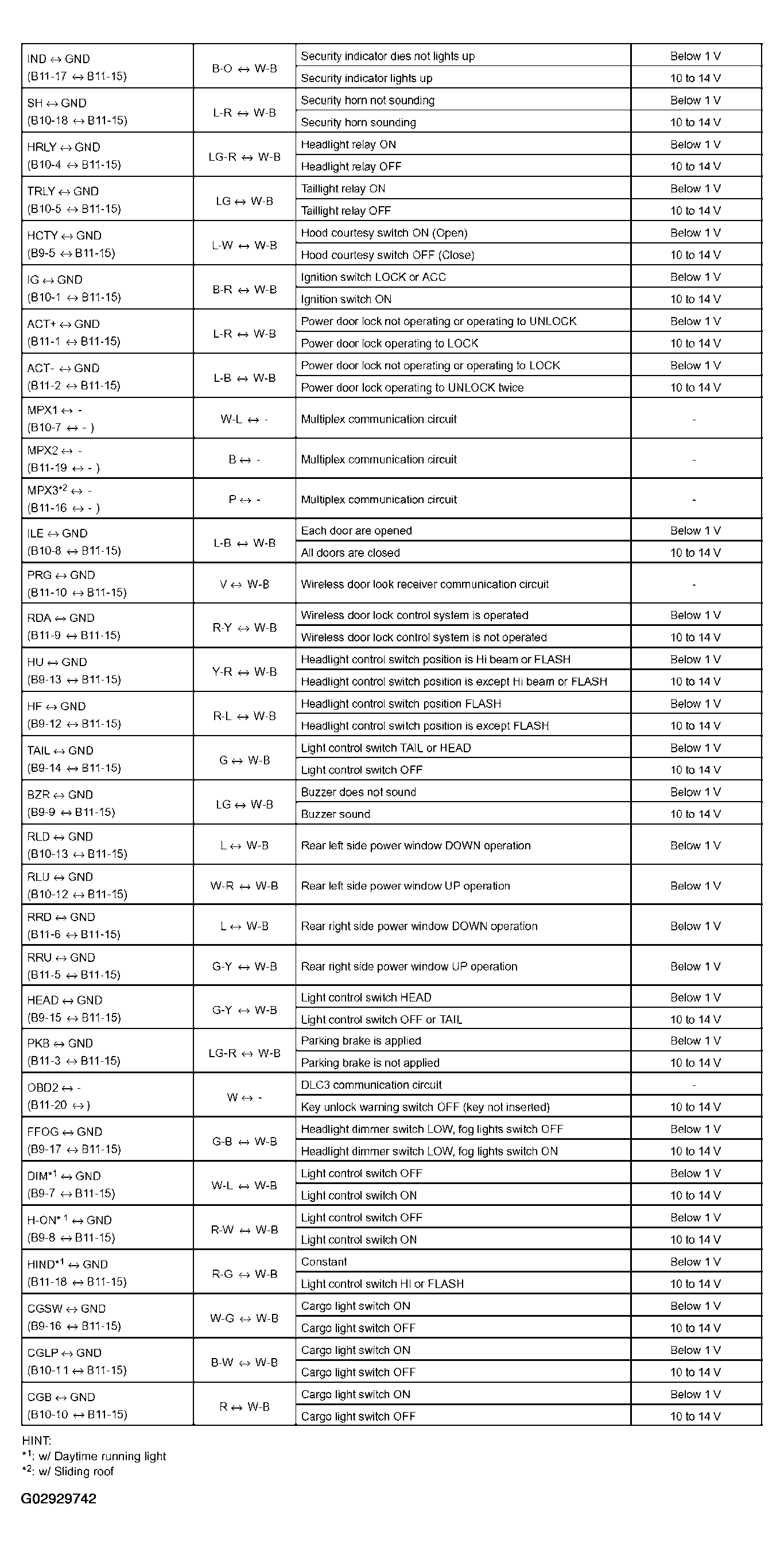

Fig 3: ECU Terminals Voltage Reference Table (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
