Door Courtesy Switch Circuit: Wiring Diagram

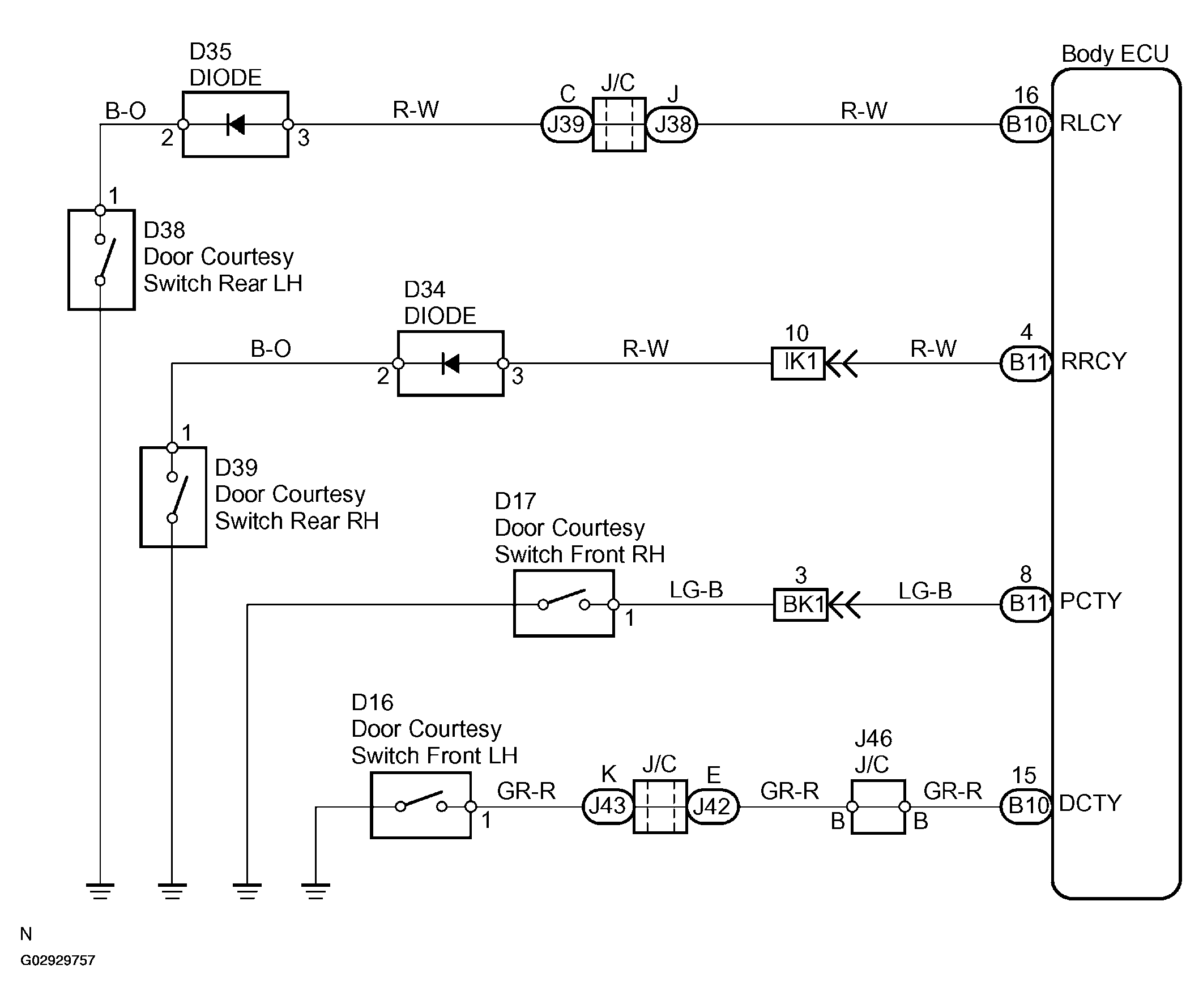

Fig 1: Door Courtesy Switch-Wiring Diagram

G02929757

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
