Daytime Running Light Relay Circuit: Wiring Diagram

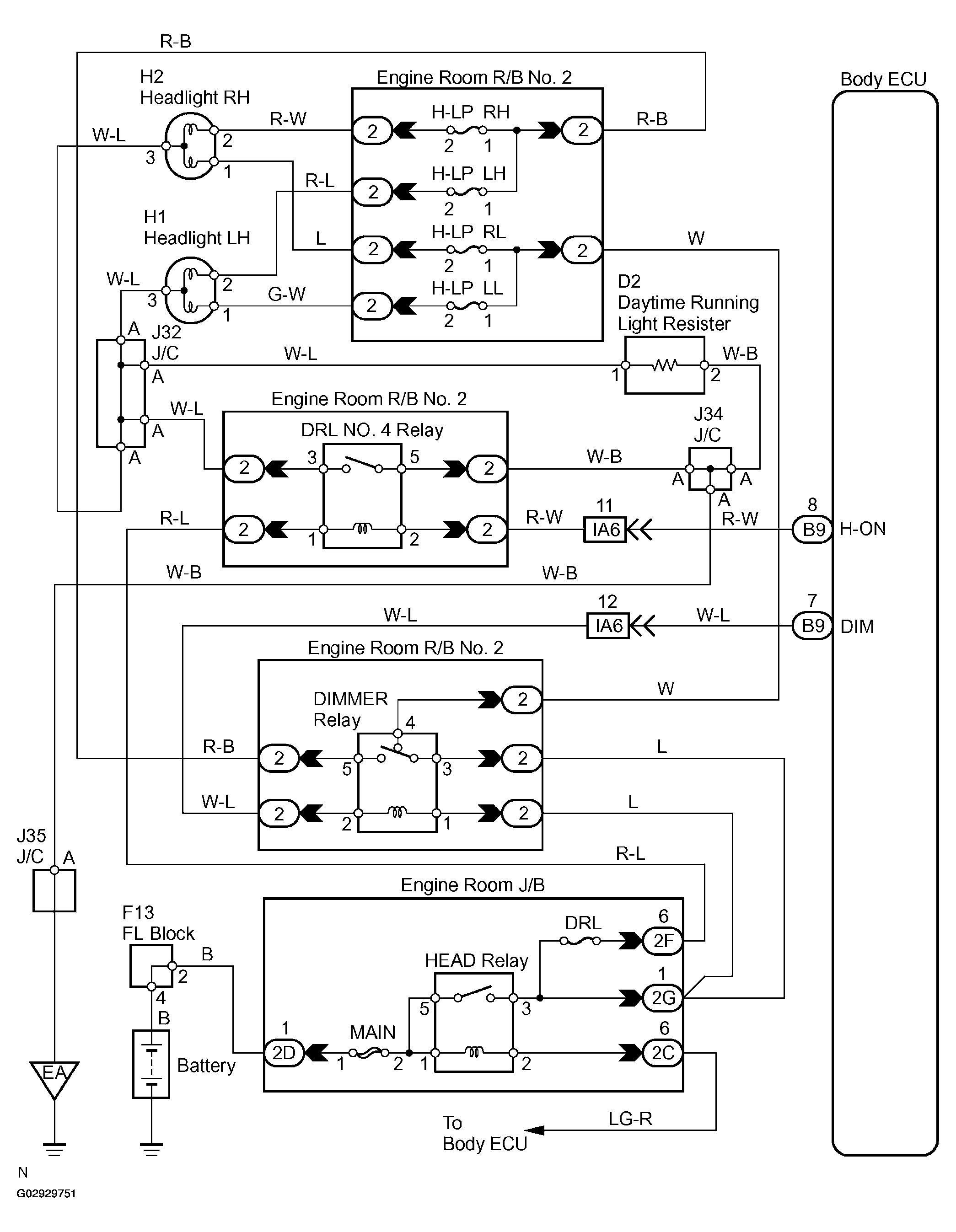

Fig 1: Daytime Running Light-Wiring Diagram
G02929751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
