Typical Enabling Conditions

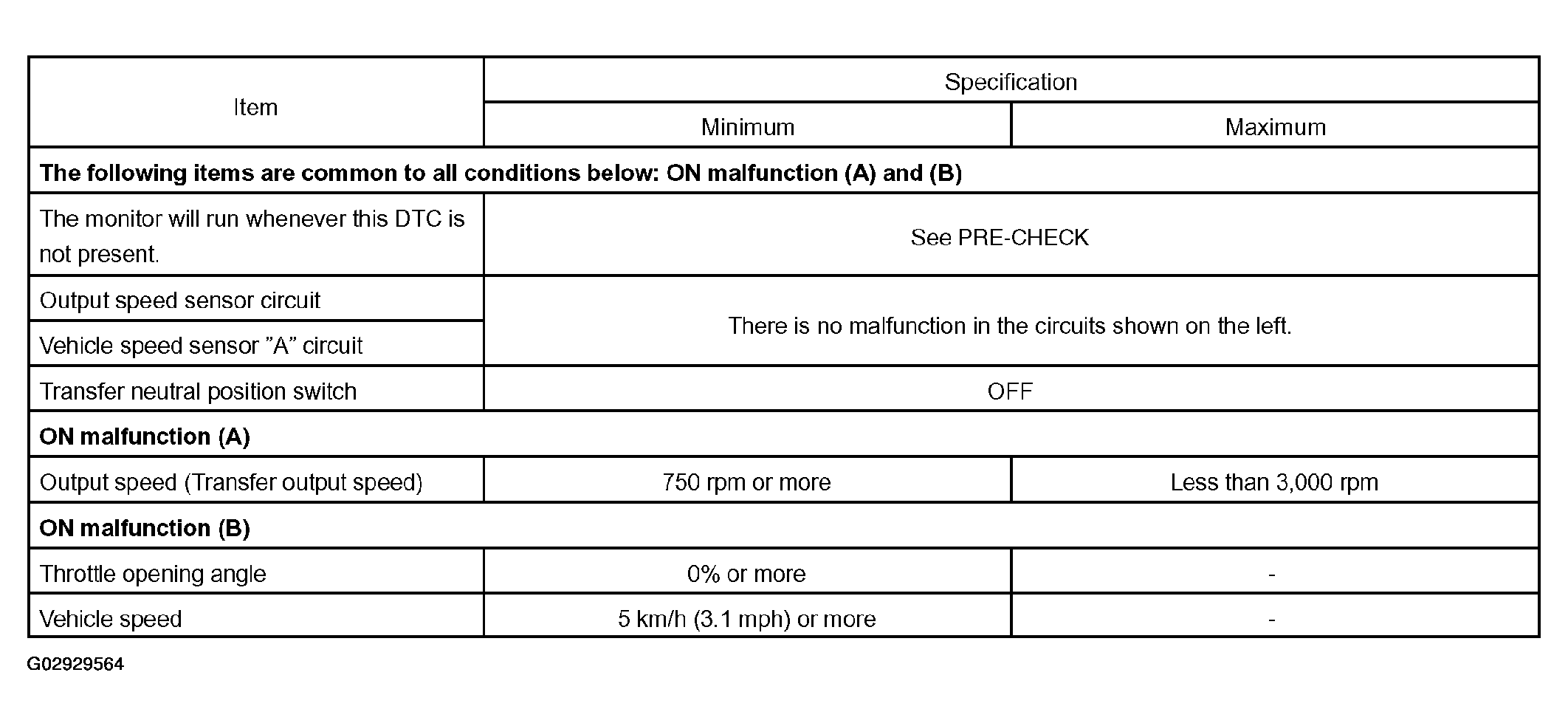

Fig 1: Typical Enabling Conditions
G02929564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
