Automatic Transmission Unit - 5VZ-FE: Components

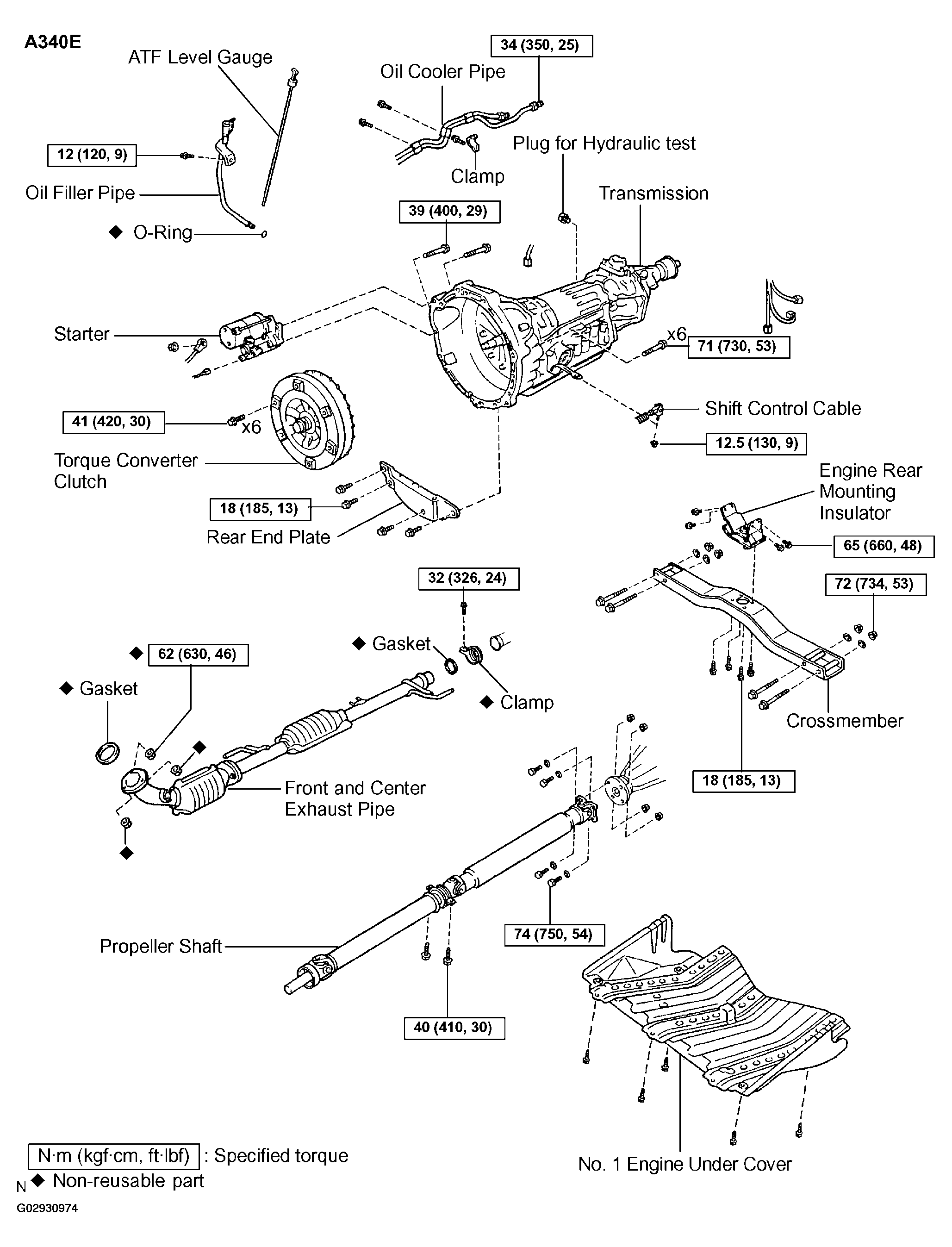

Fig 1: Exploded View Of Automatic Transmission Unit Components (1 Of 2)
G02930974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

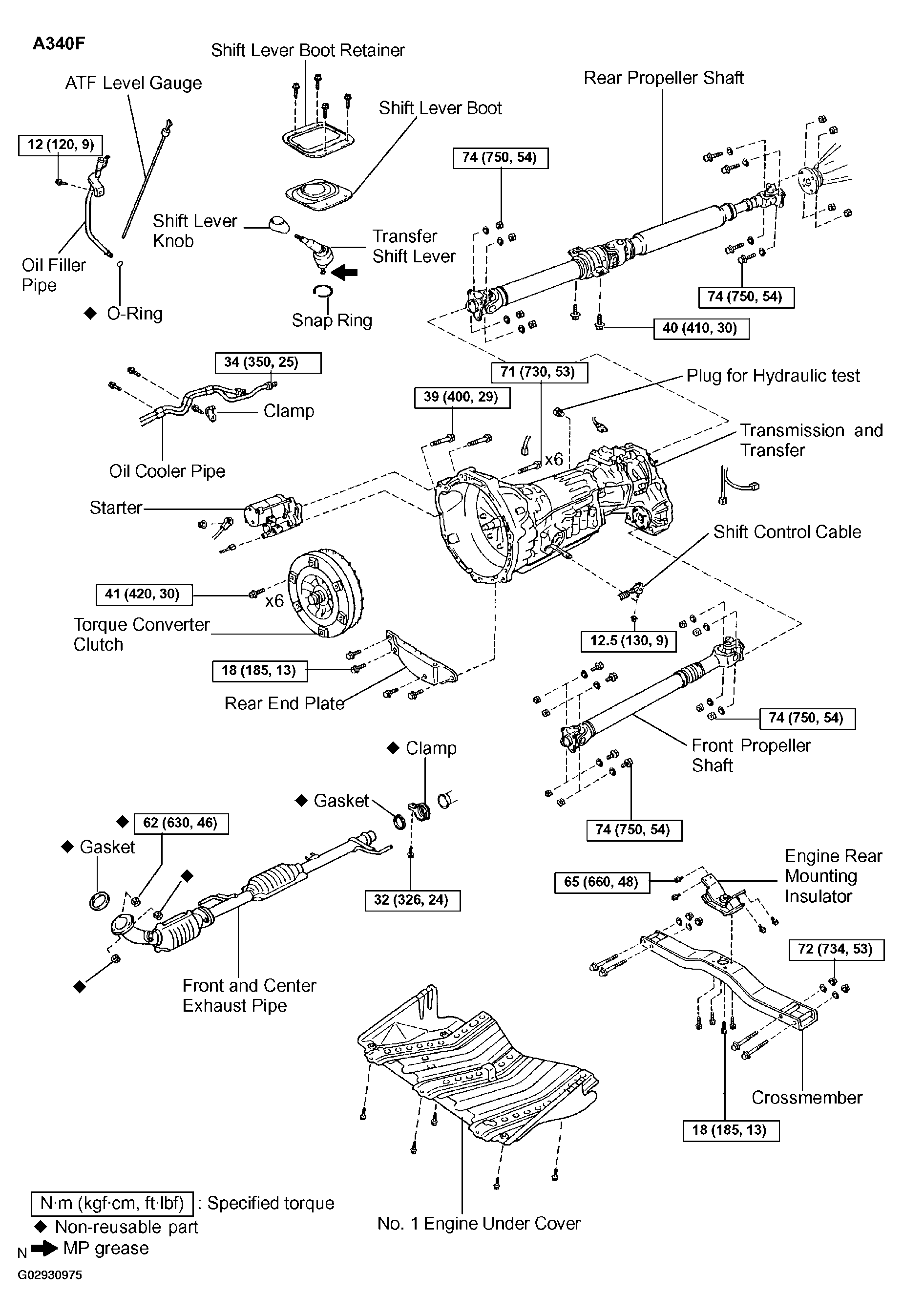

Fig 2: Exploded View Of Automatic Transmission Unit Components (2 Of 2)
G02930975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
