Parts Location

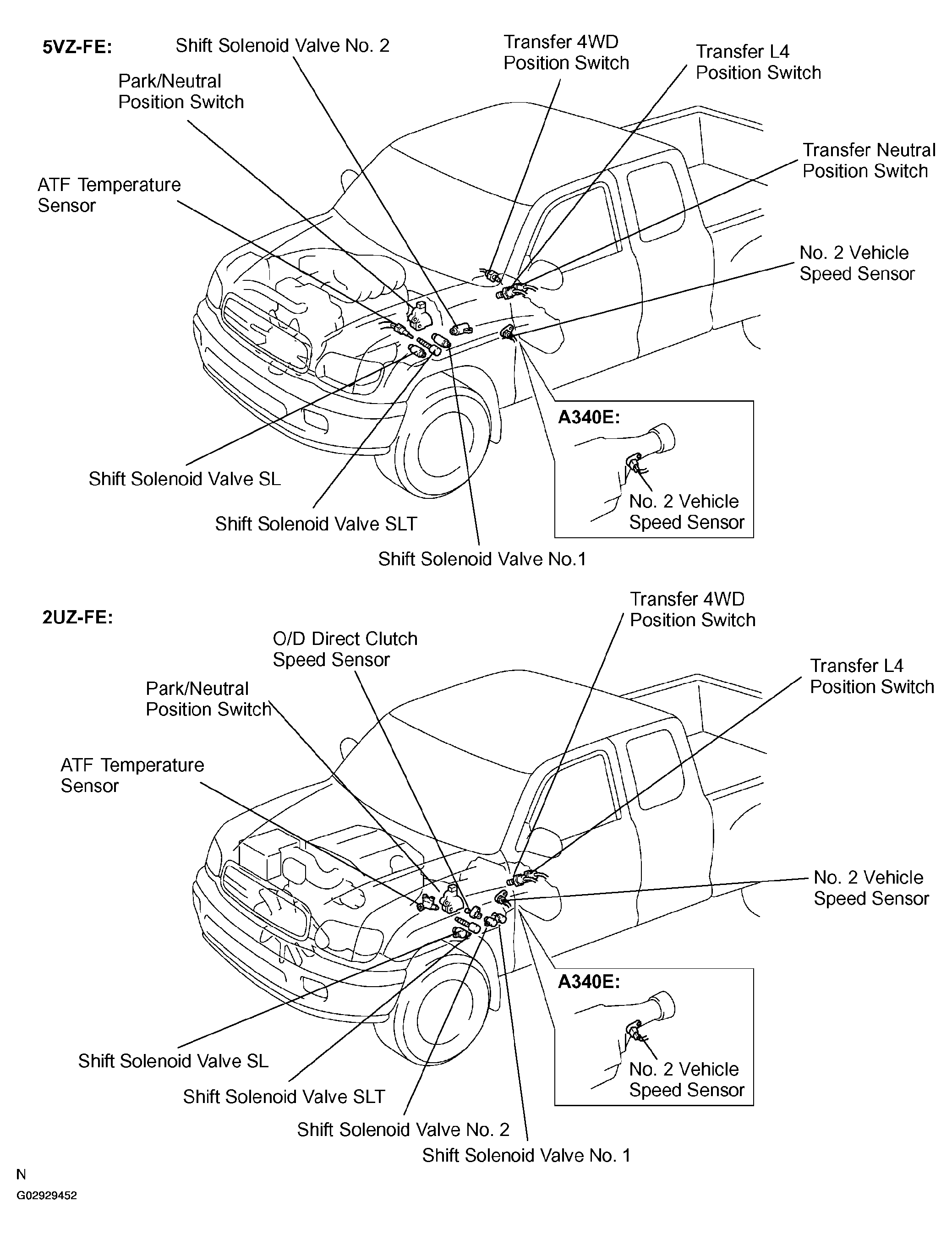

Fig 1: Identifying Automatic Transmission Parts (1 Of 2)
G02929452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

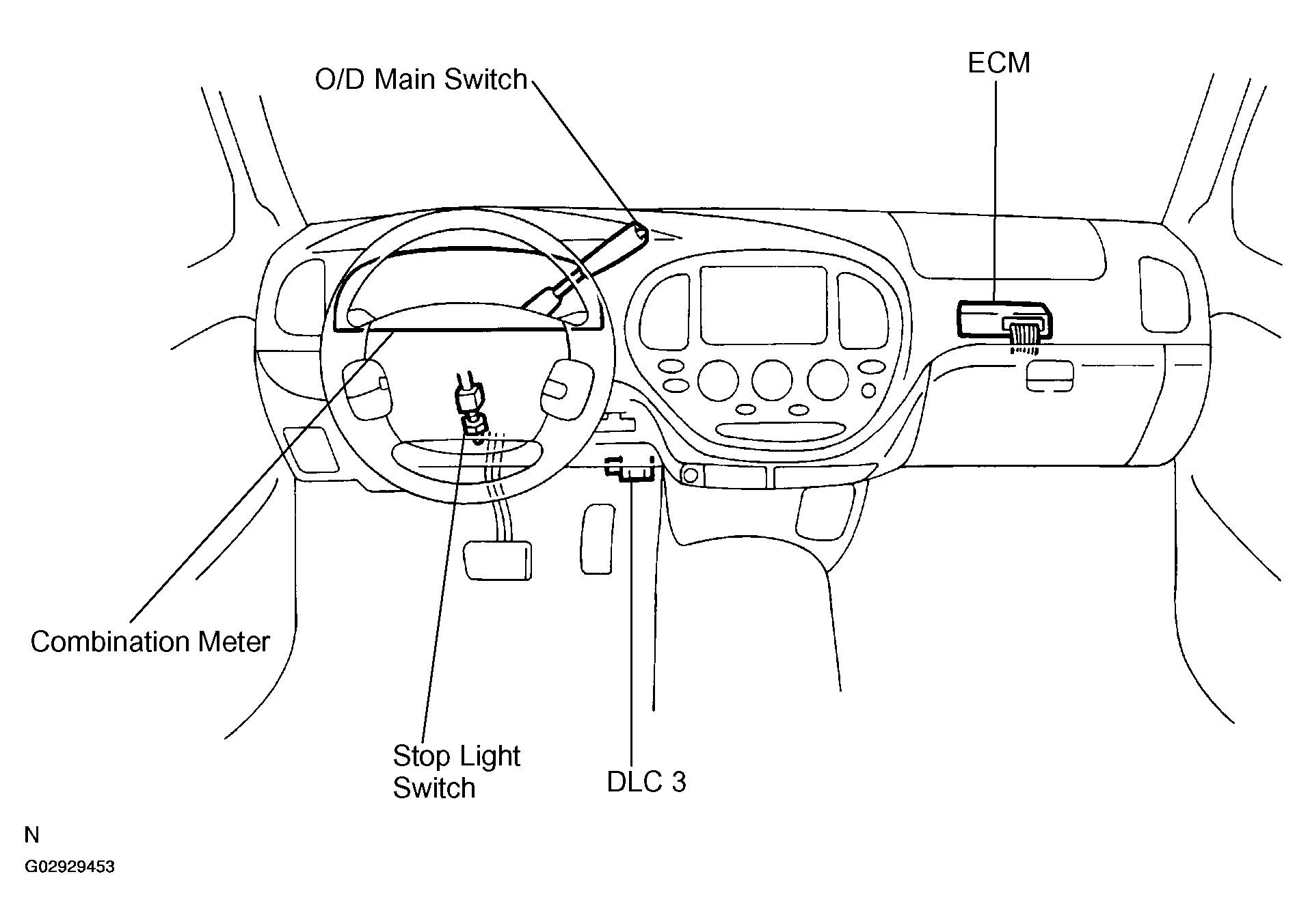

Fig 2: Identifying Automatic Transmission Parts (2 Of 2)
G02929453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
