Terminals Of Ecu

WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
  1. RADIO AND NAVIGATION ASSY (Double Cab)

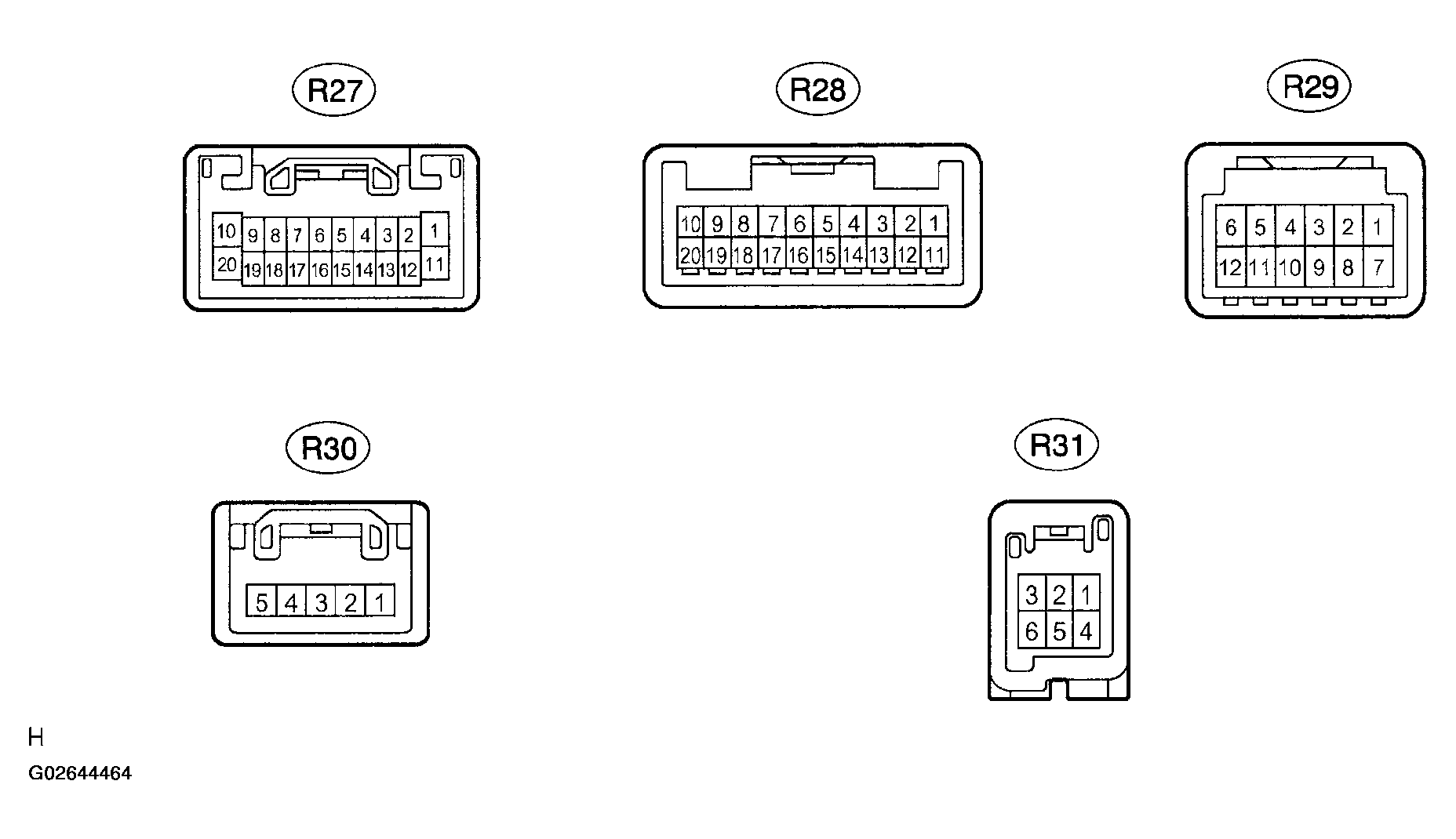

    Fig 1: Identifying ECU Connector Terminals (Radio And Navigation Assy (Double Cab))
    G02644464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

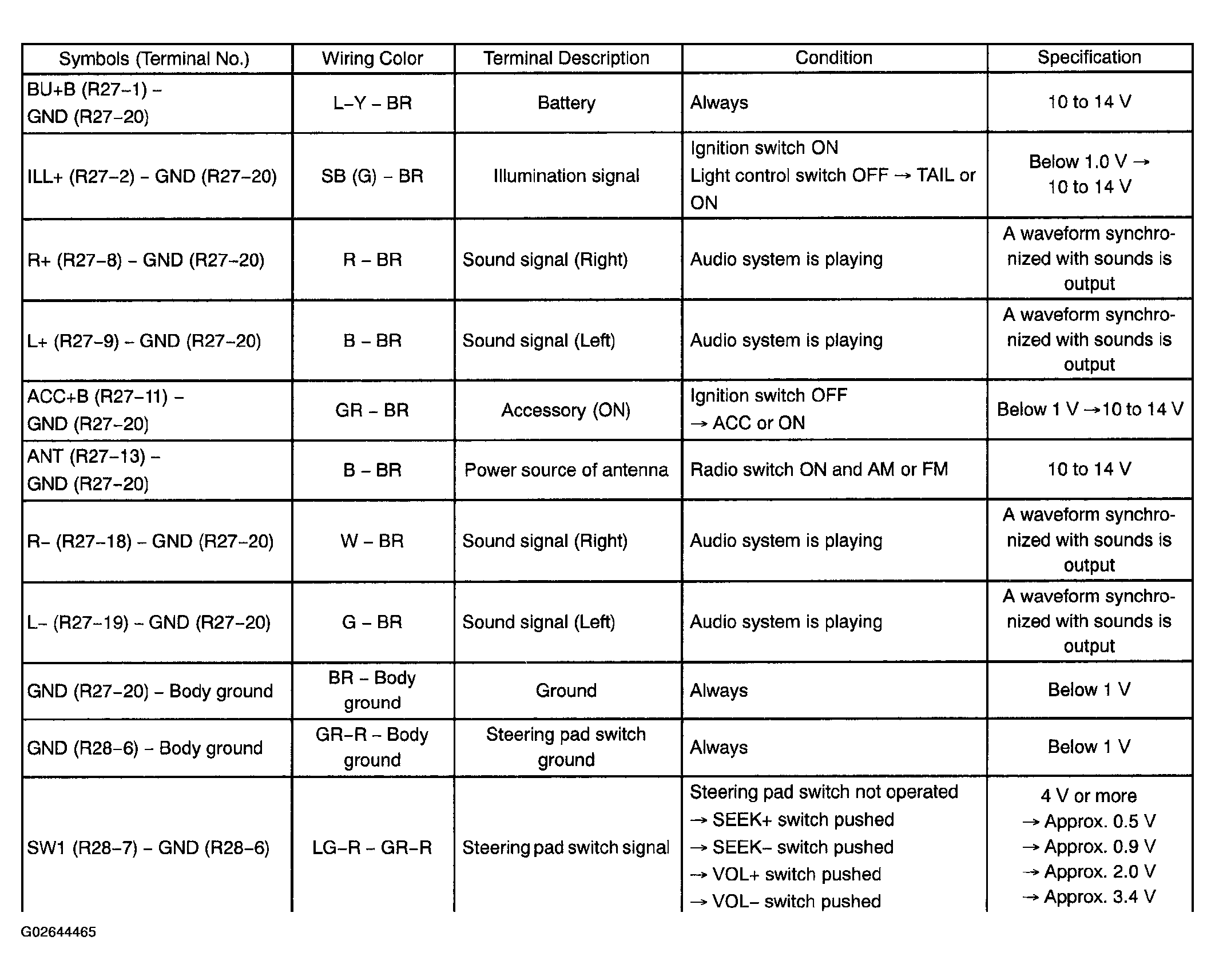

    Fig 2: ECU Connector Terminals Reference Chart (Radio And Navigation Assy (Double Cab)) (1 Of 2)
    G02644465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

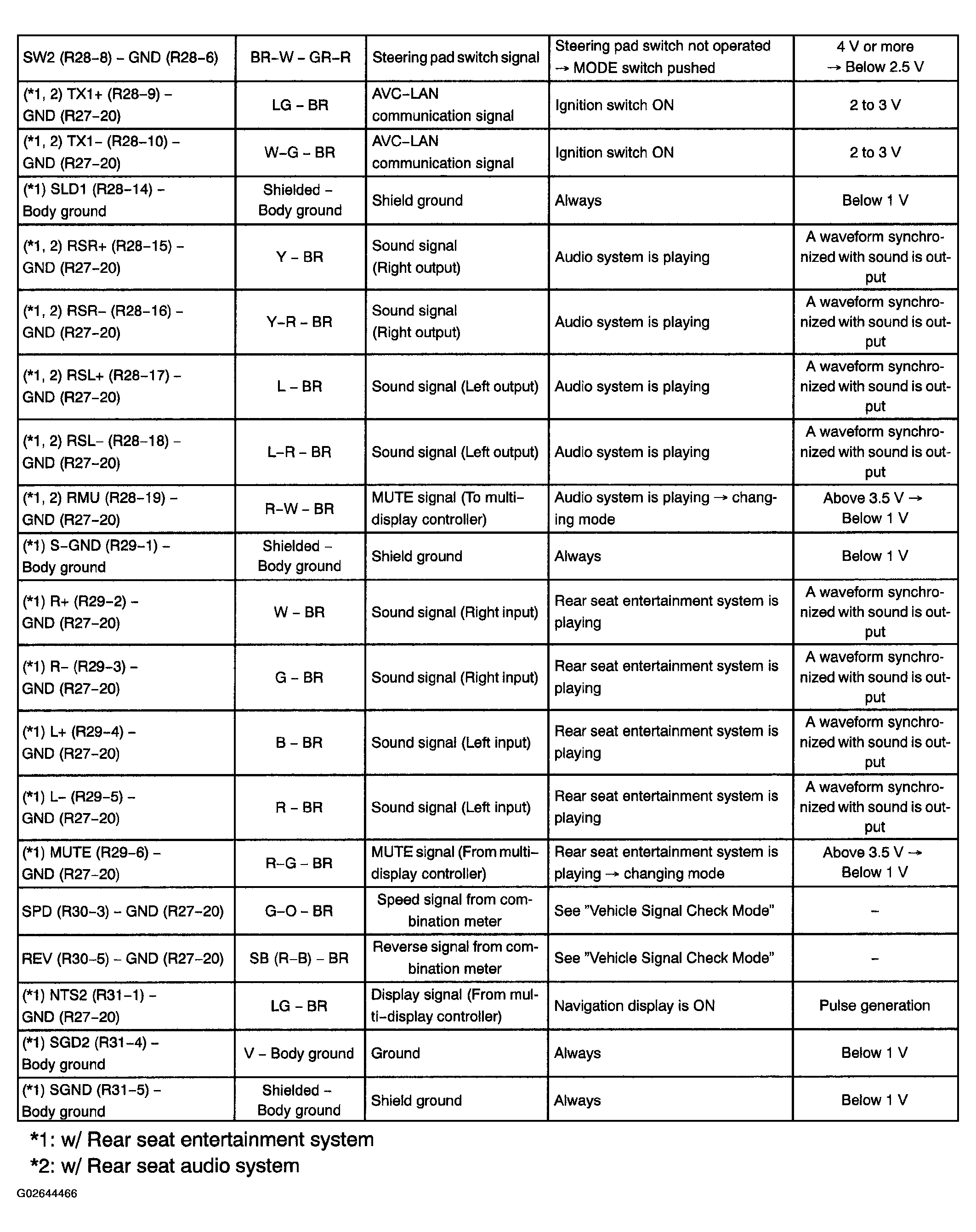

    Fig 3: ECU Connector Terminals Reference Chart (Radio And Navigation Assy (Double Cab)) (2 Of 2)
    G02644466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    *1: w/ Rear seat entertainment system

    *2: w/ Rear seat audio system

  2. RADIO AND NAVIGATION ASSY (Except Double Cab)

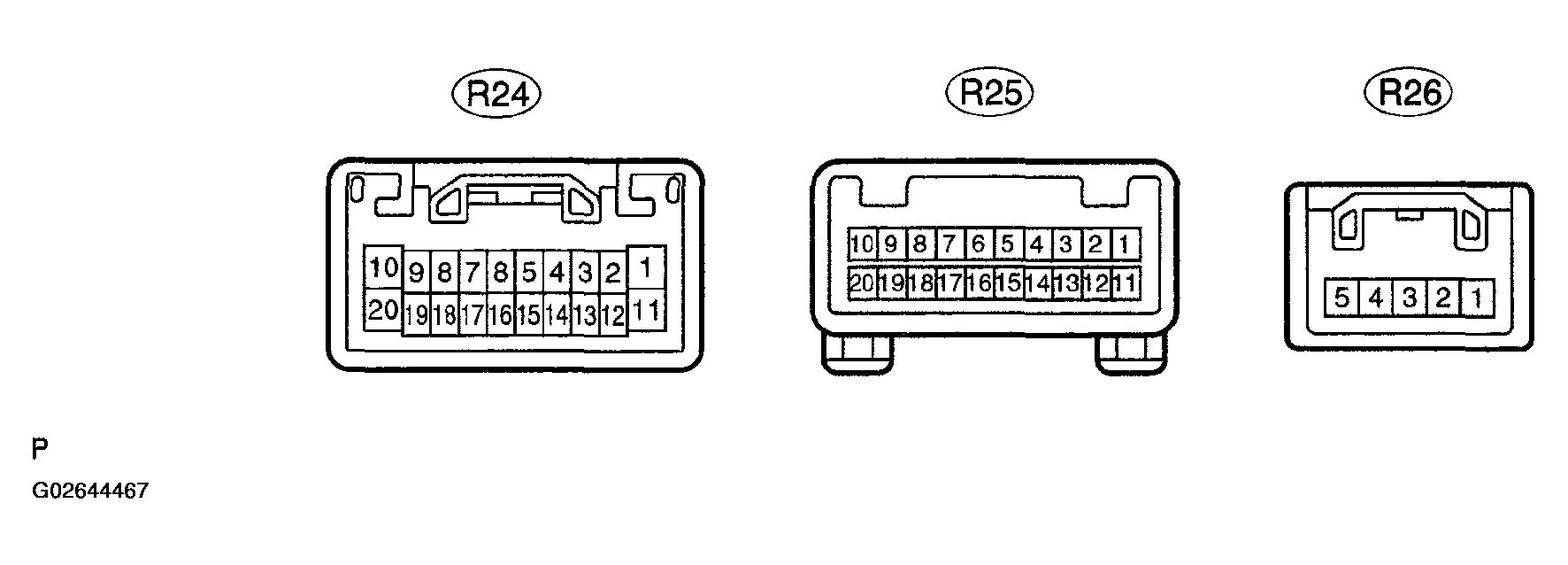

    Fig 4: Identifying ECU Connector Terminals (Radio And Navigation Assy (Except Double Cab))
    G02644467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

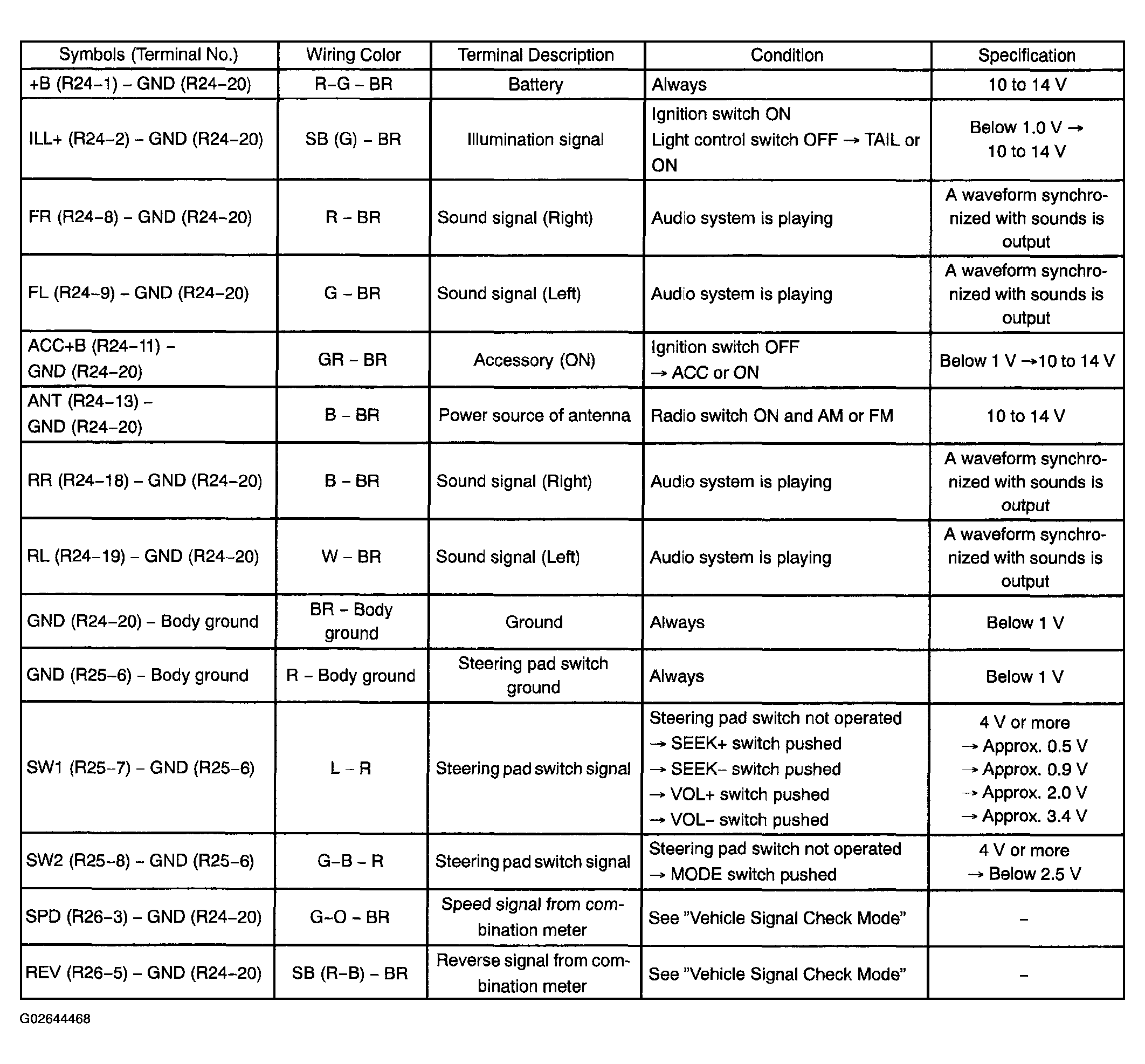

    Fig 5: ECU Connector Terminals Reference Chart (Radio And Navigation Assy (Except Double Cab))
    G02644468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. STEREO COMPONENT AMPLIFIER ASSY (Double Cab)

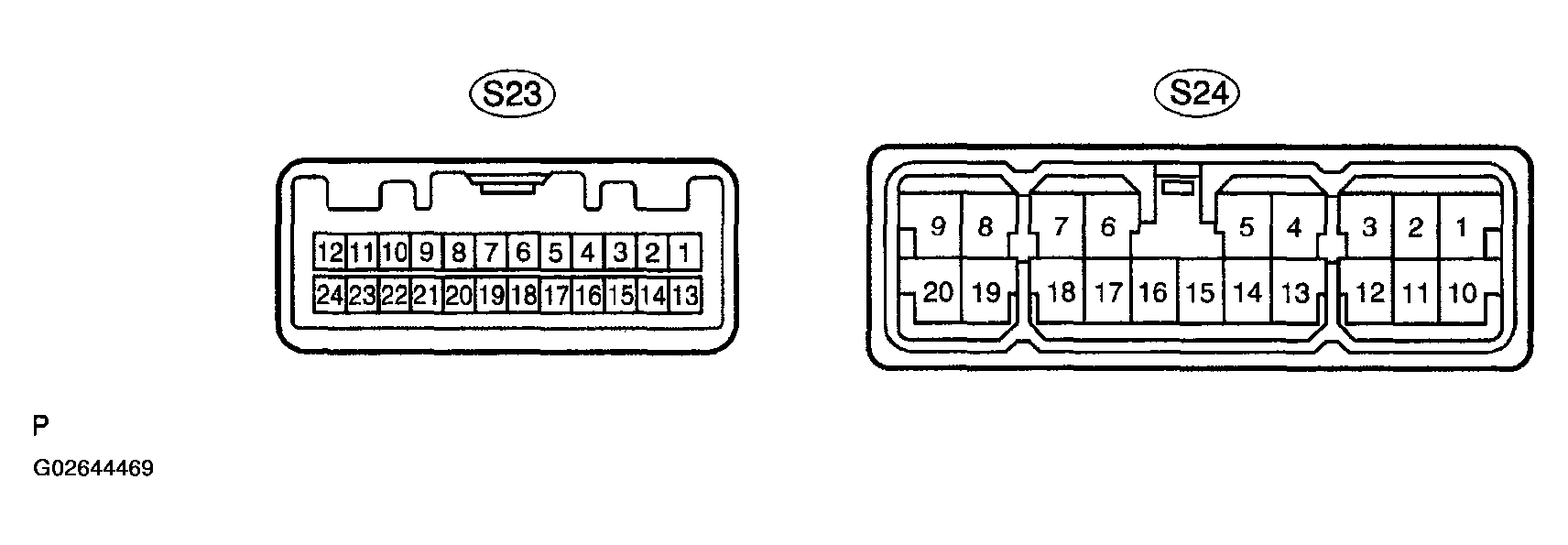

    Fig 6: Identifying ECU Connector Terminals (Stereo Component Amplifier Assy (Double Cab))
    G02644469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

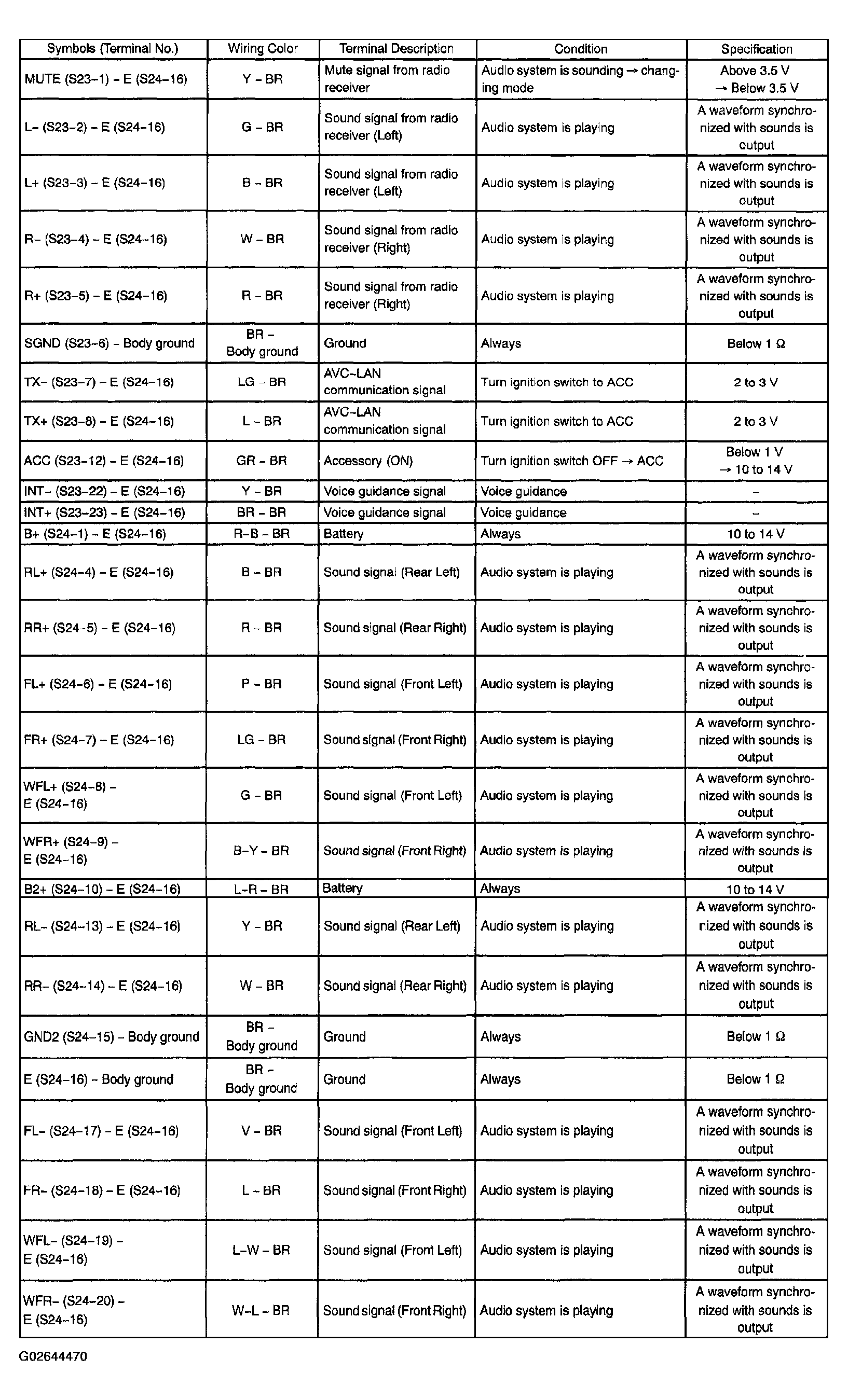

    Fig 7: ECU Connector Terminals Reference Chart (Stereo Component Amplifier Assy (Double Cab))
    G02644470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. STEREO COMPONENT AMPLIFIER ASSY (Except Double Cab)

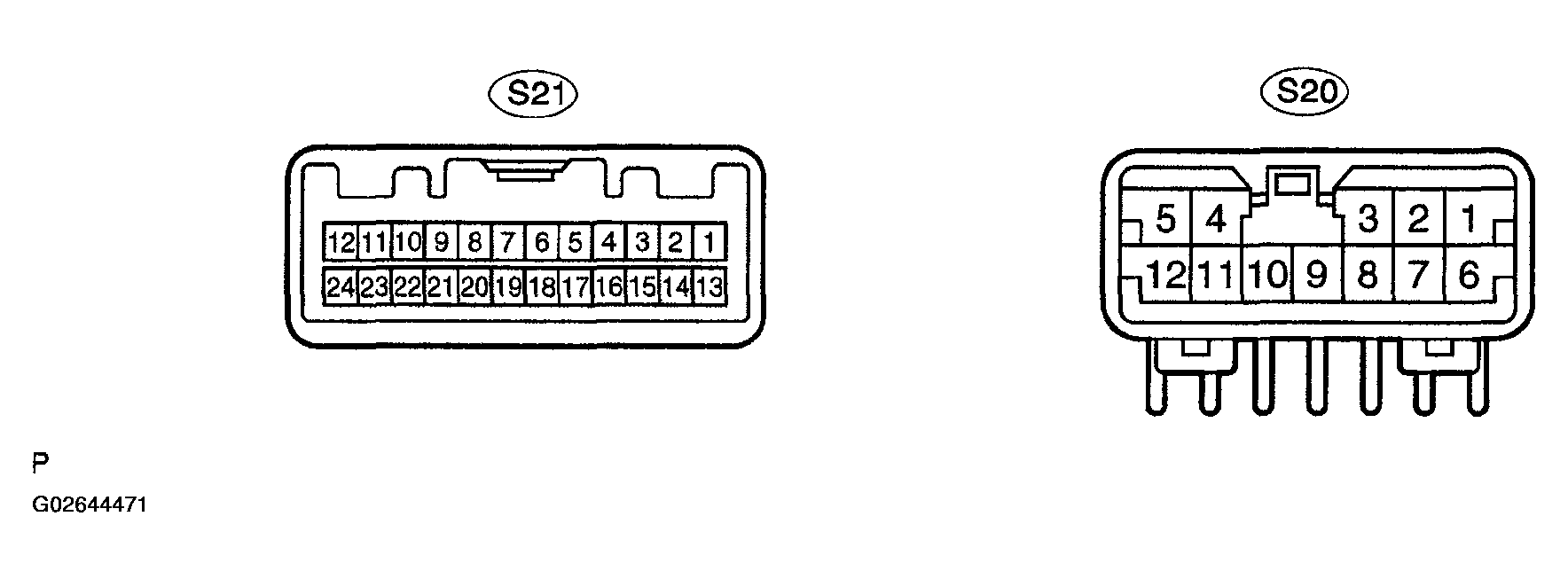

    Fig 8: Identifying ECU Connector Terminals (Stereo Component Amplifier Assy (Except Double Cab))
    G02644471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

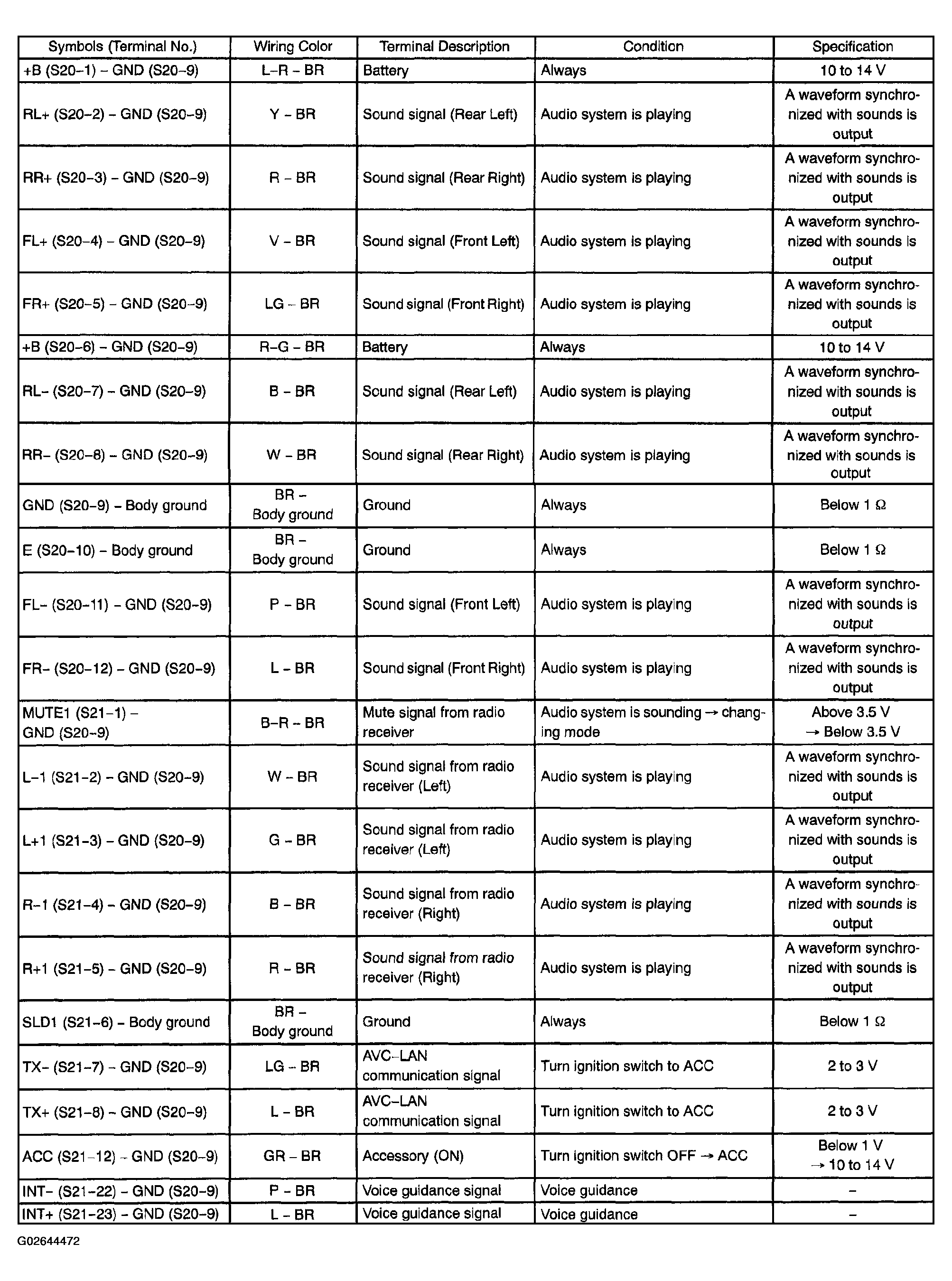

    Fig 9: ECU Connector Terminals Reference Chart (Stereo Component Amplifier Assy (Except Double Cab))
    G02644472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REAR SEAT AUDIO CONTROLLER
    Fig 10: Identifying ECU Connector Terminals (Rear Seat Audio Controller)
    G02644473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    ECU CONNECTOR TERMINALS REFERENCE (REAR SEAT AUDIO CONTROLLER)

    Symbols (Terminal No.) Wiring Color Terminal Description Condition Specification
    SGND - Body ground (R20-1 - Body ground) Shielded - Body ground Ground Always Below 1 Ω
    HP1L - GND (R20-2 - R20-17) BR-LG Sound signal (Output) RSA system is sounding (Headphone) A waveform synchronized with sounds is output
    HP1R - GND (R20-3 - R20-17) BR-LG Sound signal (Output) RSA system is sounding (Headphone) A waveform synchronized with sounds is output
    RSL- - GND (R20-6 - R20-17) W - LG Sound signal (Input) RSA system is sounding A waveform synchronized with sounds is output
    RSL+ - GND (R20-7 - R20-17) W - LG Sound signal (Input) RSA system is sounding A waveform synchronized with sounds is output
    RSR- - GND (R20-8 - R20-17) W - LG Sound signal (Input) RSA system is sounding A waveform synchronized with sounds is output
    RSR+ - GND (R20-9 - R20-17) W - LG Sound signal (Input) RSA system is sounding A waveform synchronized with sounds is output
    SLD - Body ground (R20-10 - Body ground) Shielded - Body ground Ground Always Below 1 Ω
    RMUT - GND (R20-11 - R20-17) LG - LG Mute signal Rear seat audio is changing mode Below 1 Ω
    +B - GND (R20-12 - R20-17) LG -LG Battery Always 10 to 14 V
    SGND - Body ground (R20-13 - Body ground) Shielded - Body ground Ground Always Below 1 Ω
    HP2L - GND (R20-14 - R20-17) BR - LG Sound signal (Output) RSA system is sounding (Headphone) A waveform synchronized with sounds is output
    HP2R - GND (R20-15 - R20-17) BR - LG Sound signal (Output) RSA system is sounding (Headphone) A waveform synchronized with sounds is output
    GND - Body ground (R20-17 - Body ground) LG - Body ground Ground Always Below 1 Ω
    TX+ (R20-22) - - LG - - AVC-LAN communication signal ignition switch ACC 2 to 3 V
    TX- (R20-23) - - LG - - AVC-LAN communication signal ignition switch ACC 2 to 3 V
    ACC - GND (R20-24 - R20-17) LG - LG Ignition (ACC) Ignition switch ON 10 to 14 V
  6. MULTI-DISPLAY CONTROLLER SUB-ASSY

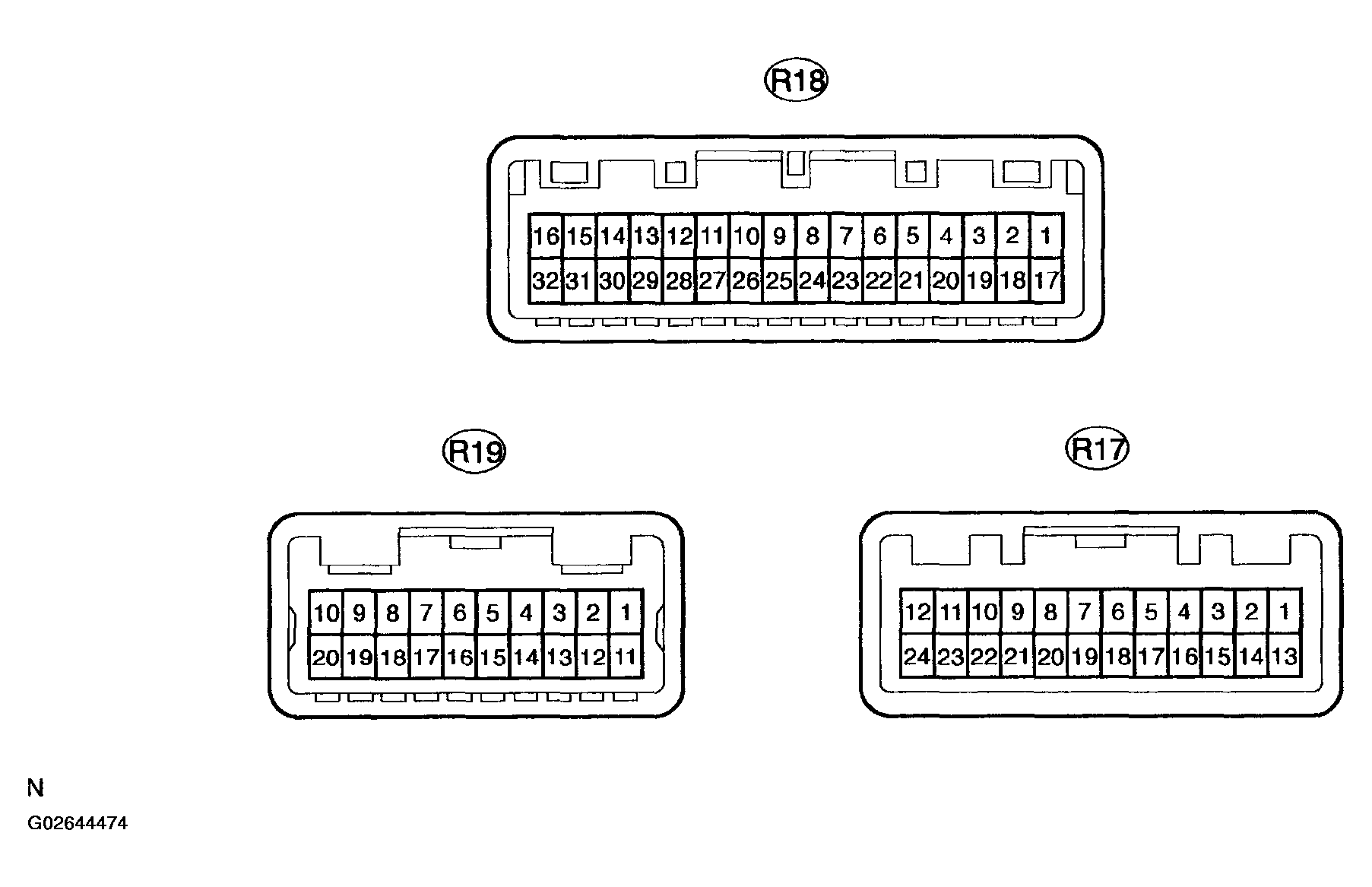

    Fig 11: Identifying ECU Connector Terminals (Multi-Display Controller Sub-Assy)
    G02644474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    ECU CONNECTOR TERMINALS REFERENCE (MULTI-DISPLAY CONTROLLER SUB-ASSY)

    Symbols (Terminals No.) Wiring Color Terminal Description Condition Specification
    +B2 - GND (R17-1 - R18-29) Y - W-B Battery Always 10 to 14 V
    ACC2 - GND (R17-2 - R18-29) LG - W-B Ignition (ACC) Ignition switch in the ACC position 10 to 14 V
    GAUX - GND (R17-3 - R18-29) LG - W-B Ground External device system is playing (At that time of VTR jack use) A waveform synchronized with sound is output
    TX2- (R17-4) - - LG - - AVC-LAN communication signal Ignition switch in the ACC position 2 to 3 V
    TX2+ (R17-5) - - LG - - AVC-LAN communication signal Ignition switch in the ACC position 2 to 3 V
    GND1 - Body ground (R17-6 - Body ground) Y - Body ground Ground Always Below 1 V
    SG5 - Body ground (R17-7 - Body ground) Shielded - Body ground Ground Always Below 1 V
    HP1L - GND (R17-8 - R18-29) BR - W-B Sound signal (Input) External device system is playing (At that time of VTR jack use) A waveform synchronized with sound is output
    HP1R - GND (R17-9 - R18-29) BR - W-B Sound signal (Input) External device system is playing (At that time of VTR jack use) A waveform synchronized with sound is output
    SG7 - Body ground (R17-10 - Body ground) Shielded - Body ground Ground Always Below 1 V
    AUXL - GND (R17-11 - R18-29) BR - W-B Sound signal External device system is playing (At that time of VTR jack use) A waveform synchronized with sound is output
    AUXR - GND (R17-12 - R18-29) BR - W-B Sound signal External device system is playing (At that time of VTR jack use) A waveform synchronized with sound is output
    R2 - GND (R17-13 - R18-29) B - W-B Display signal (Red) Display is on (Television display assy) Pulse generation
    G2 - GND (R17-14 - R18-29) B - W-B Display signal (Green) Display is on (Television display assy) Pulse generation
    B2 - GND (R17-15 - R18-29) B - W-B Display signal (Blue) Display is on (Television display assy) Pulse generation
    SYN2 - GND (R17-16 - R18-29) B - W-B Display signal (Synchronize) Display is on (Television display assy) Pulse generation
    VR2 - Body ground (R17-17 - Body ground) B - Body ground Ground Always Below 1 V
    VG2 - Body ground (R17-18 - Body ground) B - Body ground Ground Always Below 1 V
    SG6 - Body ground (R17-19 - Body ground) Shielded - Body ground Ground Always Below 1 V
    HP2L - GND (R17-20 - R18-29) BR - W-B Sound signal (Output) Audio system is playing (Headphone) A waveform synchronized with sound is output
    HP2R - GND (R17-21 - R18-29) BR - W-B Sound signal (Output) Audio system is playing (Headphone) A waveform synchronized with sound is output
    SG6 - Body ground (R17-22 - Body ground) Shielded - Body ground Ground Always Below 1 V
    SGN5 - Body ground (R17-23 - Body ground) BR - Body ground Ground Always Below 1 V
    NTS4 - GND (R17-24 - R18-29) BR - W-B Display signal External device system displayed (At that time of VTR jack use) Pulse generation
    L- - GND (R18-7 - R18-29) R - W-B Sound signal (Output) DVD system is playing A waveform synchronized with sound is output
    L+ - GND (R18-8 - R18-29) B - W-B Sound signal (Output) DVD system is playing A waveform synchronized with sound is output
    R- - GND (R18-9 - R18-29) G - W-B Sound signal (Output) DVD system is playing A waveform synchronized with sound is output
    R+ - GND (R18-10 - R18-29) W - W-B Sound signal (Output) DVD system is playing A waveform synchronized with sound is output
    SG1 - Body ground (R18-11 - Body ground) Shielded - Body ground Ground Always Below 1 V
    LMUT - GND (R18-12 - R18-29) R-G - W-B Mute signal Disc player changer or disc player controller is changing Below 1 V
    +B1 - GND (R18-16 - R18-29) L-O - W-B Battery Always 10 to 14 V
    SG3 - Body ground (R18-19 - Body ground) Shielded - Body ground Ground Always Below 1 V
    SGN1 - Body ground (R18-20 - Body ground) V - Body ground Ground Always Below 1 V
    NTS1 - GND (R18-21 - R18-29) LG - W-B Display signal DVD system is displayed Pulse generation
    R-L- - GND (R18-23 - R18-29) L-R - W-B Sound signal (Input) RSE system is playing A waveform synchronized with sound is output
    R-L+ - GND (R18-24 - R18-29) L - W-B Sound signal (Input) RSE system is playing A waveform synchronized with sound is output
    R-R- - GND (R18-25 - R18-29) Y-R - W-B Sound signal (Input) RSE system is playing A waveform synchronized with sound is output
    R-R+ - GND (R18-26 - R18-29) Y - W-B Sound signal (Input) RSE system is playing A waveform synchronized with sound is output
    SG2 - Body ground (R18-27 - Body ground) Shielded - Body ground Ground Always Below 1 V
    RMUT - GND (R18-28 - R18-29) R-W - W-B Mute signal Audio source is changing mode Below 1 V
    GND - Body ground (R18-29 - Body ground) W-B - Body ground Ground Always Below 1 V
    TX- (R18-30) - - W-G - - AVC-LAN communication signal Ignition switch in the ACC position 2 to 3 V
    TX+ (R18-31) - - LG - - AVC-LAN communication signal Ignition switch in the ACC position 2 to 3 V
    ACC - GND (R18-32 - R18-29) GR - W-B Ignition (ACC) Ignition switch in the ACC position 10 to 14 V
    MUTE - GND (R19-1 - R18-29) LG - W-B Mute signal Disc player controller is changing mode Below 1 V
    AL- - GND (R19-2 - R18-29) W - W-B Sound signal (Input) DVD system is playing A waveform synchronized with sound is output
    AL+ - GND (R19-3 - R18-29) W - W-B Sound signal (Input) DVD system is playing A waveform synchronized with sound is output
    AR- - GND (R19-4 - R18-29) W - W-B Sound signal (Input) DVD system is playing A waveform synchronized with sound is output
    AR+ - GND (R19-5 - R18-29) W - W-B Sound signal (Input) DVD system is playing A waveform synchronized with sound is output
    SG4 - Body ground (R19-6 - Body ground) Shielded - Body ground Ground Always Below 1 V
    SELD - Body ground (R19-7 - Body ground) Shielded - Body ground Ground Always Below 1 V
    NTS2 - GND (R19-8 - R18-29) BR - W-B Display signal DVD system is displayed Pulse generation
    SGN2 - Body ground (R19-9 - Body ground) BR - Body ground Ground Always Below 1 V
    SG9 - Body ground (R19-10 - Body ground) Shielded - Body ground Ground Always Below 1 V
    +B - GND (R19-11 - R18-29) LG - W-B Battery Always 10 to 14 V
    ACC3 - GND (R19-12 - R18-29) LG - W-B Ignition (ACC) Ignition switch in the ACC position 10 to 14 V
    TX3- (R19-13) - - LG - - AVC-LAN communication signal Ignition switch in the ACC position 2 to 3 V
    TX3+ (R19-14) - - LG - - AVC-LAN communication signal Ignition switch in the ACC position 2 to 3 V
    GND4 - Body ground (R19-15 - Body ground) LG - Body ground Ground Always Below 1 V
    HPL- - GND (R19-16 - R18-29) W - W-B Sound signal (Output) RSE system is playing A waveform synchronized with sound is output
    HPL+ - GND (R19-17 - R18-29) W - W-B Sound signal (Output) RSE system is playing A waveform synchronized with sound is output
    HPR- - GND (R19-18 - R18-29) W - W-B Sound signal (Output) RSE system is playing A waveform synchronized with sound is output
    HPR+ - GND (R19-19 - R18-29) W - W-B Sound signal (Output) RSE system is playing A waveform synchronized with sound is output
    SLD1 - Body ground (R19-20 - Body ground) Shielded - Body ground Ground Always Below 1 V
