System Diagram

WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

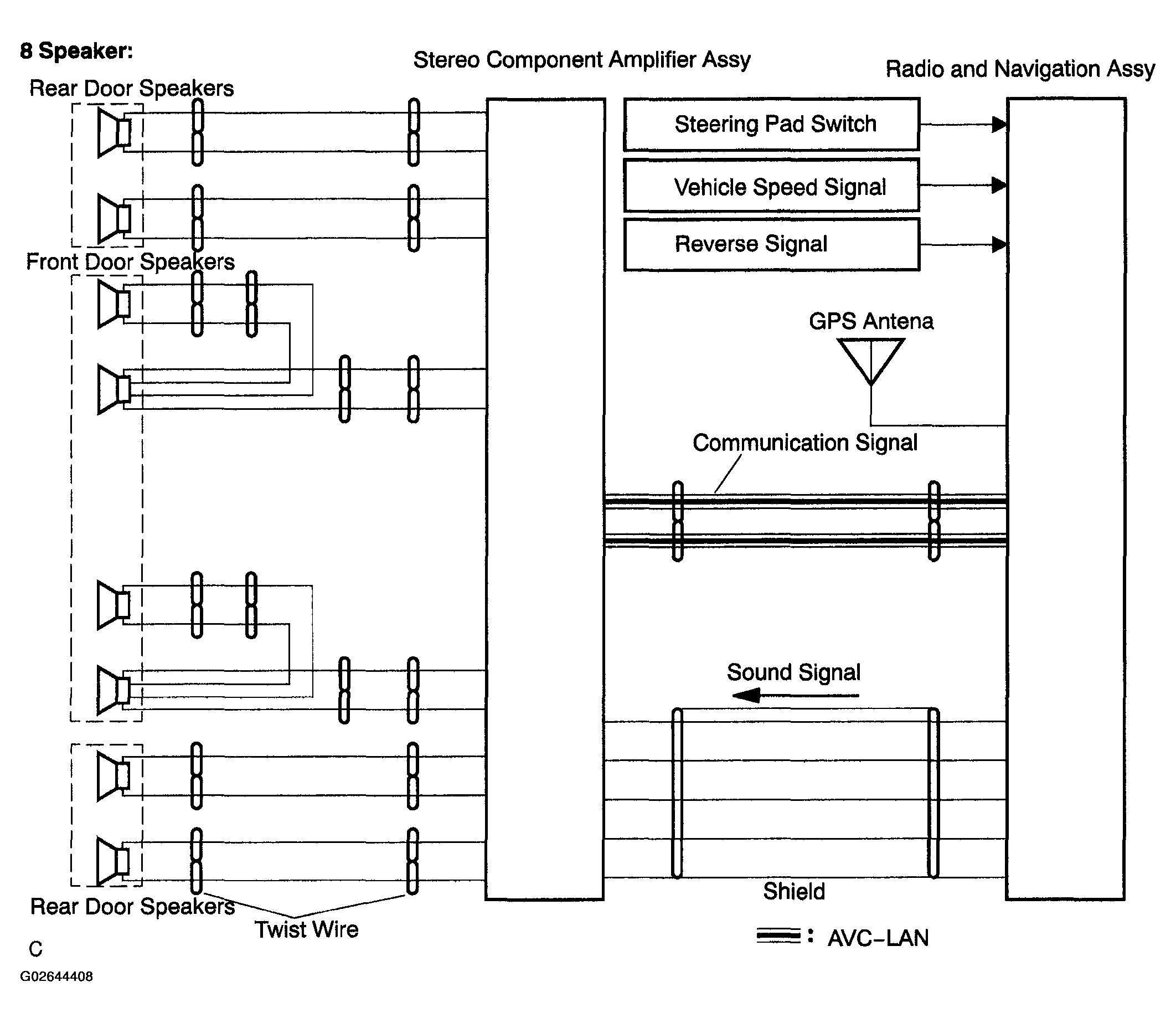

Fig 1: Navigation System Diagram (8 Speaker)
G02644408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

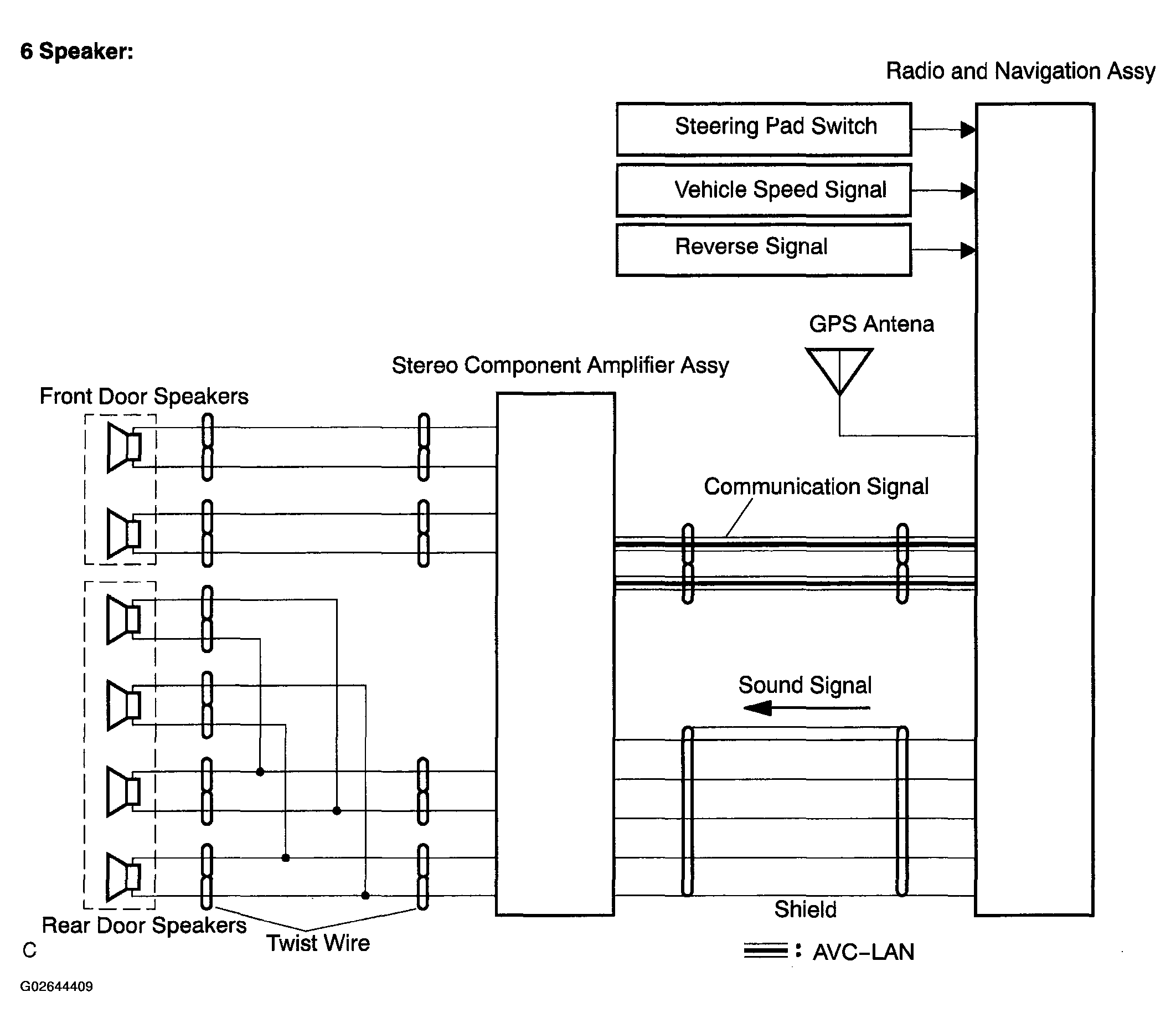

Fig 2: Navigation System Diagram (6 Speaker)
G02644409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
