Diagnostic Trouble Code Chart

WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
DIAGNOSTIC TROUBLE CODE CHART

Terms Description
Physical address 3-digit, hexadecimal code assigned to all components connected to the AVC-LAN. Individual symbols are specified based on function. Units whose names are unknown or relevant units are displayed with physical addresses.
Logical address 2-digit, hexadecimal code assigned to all the functions in the AVC-LAN system.

HINT:

Titles for each unit are stated in the following order: parts name (physical address) [Name indicated by DTC]

  1. Radio and navigation assy (physical address: 140) [AVN]
    1. Logical address: 01 (Communication control)

      HINT:

      Methods used to verify the cause of the problem are listed in order of probability in the verification column.

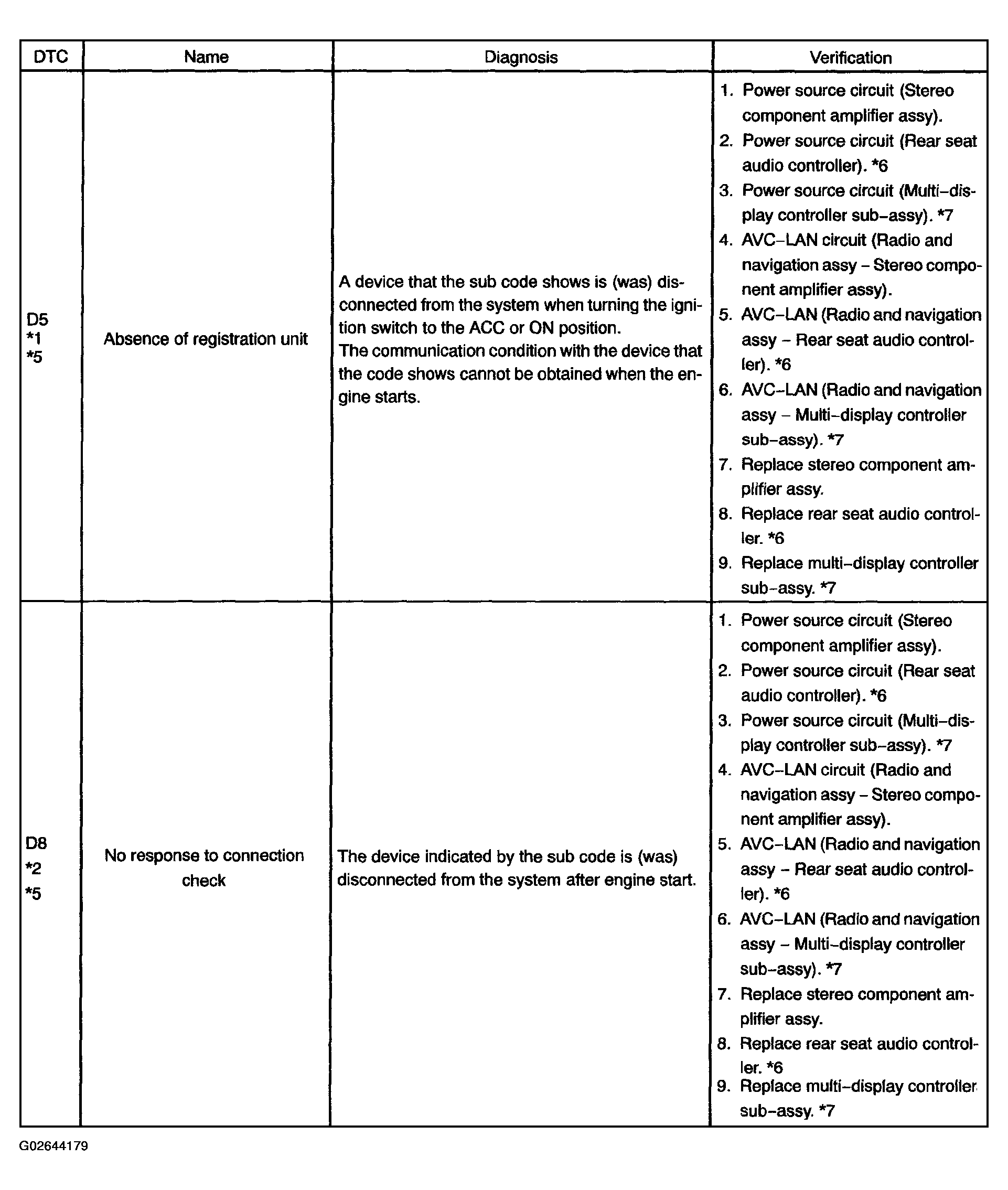

      Fig 1: Diagnostic Trouble Code Chart (Logical Address: 01 (Communication Control)) (1 Of 4)
      G02644179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

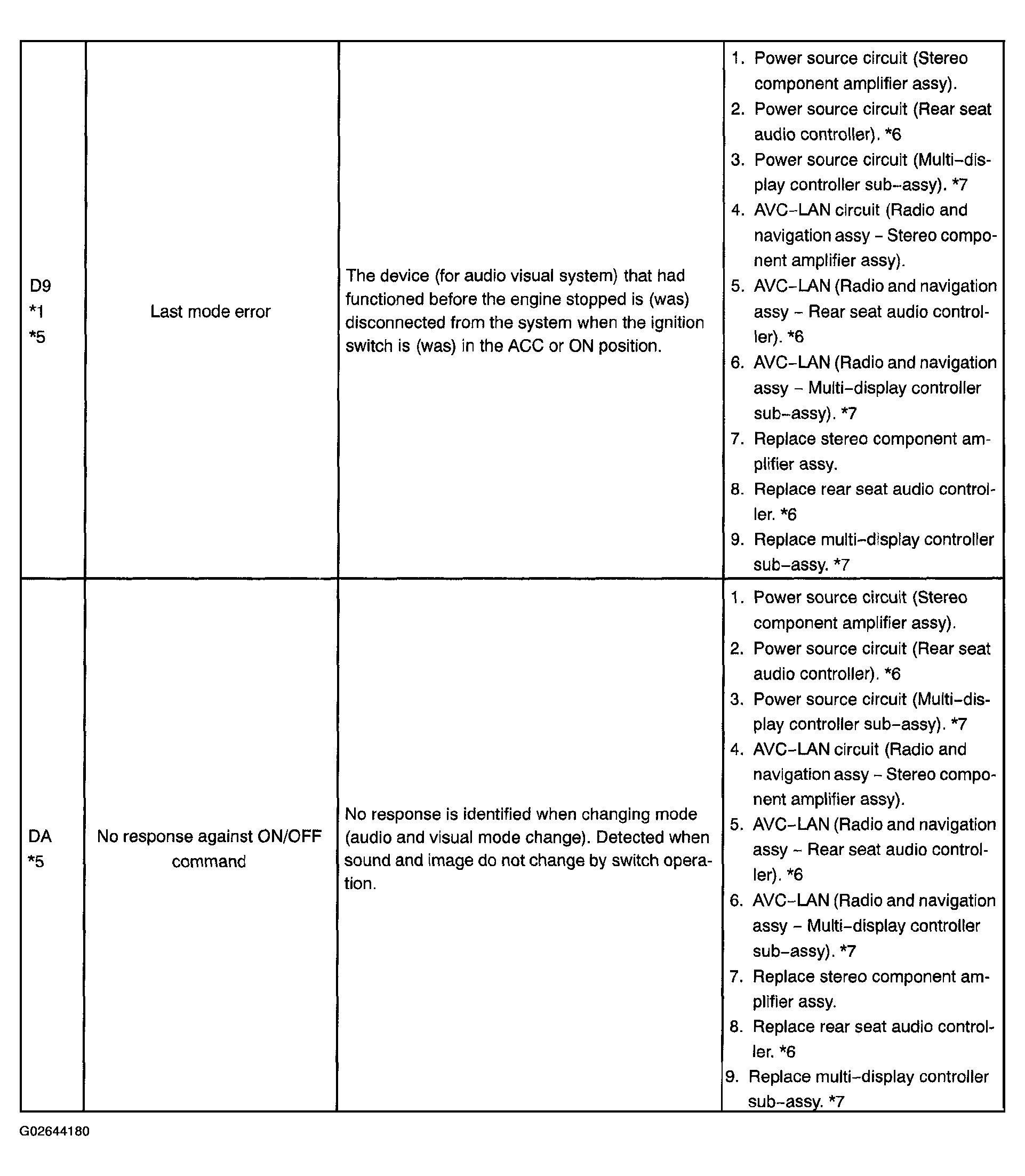

      Fig 2: Diagnostic Trouble Code Chart (Logical Address: 01 (Communication Control)) (2 Of 4)
      G02644180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

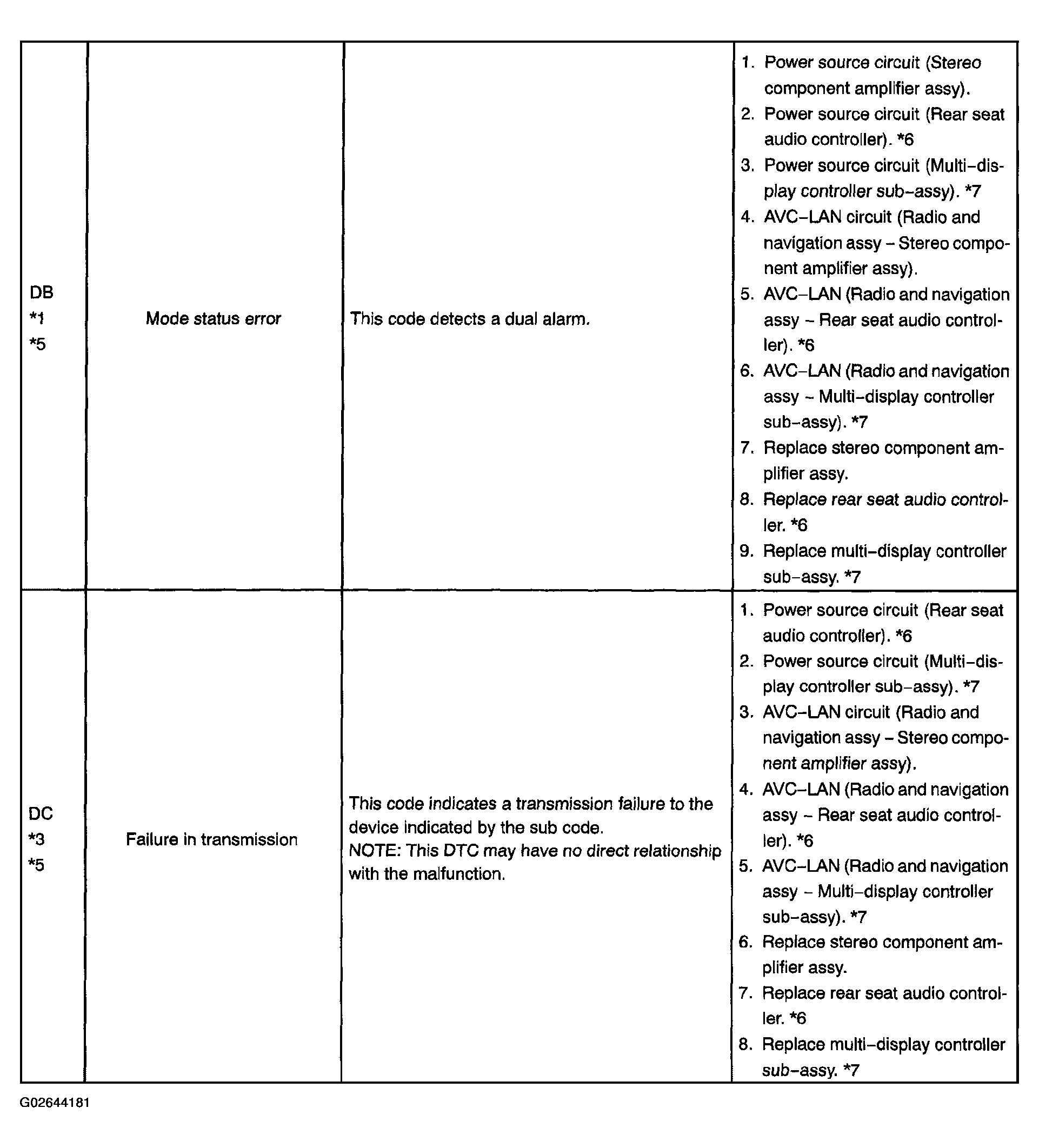

      Fig 3: Diagnostic Trouble Code Chart (Logical Address: 01 (Communication Control)) (3 Of 4)
      G02644181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

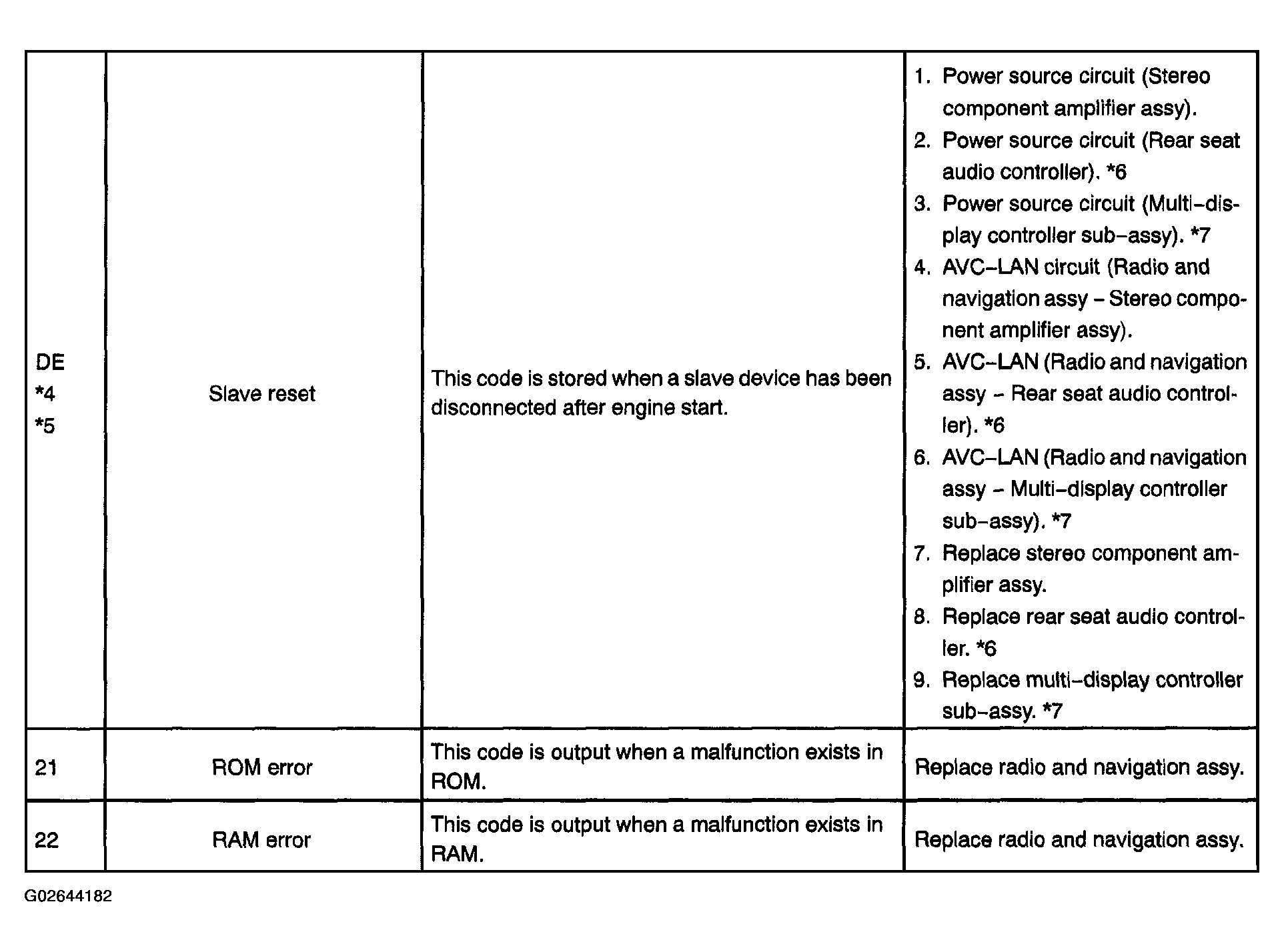

      Fig 4: Diagnostic Trouble Code Chart (Logical Address: 01 (Communication Control)) (4 Of 4)
      G02644182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • *1: This code may be recorded depending on the battery condition or engine start voltage even if no failure is detected.
      • *2: If the power connector is disconnected after the engine starts, this code is recorded after 180 seconds.
      • *3: This code may be stored if the ignition key is turned to the START position again with the engine running.
      • *4: This code may be stored if the ignition key is held in the START position for 1 minute or more before returning to the ON position.
      • *5: If the device is reported as not existing during verification, check the power source circuit and AVC-LAN circuit for the device.
      • *6: w/ Rear seat audio system only.
      • *7: w/ Rear seat entertainment system only.
    2. Logical address: 58 (Navigation): 80 (GPS)

      HINT:

      Methods used to verify the cause of the problem are listed in order of probability in the verification column.

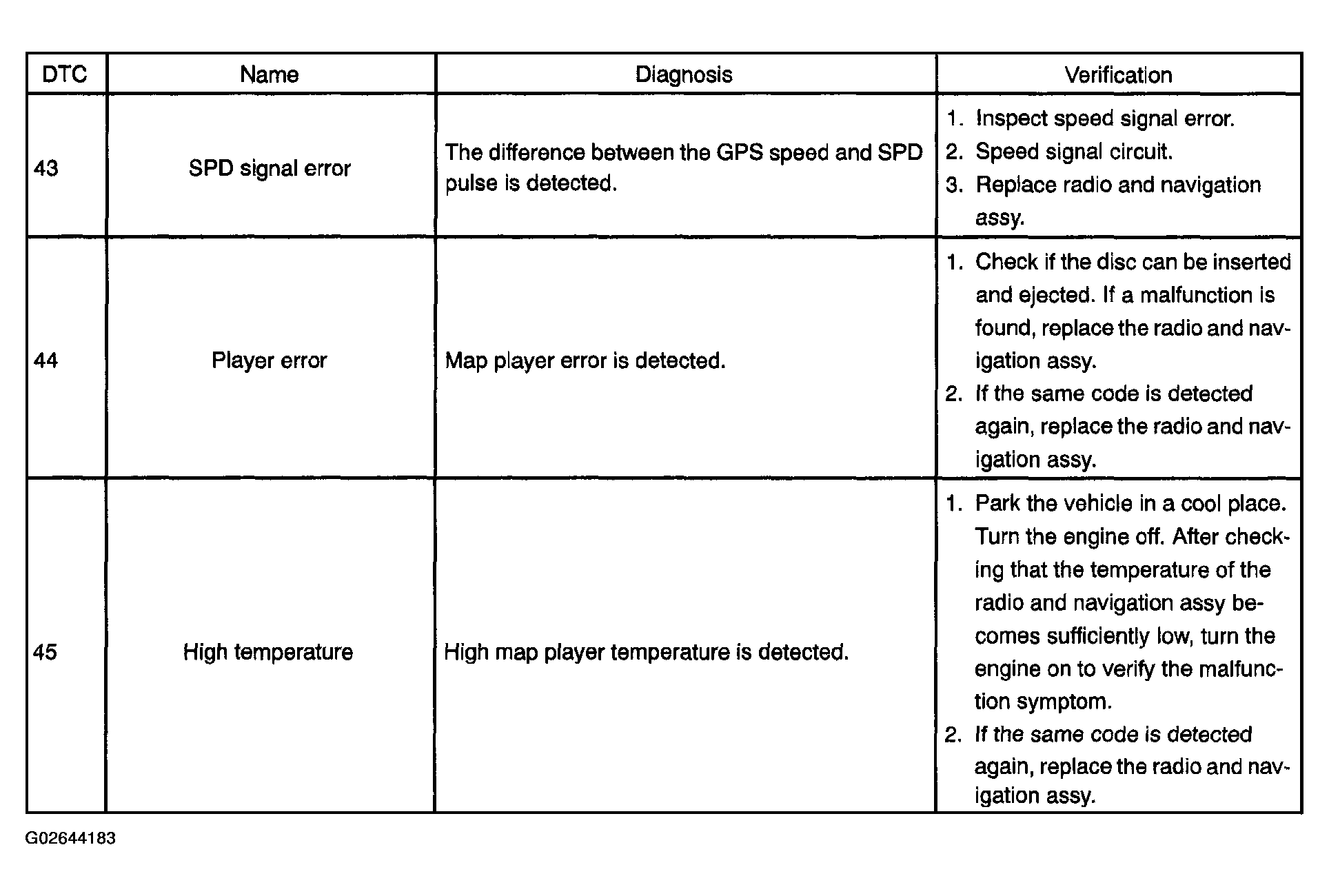

      Fig 5: Diagnostic Trouble Code Chart (Logical Address: 58 (Navigation): 80 (GPS))
      G02644183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Logical address: 21 (SW): 23 (SW with name): 24 (SW converting): 25 (command SW)

    HINT:

    Methods used to verify the cause of the problem are listed in order of probability in the verification column.

    DIAGNOSTIC TROUBLE CODE CHART (LOGICAL ADDRESS:21, 23, 24, 25)

    DTC Name Diagnosis Verification
    10 Panel switch error The panel SW detection circuit has a failure. Replace radio and navigation assy.
  2. Stereo component amplifier assy (Physical address: 440) [DSP AMP]
    1. Logical address: 01 (Communication control)

      HINT:

      Methods used to verify the cause of the problem are listed in order of probability in the verification column.

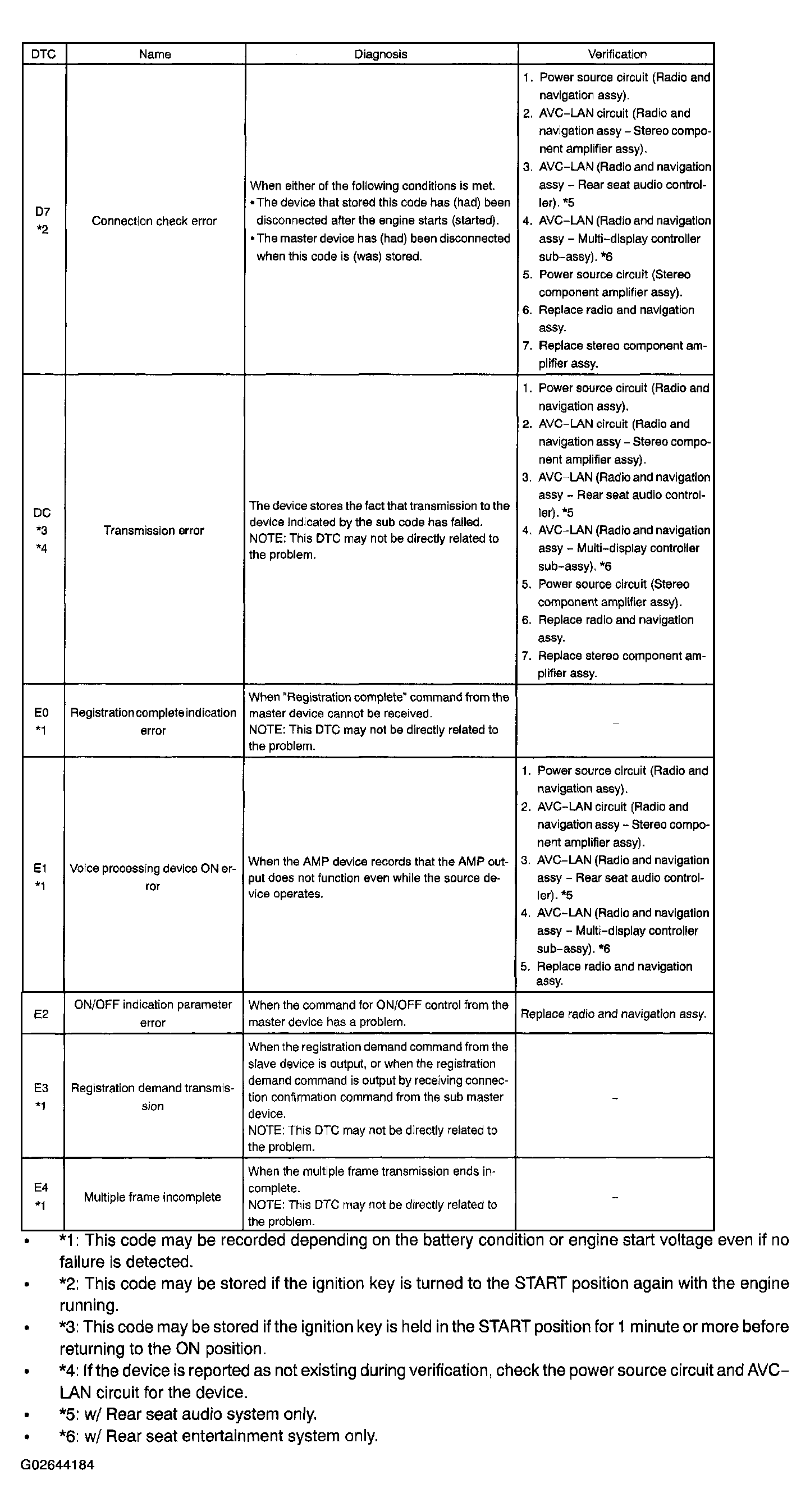

    Fig 6: Diagnostic Trouble Code Chart (Logical Address: 01 (Communication Control))
    G02644184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    • *1: This code may be recorded depending on the battery condition or engine start voltage even if no failure is detected.
    • *2: This code may be stored if the ignition key is turned to the START position again with the engine running.
    • *3: This code may be stored if the ignition key is held in the START position for 1 minute or more before returning to the ON position.
    • *4: If the device is reported as not existing during verification, check the power source circuit and AVC-LAN circuit for the device.
    • *5: w/ Rear seat audio system only.
    • *6: w/ Rear seat entertainment system only.
  3. Multi-display controller sub-assy (Physical address: 1F6) [RSE ECU, MAIN]
    1. Logical address: 01 (Communication control)

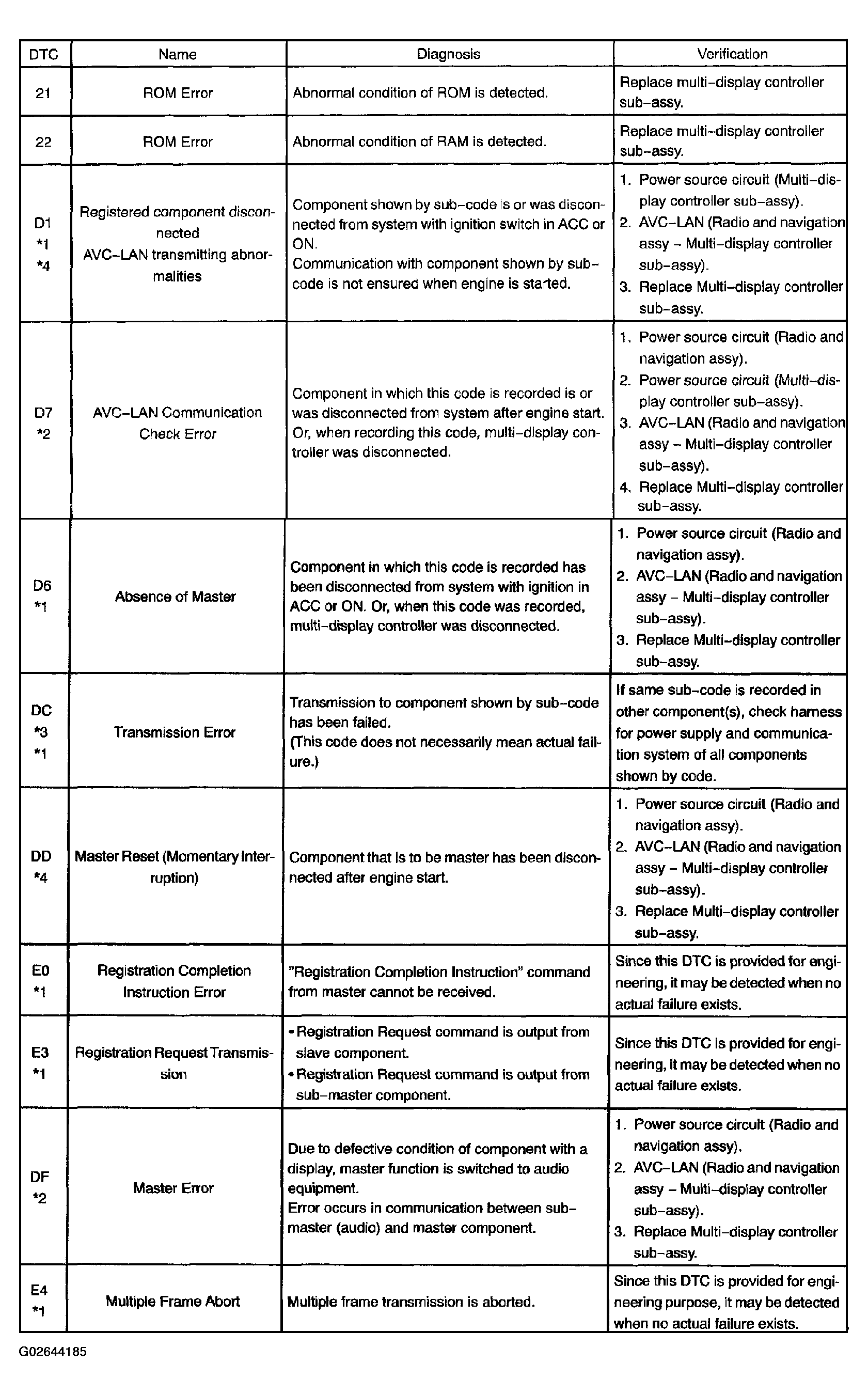

    Fig 7: Diagnostic Trouble Code Chart
    G02644185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    • *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting an engine.
    • *2: This code is stored when 210 sec. has passed after the power supply connector is pulled out after engine start.
    • *3: This code may be stored when the engine key is turned back to the ON position and then turned again to the START position in 1 minute after engine start.
    • *4: This code may be stored when the engine key is turned back to the ON position and then turned again to the START position after engine start.
  4. Rear seat audio controller (Physical address: 1F4) [RSA]
    1. Logical address: 01 (Communication control)

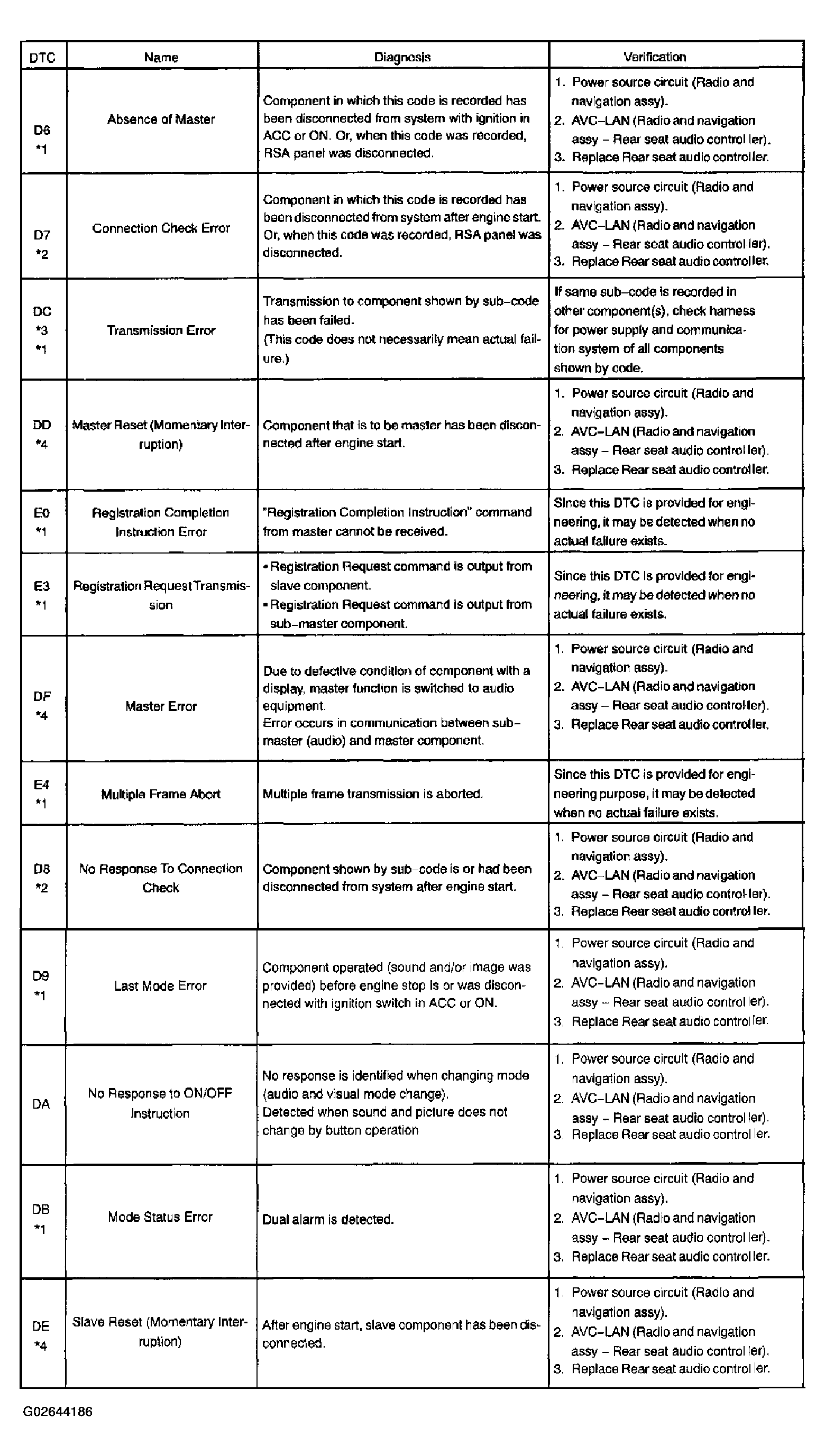

    Fig 8: Diagnostic Trouble Code Chart (Rear Seat Audio Controller (Physical Address: 1F4) [RSA])
    G02644186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    • *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting the engine.
    • *2: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.
    • *3: This code may be stored when the engine key is turned 1 min. again after engine start.
    • *4: This code may be stored when the engine key is turned again after engine start.
