Abs Actuator: Removal

REMOVE BRAKE LINE COVER
DISCONNECT CONNECTOR
Pull out the release bar, and disconnect the connector.

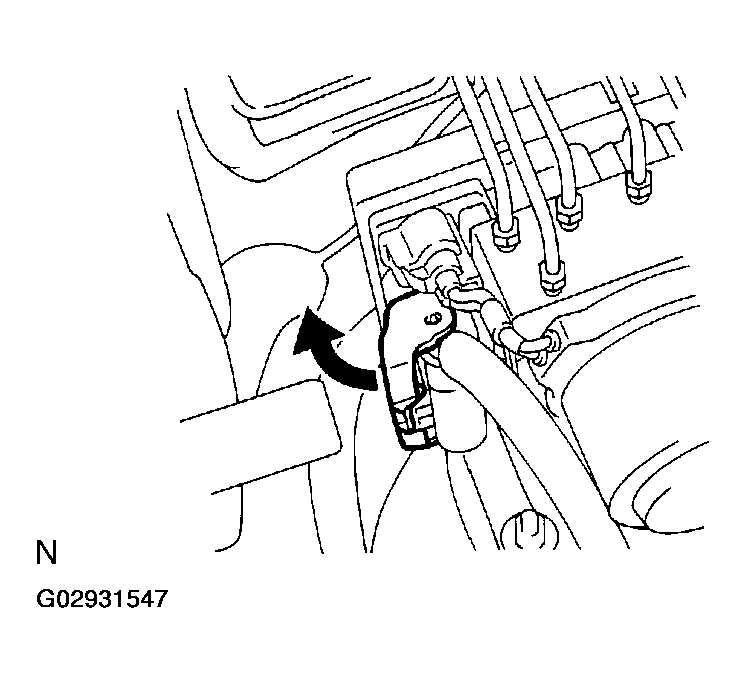

Fig 1: Pulling Out Release Bar
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT BRAKE LINES
Using SST, disconnect the 5 brake lines from the ABS actuator.

SST 09023-00100

Torque: 15 N.m (155 kgf.cm, 11 ft.lbf)
REMOVE ABS ACTUATOR ASSEMBLY
Remove the 3 nuts and ABS actuator assembly.

Torque: 19 N.m (195 kgf.cm, 14 ft.lbf)
REMOVE ABS ACTUATOR
1. Remove the 3 nuts and ABS actuator from the actuator bracket.
  Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
2. Remove the 3 holders and 3 cushions from the ABS actuator.

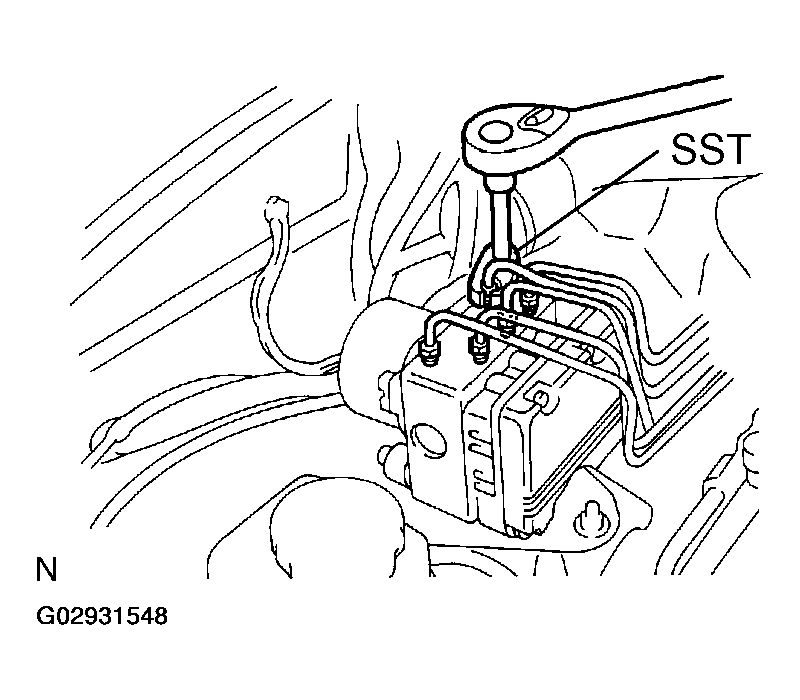

  Fig 2: Disconnecting Brake Lines from ABS Actuator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
