Power Mirror Control System (Except Double Cab): Inspection

Left side: INSPECT MIRROR SWITCH CONTINUITY

CONTINUITY TESTING

Switch Position	Tester Connection	Specified Condition
UP	4 - 8, 6 -7	Continuity
DOWN	4 - 7, 6 - 8	Continuity
LEFT	5 - 8, 6 - 7	Continuity
RIGHT	5 - 7, 6 - 8	Continuity

If the continuity is not as specified, replace the switch.

Right side: INSPECT MIRROR SWITCH CONTINUITY

CONTINUITY TESTING

Switch Position	Tester Connection	Specified Condition
UP	3 - 8, 6 -7	Continuity
DOWN	3 - 7, 6 - 8	Continuity
LEFT	5 - 8, 6 - 7	Continuity
RIGHT	5 - 7, 6 - 8	Continuity

If the continuity is not as specified, replace the switch.

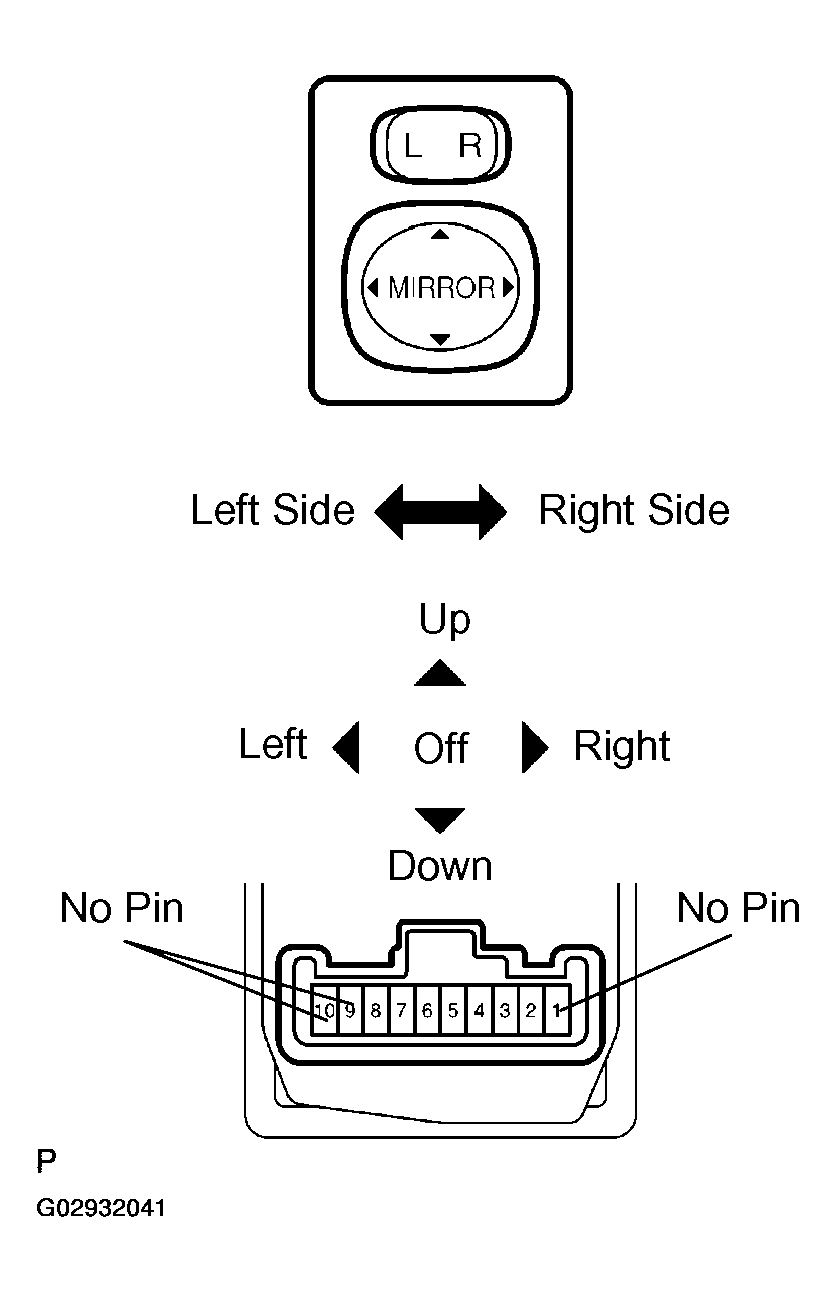

Fig 1: Inspecting Mirror Switch Continuity

G02932041

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2UZ-FE: INSPECT ACC CUT RELAY CONTINUITY

CONTINUITY TESTING

Tester Connection	Specified Condition
3 - 5	No continuity
3 - 5	Continuity (When battery voltage is applied to terminals 1 and 2)

If the continuity is not as specified, replace the relay.

Fig 2: Inspecting ACC Cut Relay Continuity

G02932042

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT MIRROR MOTOR OPERATION
1. Connect the positive (+) lead from the battery to terminal 1 (3) and the negative (-) lead to terminal 5 (1). Check that the mirror turns to the left.
  (): w/o Mirror heater.

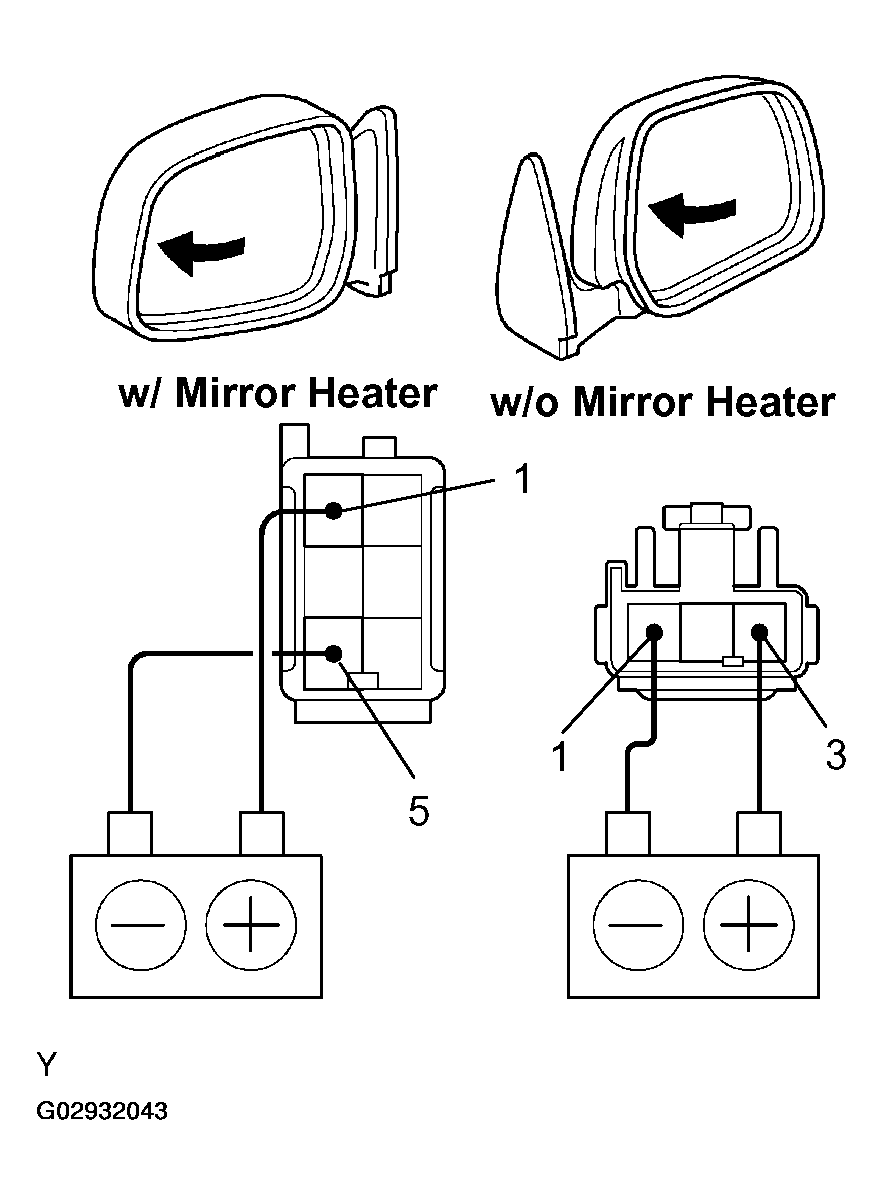

  Fig 3: Inspecting Mirror Motor Operation (Mirror Turns Left)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Reverse the polarity, check that the mirror turns to the right.

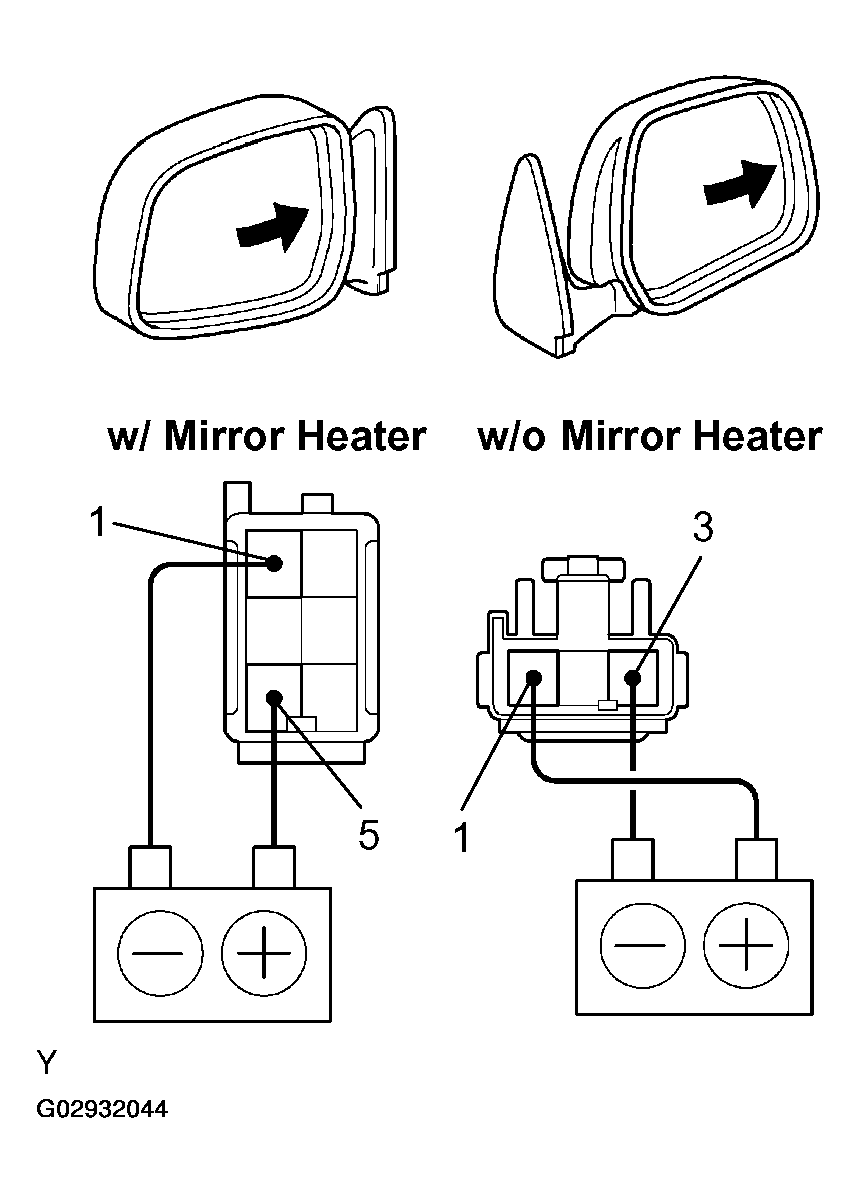

  Fig 4: Inspecting Mirror Motor Operation (Mirror Turns Right)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the positive (+) lead from the battery to terminal 3 (2) and the negative (-) lead to terminal 5 (1). Check that the mirror turns upward.
  (): w/o Mirror heater.

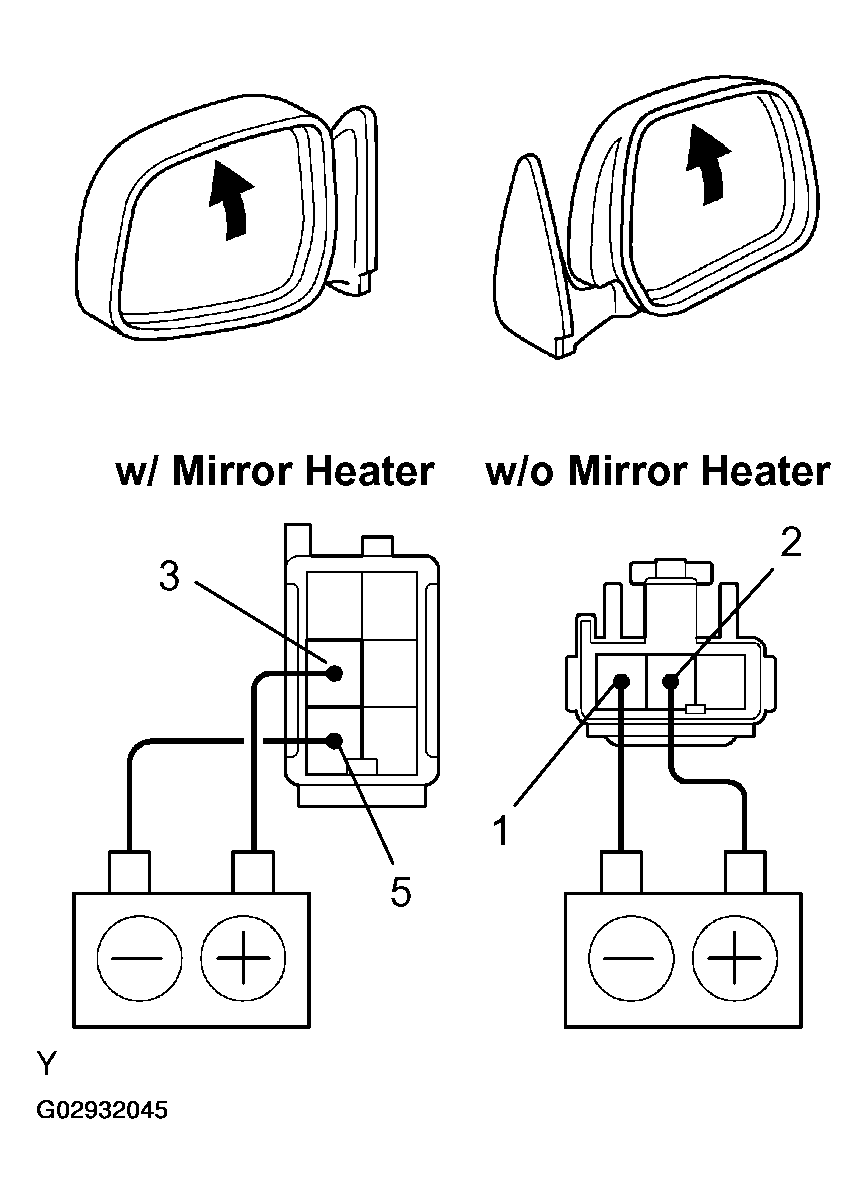

  Fig 5: Inspecting Mirror Motor Operation (Mirror Turns Upward)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Reverse the polarity, and check that the mirror turns downward. If operation is not as specified, replace the mirror assembly.

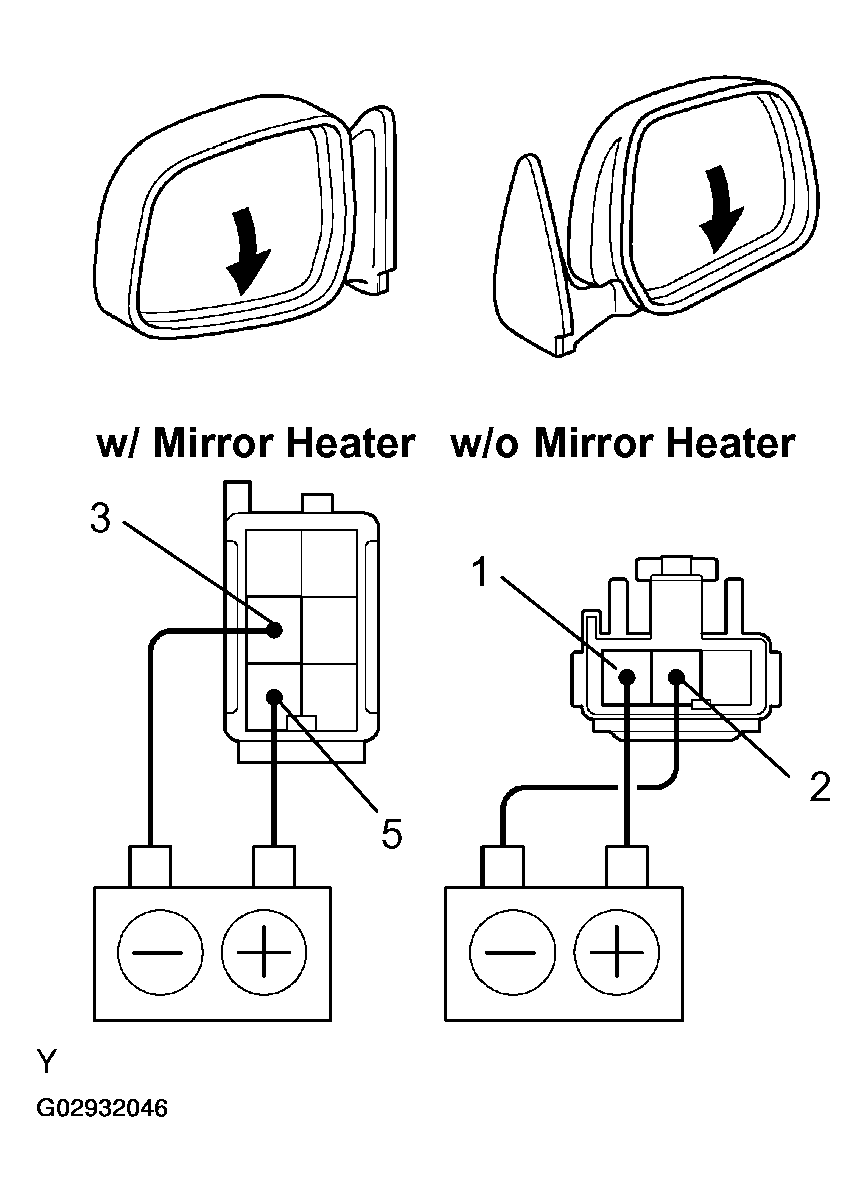

  Fig 6: Inspecting Mirror Motor Operation (Mirror Turns Downward)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
