Terminals Of Ecu

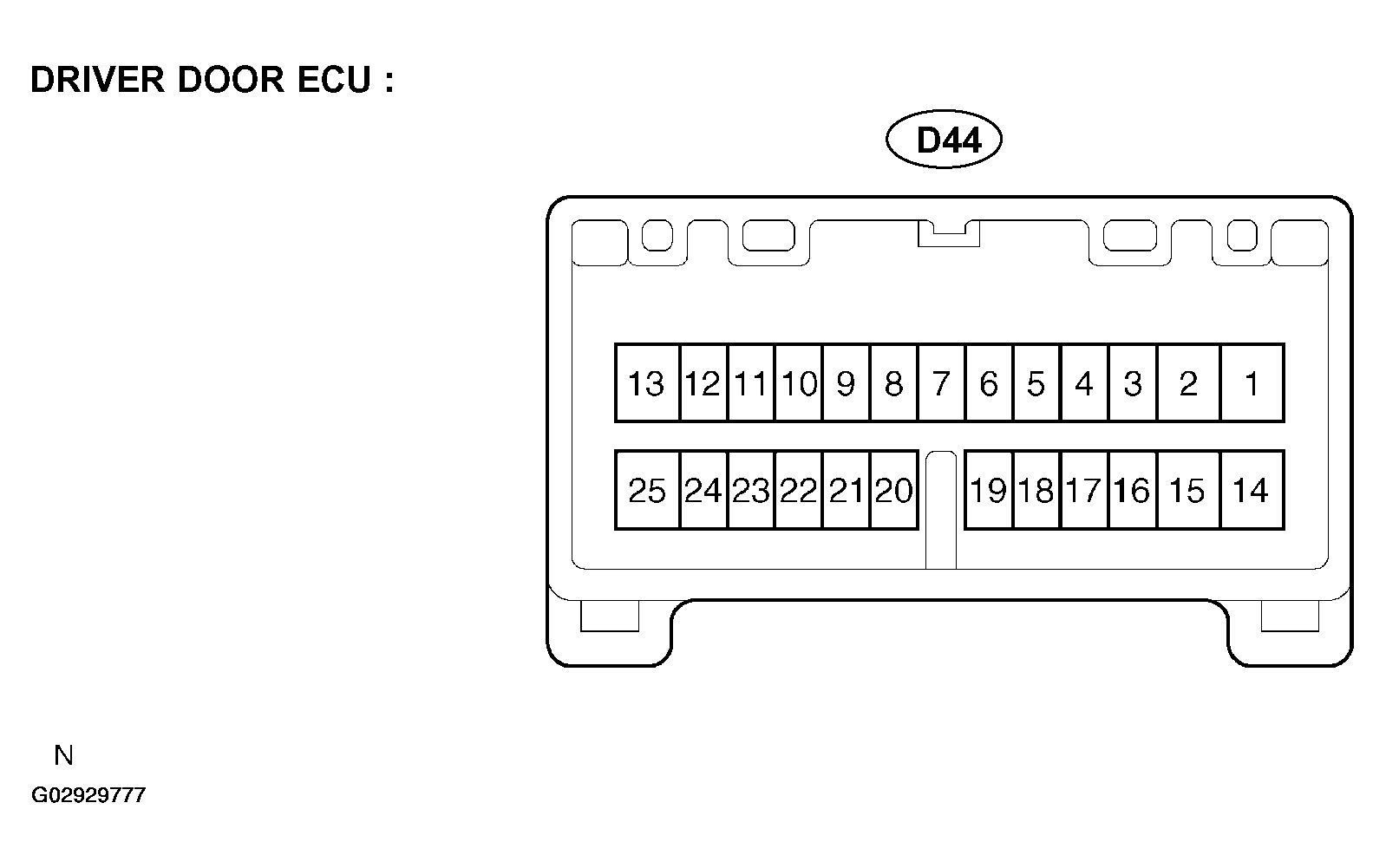

Fig 1: Identifying Driver Door ECU Connector Terminals
G02929777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

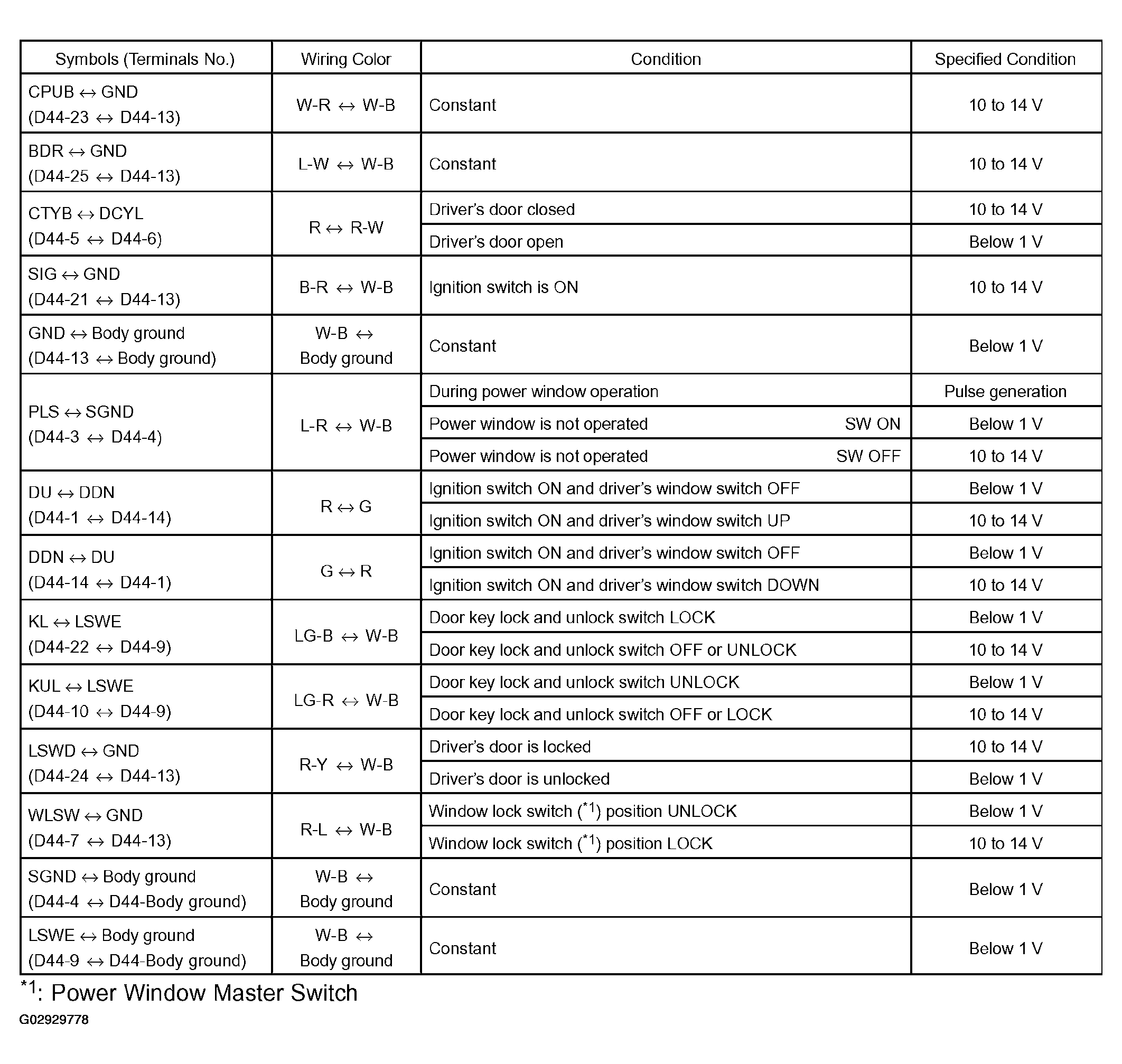

Fig 2: Driver Door ECU Connector Terminal Voltage Measuring Chart
G02929778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
