Inspection Procedure

Check power window master switch using hand-held tester.
PREPARATION:

Connect the hand-held tester to the DLC3.

CHECK:

Check the power window master switch using the DATA LIST .

OK:
1. Driver side:

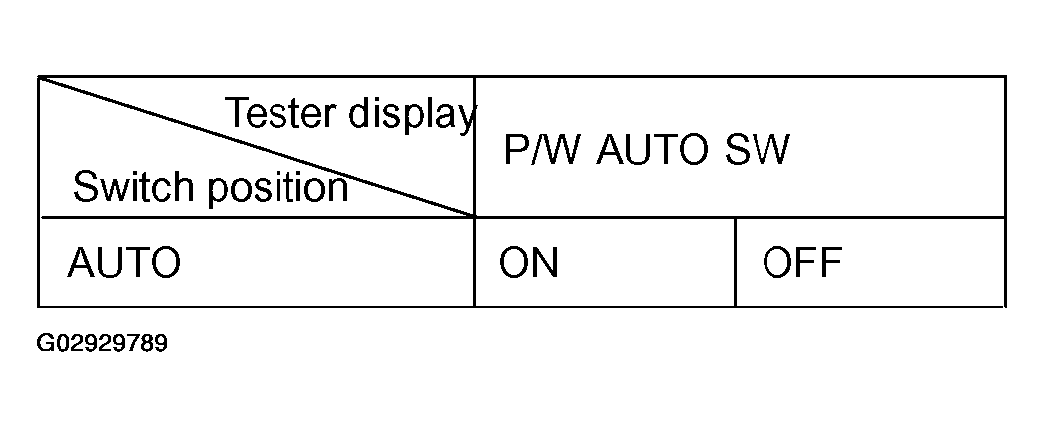

  Fig 1: Checking Power Window Master Switch (Drive Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Passenger side:

  Fig 2: Checking Power Window Master Switch (Passenger Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. OK: Proceed to next circuit inspection shown on problem symptoms table (see PROBLEM SYMPTOMS TABLE ).
2. NG: Replace driver door ECU.
