Anti-Lock Brake System - Diagnostics
>>
Terminals Of Ecu
Terminals Of Ecu

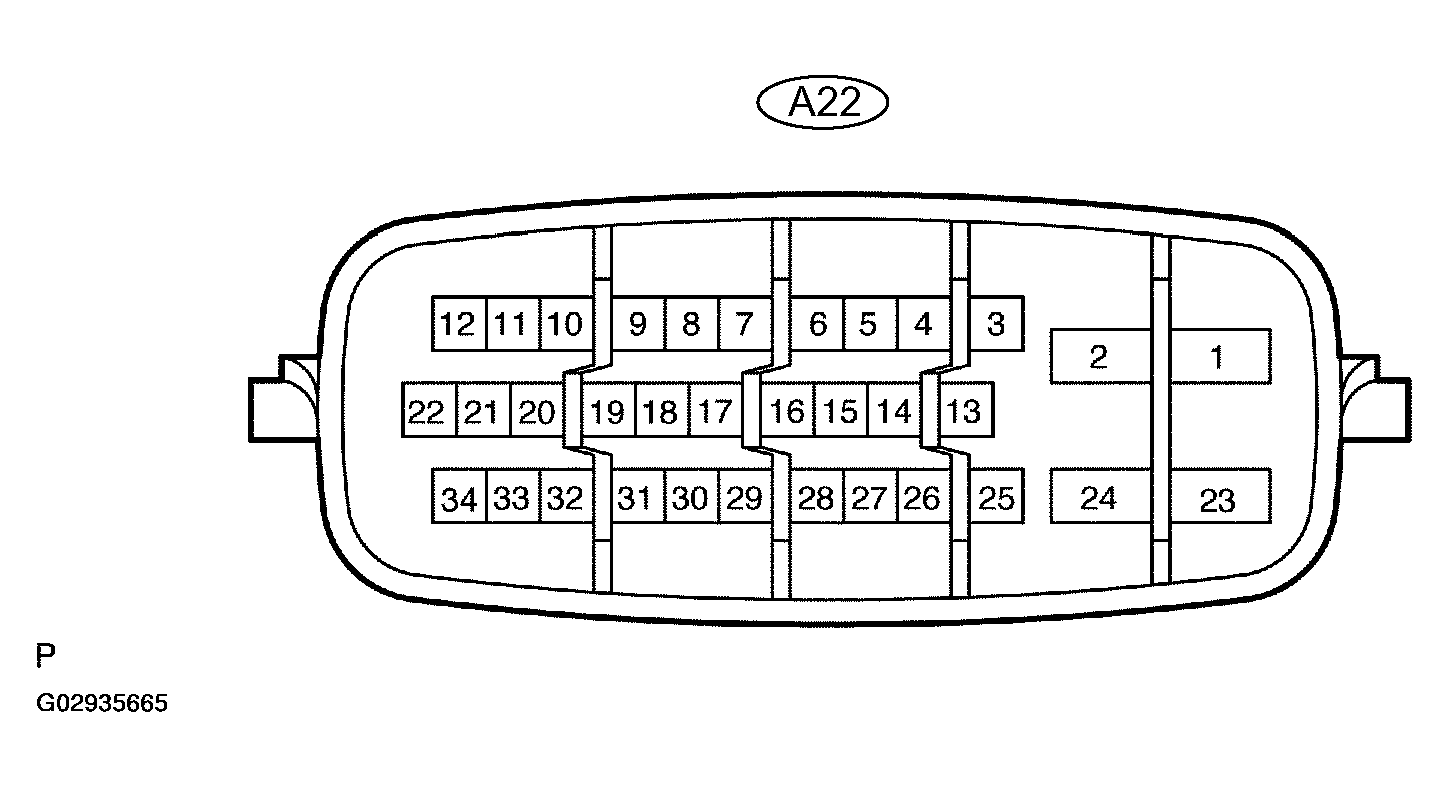

Fig 1: Identifying Terminals Of ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

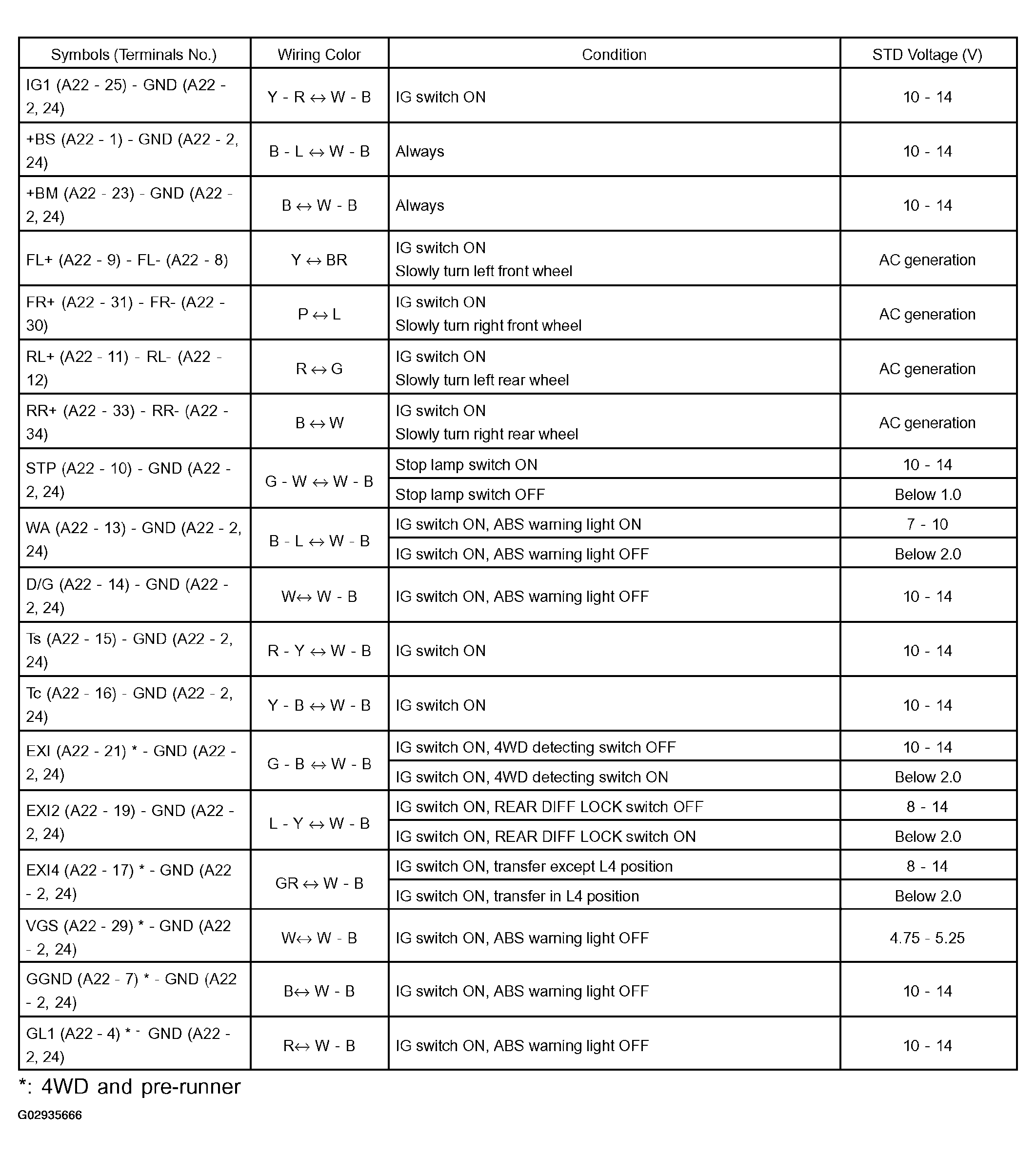

Fig 2: Terminal Condition & STD Voltage
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
