Abs Actuator: Removal

Using SST, disconnect the 5 brake lines from the ABS actuator.

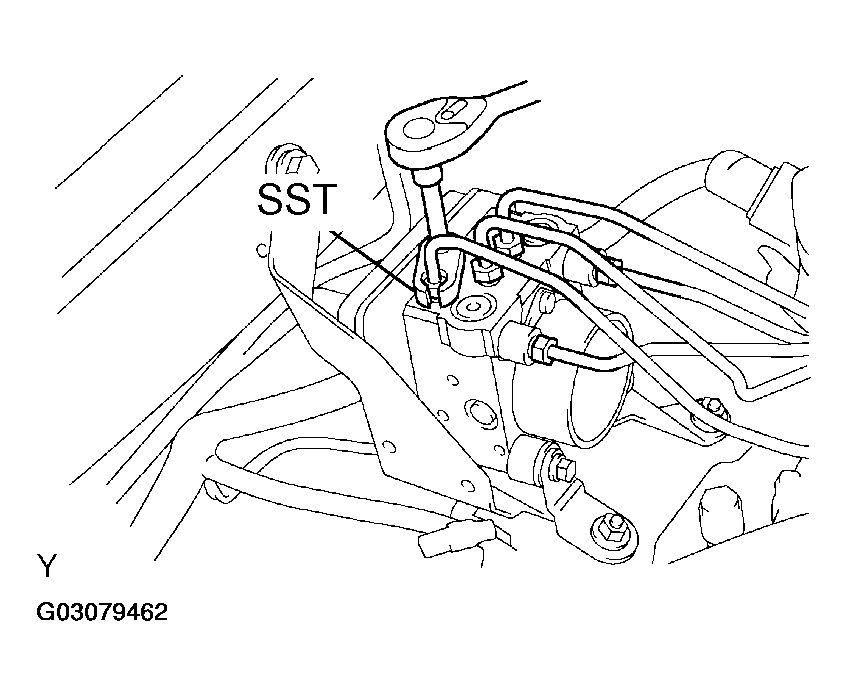

Fig 1: Disconnecting Brake Lines

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. SST 09023-00100
2. Torque: 15 N.m (155 kgf.cm, 11 ft.lbf)

Remove the bolt, 2 nuts and ABS actuator assembly.

1. Torque: 19 N.m (195 kgf.cm, 14 ft.lbf)

Remove the 2 nuts and the ABS actuator.

1. Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
