Camshaft Position Sensor: Components

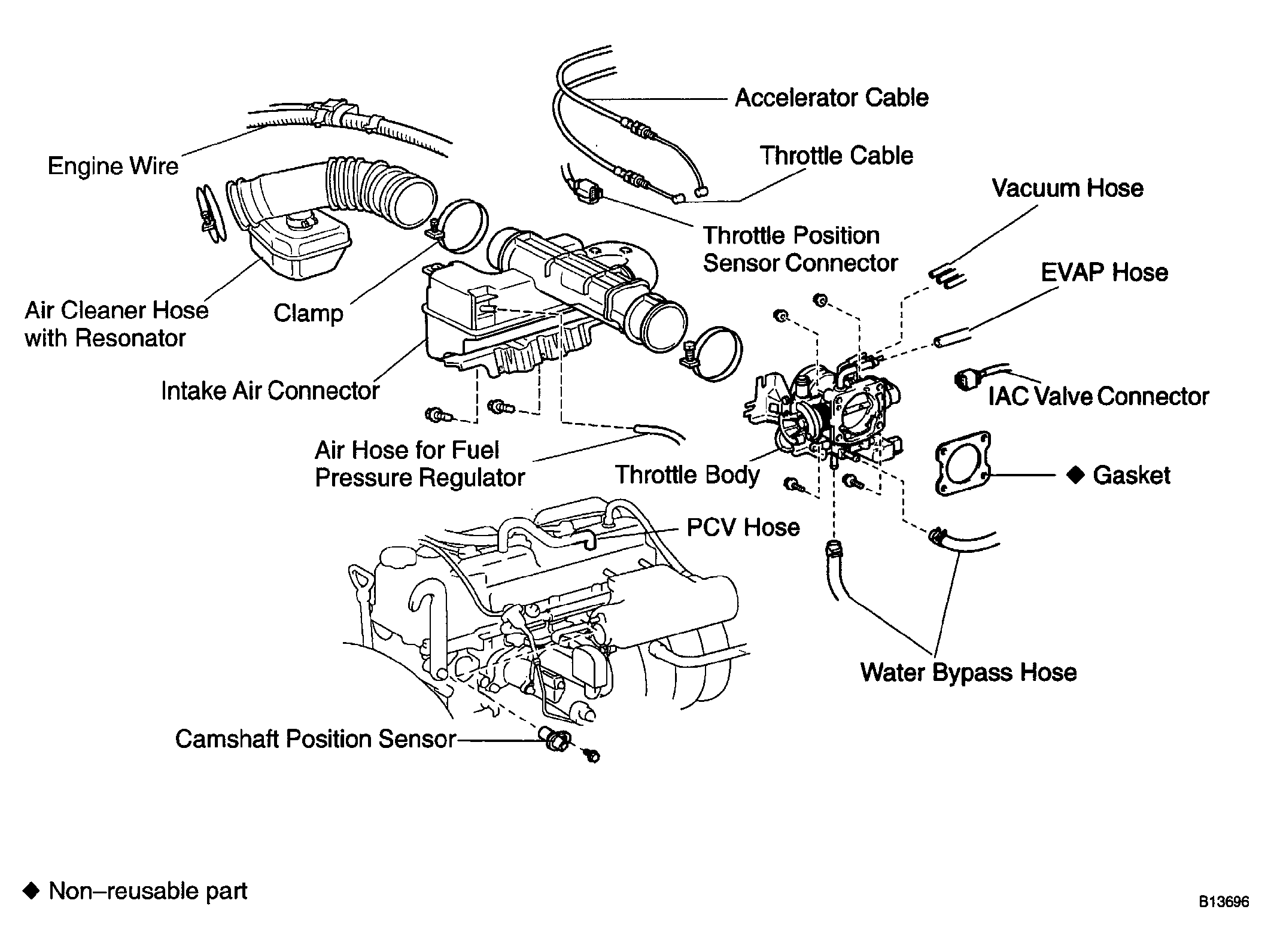

Fig 1: Identifying Camshaft Position Sensor Components (1 Of 2)
G04241412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

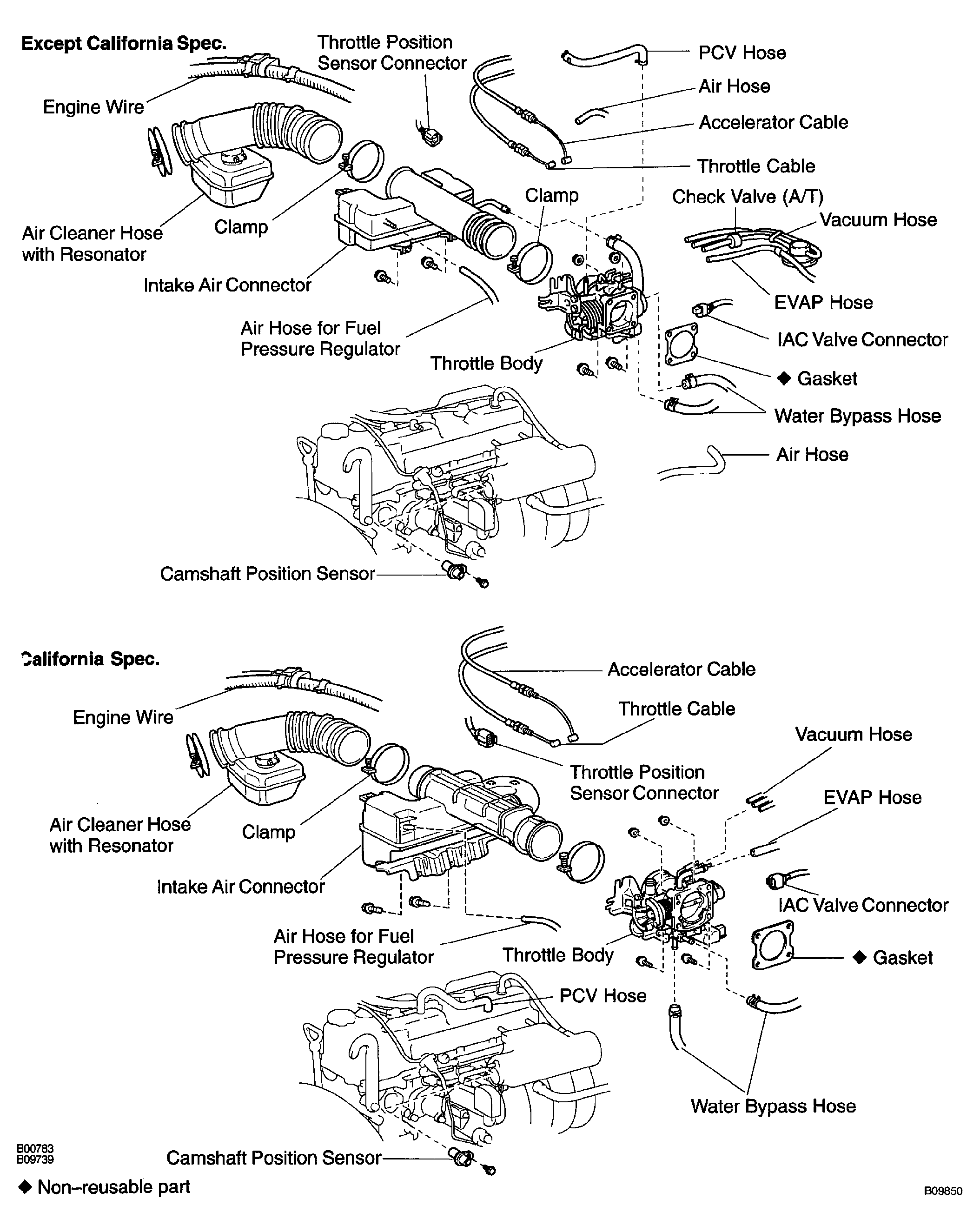

Fig 2: Identifying Camshaft Position Sensor Components (2 Of 2)
G04241413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
