Throttle Body: Components

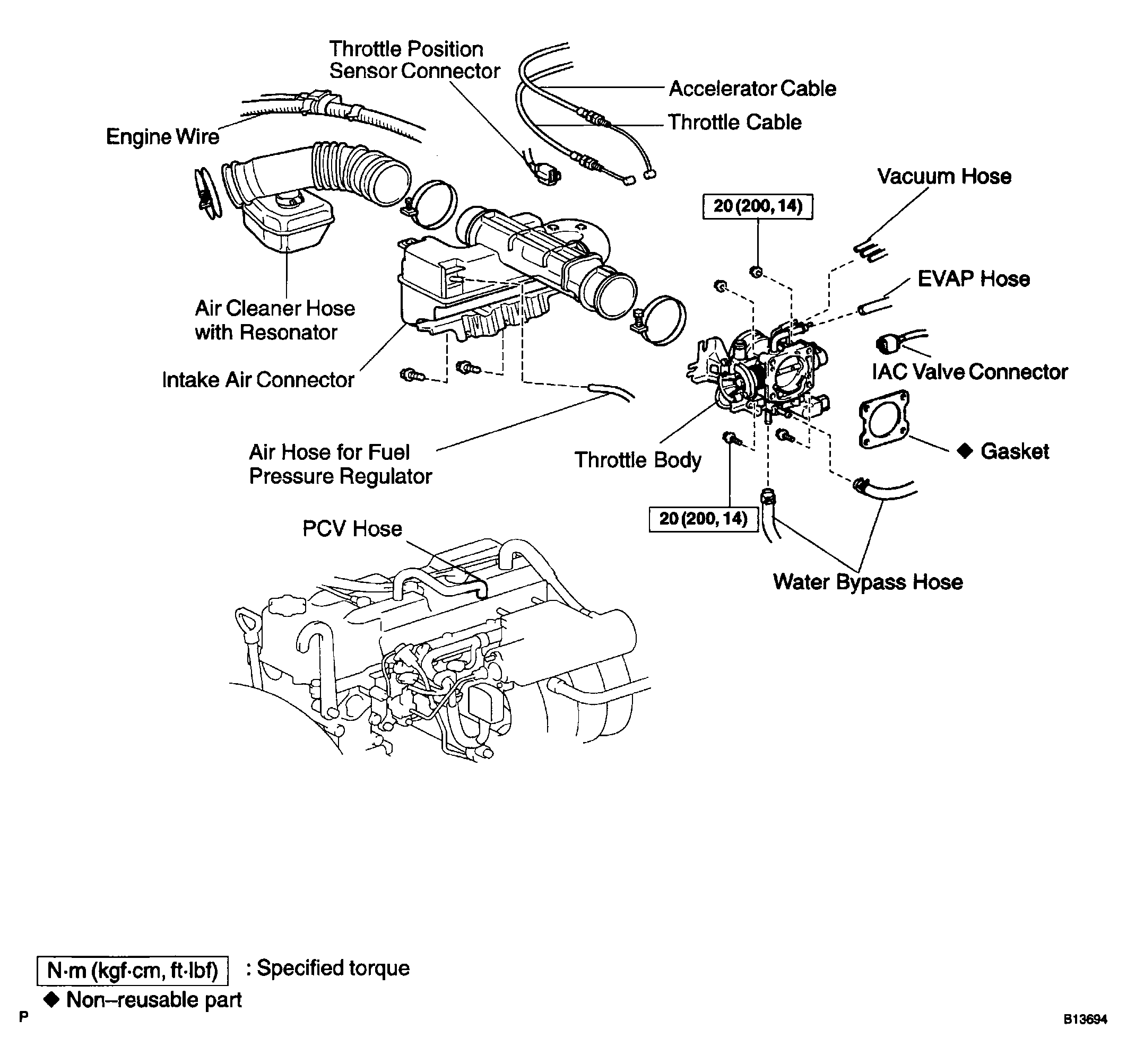

Fig 1: Exploded View Of Throttle Body Components

G04241231

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
