SFI System (2RZ-FE, 3RZ-FE): Injector: Inspection

1. Remove the fuel inlet pipe from the fuel filter outlet.
2. Connect SST (union and hose) to the fuel filter outlet with the 2 gaskets and union bolt.

   SST 09268-41047 (90405-09015)

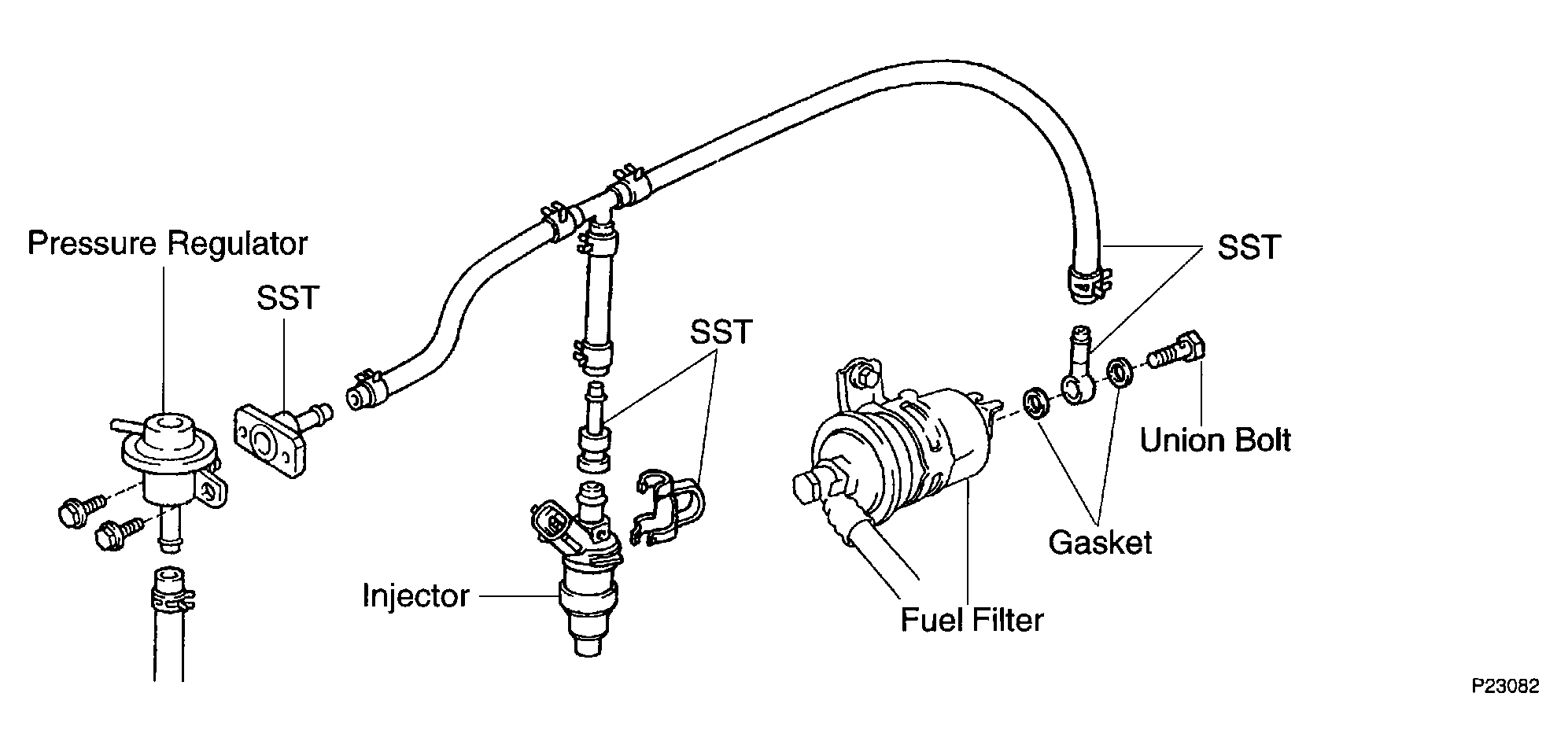

   Fig 1: Connecting SST To Fuel Filter Outlet

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 29 N.m (300 kgf.cm, 22 ft.lbf)

3. Remove the fuel pressure regulator from the delivery pipe.
4. Install the O-ring to the fuel inlet of pressure regulator.
5. Connect SST (hose) to the fuel inlet of the pressure regulator with SST (union) and the 2 bolts.

   SST 09268-41047 (09268-41091)

Fig 2: Connecting SST (Hose) To Fuel Inlet Of Pressure Regulator With SST (Union)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the fuel return hose to the fuel outlet of the pressure regulator.
7. Install the O-ring to the injector.
8. Connect SST (union and hose) to the injector, and hold the injector and union with SST (clamp).

   SST 09268-41047 (09268-41300)

Fig 3: Connecting SST (Union & Hose) To Injector & Holding Injector & Union With SST (Clamp)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Put the injector into a graduated cylinder.

   HINT:

   Install a suitable vinyl hose onto the injector to prevent gasoline from splashing out.

Fig 4: Installing Vinyl Hose Onto Injector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. Connect the TOYOTA hand-held tester to the DLC3.

    (See ON-VEHICLE INSPECTION  )

11. Connect SST (wire) to the injector and battery for 15 seconds, and measure the injection volume with a graduated cylinder. Test each injector 2 or 3 times.

    SST 09842-30070

    Fig 5: Connecting SST (Wire) To Injector Battery

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Injection Volume: 71 - 86 cm ³  (4.3 - 5.3 cu in.) per 15 seconds

    Difference between each injector: 15 cm ³  (1.0 cu in.) or less

If the injection volume is not as specified, replace the injector.

1. In the condition above, disconnect the test probes of SST (wire) from the battery and check the fuel leakage from the injector.

   SST 09842-30070

   Fig 6: Inspecting Leakage

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Fuel drop: 1 drop or less per 12 minutes

2. Turn the ignition switch OFF.
3. Disconnect the negative (-) terminal cable from the battery.
4. Remove the SST.

   SST 09268-41047, 09842-30070

5. Disconnect the TOYOTA hand-held tester.
6. Reinstall the fuel pressure regulator and fuel inlet pipe.
