Fuel Pump: Components

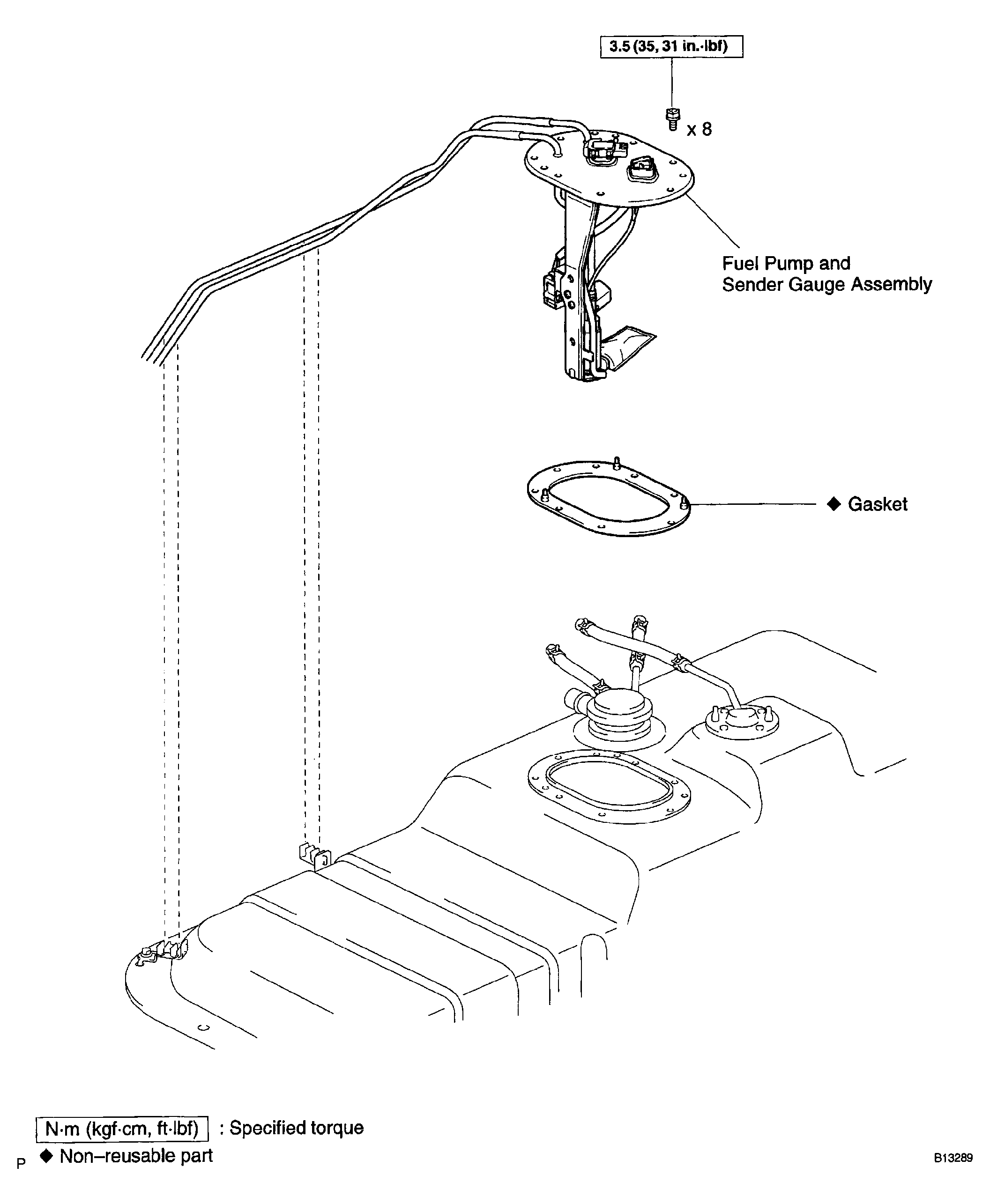

Fig 1: Exploded View Of Fuel Pump Components (1 Of 2)
G04241194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

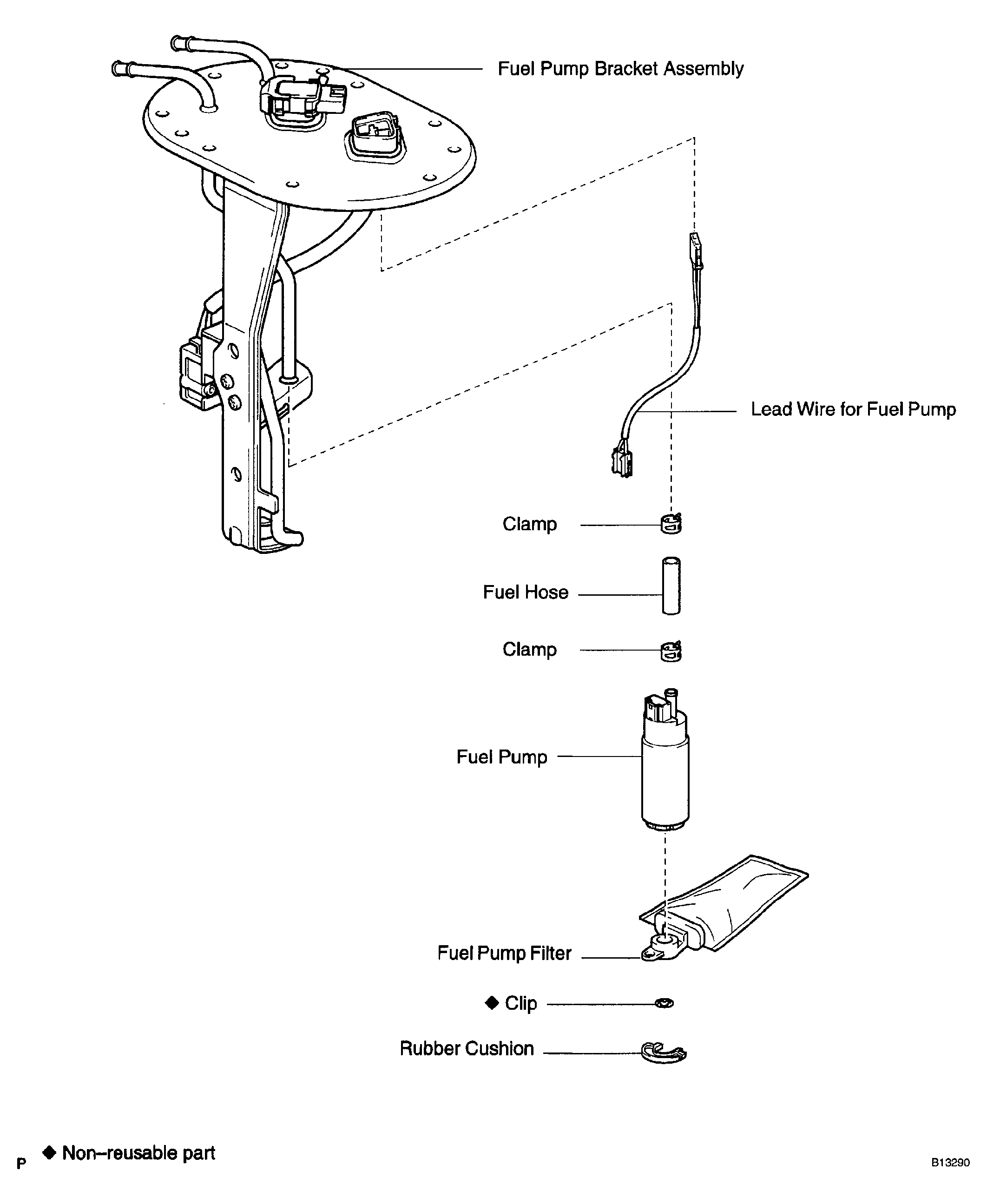

Fig 2: Exploded View Of Fuel Pump Components (2 Of 2)
G04241195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
