Electrical Component Locator: Grounds
GROUNDS LOCATION
| Component | Location |
|---|---|

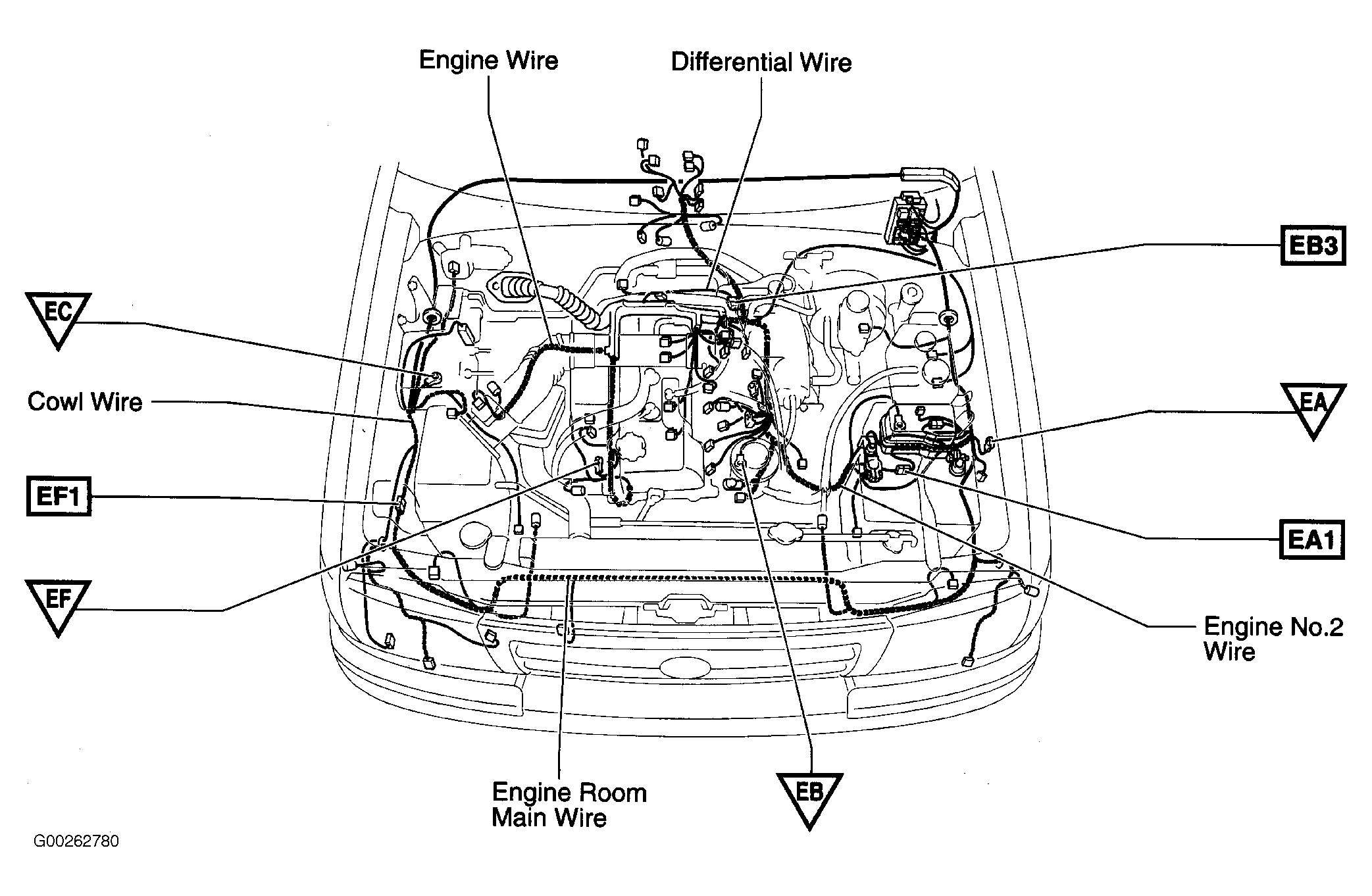

| EA (2.4L & 2.7L) | At left front fender. See Figure. |

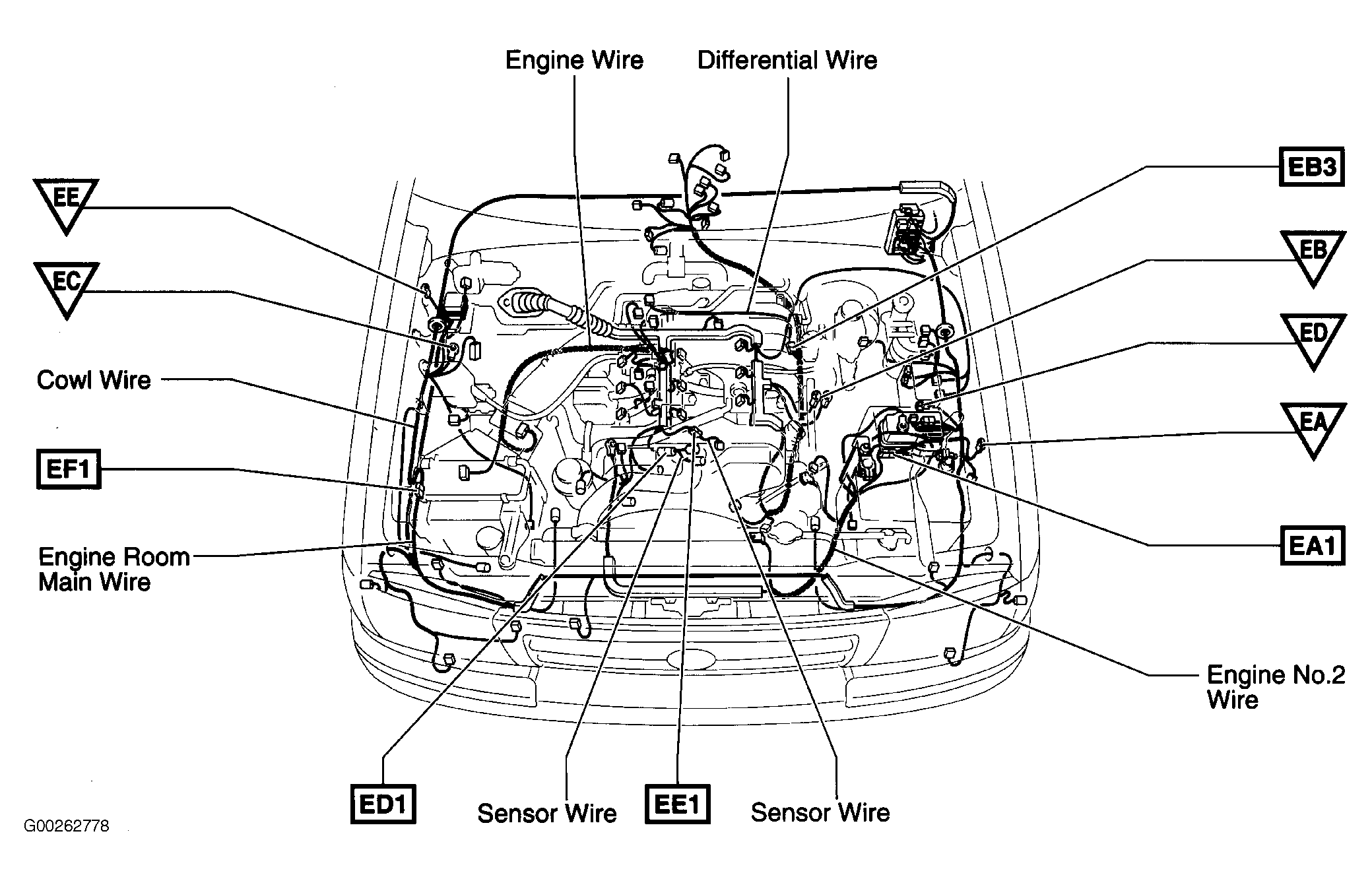

| EA (3.4L) | At left front fender. See Figure. |
| EB (2.4L & 2.7L) | Left front of engine. See Figure. |
| EB (3.4L) | Near throttle body. See Figure. |
| EC (2.4 & 2.7L) | At right front fender. See Figure. |
| EC (3.4L) | At right front fender. See Figure. |
| ED (3.4L) | Near battery. See Figure. |
| EE (3.4L) | At right front fender. See Figure. |
| EF (2.4L & 2.7L) | Right front of engine. See Figure. |

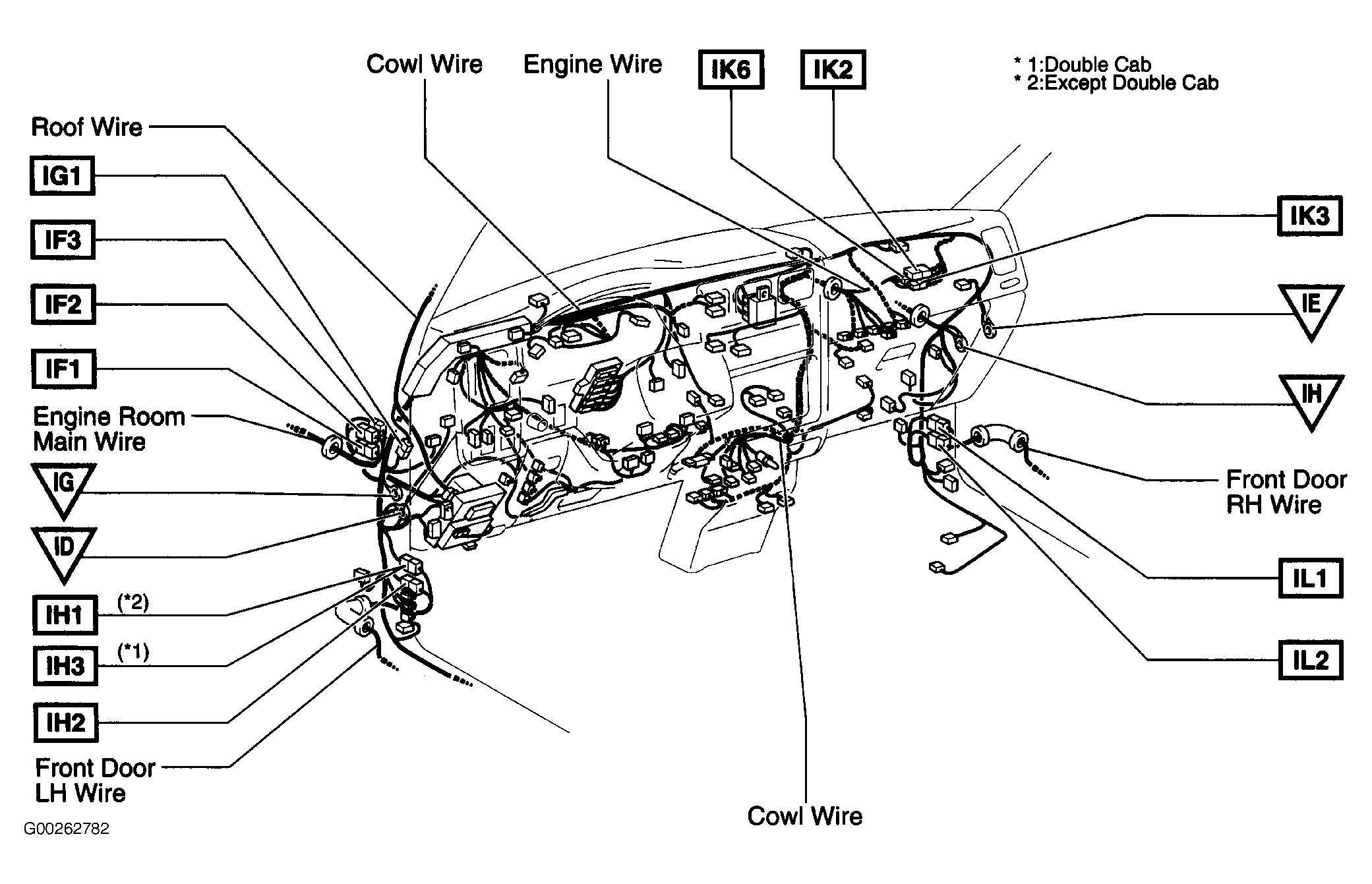

| ID | At left end of dash. See Figure. |
| IE | At right end of dash. See Figure. |
| IG | At left end of dash. See Figure. |
| IH | At right end of dash. See Figure. |
