Remove Speed Sensor

Disconnect the speed sensor connector, and pull out the sensor wire harness with grommet.
Remove the 5 resin clips, 2 clamp set bolts and 2 nuts holding the sensor wire harness from the side rail, fuel tank and axle housing.
1. Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)

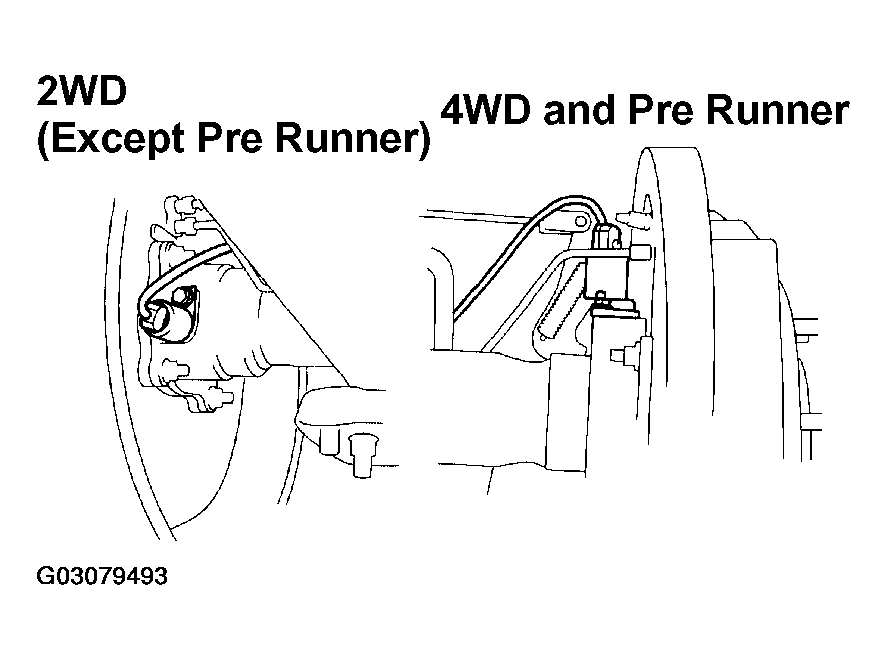

Fig 1: Disconnecting Speed Sensor Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove the 2 mounting bolts and speed sensor.

Fig 2: Removing Speed Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

NOTE: At the time of installation, please refer to the following items.

There are no objects on the sensor or the part of the axle end to which the sensor is to be installed.
The sensor is installed flat against the axle end when you tighten the bolt.
When installing the resin clips, use new ones.
