Front Brake Speed Sensor: Components

NOTE:

Pre runner is the described below.

RZN191L-TRPDKAB, RZN196L-CRPDKAB, RZN196L-PRPDKAB, VZN195L-CRPDKAB, VZN195L-PRPDKAB

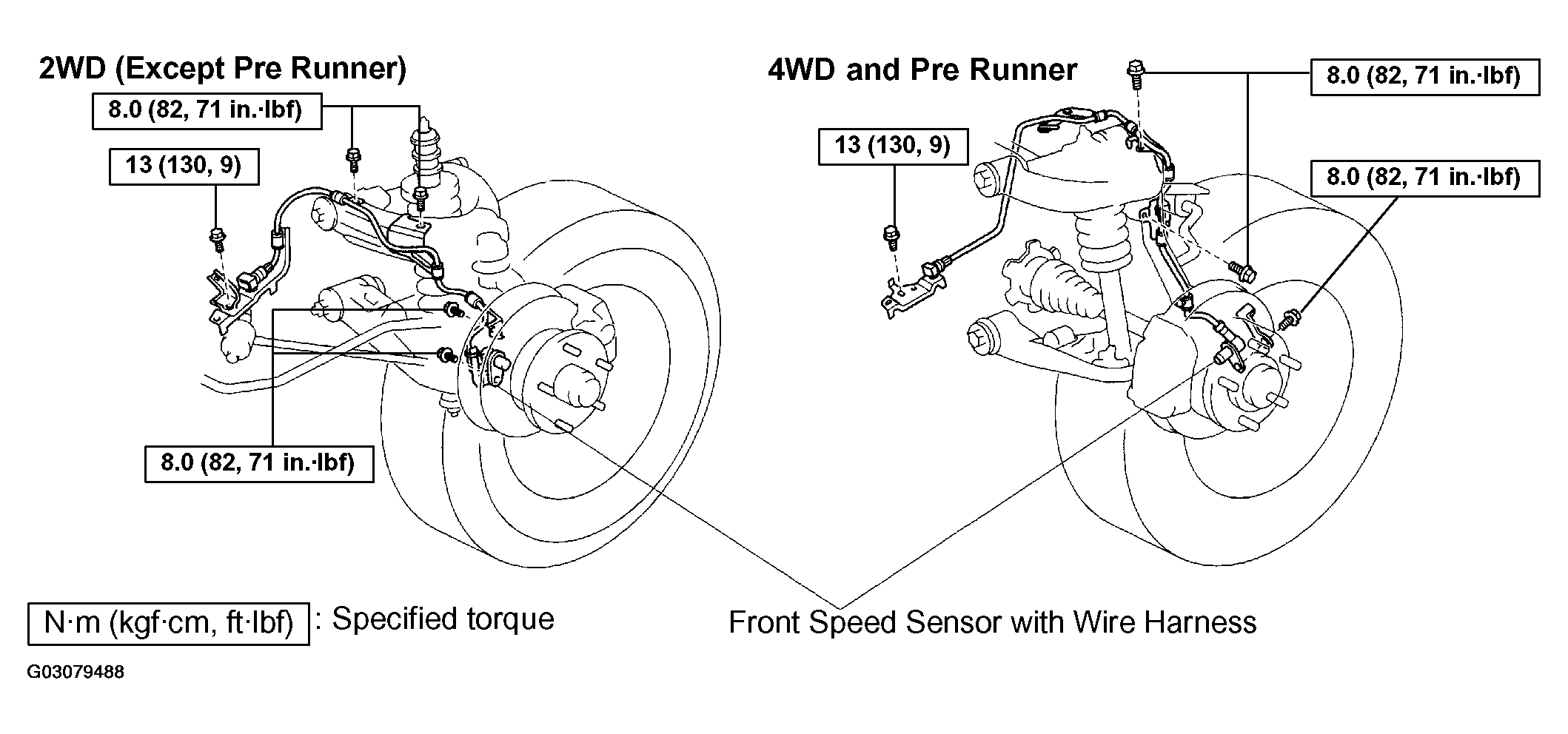

Fig 1: Identifying Front Speed Sensor Components
G03079488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
