Home >> Toyota >> 2004 >> Tacoma PreRunner, 2D Pickup >> Repair and Diagnosis >> Body & Frame >> Windows >> Quarter Window Glass >> Components

Quarter Window Glass: Components

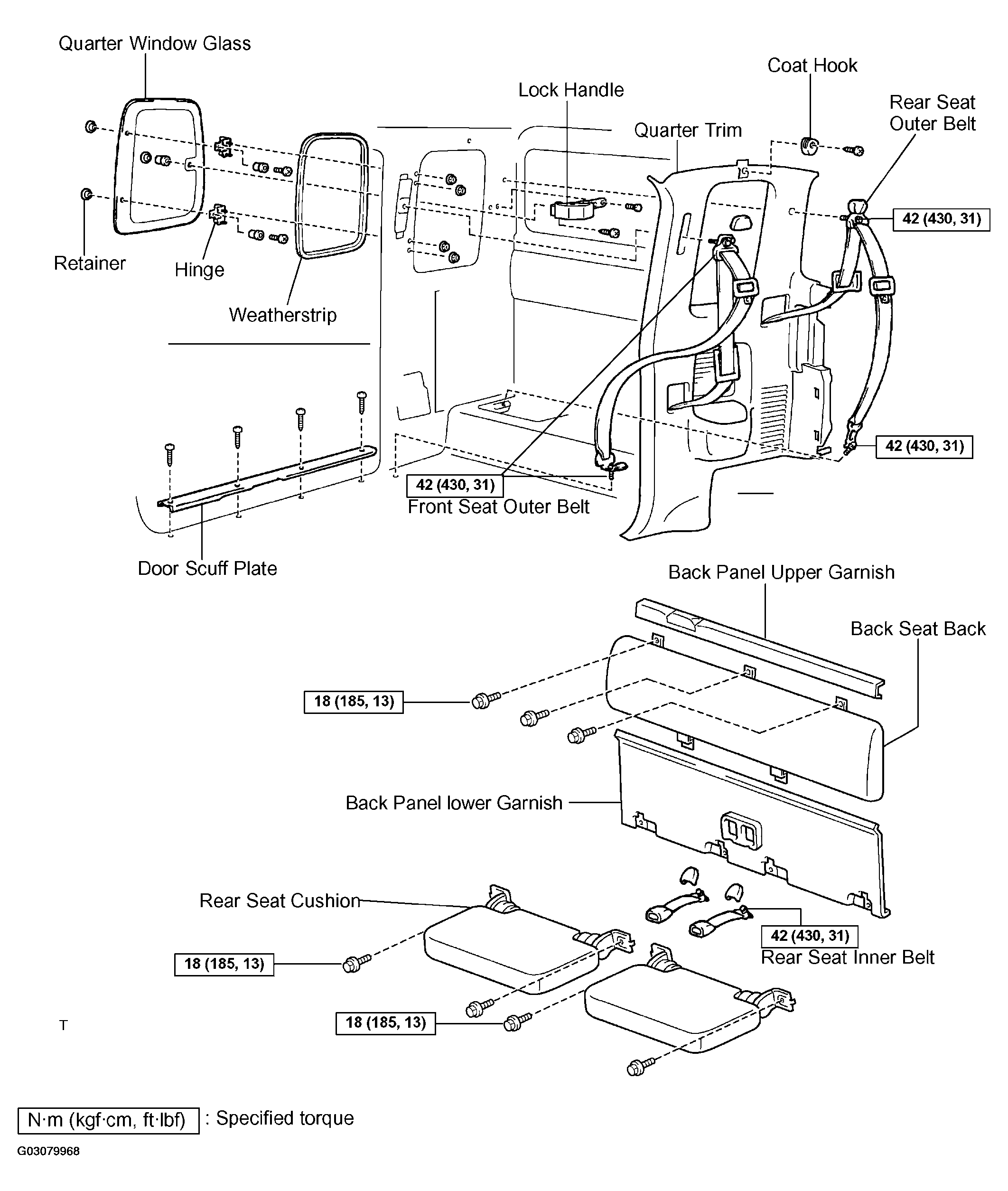

Fig 1: Locating Quarter Window Glass Components

G03079968

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
