Power Mirror Control System: Location

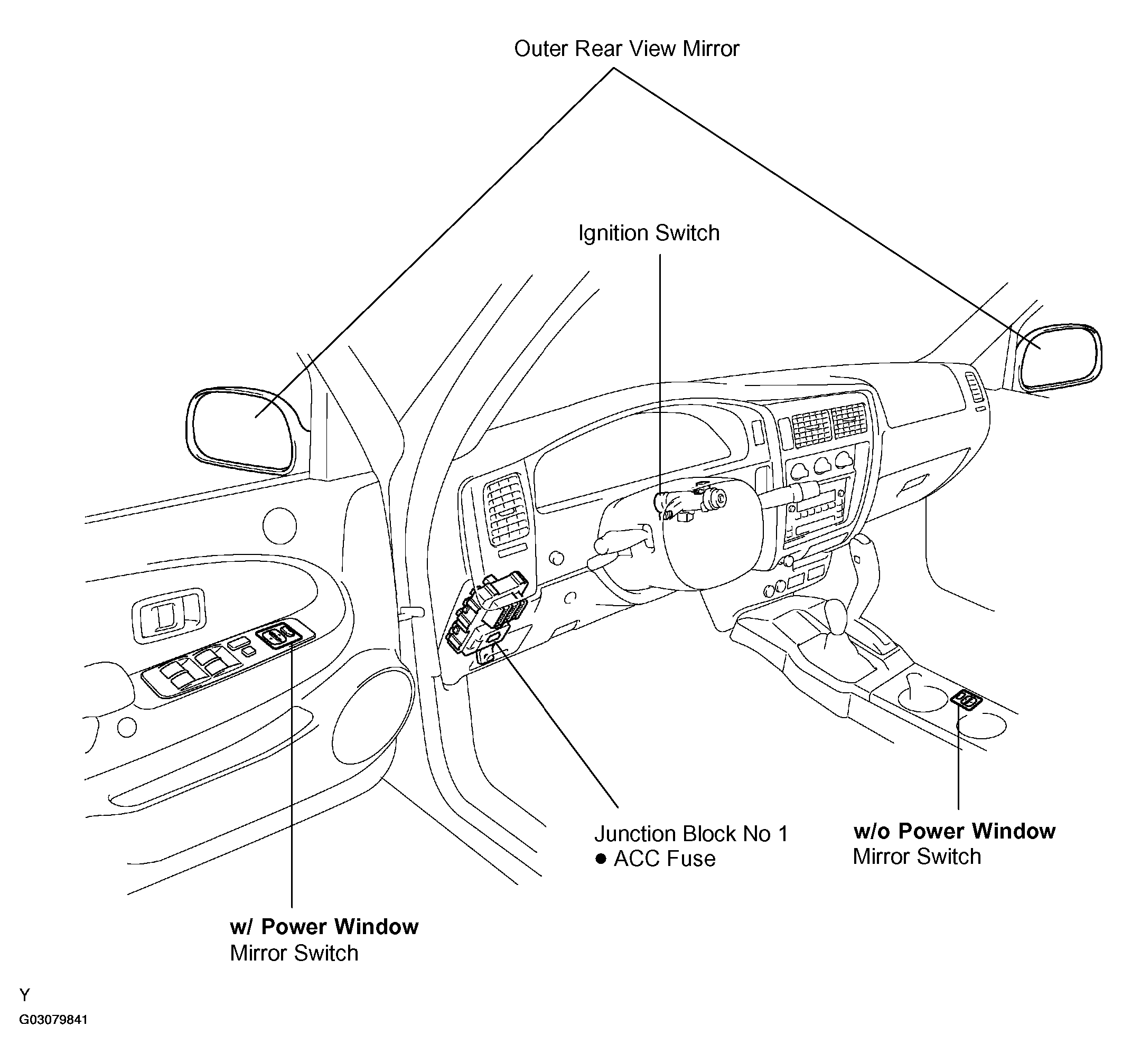

Fig 1: Locating Power Mirror Control System Components

G03079841

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
