INSPECT STEERING LINKAGE
1. Check the steering wheel freeplay (See INSPECTION ).
2. Check the steering linkage for looseness or damage.
  - Check that the tie rod ends do not have excessive play.
  - Check that the dust seals and boots are not damaged.
  - Check that the boot clamps are not loose.
INSPECT STEERING GEAR HOUSING OIL
Check the steering gear housing for oil leaks.

If leakage is found, check for cause and repair.
INSPECT BALL JOINTS AND DUST COVERS
1. Inspect the ball joints for excessive looseness.
2. Inspect the dust cover for damage.
4WD:
INSPECT DRIVE SHAFT BOOTS

Inspect the drive shaft boots for clamp looseness, grease leakage or damage.
CHECK OIL LEVEL IN MANUAL TRANSMISSION, TRANSFER AND DIFFERENTIAL
Remove the filler plug and feel inside the hole with your finger. Check that the oil comes to within 5 mm (0.20 in.) of the bottom edge of the hole.

If the level is low, add oil until it begins to run out of the filler hole.

Transmission oil (2WD for R150, R150F): See MANUAL TRANSMISSION UNIT (2WD) .

Transmission oil (4WD for R150, R150F): See MANUAL TRANSMISSION UNIT (4WD) .

Transmission oil (2WD for W59): See MANUAL TRANSMISSION UNIT (2WD) .

Transmission oil (4WD for W59): See MANUAL TRANSMISSION UNIT (4WD) .

Transfer oil: See TRANSFER UNIT .

Front differential oil (4WD): See FRONT DIFFERENTIAL CARRIER (4WD) .

Rear differential oil (2RZ-FE): See REAR DIFFERENTIAL CARRIER (2RZ-FE) .

Rear differential oil (3RZ-FE, 5VZ-FE w/o Diff. lock): See REAR DIFFERENTIAL CARRIER (3RZ-FE, 5VZ-FE W/O DIFF LOCK .

Rear differential oil (3RZ-FE, 5VZ-FE w/Diff. lock): See REAR DIFFERENTIAL CARRIER (3RZ-FE, 5VZ-FE WITH DIFF LOCK .
REPLACE MANUAL TRANSMISSION, TRANSFER AND DIFFERENTIAL OIL
1. Remove the drain plug and drain the oil.
2. Reinstall drain plug securely.
3. Add new oil until it begins to run out of the filler hole.
  Transmission oil (2WD for R150, R150F): See MANUAL TRANSMISSION UNIT (2WD) .

  Transmission oil (4WD for R150, R150F): See MANUAL TRANSMISSION UNIT (4WD) .

  Transmission oil (2WD for W59): See MANUAL TRANSMISSION UNIT (2WD) .

  Transmission oil (4WD for W59): See MANUAL TRANSMISSION UNIT (4WD) .

  Transfer oil: See TRANSFER UNIT .

  Front differential oil (4WD): See FRONT DIFFERENTIAL CARRIER (4WD) .

  Rear differential oil (2RZ-FE): See REAR DIFFERENTIAL CARRIER (2RZ-FE) .

  Rear differential oil (3RZ-FE, 5VZ-FE w/o Diff. lock): See REAR DIFFERENTIAL CARRIER (3RZ-FE, 5VZ-FE W/O DIFF LOCK .

  Rear differential oil (3RZ-FE, 5VZ-FE w/Diff. lock): See REAR DIFFERENTIAL CARRIER (3RZ-FE, 5VZ-FE WITH DIFF LOCK .
CHECK FLUID LEVEL IN AUTOMATIC TRANSMISSION (See SERVICING - 2.4L - A44D , SERVICING - 4WD - 2.7L - A340F , SERVICING - RWD - 2.7L - A340E , SERVICING - RWD - 3.4L - A340E )
REPLACE AUTOMATIC TRANSMISSION FLUID (See SERVICING - 2.4L - A44D , SERVICING - 4WD - 2.7L - A340F , SERVICING - RWD - 2.7L - A340E , SERVICING - RWD - 3.4L - A340E )
LUBRICATE PROPELLER SHAFT AND TIGHTEN BOLTS
1. 4WD:
  Lubricate propeller shaft, referring to the lubrication chart. Before pumping in grease, wipe off any mud and dust on the grease fitting.

  Grease grade:

  Spider: Lithium base chassis grease NLGI No. 2

  Slide yoke and double-cardan joint:

  Molybdenum disulphide lithium base chassis grease NLGI No. 2

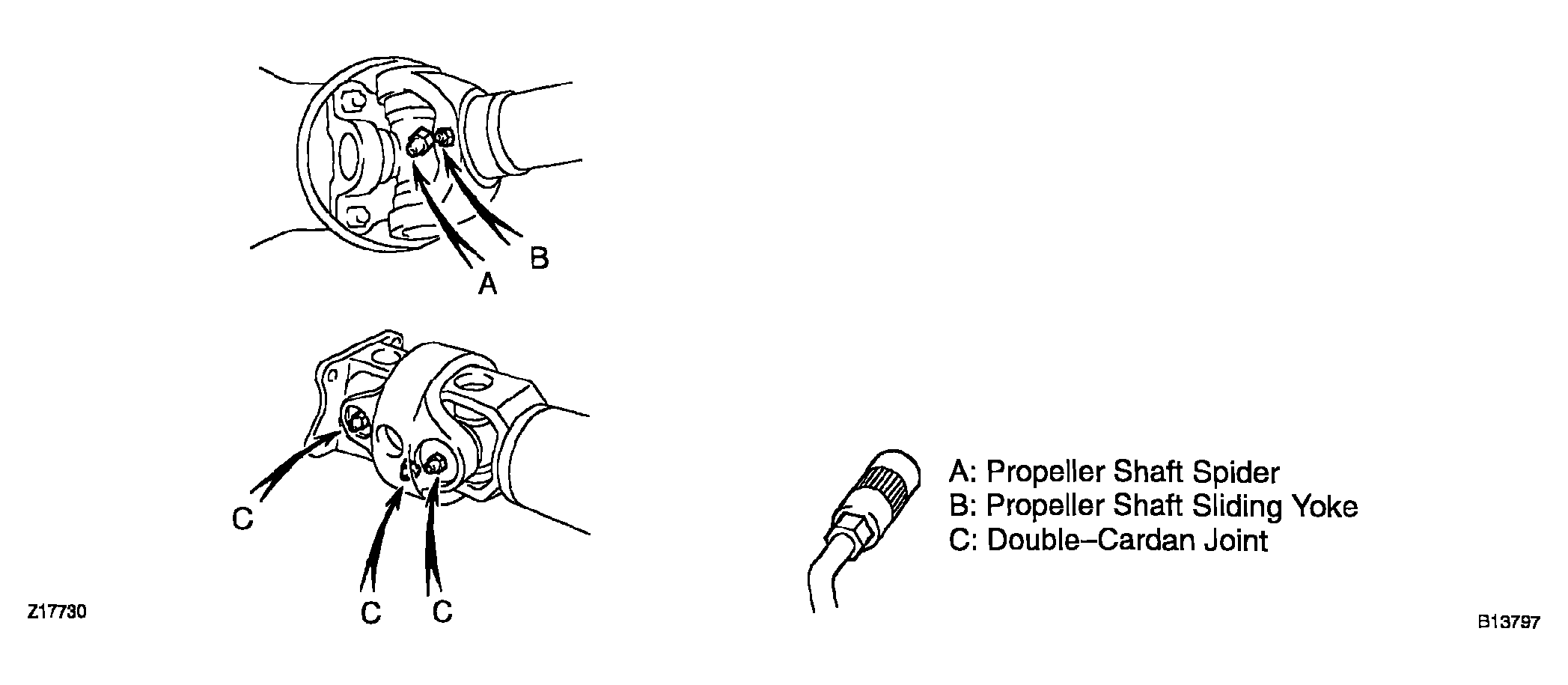

  Fig 1: Lubricating Propeller Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Tighten the bolts for propeller shaft.
  (2WD: See PROPELLER SHAFT )

  (4WD and PRE RUNNER: See PROPELLER SHAFT ASSEMBLY (4WD AND PRE RUNNER) )
ROTATE TIRES (See TIRE AND WHEEL )
