Engine Exhaust Assembly (5VZ-FE): Components

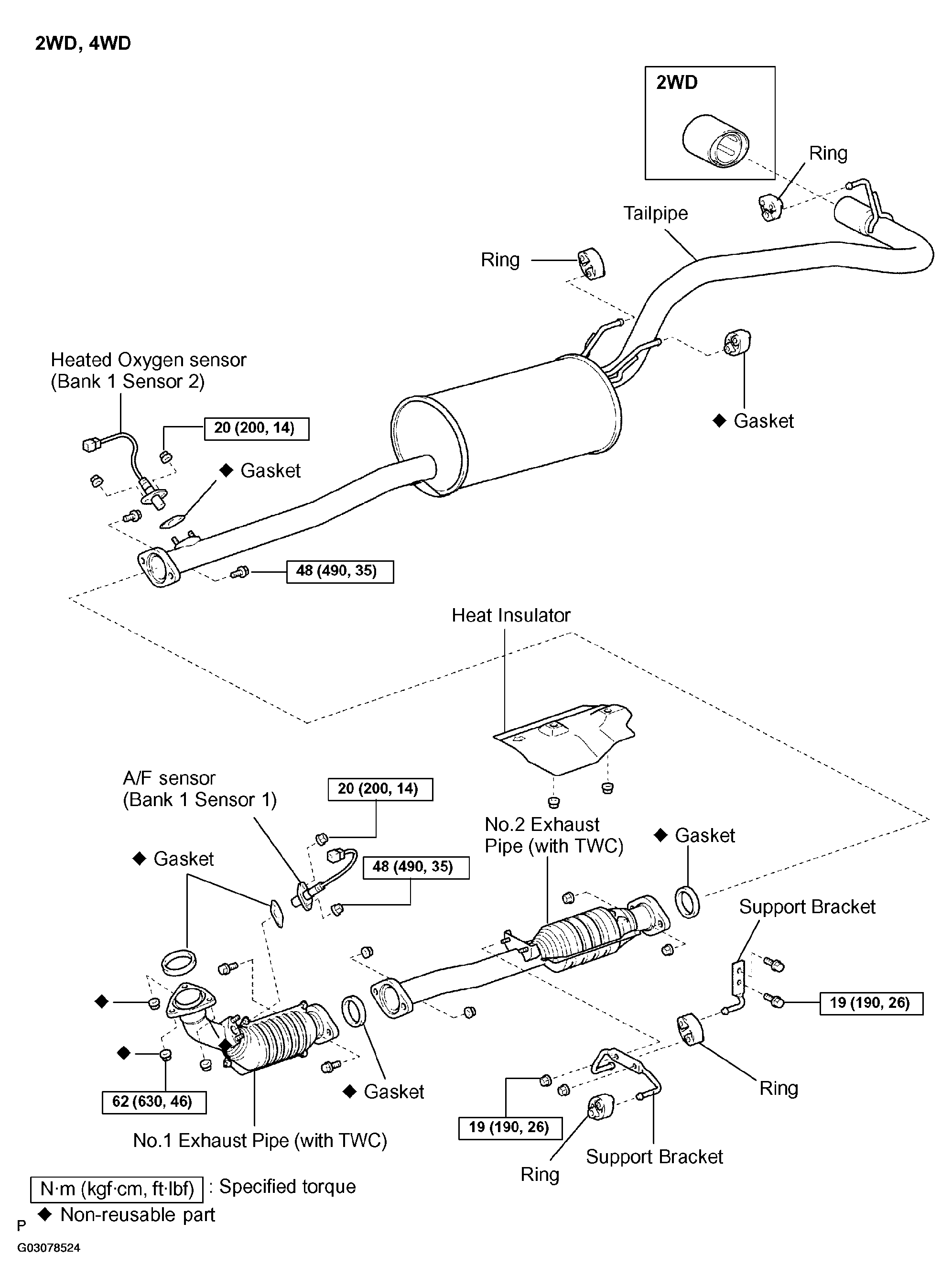

Fig 1: Identifying Exhaust System Components

G03078524

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
