Diagnostic Trouble Code Chart
NOTE:
When removing the part, turn the ignition switch OFF.
NOTE:
- Using SST 09843-18020 or 09843-18040, connect the terminals Tc and CG of DLC3, and remove the short pin.
- If any abnormality is not found when inspecting parts, inspect the ECU.
- If a malfunction code is displayed during the DTC check, check the circuit listed for that code. For details of each code, turn to the page referred to under the "See page" for respective "DTC No." in the DTC chart.

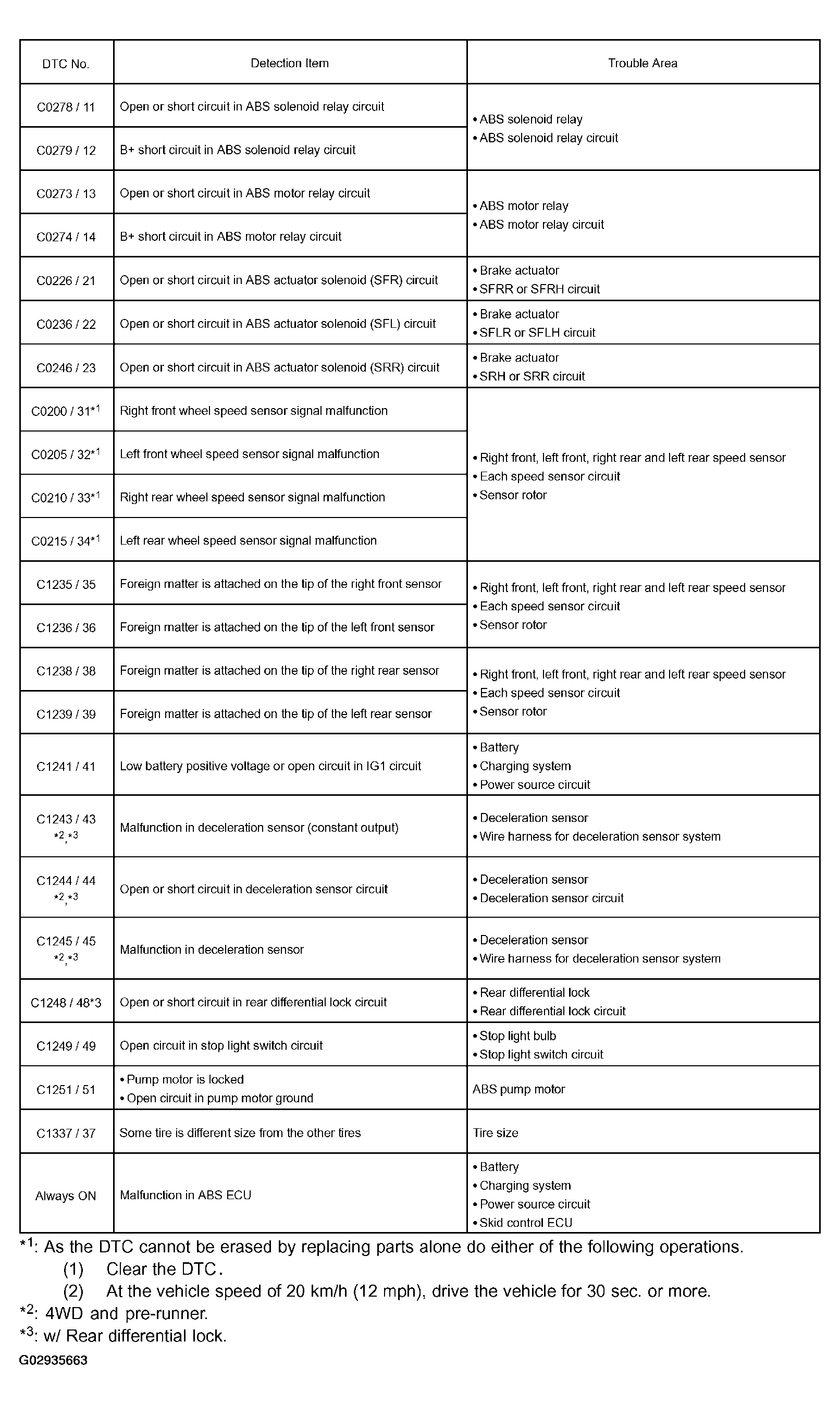

DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC C0200/31, C0215/34, C1235/35, C1236/36, C1238/38, C1239/39 | SPEED SENSOR CIRCUIT & FOREIGN MATTER IS ATTACHED ON TIP |
| DTC C0226/21, C0236/22, C0246/23 | ABS SOLENOID CIRCUIT |
| DTC C0273/13, C0274/14 | ABS MOTOR RELAY CIRCUIT |
| DTC C0278/11, C0279/12 | ABS SOLENOID RELAY CIRCUIT |
| DTC C1241/41 | IG POWER SOURCE CIRCUIT |
| DTC C1243/43, C1245/45 | MALFUNCTION IN DECELERATION SENSOR |
| DTC C1244/44 | DECELERATION SENSOR CIRCUIT |
| DTC C1248/48 | REAR DIFFERENTIAL LOCK CIRCUIT |
| DTC C1249/49 | STOP LIGHT SWITCH CIRCUIT |
| DTC C1251/51 | ABS PUMP MOTOR LOCK |
| DTC C1337/37 | TIRES OF DIFFERENT SIZE |
