Manual Up/Down Function Does Not Operate At Rear RH: Wiring Diagram

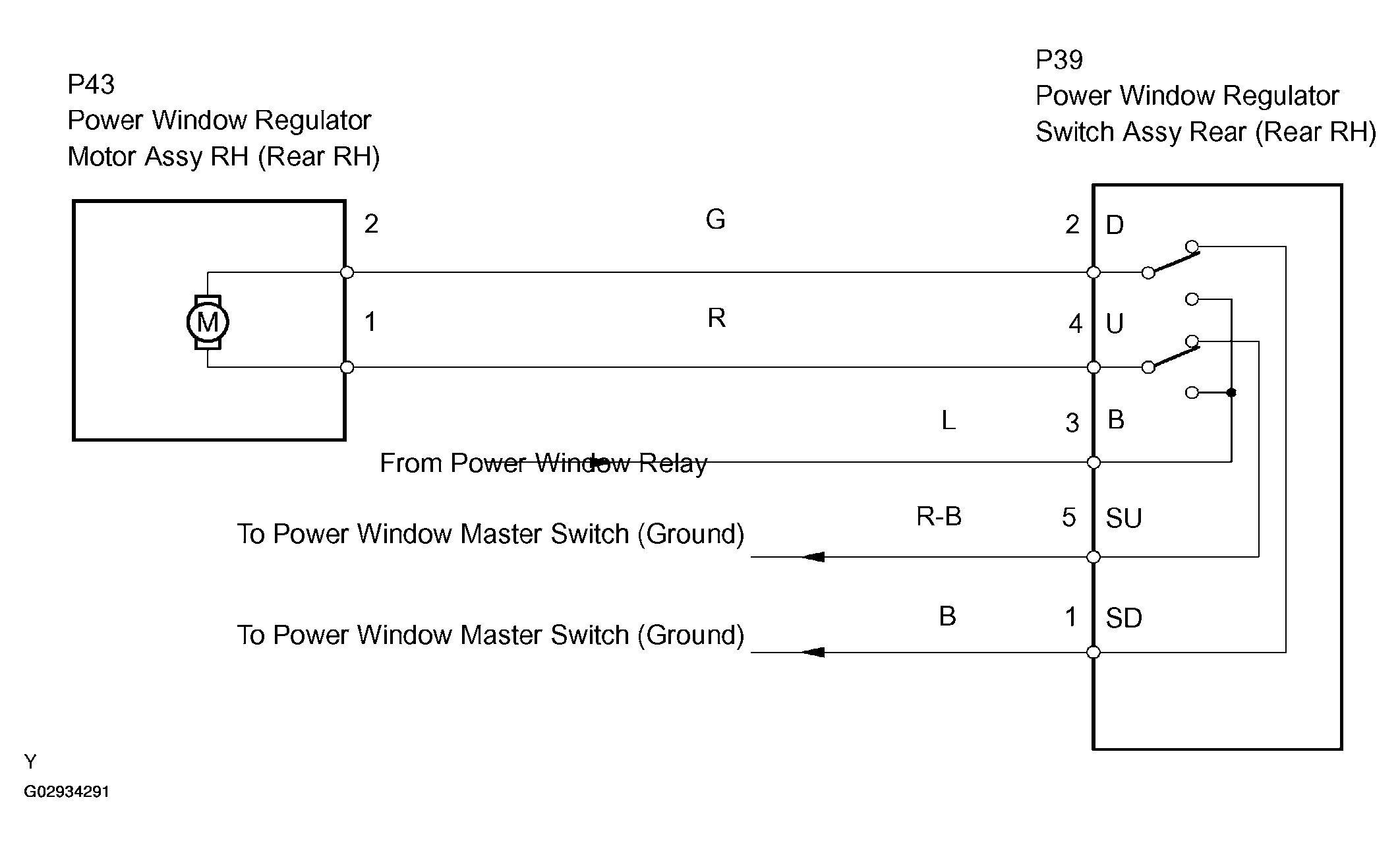

Fig 1: Power Window Control Rear RH Wiring Diagram

G02934291

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
