Manual Up/Down Function Does Not Operate At Rear LH: Wiring Diagram

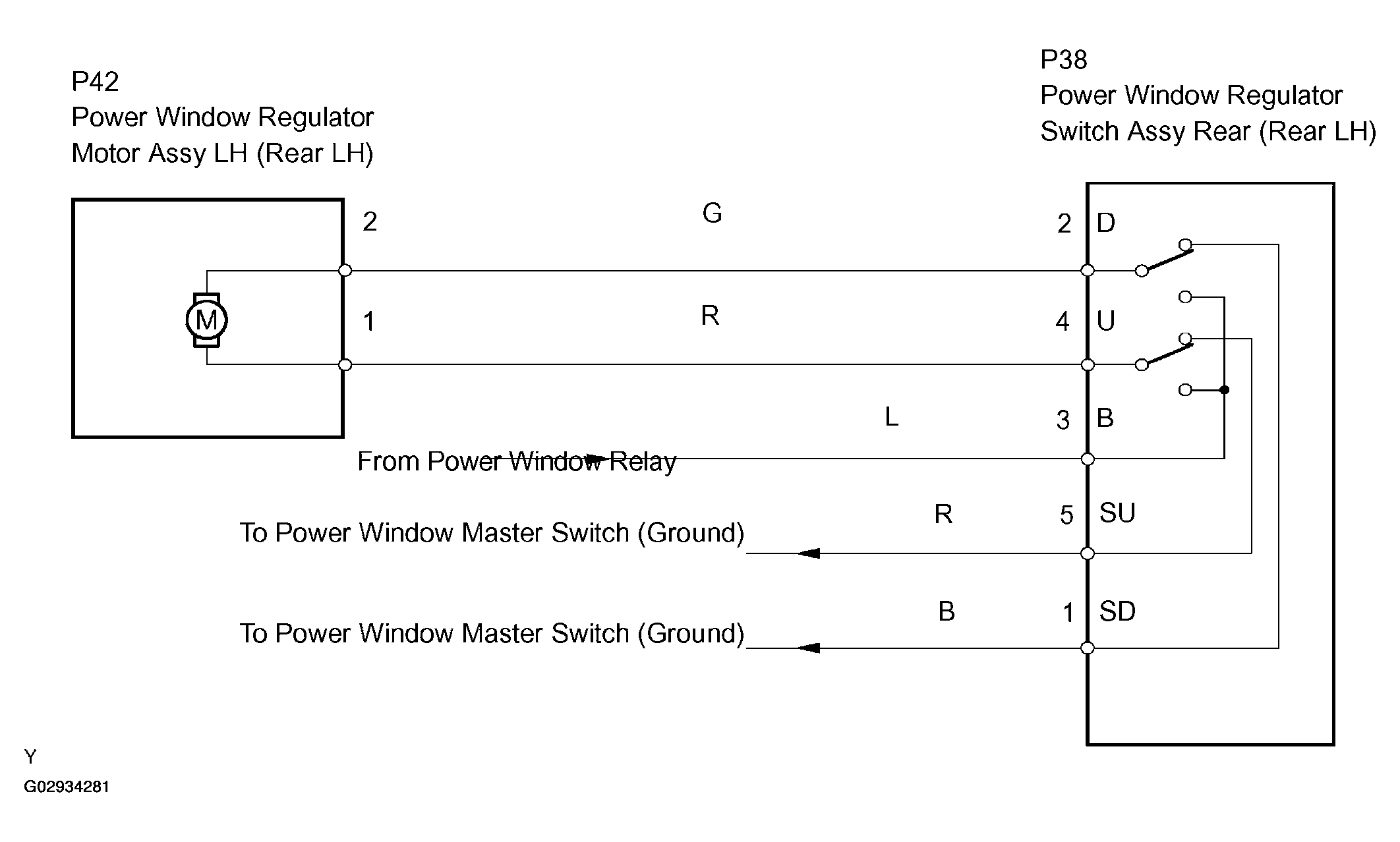

Fig 1: Power Window Control Rear LH (Manual Up/Down Function) Wiring Diagram

G02934281

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
