Circuit Description

This DTC indicates the internal abnormalities of ECM.

HINT:

When a malfunction is detected, the fail-safe must be kept on until the ignition switch is turned off.

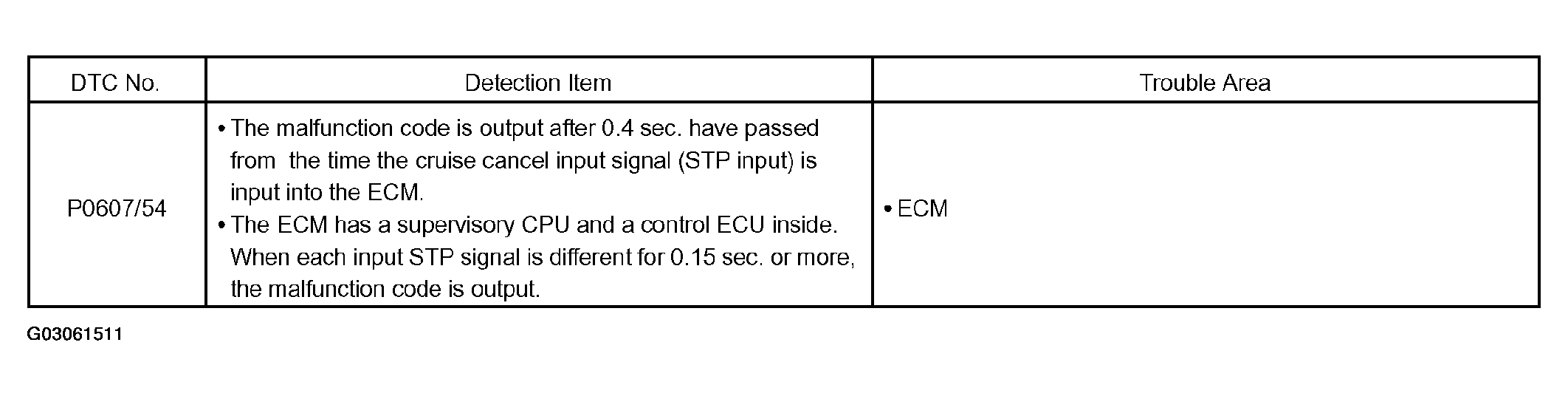

Fig 1: DTC P0607/54 Detection Condition Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
