Section 2 (Transfer Case): Components

WARNING: This page is about a different variant/trim than selected.

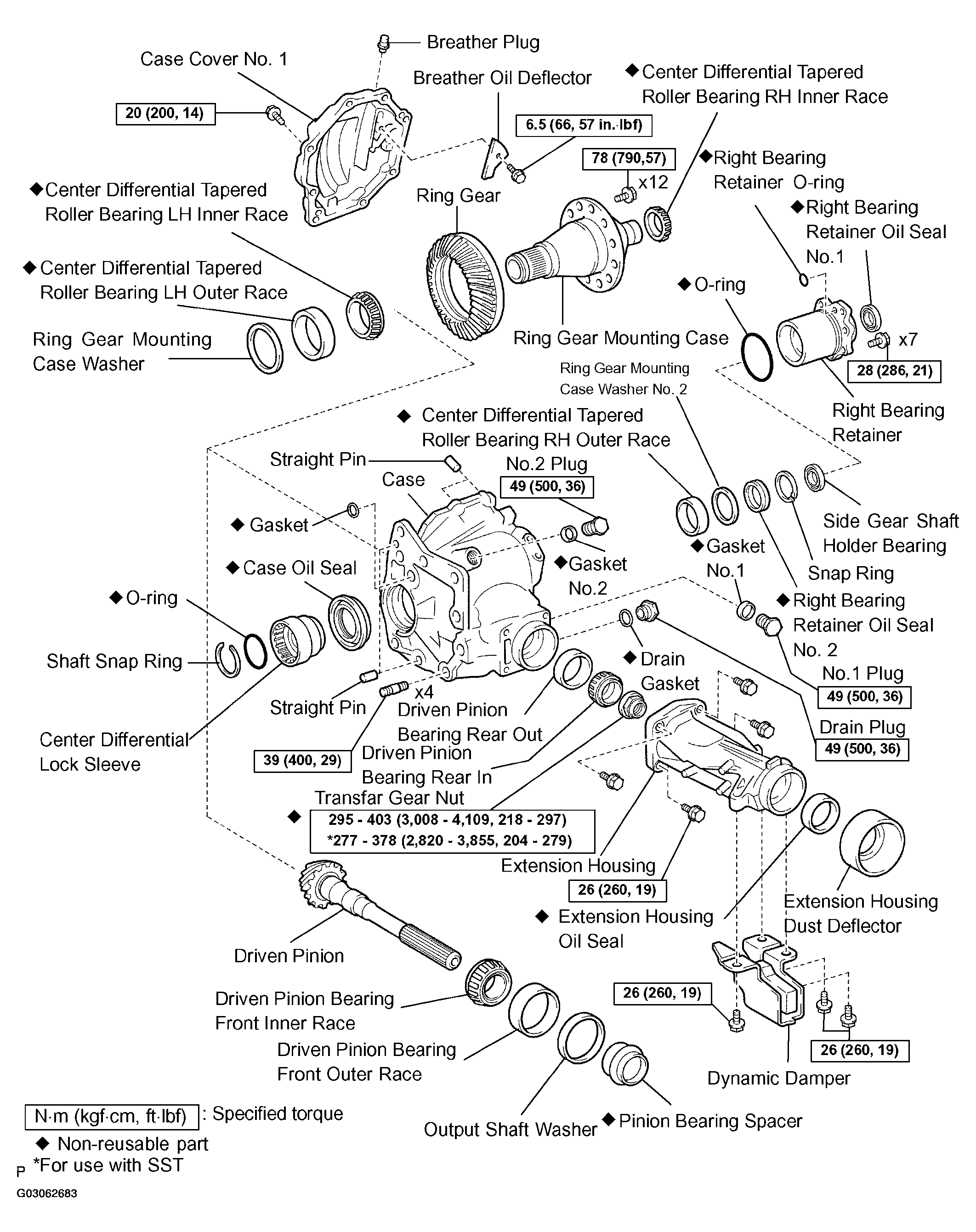

Fig 1: Exploded View Of Transfer (4WD) Components
G03062683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
