Fuel Suction Tube Assembly W/Pump & Gage: Components

Fig 1: Exploded View Of Fuel Suction Tube Assembly W/Pump & Gage (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

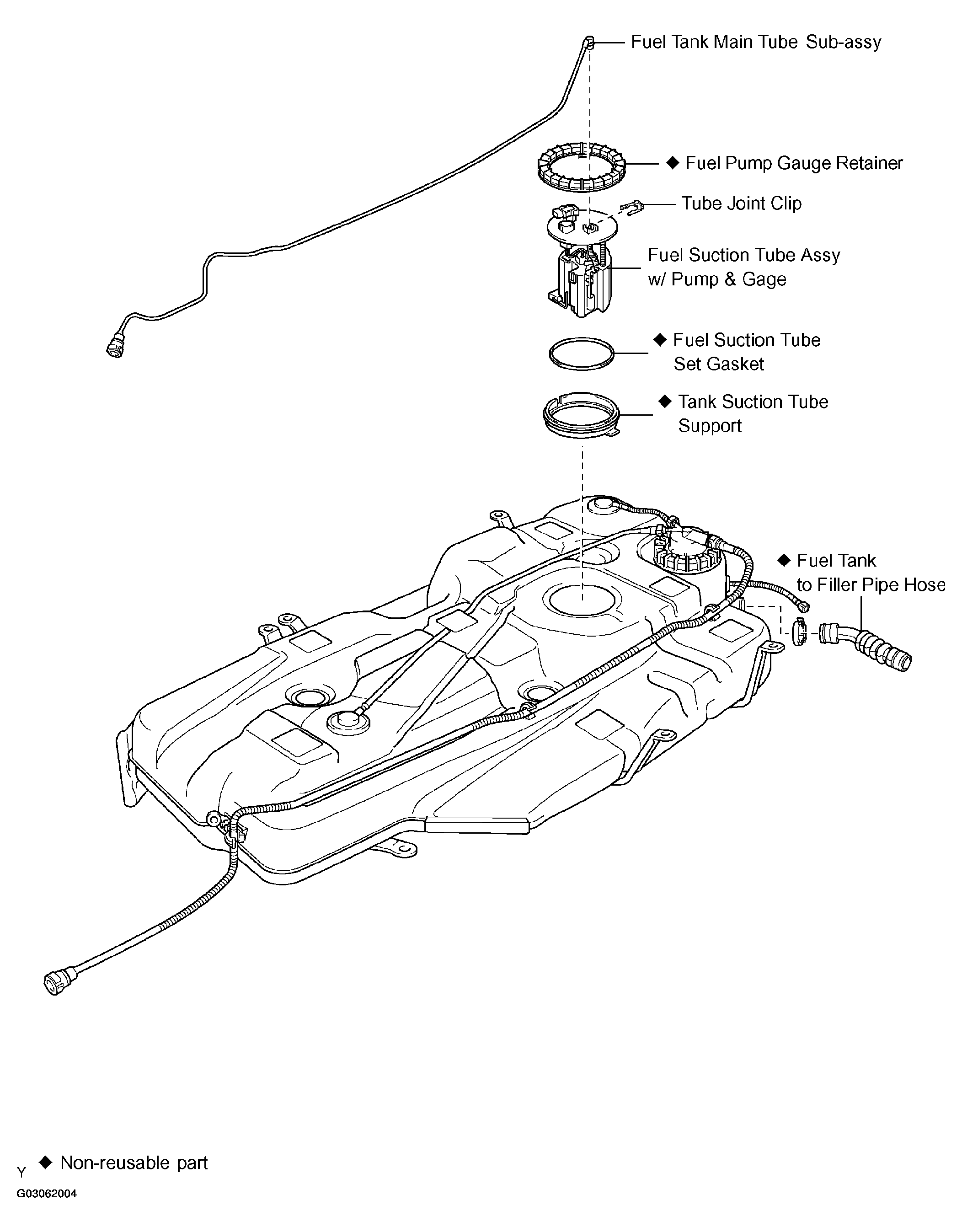

Fig 2: Exploded View Of Fuel Suction Tube Assembly W/Pump & Gage (2 Of 3)

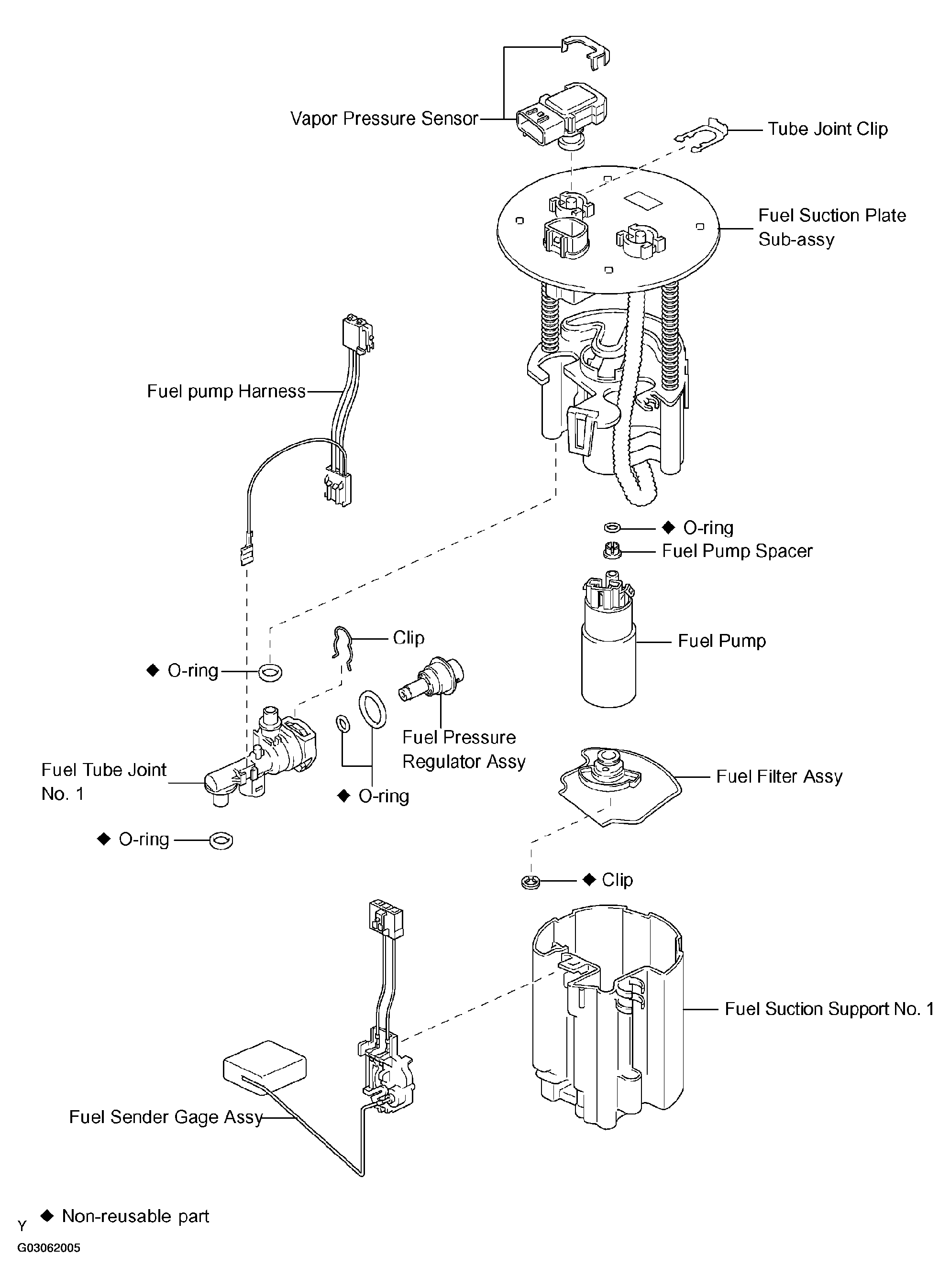

Fig 3: Exploded View Of Fuel Suction Tube Assembly W/Pump & Gage (3 Of 3)
