Slide Door System: Location

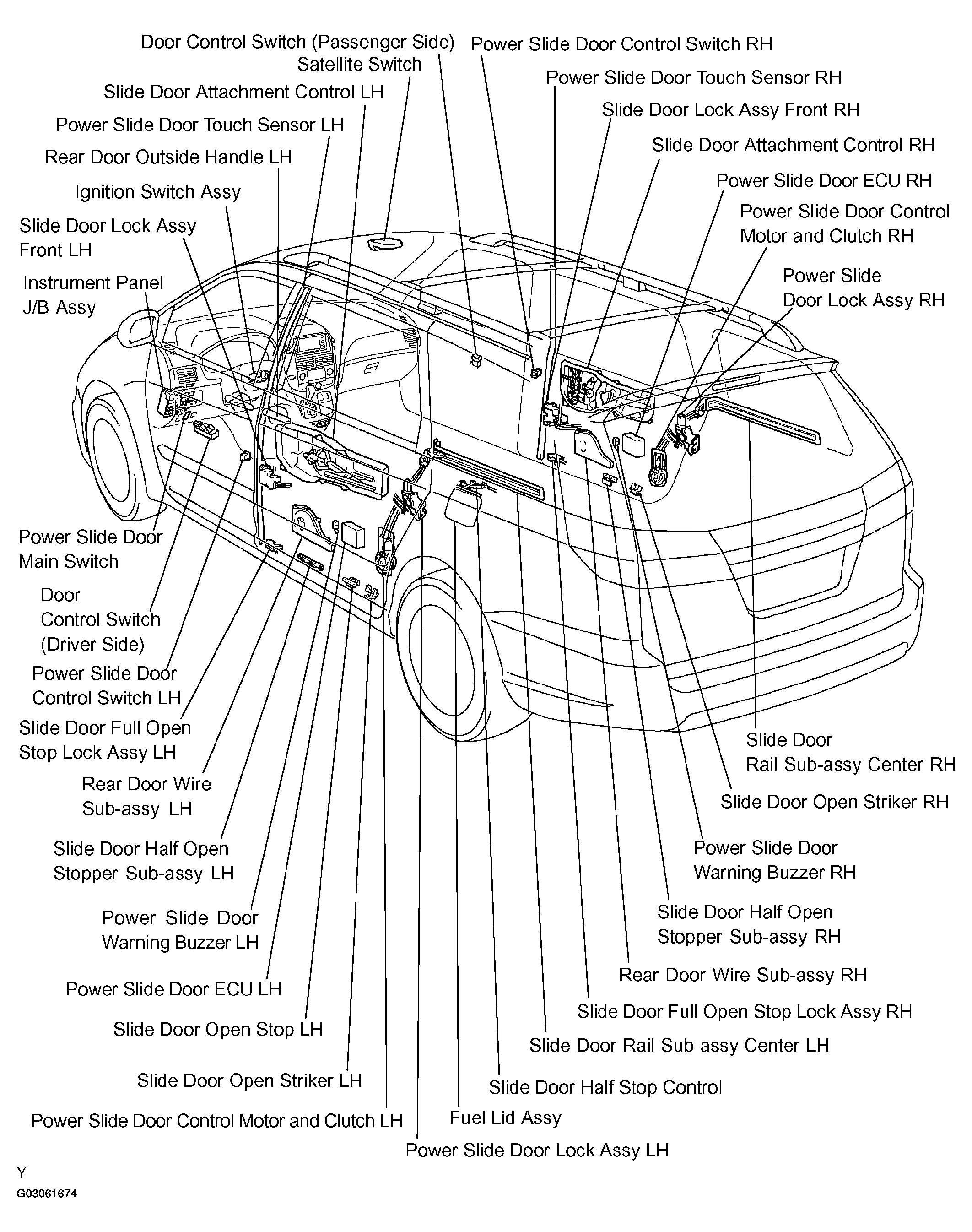

Fig 1: Identifying Slide Door System (1 Of 2)
G03061674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

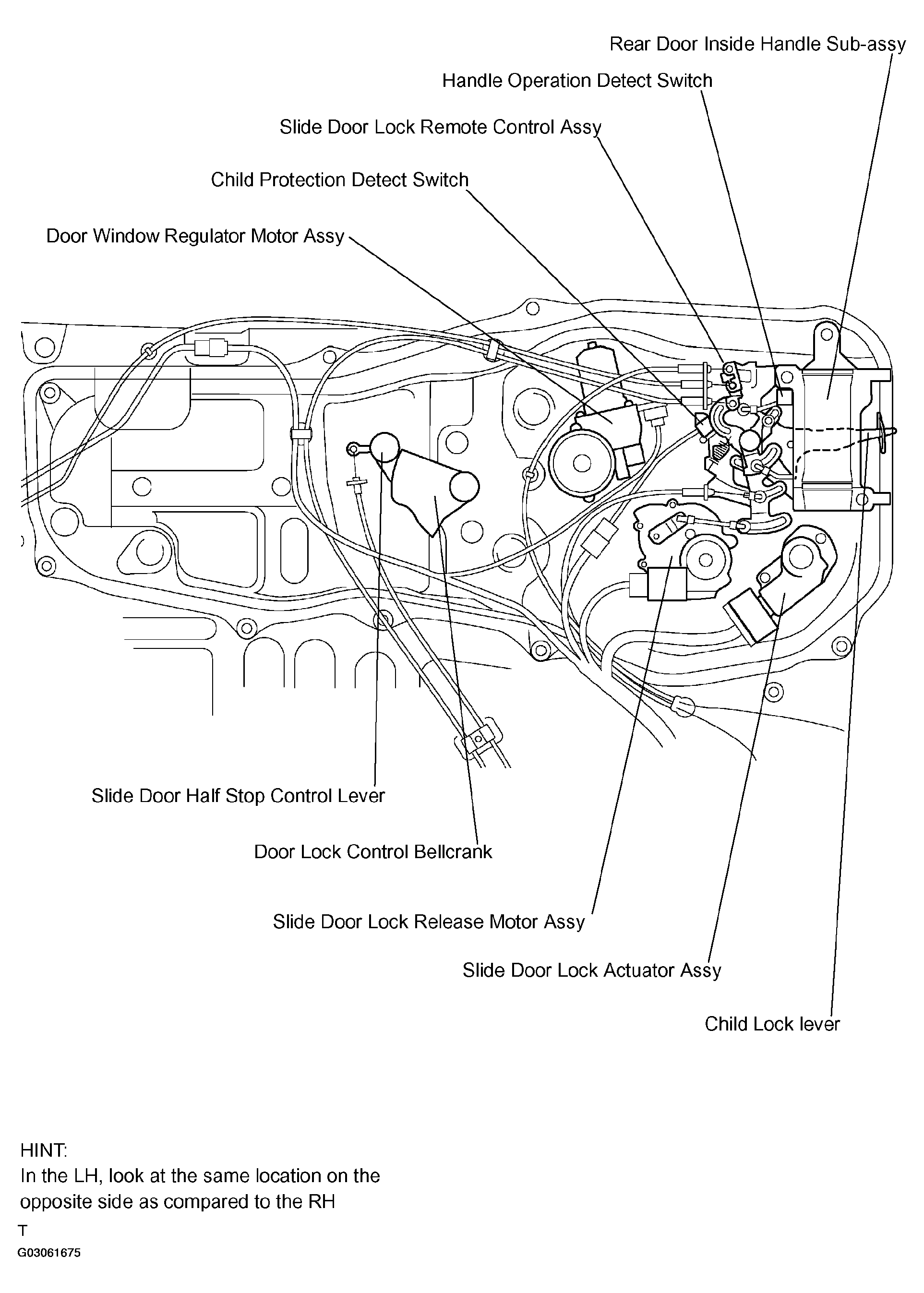

Fig 2: Identifying Slide Door System (2 Of 2)
G03061675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
