Throttle Body Assembly: Components

Fig 1: Locating Throttle Body Assembly Components (1 Of 2)
G03061939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

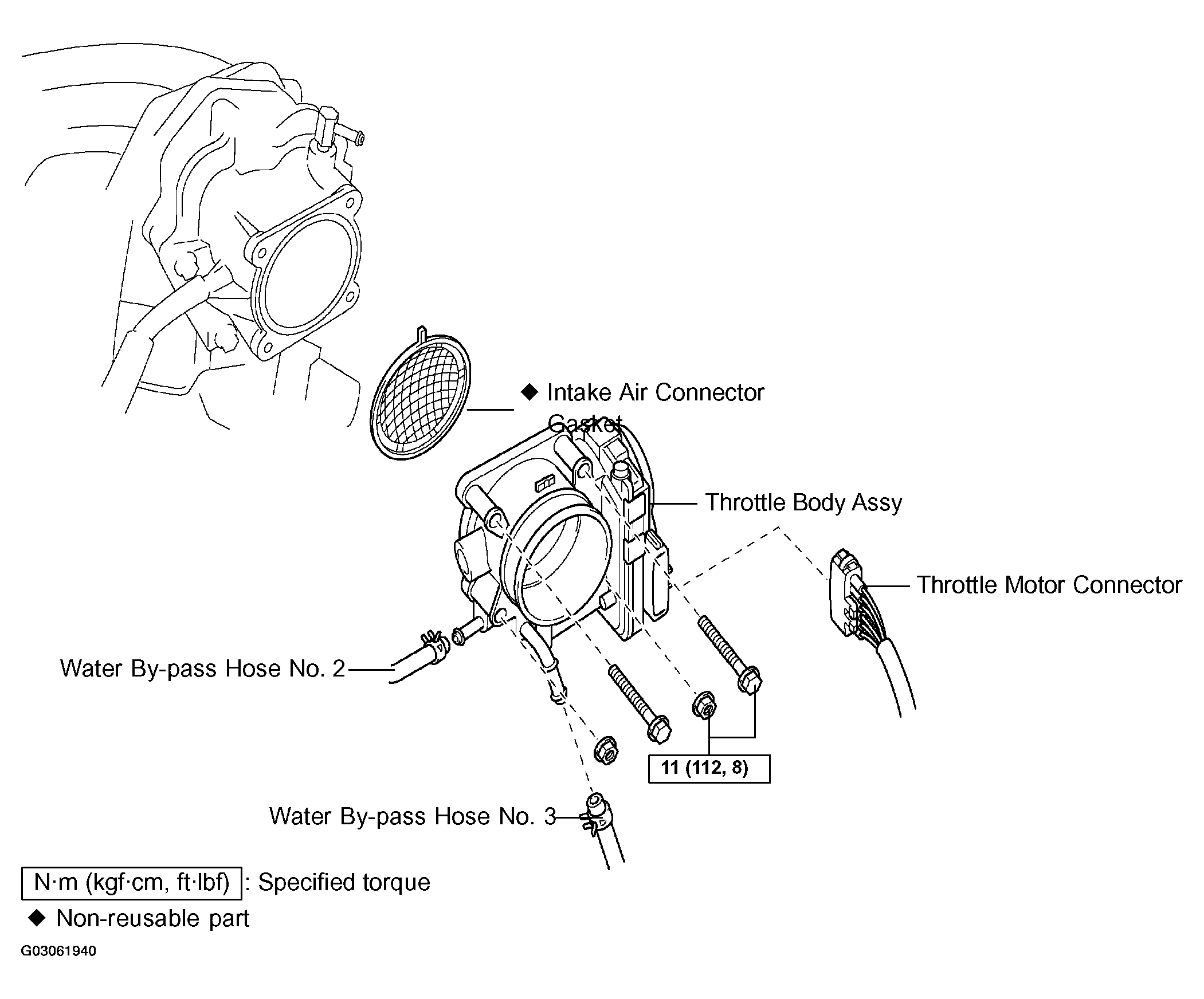

Fig 2: Locating Throttle Body Assembly Components (2 Of 2)
G03061940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
