Transfer Unit: Removal

WARNING: This page is about a different variant/trim than selected.

REMOVE TRANSFER SHIFT LEVER
1. Remove the transfer shift lever knob.
2. Remove the upper console panel.
3. Remove the 4 bolts and shift lever boot.

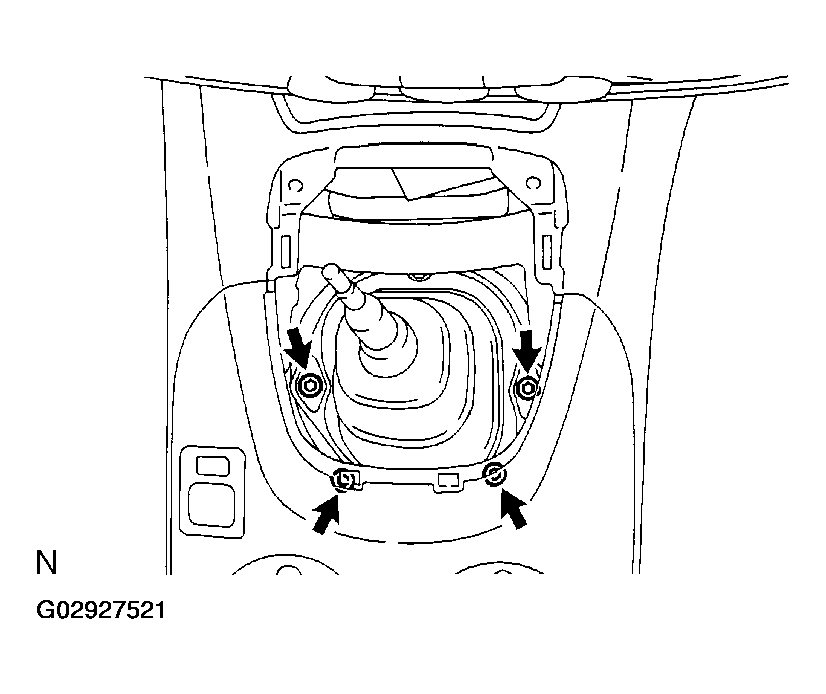

  Fig 1: Locating Shift Leaven Boot Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using pliers, remove the snap ring and pull out the transfer shift lever.
NOTE: Shift the transfer shift lever to the "H" position and one touch 2 - 4 selector switch "OFF."
REMOVE PROTECTOR
Remove the 4 bolts and protector.
RAISE VEHICLE AND DRAIN TRANSFER OIL
REMOVE LH AND RH FRONT EXHAUST PIPES (See REMOVAL )
REMOVE FRONT AND REAR PROPELLER SHAFTS (See REMOVAL )

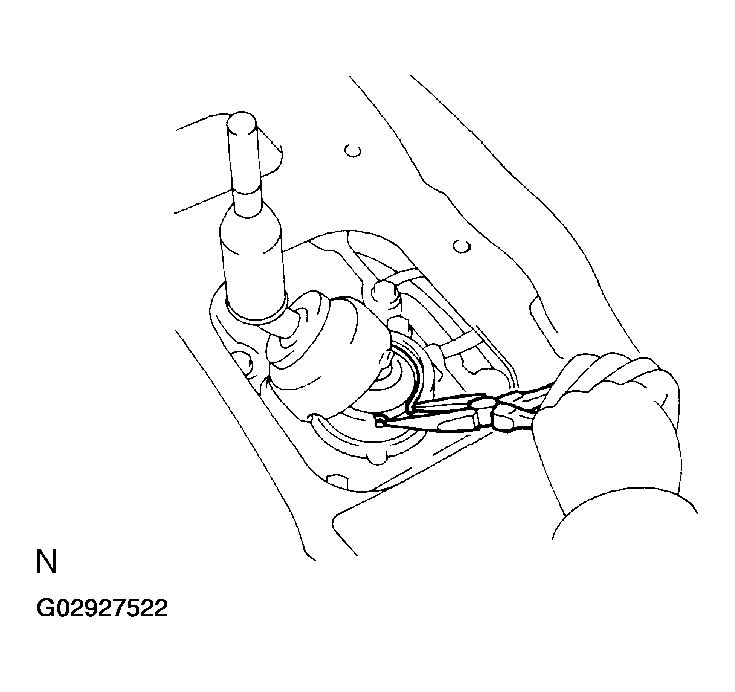

Fig 2: Removing Snap Ring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

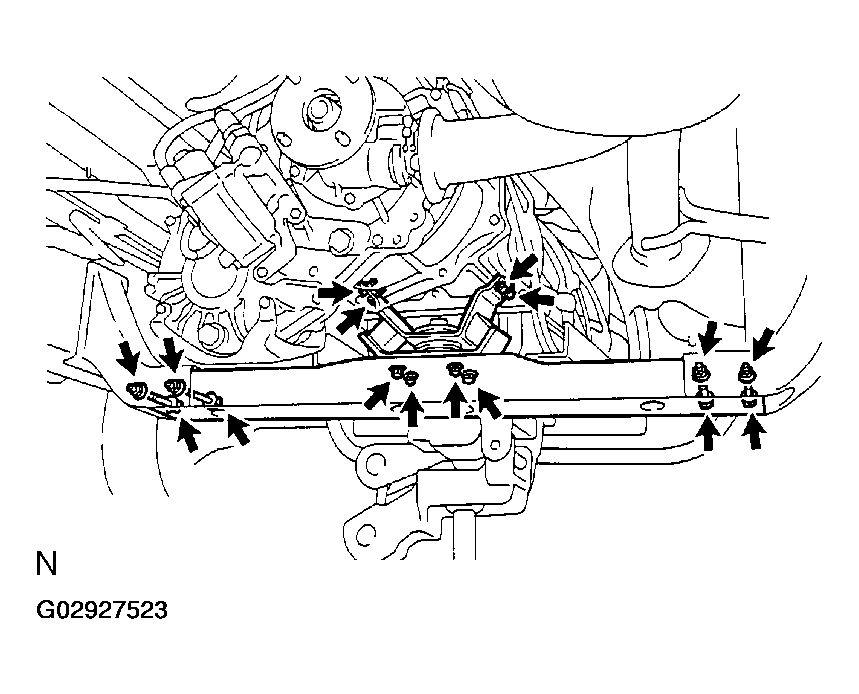

REMOVE CROSS MEMBER
1. Support the transmission rear side with a transmission jack.
2. Remove the 4 set bolts of the engine rear mounting.
3. Remove the 4 bolts, nuts and cross member.
REMOVE ENGINE REAR MOUNTING
Remove the 4 bolts and engine rear mounting from the transfer adaptor.

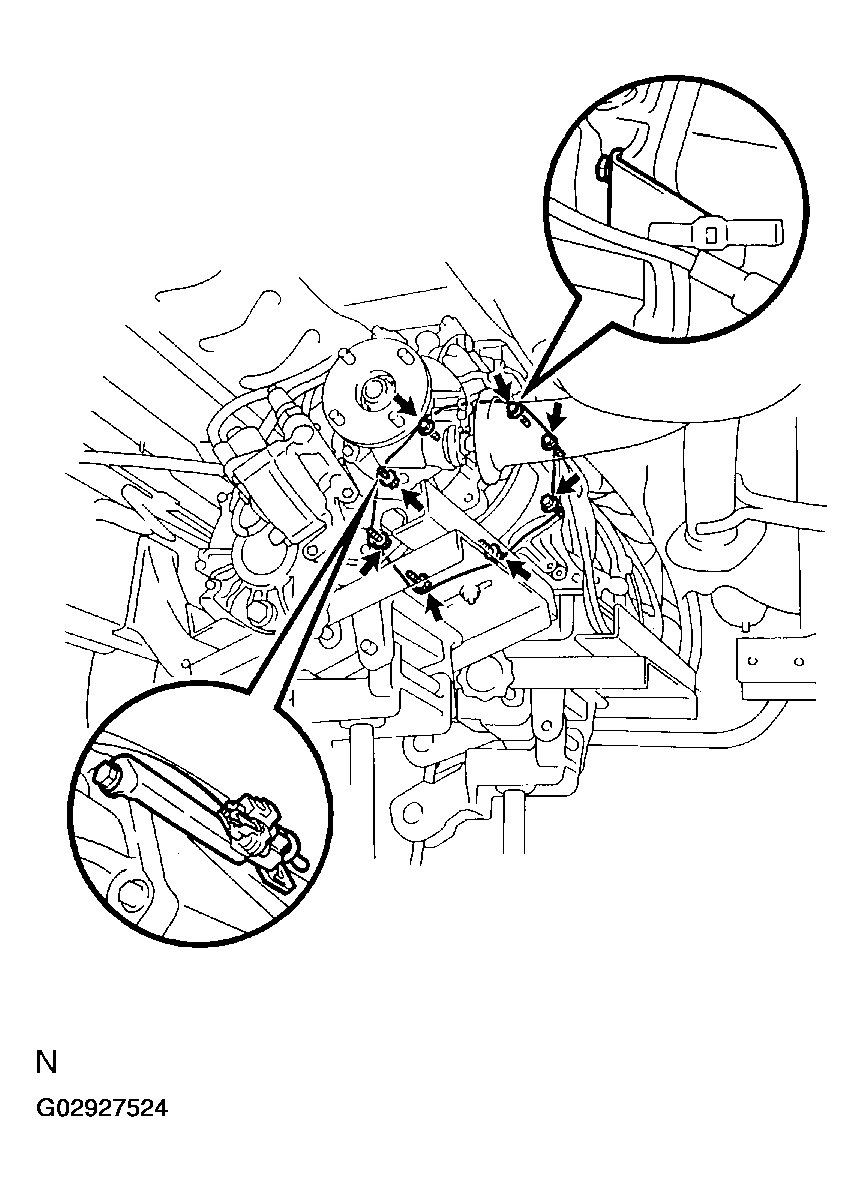

Fig 3: Removing Engine Rear Mounting
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT VEHICLE SPEED SENSOR, NEUTRAL POSITION SWITCH, L4 POSITION SWITCH, MOTOR ACTUATOR, NO. 1 AND NO. 2 4WD POSITION SWITCH CONNECTORS
REMOVE TRANSFER FROM TRANSMISSION
1. Support the transfer with another transmission jack.
2. Remove the 8 transfer mounting bolts.
3. Pull out the transfer from the transfer adaptor down and toward the rear.

  Fig 4: Removing Transfer Mounting Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
