Section 2 (Transfer Case)
>>
Inspection
>>
Inspection Procedure
Inspection Procedure
WARNING:
This page is about a different variant/trim than selected.

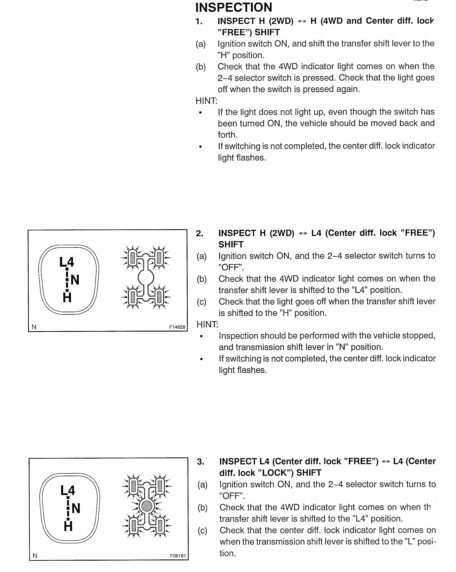

Fig 1: Electronic Transfer Shift System Inspection Procedure (1 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

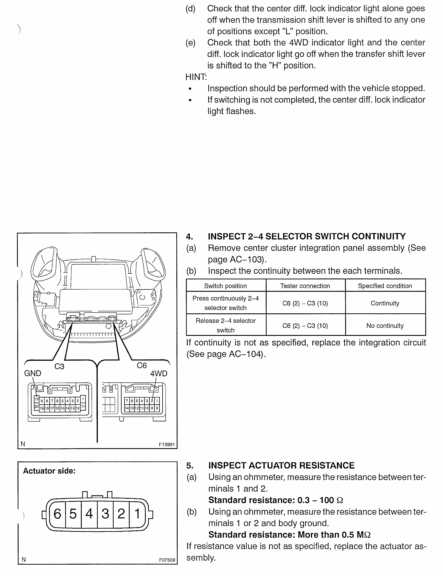

Fig 2: Electronic Transfer Shift System Inspection Procedure (2 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

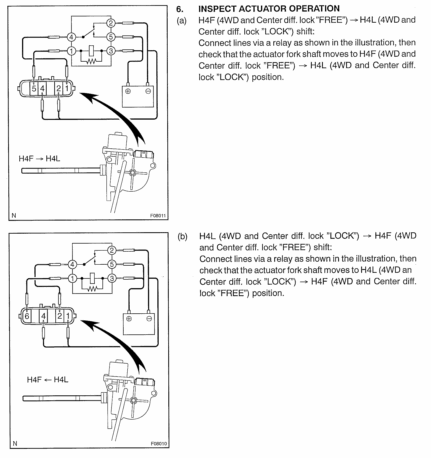

Fig 3: Electronic Transfer Shift System Inspection Procedure (3 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

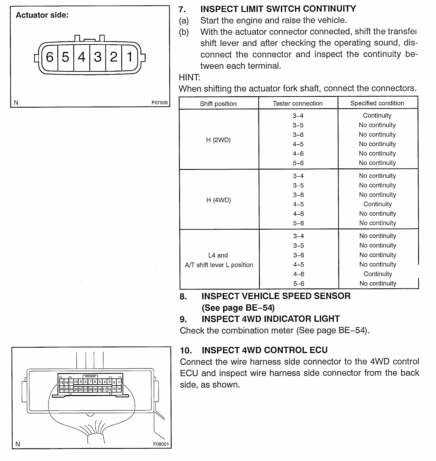

Fig 4: Electronic Transfer Shift System Inspection Procedure (4 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

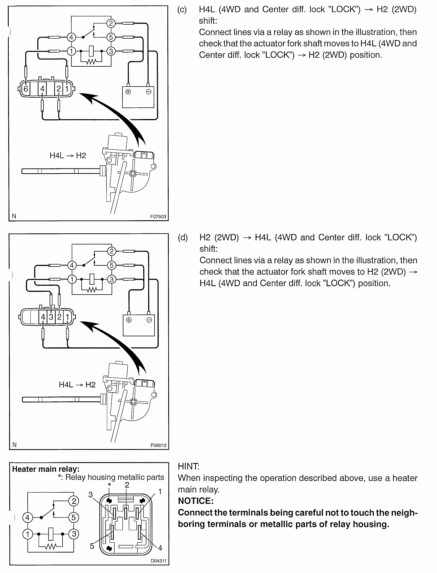

Fig 5: Electronic Transfer Shift System Inspection Procedure (5 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

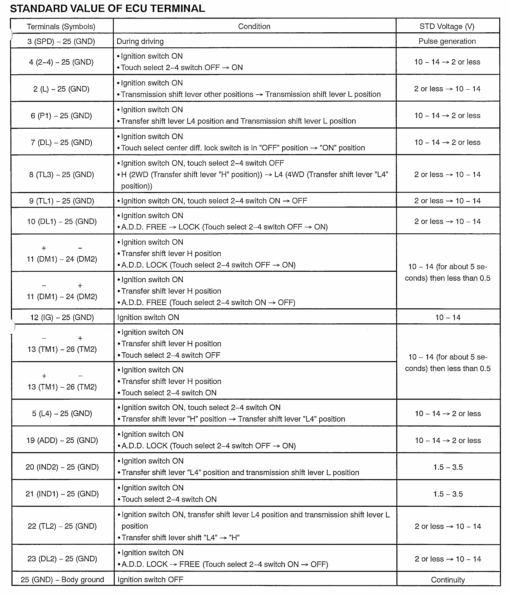

Fig 6: Electronic Transfer Shift System Inspection Procedure (6 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
