Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

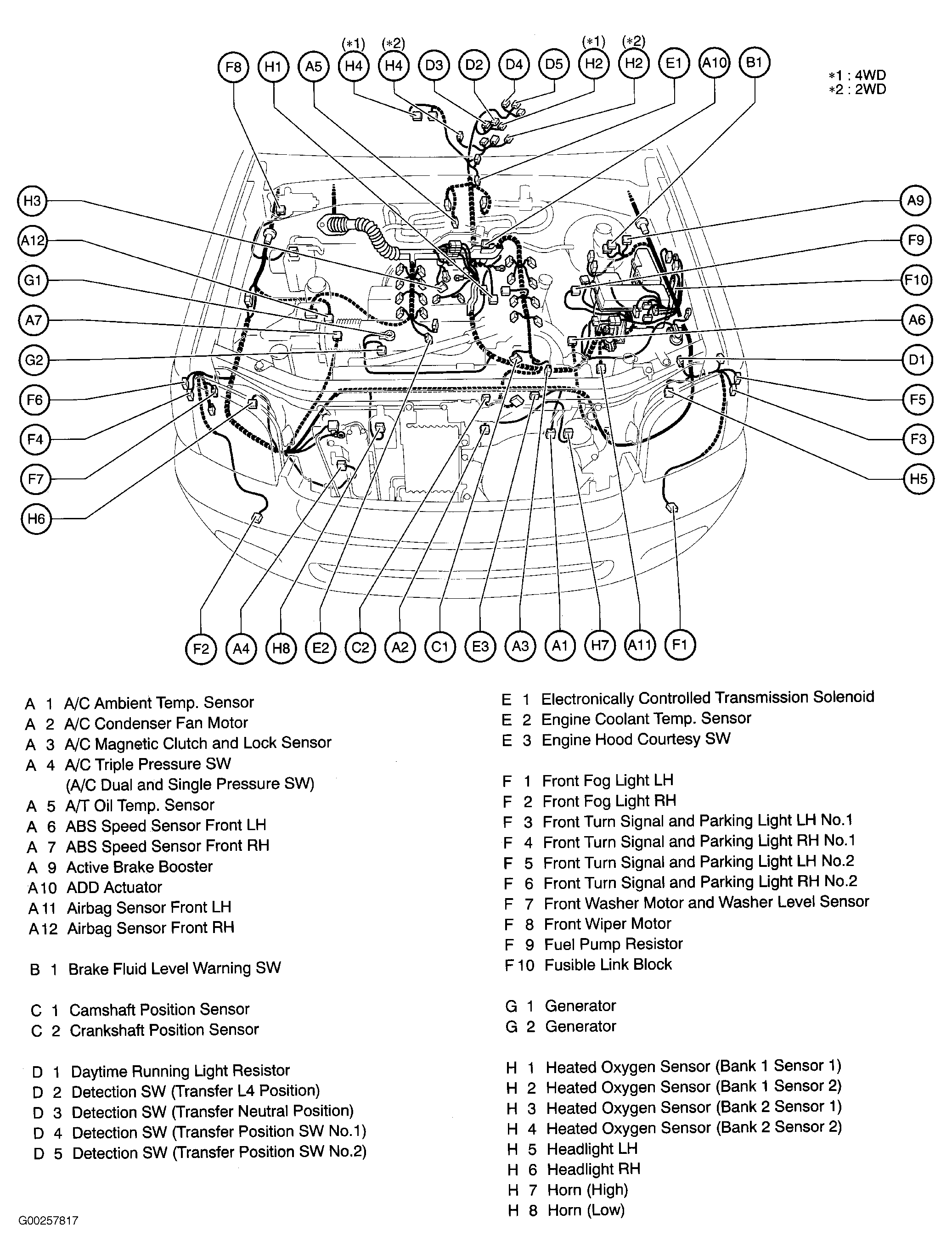

Fig 1: Engine Compartment

G00257817

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

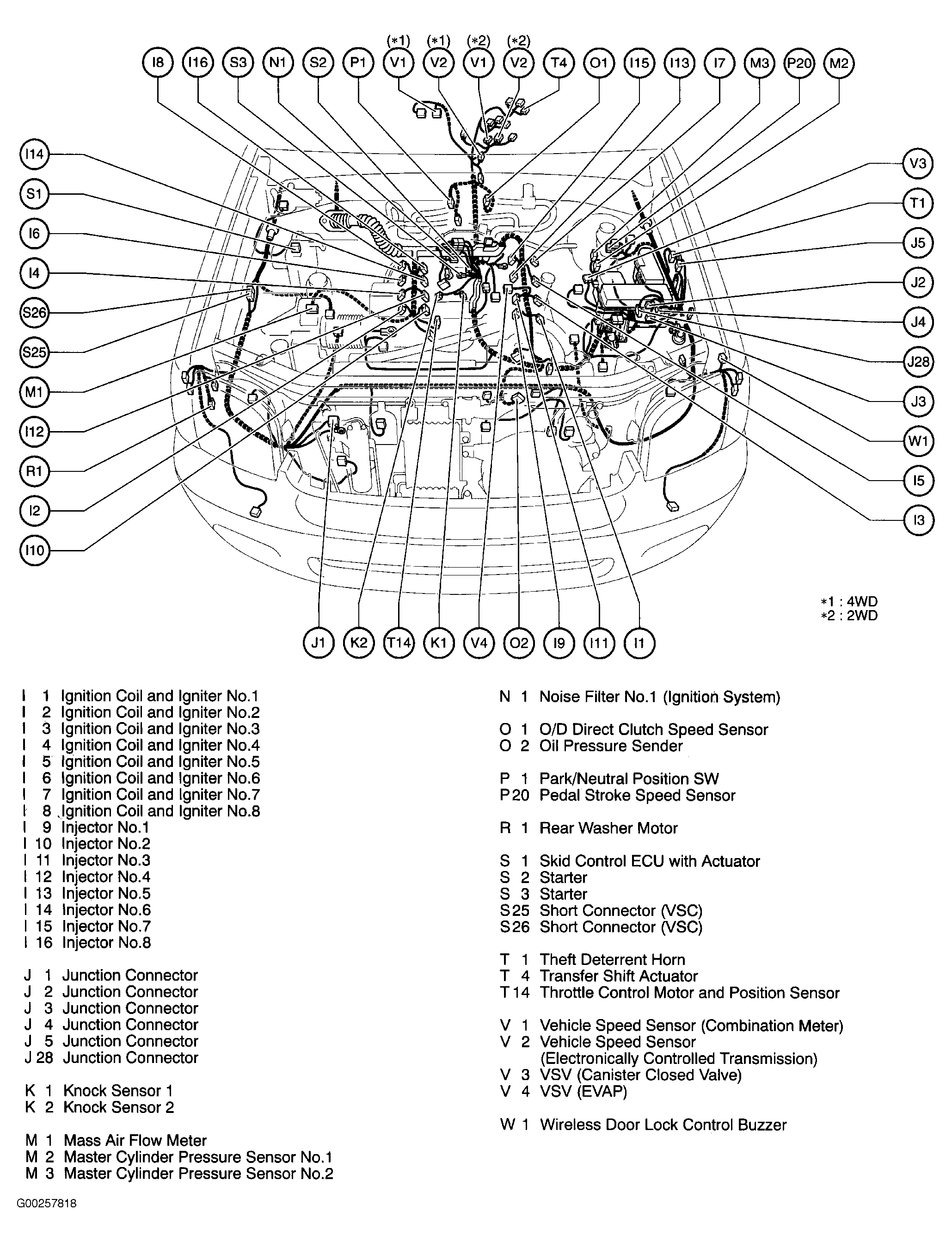

Fig 2: Engine Compartment

G00257818

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

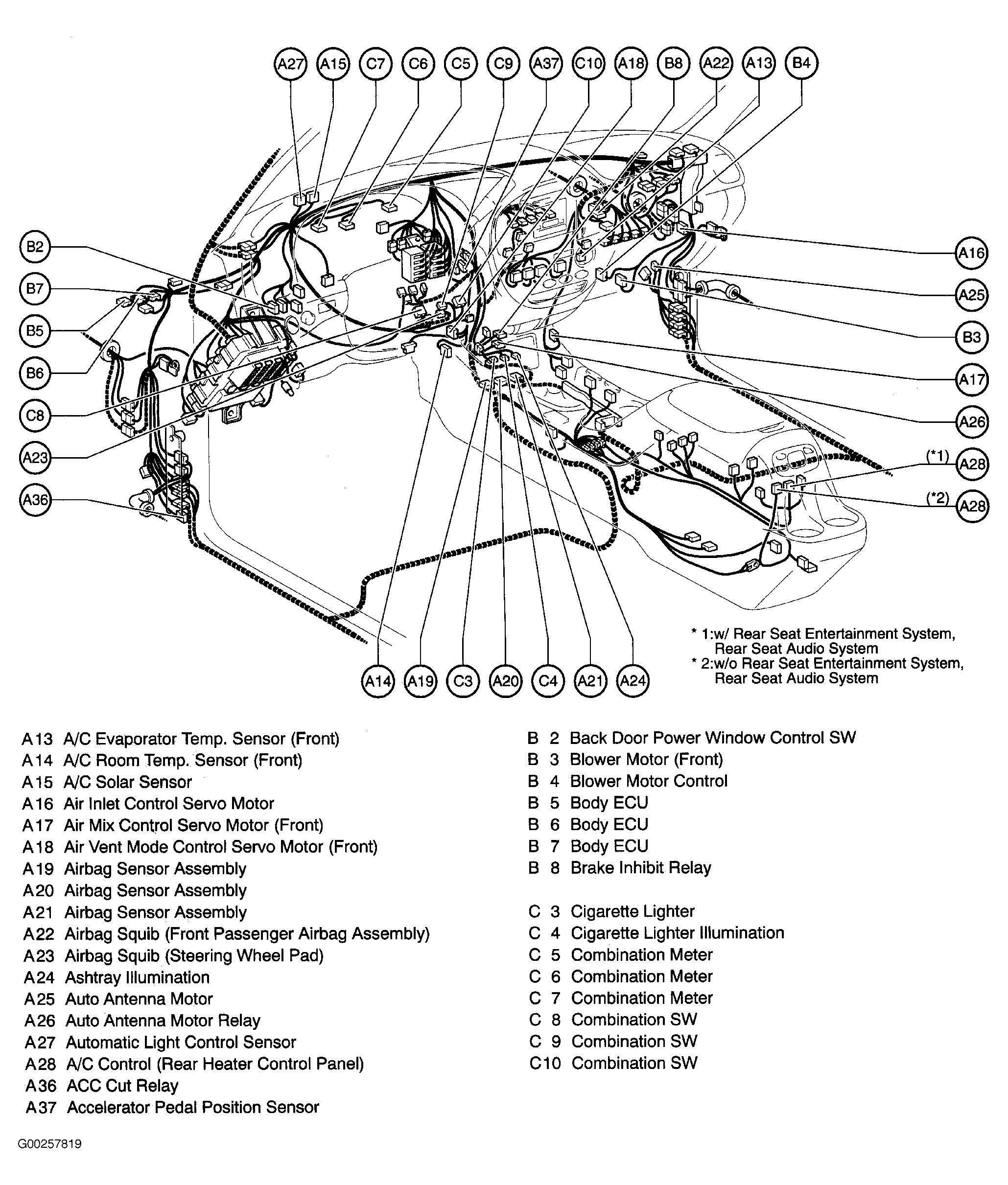

Fig 3: Dash

G00257819

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

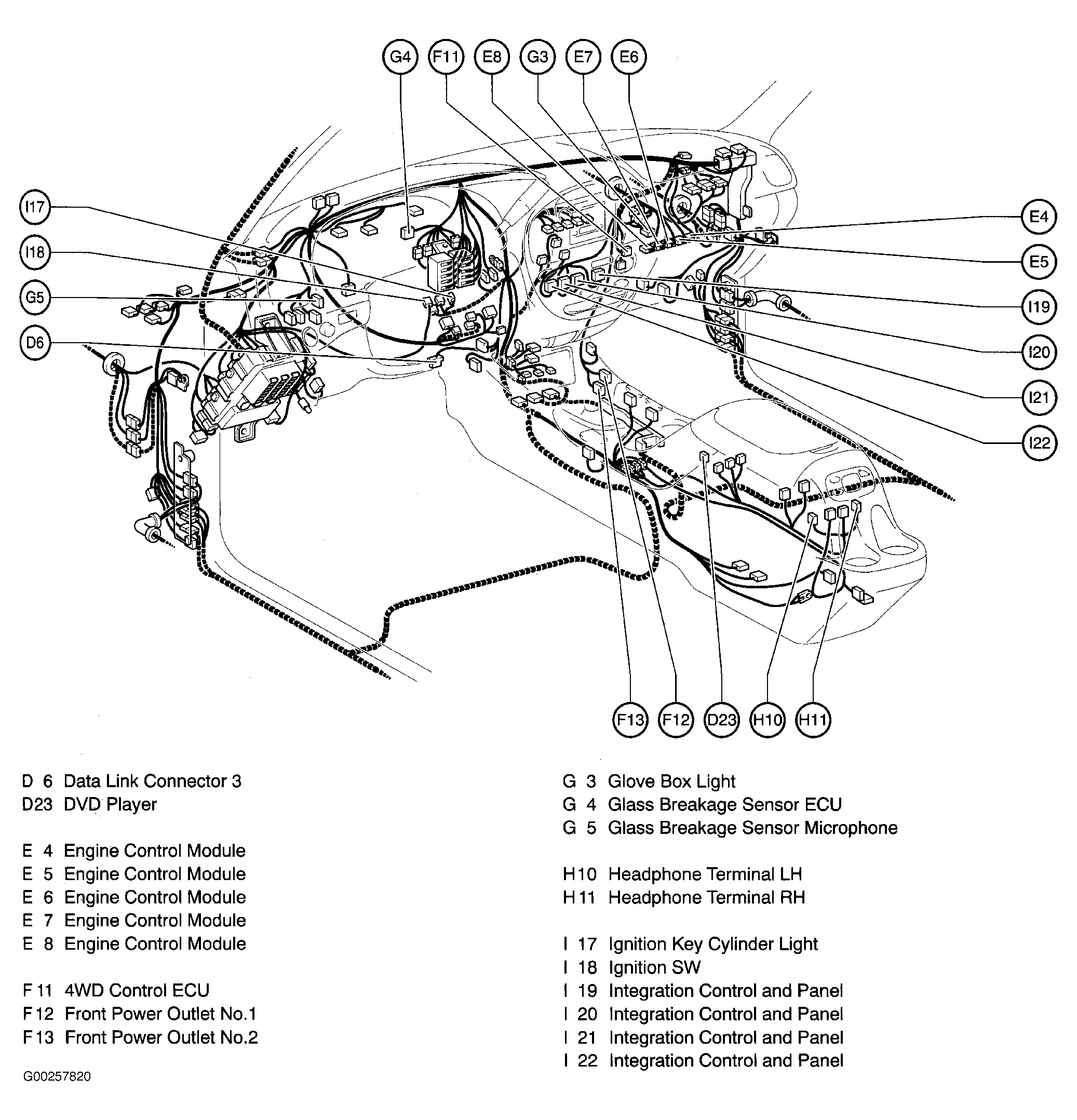

Fig 4: Dash

G00257820

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

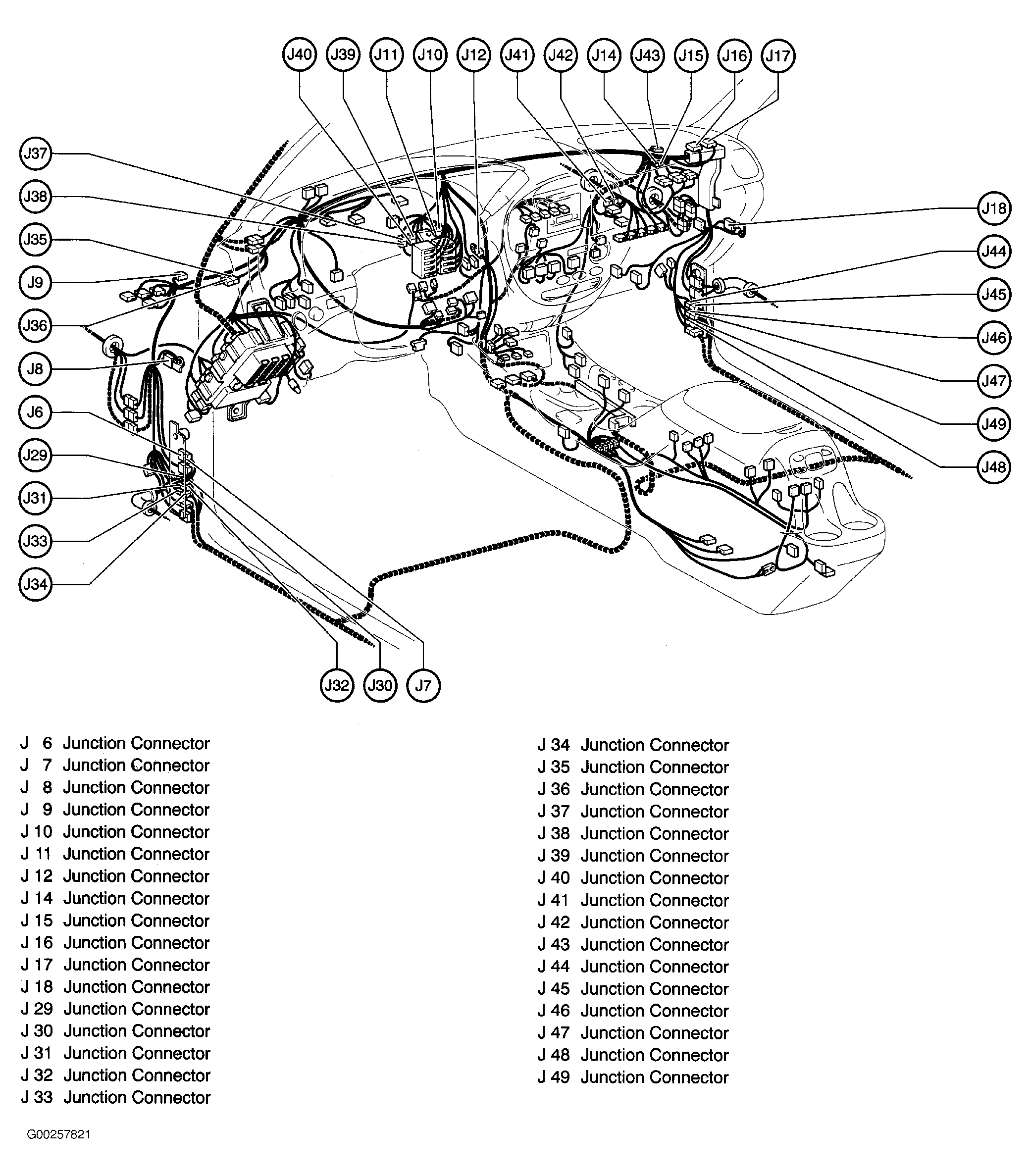

Fig 5: Dash

G00257821

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Dash

G00257822

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

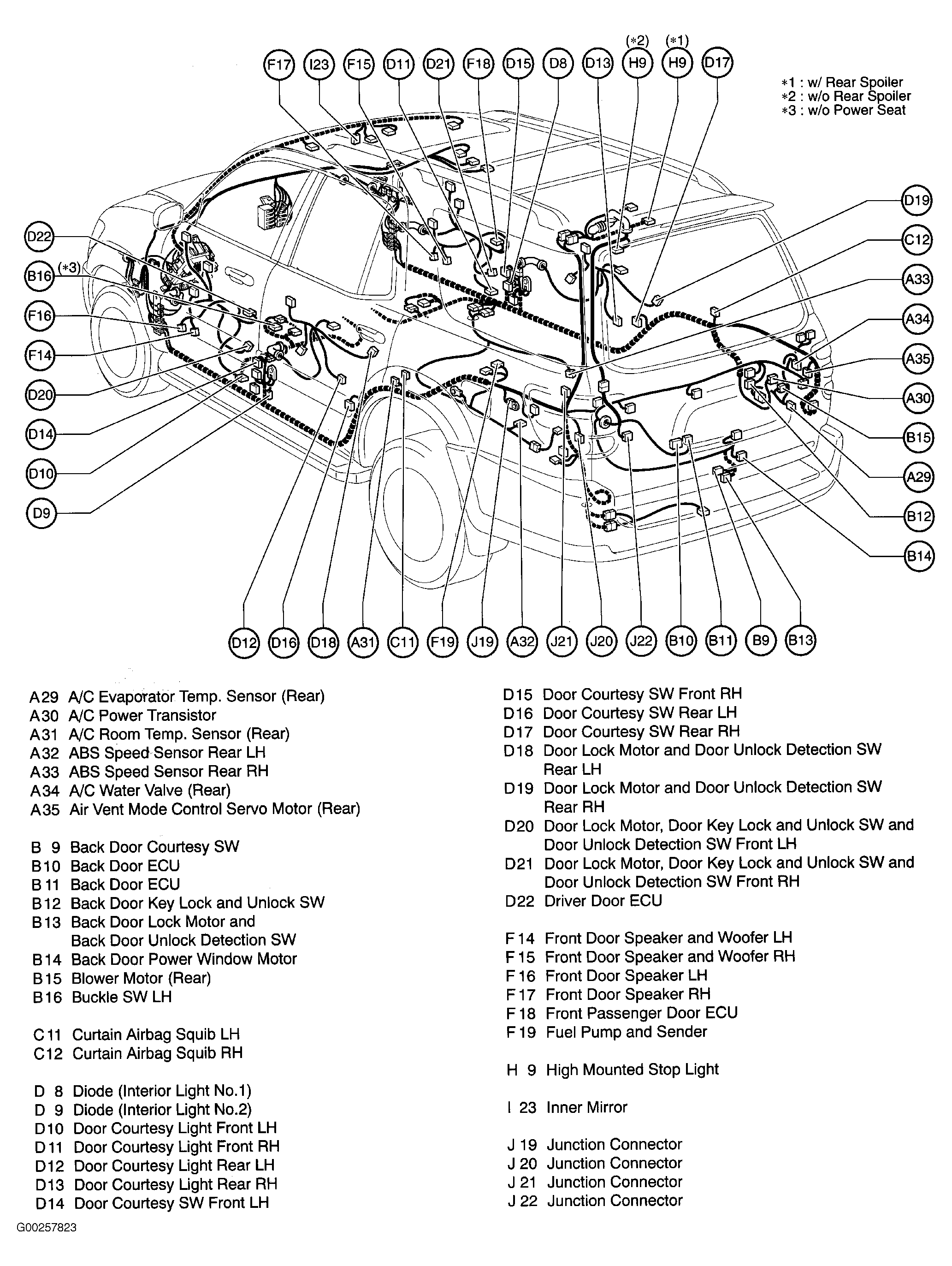

Fig 7: Body

G00257823

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

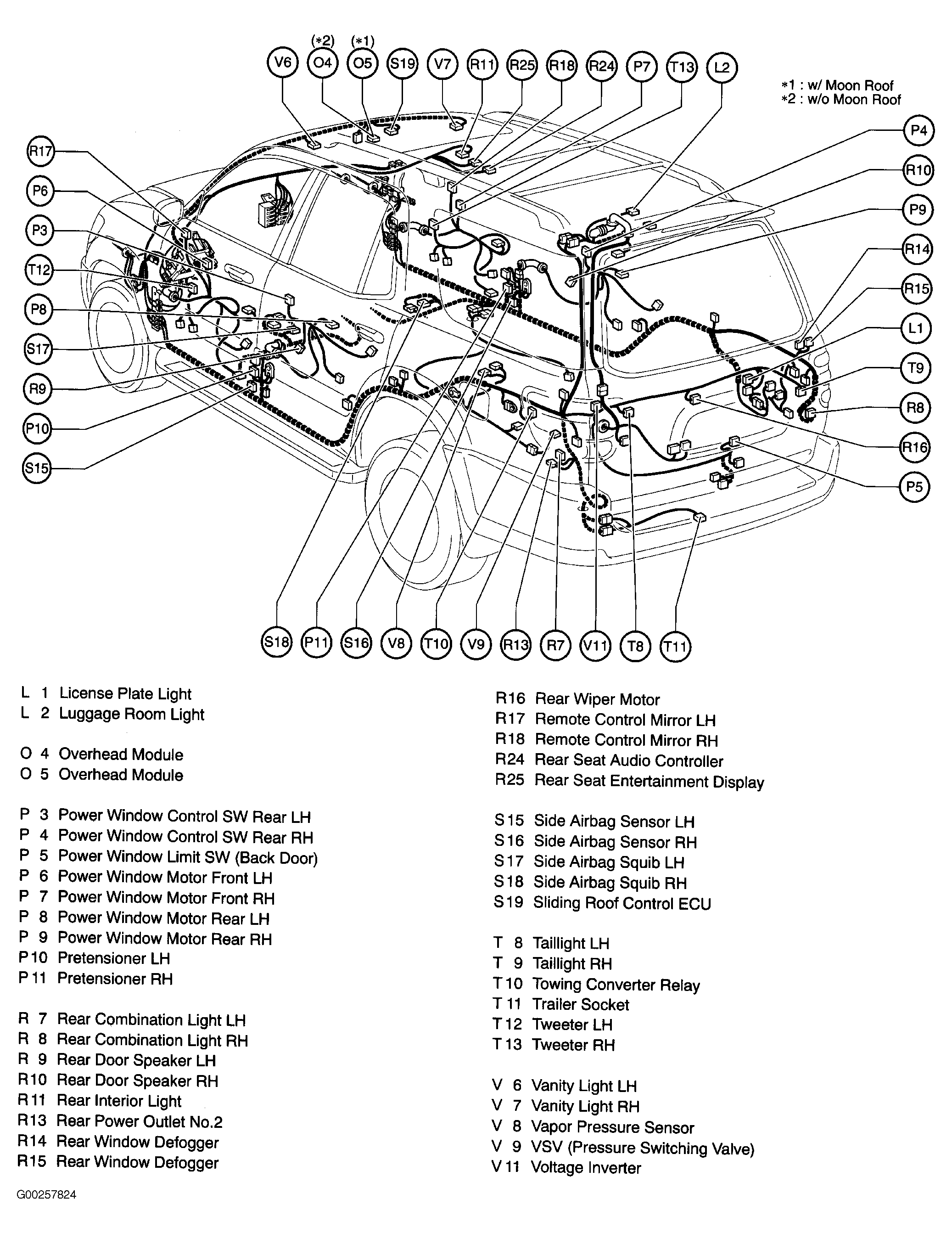

Fig 8: Body

G00257824

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

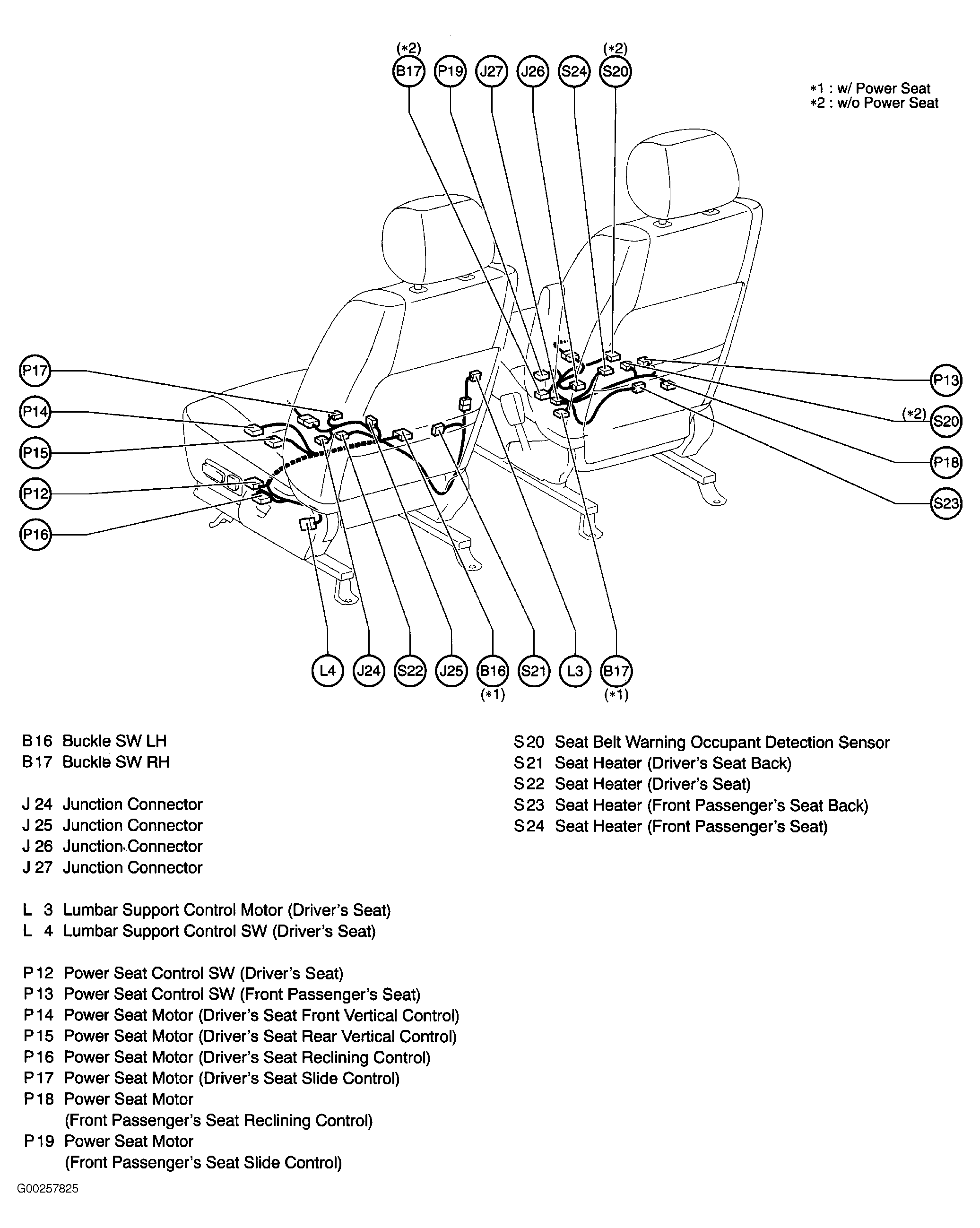

Fig 9: Front Seats

G00257825

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

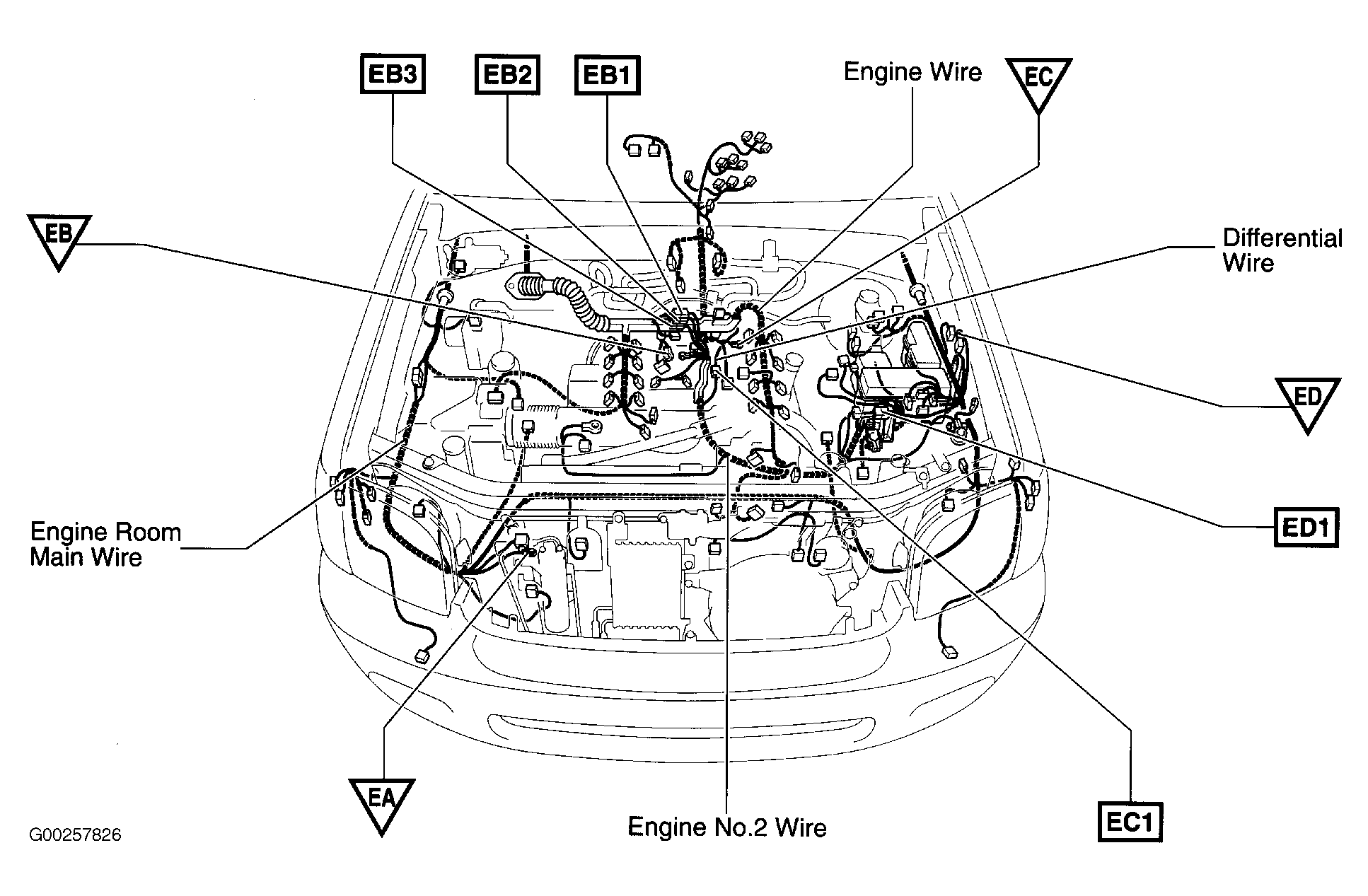

Fig 10: Engine Compartment

G00257826

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

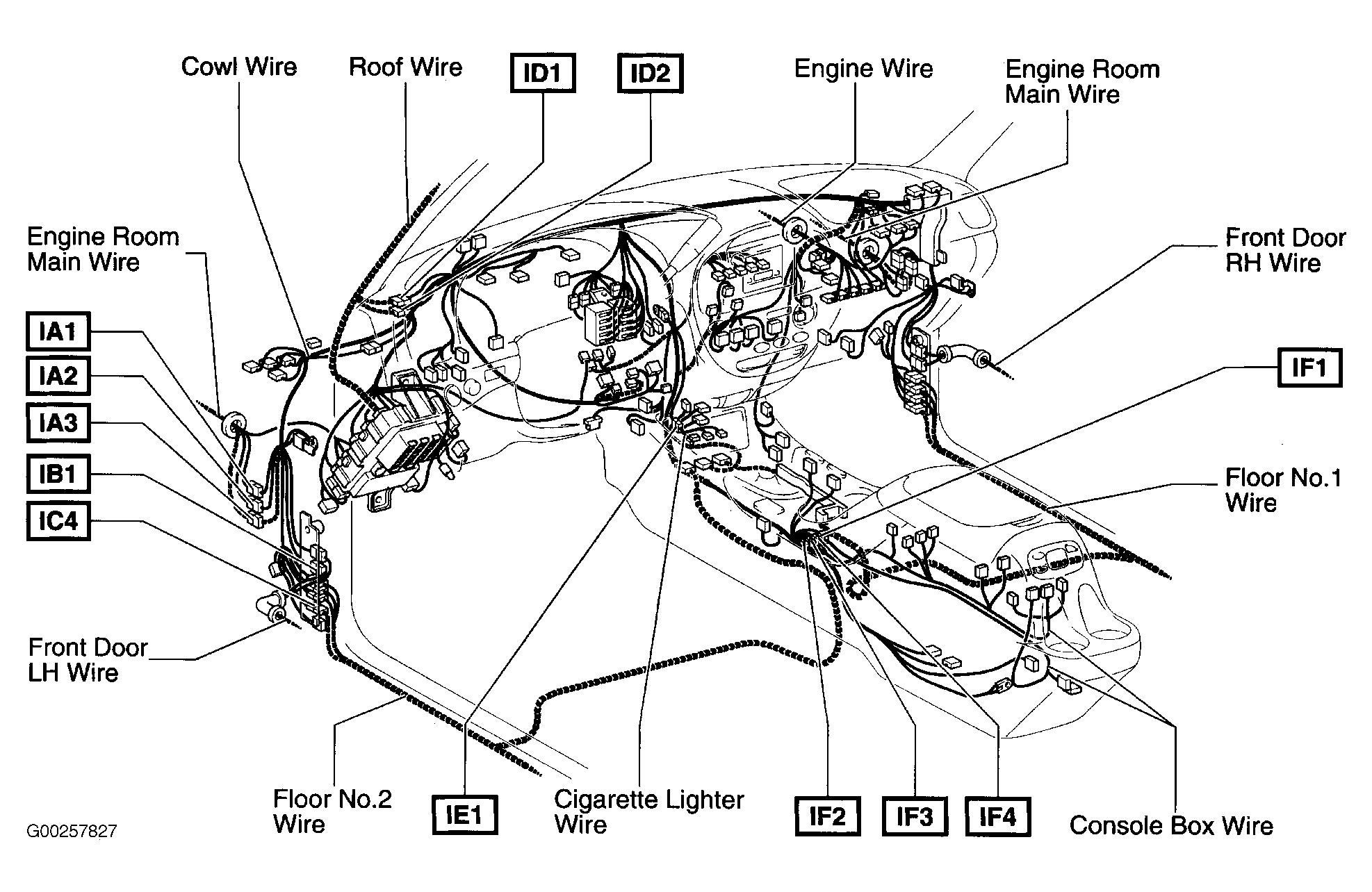

Fig 11: Dash

G00257827

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

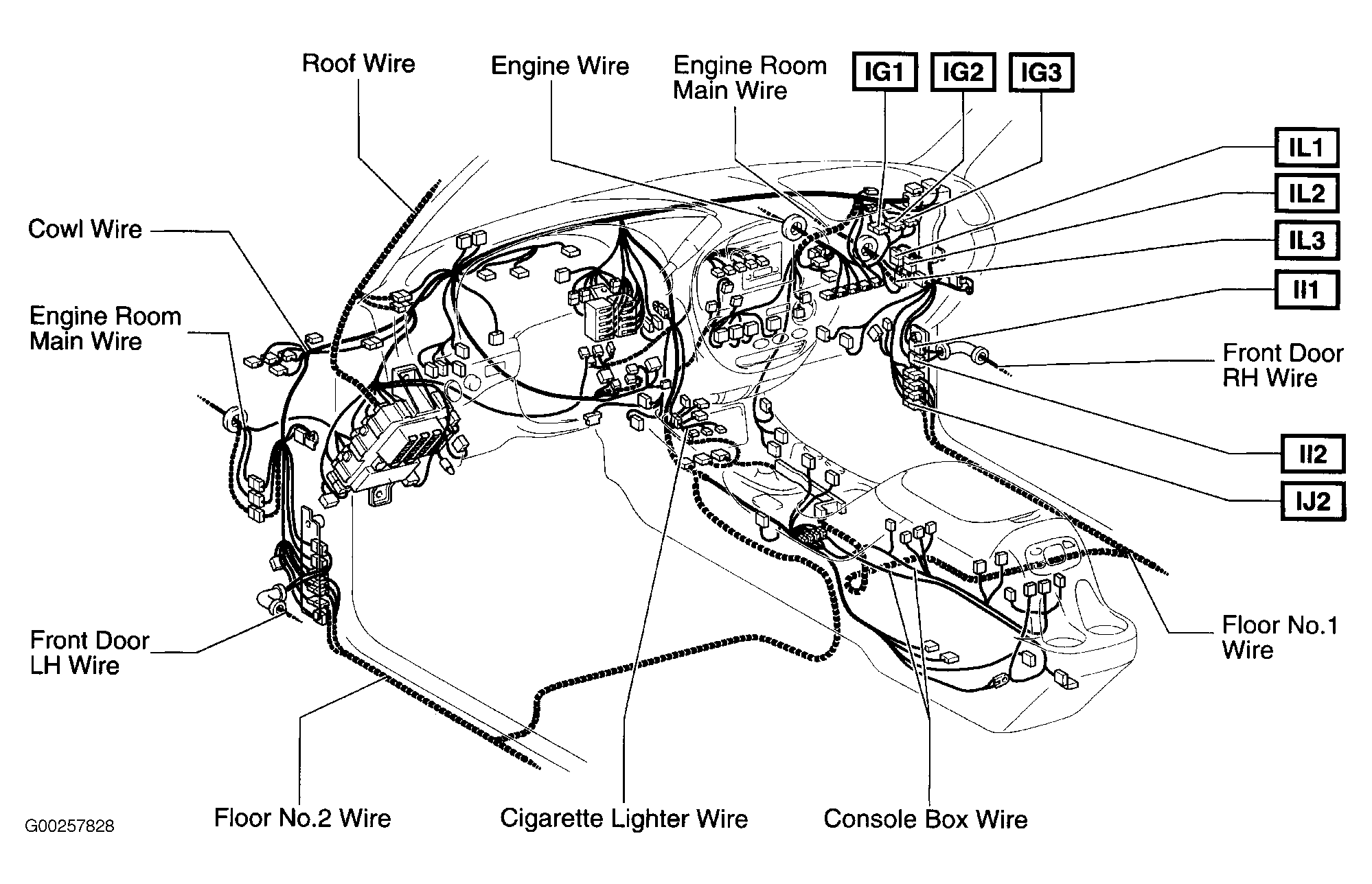

Fig 12: Dash

G00257828

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

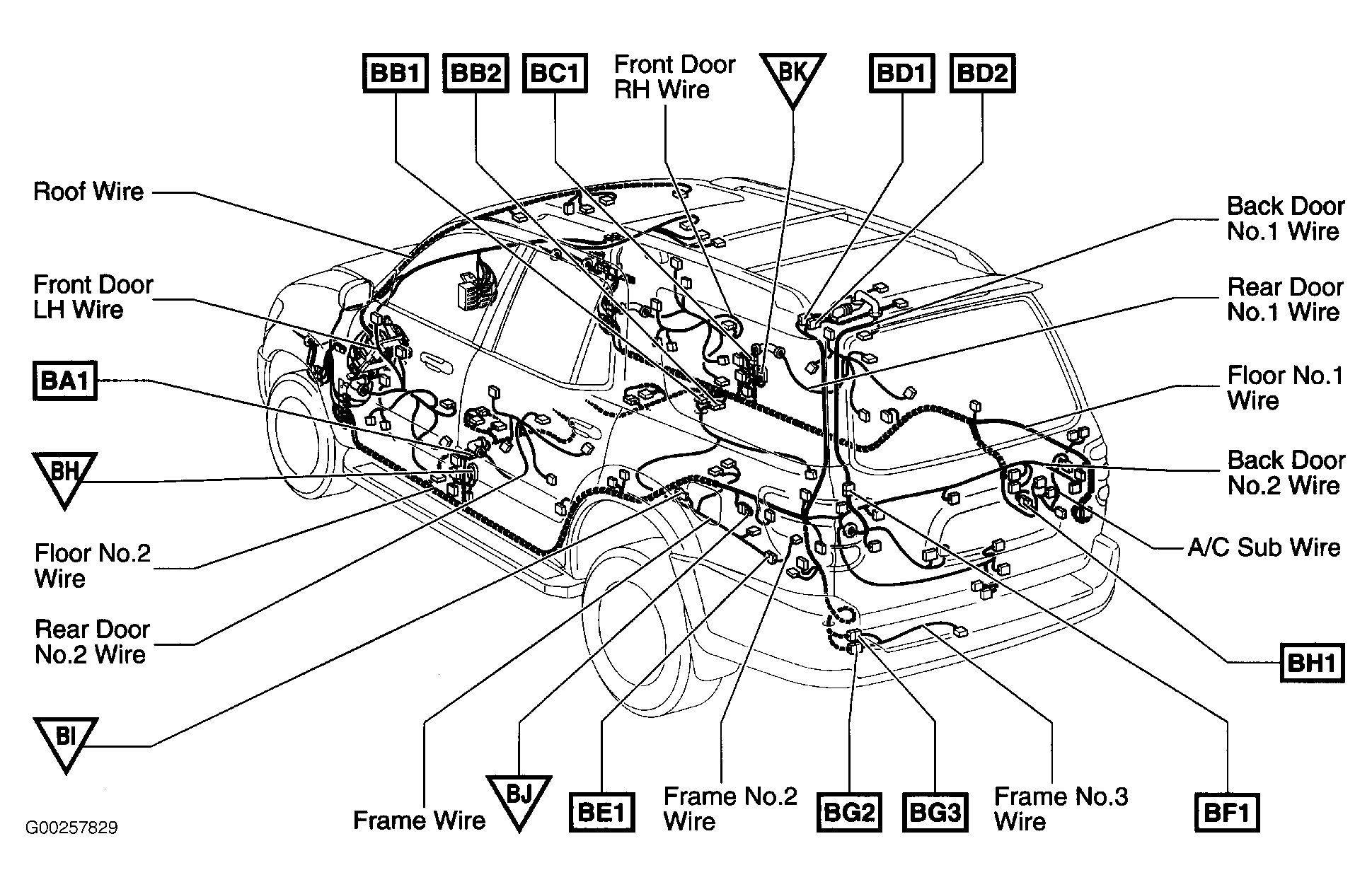

Fig 13: Body

G00257829

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

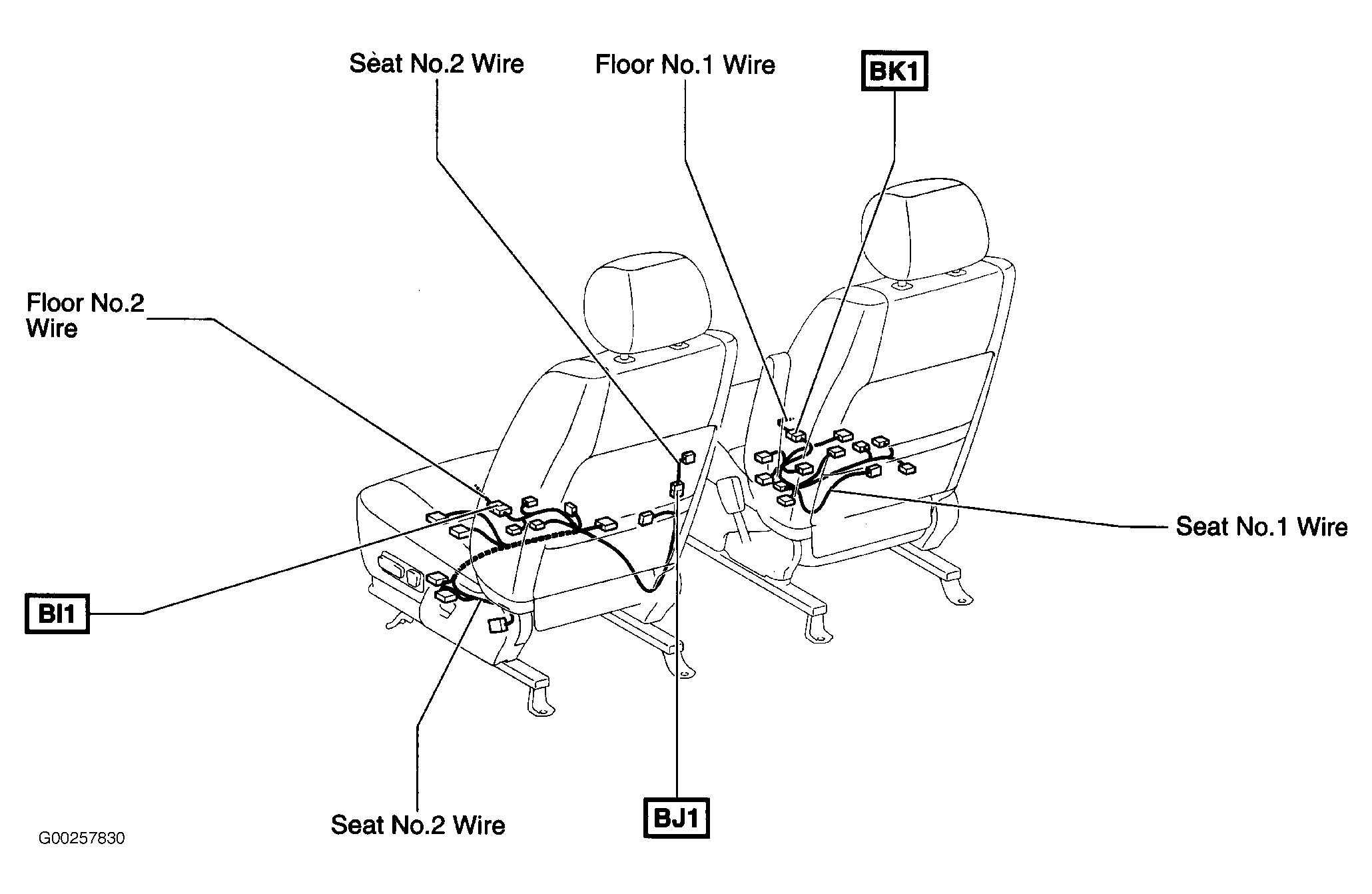

Fig 14: Seat

G00257830

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Engine Compartment

G00262628

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Dash

G00262629

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Body

G00262630

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

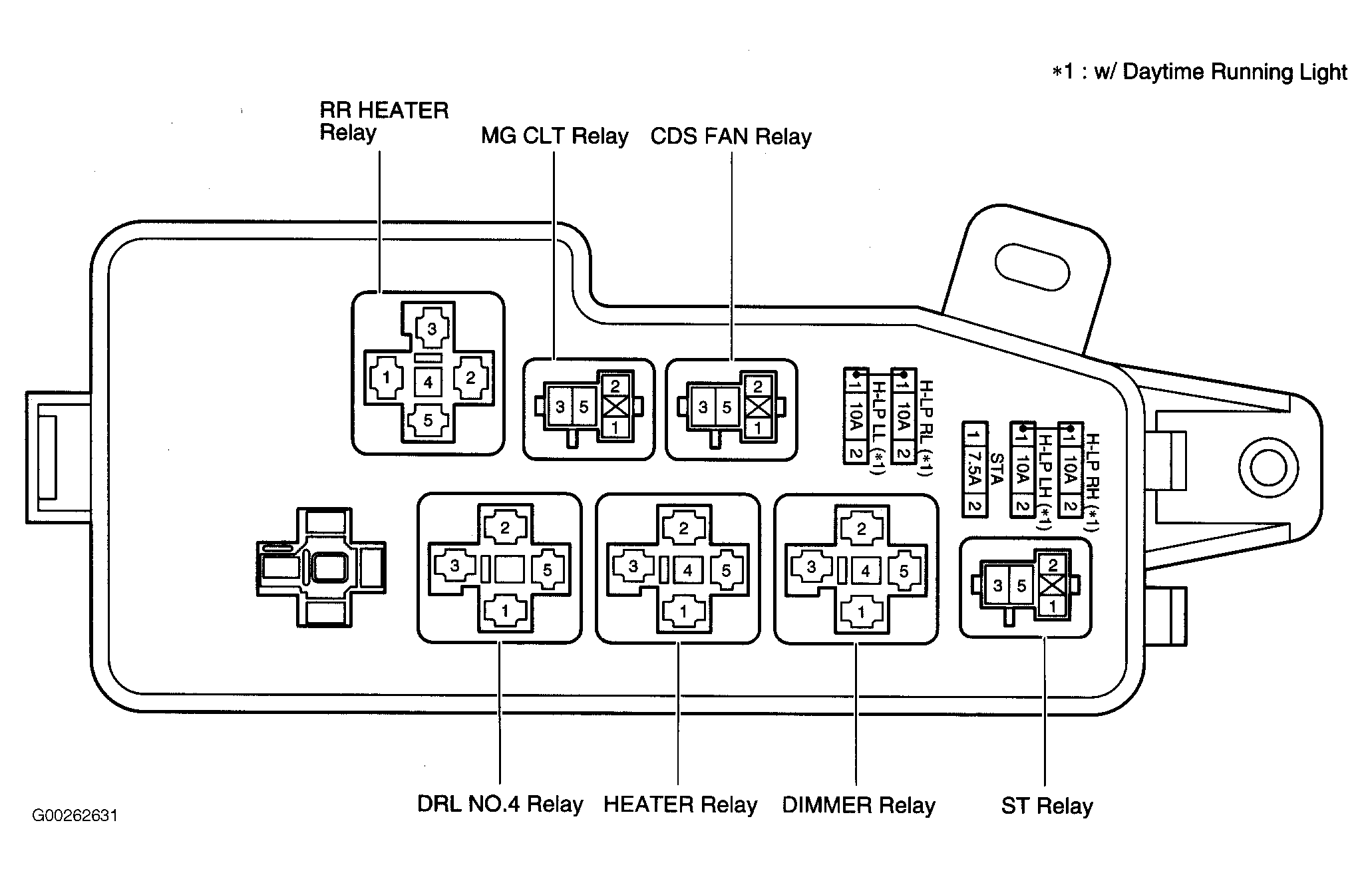

Fig 18: Engine Room R/B No. 2

G00262631

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Engine Room R/B No. 3

G00262632

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: Driver Side R/B

G00262633

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Engine Room J/B

G00262634

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

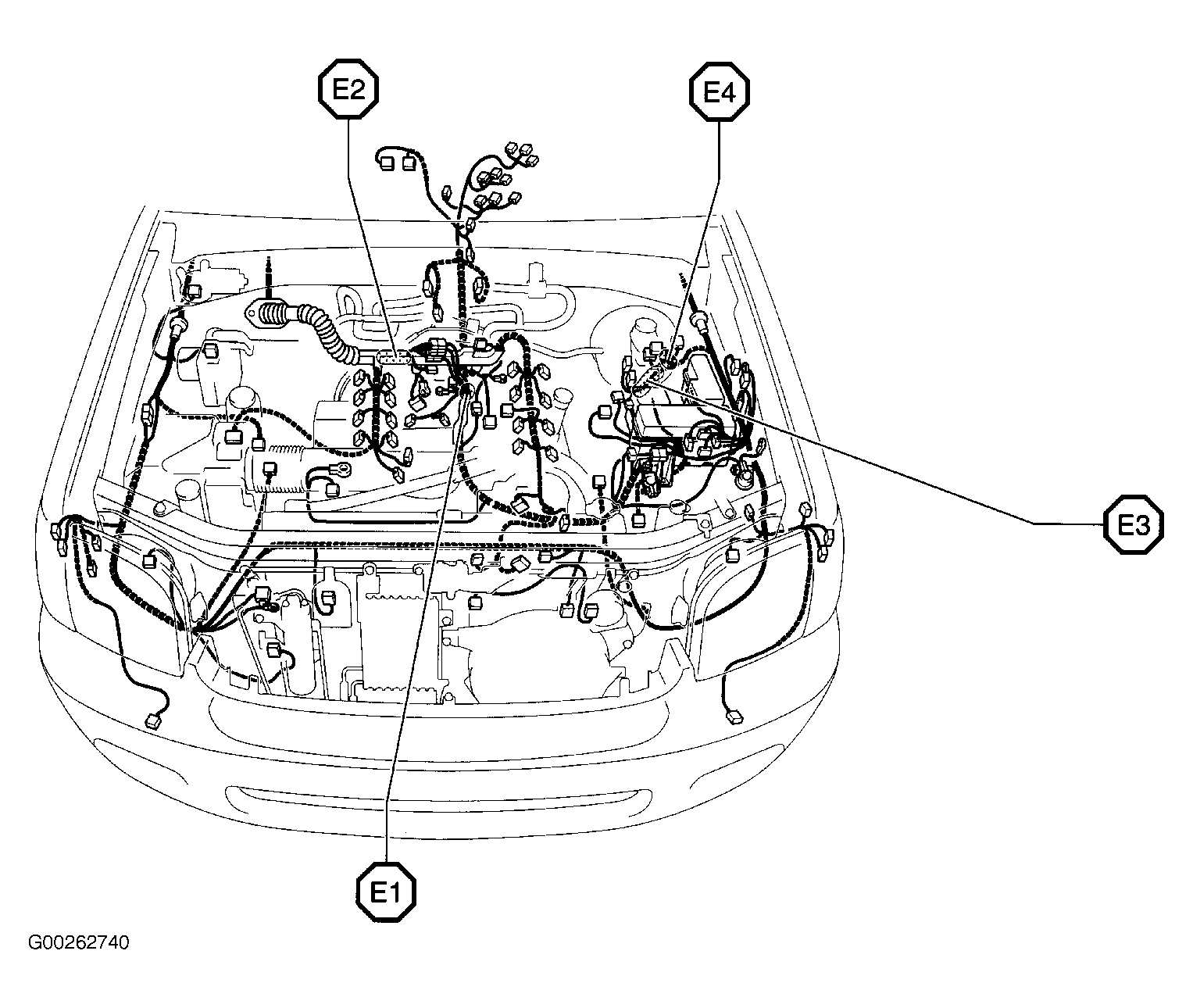

Fig 22: Engine Compartment

G00262740

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

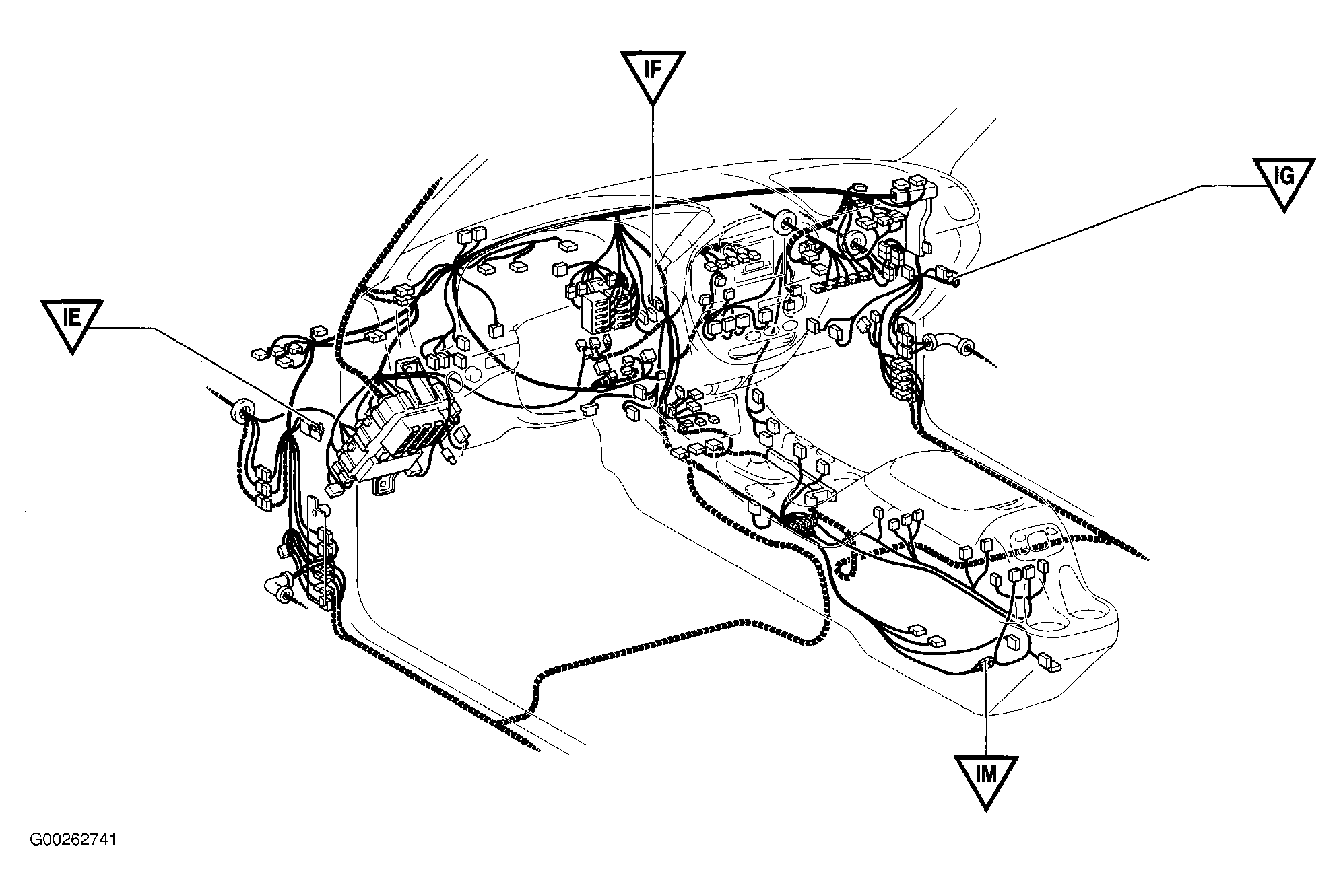

Fig 23: Dash

G00262741

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

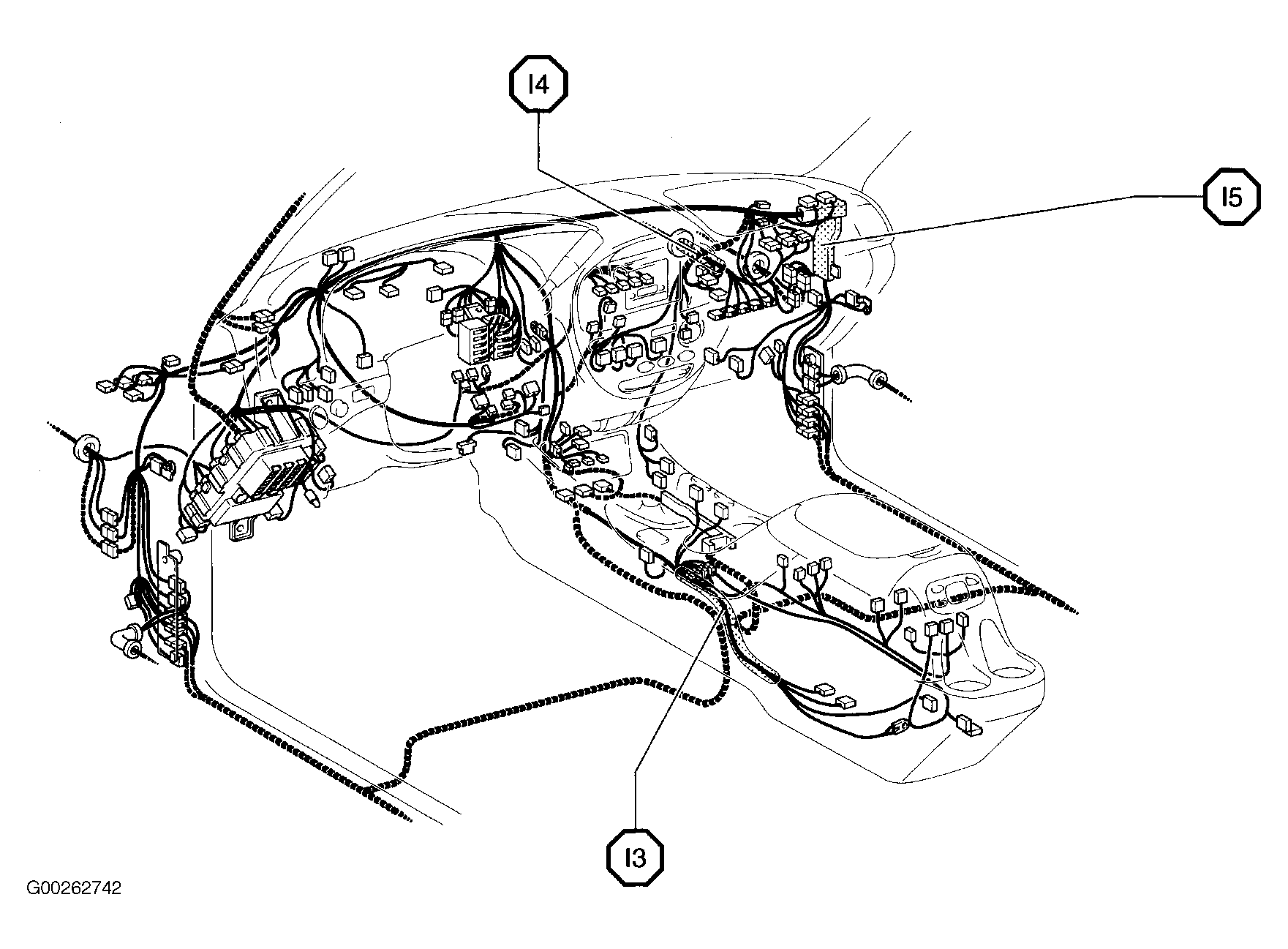

Fig 24: Dash

G00262742

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

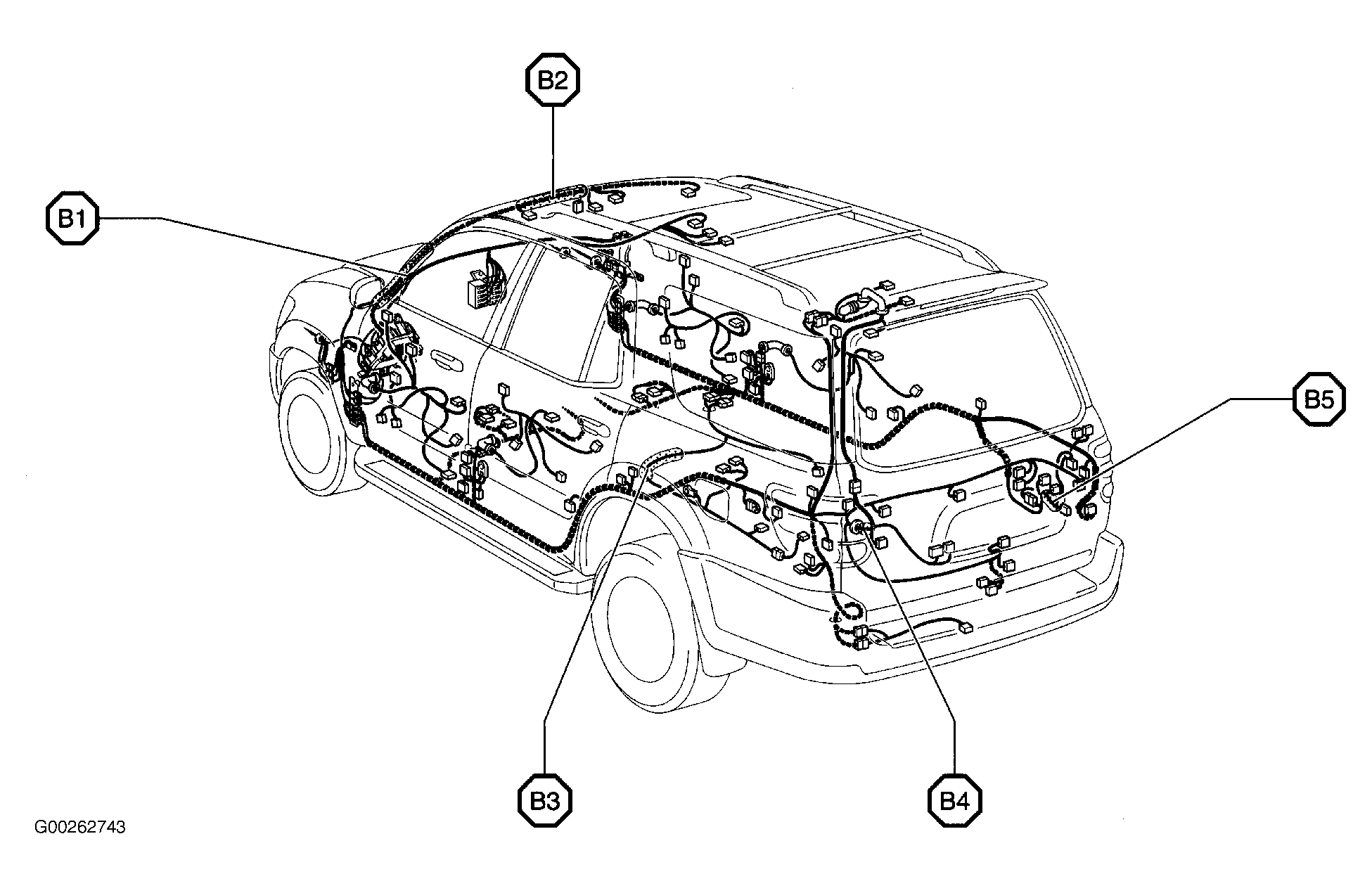

Fig 25: Body

G00262743

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 26: Instrument Panel J/B

G00262635

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
